| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 冷却封装 | 附件方式 | 形状 | 长度 | 宽度 | 直径 | Fin 高度 | 功耗 @ 温升 | 热阻 @ 强制气流 | 热阻 @ 自然对流 | 材质 | 材料表面处理 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-01B-72-C2-R0HEATSINK 45X45X35MM L-TAB T766 |
4,734 |
|
规格书 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 1.378" (35.00mm) | - | 5.11°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-H1-66-C2-R0HEATSINK 40X40X35MM L-TAB T766 |
4,687 |
|
规格书 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 1.378" (35.00mm) | - | 5.77°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-H1-205-C2-R0HEATSINK 60X60X6MM XCUT T766 |
4,235 |
|
规格书 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.236" (6.00mm) | - | 13.00°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

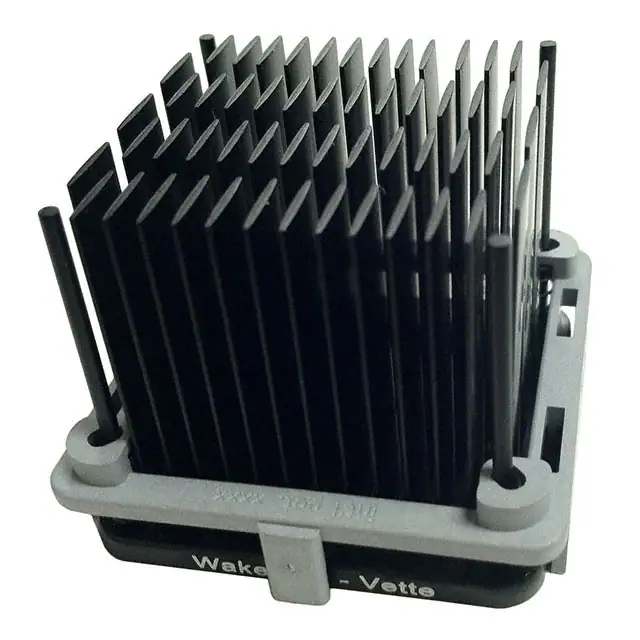

910-40-1-12-2-B-0HEATSINK 40X40X12MM ELLIPTICAL |
2,116 |
|
规格书 |
910 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.457" (11.60mm) | - | 3.10°C/W @ 200 LFM | 10.00°C/W | Aluminum | Black Anodized |
|
910-40-1-15-2-B-0HEAT SINK ELLIP FIN 40X40MM CLIP |
4,873 |
|
规格书 |
910 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.575" (40.01mm) | 1.575" (40.01mm) | - | 0.575" (14.60mm) | - | 2.77°C/W @ 200 LFM | 9.51°C/W | Aluminum | Black Anodized |
|
|
910-40-1-19-2-B-0HEAT SINK ELLIP FIN 40X40MM CLIP |
1,017 |
|
规格书 |
910 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.575" (40.01mm) | 1.575" (40.01mm) | - | 0.693" (17.60mm) | - | 2.74°C/W @ 200 LFM | 9.06°C/W | Aluminum | Black Anodized |
|
|
910-40-1-21-2-B-0HEAT SINK ELLIP FIN 40X40MM CLIP |
1,465 |
|
规格书 |
910 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.811" (20.60mm) | - | 2.22°C/W @ 200 LFM | 8.62°C/W | Aluminum | Black Anodized |
|
|
910-40-1-28-2-B-0HEAT SINK ELLIP FIN 40X40MM CLIP |
3,278 |
|
规格书 |
910 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.575" (40.01mm) | 1.575" (40.01mm) | - | 1.087" (27.60mm) | - | 1.80°C/W @ 200 LFM | 7.55°C/W | Aluminum | Black Anodized |
|
|
910-40-1-33-2-B-0HEAT SINK ELLIP FIN 40X40MM CLIP |
2,994 |
|
规格书 |
910 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.575" (40.01mm) | 1.575" (40.01mm) | - | 1.283" (32.60mm) | - | 1.61°C/W @ 200 LFM | 6.78°C/W | Aluminum | Black Anodized |
|
|
910-40-2-15-2-B-0HEAT SINK PIN FIN 40X40MM CLIP |
4,136 |
|
规格书 |
910 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.575" (40.01mm) | 1.575" (40.01mm) | - | 0.575" (14.60mm) | - | 2.64°C/W @ 200 LFM | 8.71°C/W | Aluminum | Black Anodized |
|
|
910-40-2-19-2-B-0HEAT SINK PIN FIN 40X40MM CLIP |
2,698 |
|
规格书 |
910 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.575" (40.01mm) | 1.575" (40.01mm) | - | 0.693" (17.60mm) | - | 2.40°C/W @ 200 LFM | 8.24°C/W | Aluminum | Black Anodized |
|
|
910-40-2-21-2-B-0HEAT SINK PIN FIN 40X40MM CLIP |
4,081 |
|
规格书 |
910 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.575" (40.01mm) | 1.575" (40.01mm) | - | 0.811" (20.60mm) | - | 2.21°C/W @ 200 LFM | 7.77°C/W | Aluminum | Black Anodized |
|
|
910-40-2-28-2-B-0HEAT SINK PIN FIN 40X40MM CLIP |
3,313 |
|
规格书 |
910 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 1.087" (27.60mm) | - | 1.77°C/W @ 200 LFM | 7.27°C/W | Aluminum | Black Anodized |
|
|
910-40-2-33-2-B-0HEAT SINK PIN FIN 40X40MM CLIP |
3,324 |
|
规格书 |
910 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.575" (40.01mm) | 1.575" (40.01mm) | - | 1.283" (32.60mm) | - | 1.58°C/W @ 200 LFM | 6.92°C/W | Aluminum | Black Anodized |
|
|
6000DGHEAT SINK |
1,680 |
|
规格书 |
- | Bulk | Active | Board Level, Vertical | Axial Lead Devices | PC Pin | Rectangular | 1.000" (25.40mm) | 0.250" (6.35mm) | - | 1.075" (27.31mm) | - | - | 15.00°C/W | Copper | Tin |
|
ATS-H1-105-C3-R1HEATSINK 45.00MM X 45.00MM ALUM |
1,429 |
|
规格书 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.374" (9.50mm) | - | 28.32°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-H1-129-C3-R0HEATSINK 60X60X10MM XCUT T412 |
1,106 |
|
规格书 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.394" (10.00mm) | - | 8.71°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

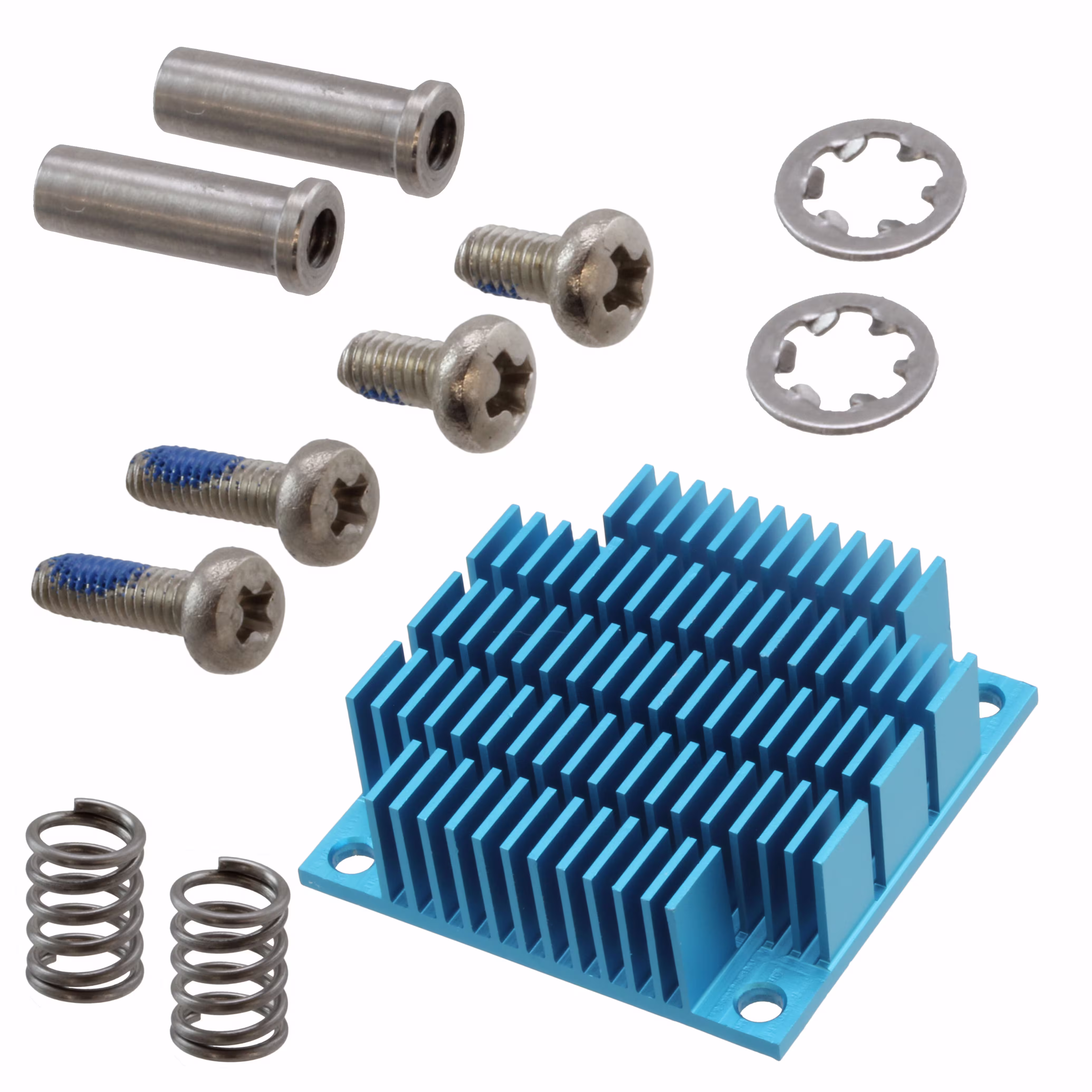

ATS-H1-68-C2-R0HEATSINK 45X45X15MM L-TAB T766 |
4,242 |
|
规格书 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.590" (15.00mm) | - | 15.31°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

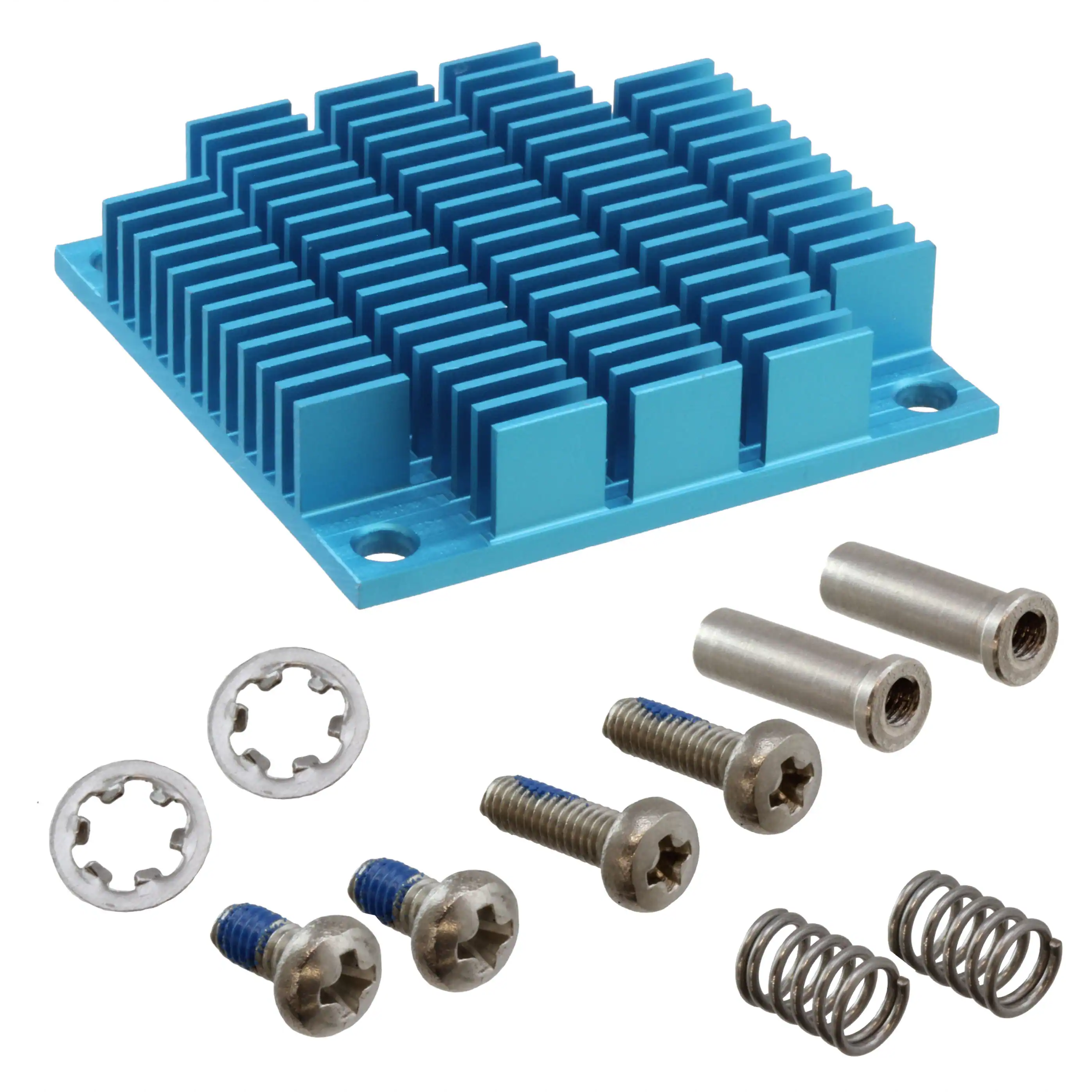

ATS-H1-187-C2-R0HEATSINK 45X45X10MM R-TAB T766 |
4,894 |
|
规格书 |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.394" (10.00mm) | - | 10.70°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-H1-66-C3-R0HEATSINK 40X40X35MM L-TAB T412 |
2,743 |
|
规格书 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 1.378" (35.00mm) | - | 5.88°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
