购物车散热器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 冷却封装 | 附件方式 | 形状 | 长度 | 宽度 | 直径 | Fin 高度 | 功耗 @ 温升 | 热阻 @ 强制气流 | 热阻 @ 自然对流 | 材质 | 材料表面处理 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
V7466ZHEATSINK ALUM ANOD |
1,386 |
|
规格书 |
- | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Bolt On and PC Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.500" (12.70mm) | - | - | 5.60°C/W | Aluminum | Black Anodized |
|

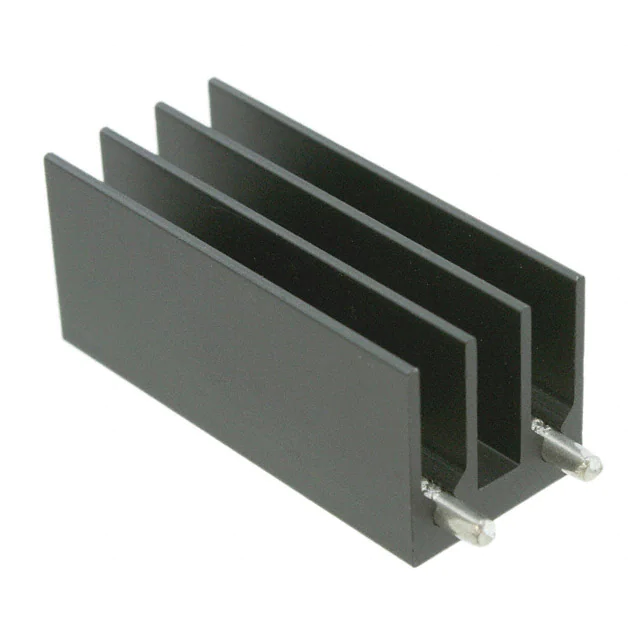

634-15ABPEHEATSINK SLIM VERT BLACK TO-220 |
2,519 |
|
规格书 |
634 | Box | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.500" (38.10mm) | 0.640" (16.26mm) | - | 0.640" (16.26mm) | 3.0W @ 50°C | 2.00°C/W @ 300 LFM | 50.00°C/W | Aluminum | Black Anodized |
|
575200B00000GHEATSINK TO-92 .72" BLK |
2,993 |
|
规格书 |
- | Bag | Active | Board Level, Vertical | TO-92 | Press Fit | Rectangular, Fins | 0.602" (15.29mm) | - | - | 0.720" (18.29mm) | 0.3W @ 20°C | 17.50°C/W @ 400 LFM | 60.00°C/W | Aluminum | Black Anodized |
|
624-45ABT3HEATSINK CPU 21MM SQ W/ADH BLK |
14,121 |
|
规格书 |
624 | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 0.827" (21.00mm) | 0.827" (21.00mm) | - | 0.450" (11.43mm) | - | 15.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

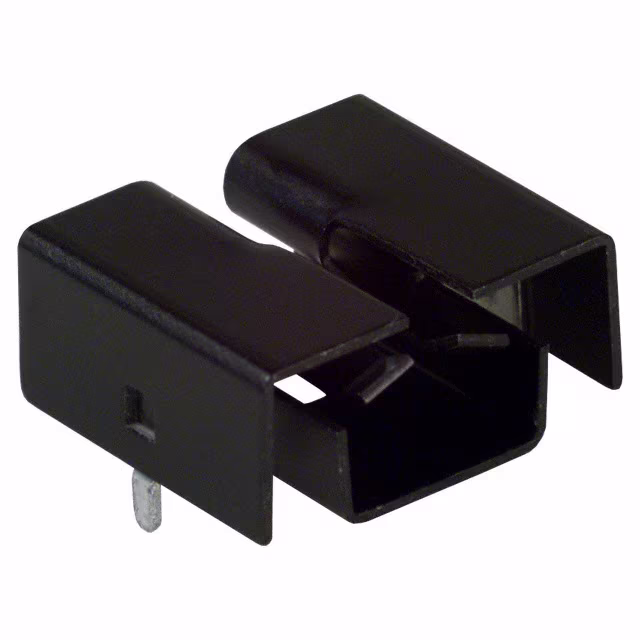

574402B03200GHEATSINK TO220 HOR MNT W/TAB.75" |
3,374 |
|
规格书 |
- | Bulk | Active | Board Level | TO-220 | Clip and PC Pin | Rectangular, Fins | 0.750" (19.05mm) | 0.860" (21.84mm) | - | 0.395" (10.03mm) | 3.0W @ 60°C | 12.00°C/W @ 200 LFM | 23.20°C/W | Aluminum | Black Anodized |
|

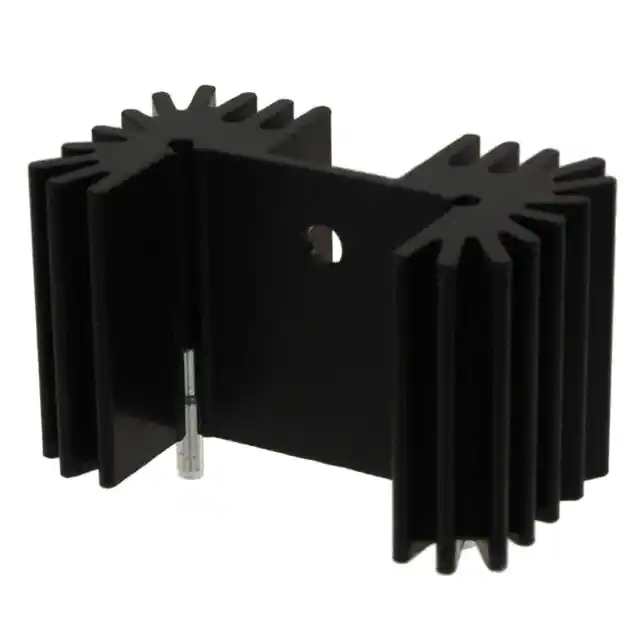

RA-T2X-25EHEATSINK TO-218,TO-220,TO-247 |
330 |
|
规格书 |
R | Box | Active | Board Level, Vertical | TO-218, TO-220, TO-247 | Bolt On and PC Pin | Rectangular, Fins | 1.654" (42.00mm) | 0.985" (25.00mm) | - | 1.000" (25.40mm) | 2.0W @ 20°C | 1.50°C/W @ 200 LFM | 4.80°C/W | Aluminum | Black Anodized |
|

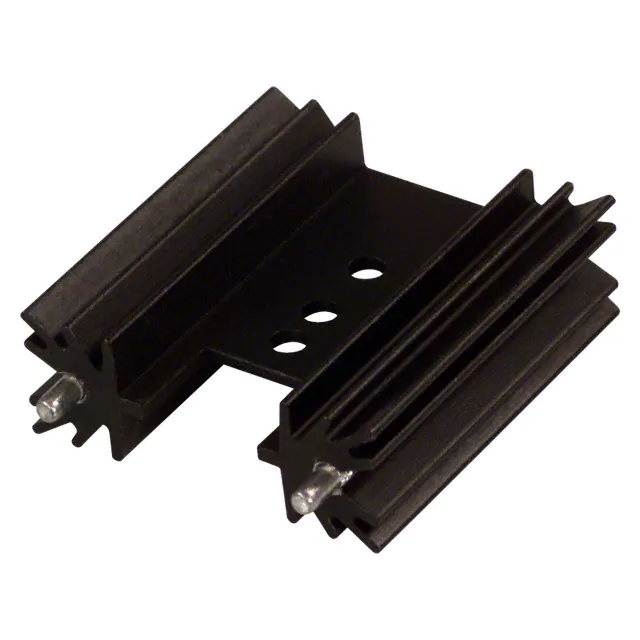

531102B02500GHEATSINK TO-220 W/PINS 1.5"TALL |
1,329 |
|
规格书 |
- | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.500" (38.10mm) | 1.375" (34.93mm) | - | 0.500" (12.70mm) | 7.0W @ 70°C | 3.00°C/W @ 500 LFM | 10.40°C/W | Aluminum | Black Anodized |
|

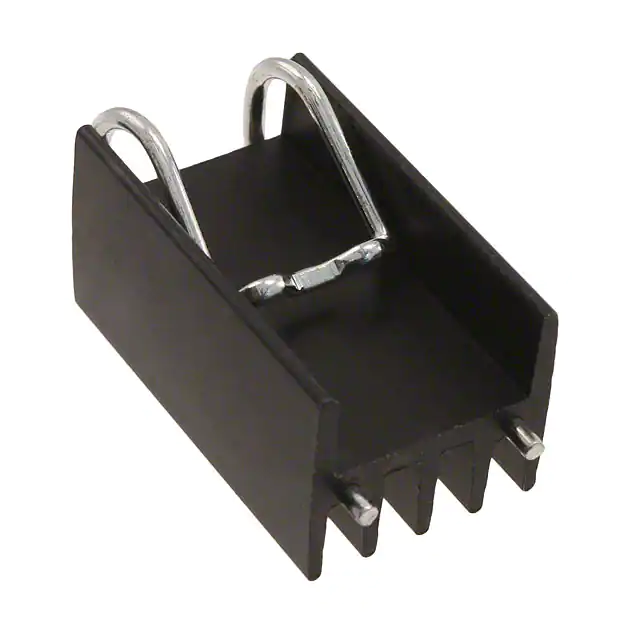

WA-T220-101EHEATSINK AND CLIP FOR TO-220 BLK |
2,018 |
|
规格书 |
W | Tray | Active | Board Level, Vertical | TO-220 | Clip and PC Pin | Rectangular, Fins | 1.201" (30.50mm) | 0.720" (18.29mm) | - | 0.630" (16.00mm) | 1.0W @ 20°C | - | 12.00°C/W | Aluminum | Black Anodized |
|

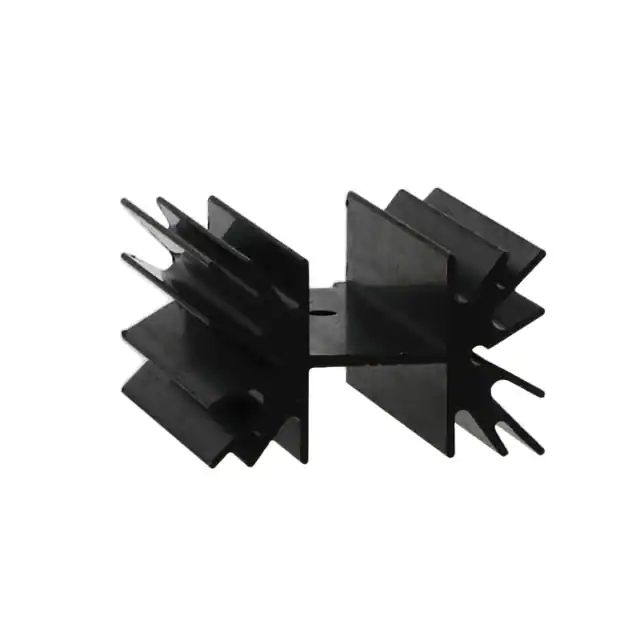

529901B02500GHEATSINK TO-218 SOLDER PIN |
225 |
|
规格书 |
- | Bulk | Active | Board Level, Vertical | TO-218 | Bolt On and PC Pin | Rectangular, Fins | 2.000" (50.80mm) | 1.650" (41.91mm) | - | 1.000" (25.40mm) | 12.0W @ 50°C | 1.00°C/W @ 800 LFM | 4.50°C/W | Aluminum | Black Anodized |
|
DA-T263-101E-TRTO-263 HEAT SINK / POLY TAPE |
504 |
|
规格书 |
D | Tape & Reel (TR) | Active | Top Mount | TO-263 (D²Pak) | Solderable Feet | Rectangular, Fins | 0.500" (12.70mm) | 1.020" (25.91mm) | - | 0.400" (10.16mm) | 2.0W @ 30°C | 8.00°C/W @ 500 LFM | - | Aluminum | Black Anodized |
|

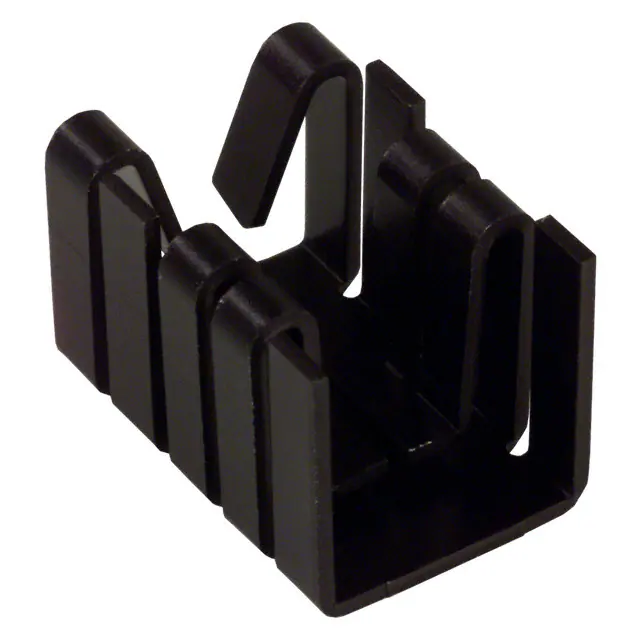

576802B00000GHEATSINK TO-220 5W BLK |
8,323 |
|
规格书 |
- | Bag | Active | Board Level | TO-220, TO-262 | Clip | Rectangular, Fins | 0.750" (19.05mm) | 0.500" (12.70mm) | - | 0.500" (12.70mm) | 1.5W @ 40°C | 7.00°C/W @ 400 LFM | 27.30°C/W | Aluminum | Black Anodized |
|

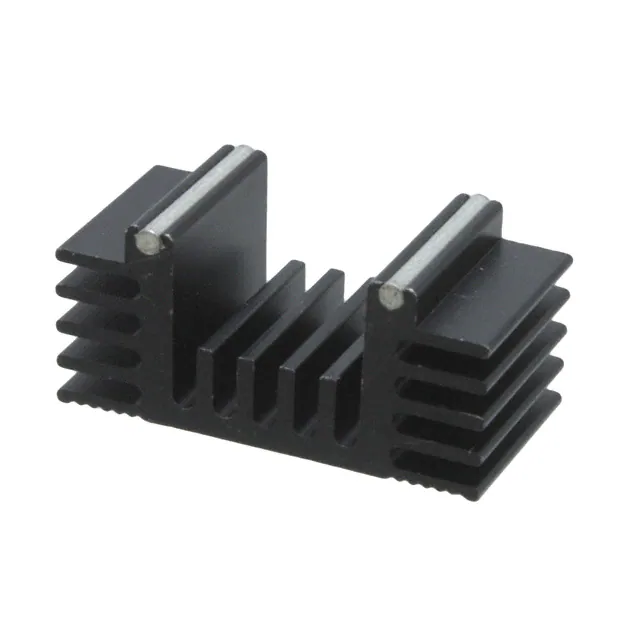

DA-T263-201E-TRHEATSINK FOR TO-263 |
1,390 |
|
规格书 |
D | Tape & Reel (TR) | Active | Top Mount | TO-263 (D²Pak) | Solderable Feet | Rectangular, Fins | 0.500" (12.70mm) | 1.020" (25.91mm) | - | 0.480" (12.19mm) | 2.0W @ 30°C | 8.00°C/W @ 500 LFM | - | Aluminum | Black Anodized |
|

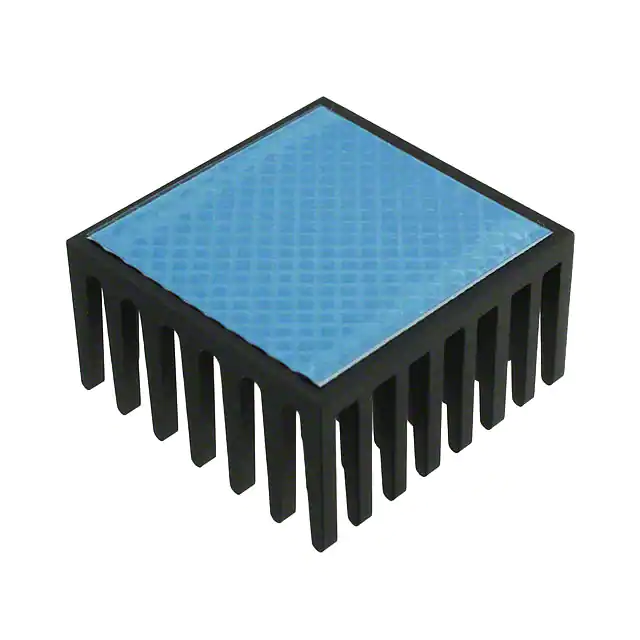

658-60ABT1EHEATSINK CPU 28MM SQ BLK W/TAPE |
16,874 |
|
规格书 |
658 | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.100" (27.94mm) | 1.100" (27.94mm) | - | 0.600" (15.24mm) | 2.5W @ 30°C | 2.00°C/W @ 500 LFM | - | Aluminum | Black Anodized |
|

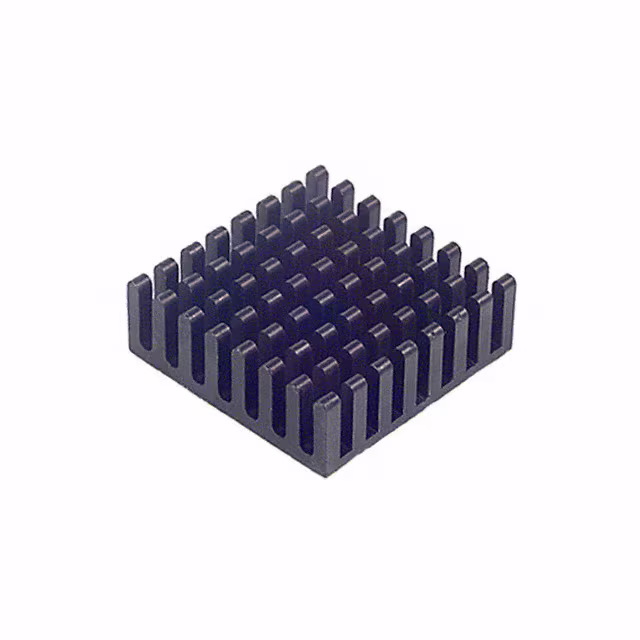

BDN09-3CB/A01HEATSINK CPU W/ADHESIVE .91"SQ |
3,542 |
|
规格书 |
BDN | Box | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 0.910" (23.11mm) | 0.910" (23.11mm) | - | 0.355" (9.02mm) | - | 9.60°C/W @ 400 LFM | 26.90°C/W | Aluminum | Black Anodized |
|

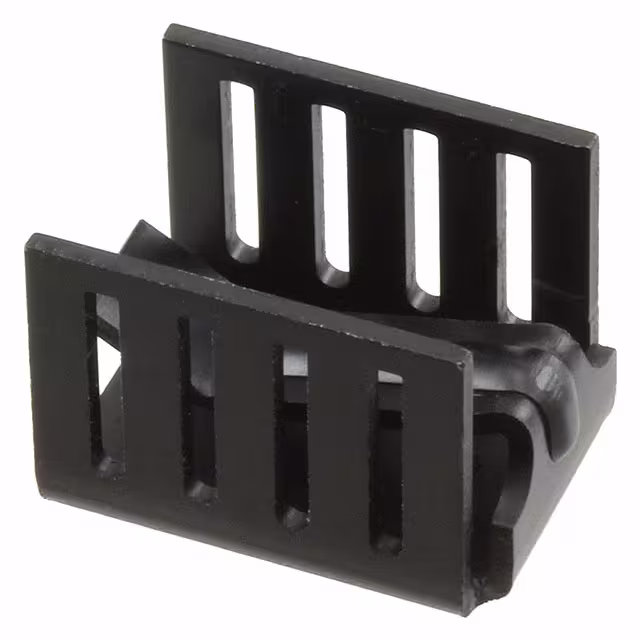

6236BGHEATSINK TO-220 CLIP-ON BLACK |
1,440 |
|
规格书 |
- | Bulk | Active | Board Level, Vertical | TO-220 | Clip | Rectangular, Fins | 0.700" (17.78mm) | 0.520" (13.21mm) | - | 0.510" (12.95mm) | 2.0W @ 50°C | 12.00°C/W @ 300 LFM | 25.00°C/W | Aluminum | Black Anodized |
|

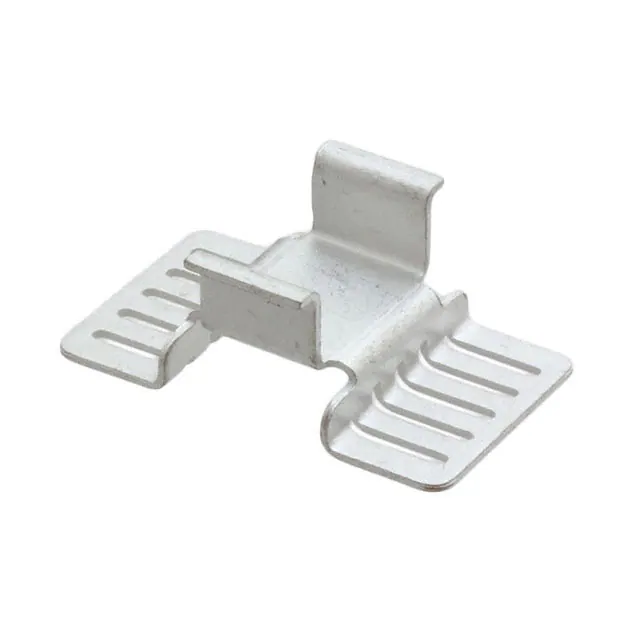

7106DGBOARD LEVEL HEATSINK .375" D2PAK |
13,259 |
|
规格书 |
- | Bulk | Active | Top Mount | TO-263 (D²Pak), PowerSO-10 (MO-184), SO-10 | SMD Pad | Rectangular, Fins | 0.591" (15.00mm) | 1.020" (25.91mm) | - | 0.375" (9.52mm) | 2.0W @ 40°C | 5.00°C/W @ 400 LFM | - | Copper | Tin |
|

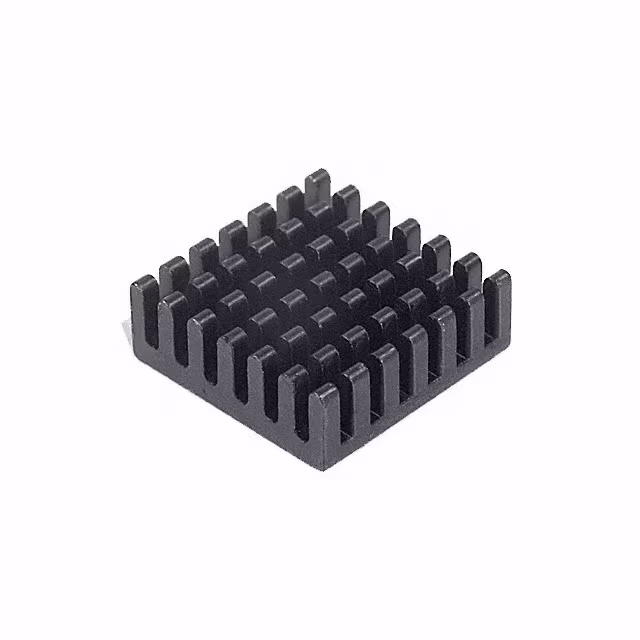

BDN10-3CB/A01HEATSINK CPU W/ADHESIVE 1.01"SQ |
780 |
|
规格书 |
BDN | Box | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.010" (25.65mm) | 1.010" (25.65mm) | - | 0.355" (9.02mm) | - | 8.00°C/W @ 400 LFM | 26.40°C/W | Aluminum | Black Anodized |
|

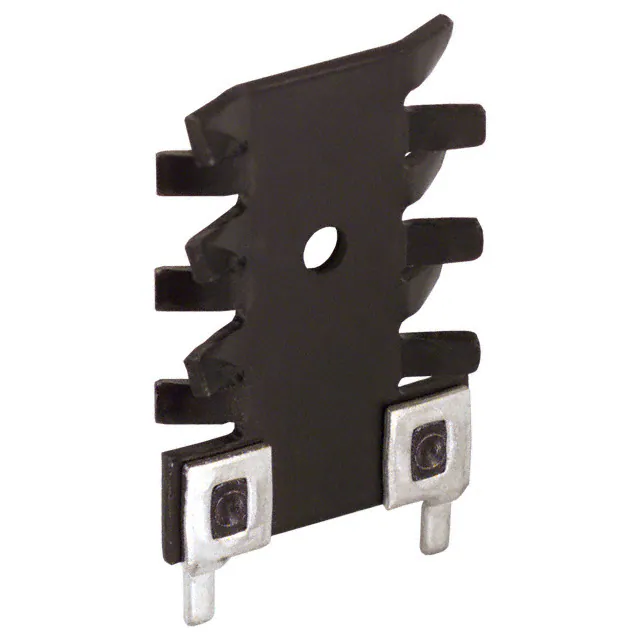

592502B03400GHEATSINK TO-220 VERT MNT W/TABS |
14,142 |
|
规格书 |
- | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.250" (31.75mm) | 0.874" (22.20mm) | - | 0.250" (6.35mm) | 1.0W @ 30°C | 10.00°C/W @ 200 LFM | 22.00°C/W | Aluminum | Black Anodized |
|

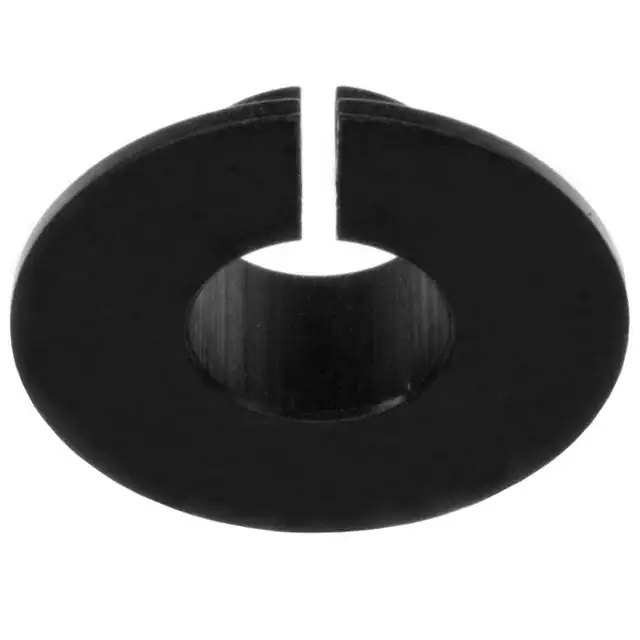

322605B00000GHEATSINK TO-5 1.25W H=.25" BLK |
1,057 |
|
规格书 |
- | Bag | Active | Top Mount | TO-5 | Press Fit | Cylindrical | - | - | 0.315" (8.00mm) ID, 0.750" (19.05mm) OD | 0.250" (6.35mm) | 1.0W @ 60°C | 25.00°C/W @ 200 LFM | 54.00°C/W | Aluminum | Black Anodized |
|

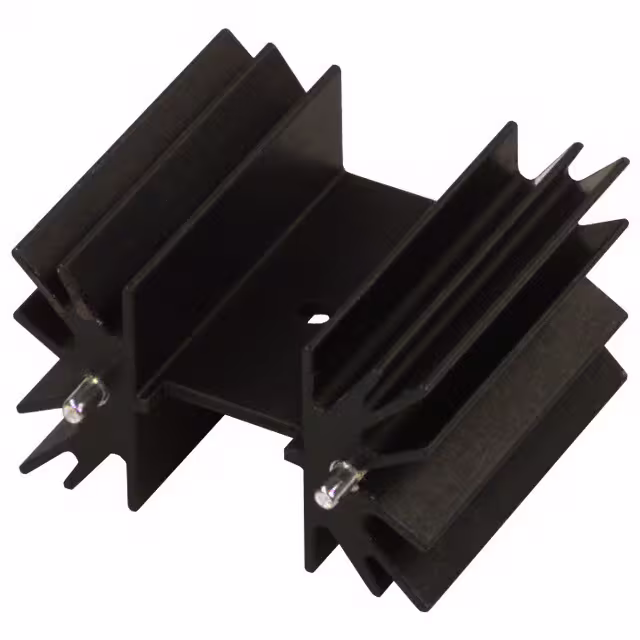

529802B02500GHEATSINK TO-220 W/PINS 1.5"TALL |
7,718 |
|
规格书 |
- | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.000" (25.40mm) | 1.650" (41.91mm) | - | 1.500" (38.10mm) | 10.0W @ 50°C | 3.00°C/W @ 200 LFM | 3.70°C/W | Aluminum | Black Anodized |
