购物车散热器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 冷却封装 | 附件方式 | 形状 | 长度 | 宽度 | 直径 | Fin 高度 | 功耗 @ 温升 | 热阻 @ 强制气流 | 热阻 @ 自然对流 | 材质 | 材料表面处理 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

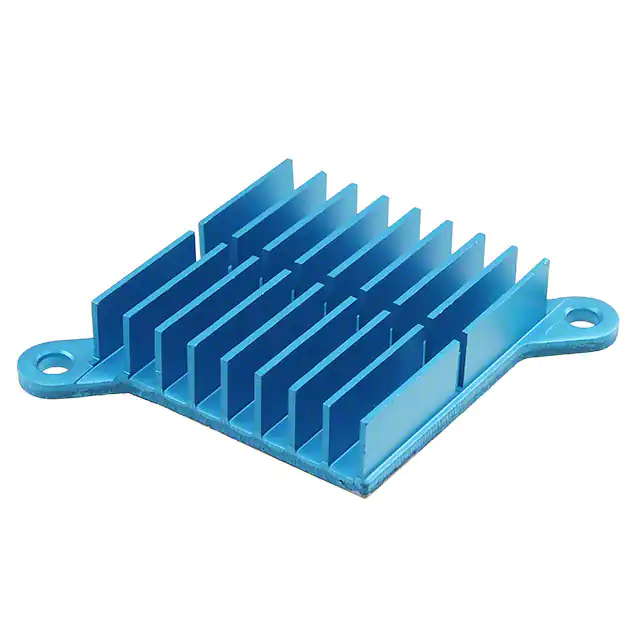

ATS-CPX035035010-175-C2-R0HEATSINK 35X35X10MM R-TAB CP |
160 |
|
规格书 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.394" (10.00mm) | - | 13.52°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

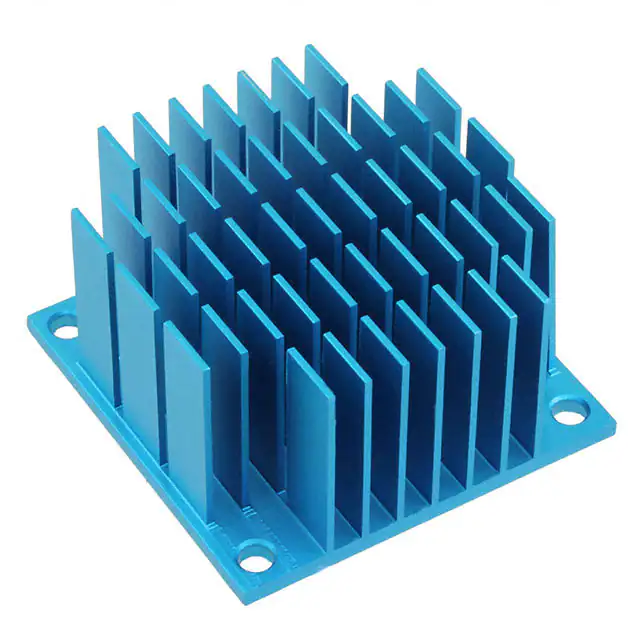

ATS-CPX045045025-120-C2-R0HEATSINK 45X45X25MM XCUT CP |
250 |
|
规格书 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.984" (25.00mm) | - | 3.48°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

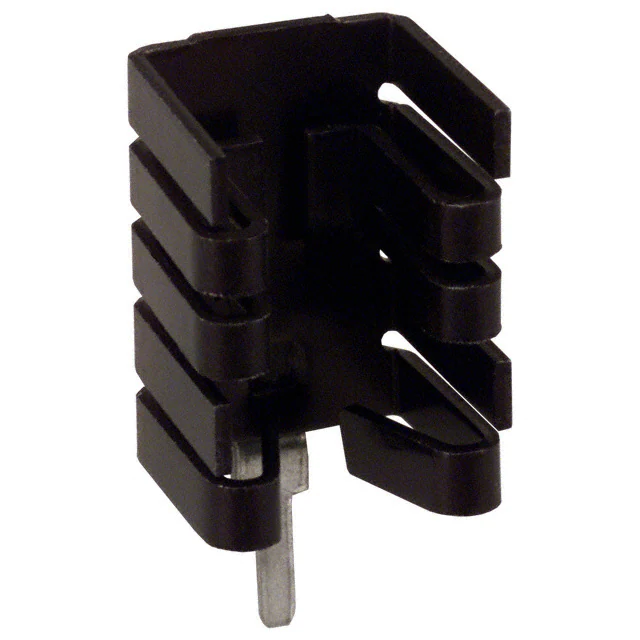

576802B03700GHEATSINK TO220 CLIPON W/TAB.75" |
2,011 |
|
规格书 |
- | Bulk | Active | Board Level | TO-220, TO-262 | Clip and PC Pin | Rectangular, Fins | 0.748" (19.00mm) | 0.500" (12.70mm) | - | 0.500" (12.70mm) | 1.0W @ 30°C | 7.00°C/W @ 400 LFM | 27.30°C/W | Aluminum | Black Anodized |
|
323005B00000GHEATSINK TO-5 2W BLK |
574 |
|
规格书 |
- | Bag | Active | Board Level | TO-5 | Press Fit | Cylindrical | - | - | 0.318" (8.07mm) ID, 0.750" (19.05mm) OD | 0.250" (6.35mm) | 1.4W @ 70°C | 35.00°C/W @ 200 LFM | 56.00°C/W | Aluminum | Black Anodized |
|
517-95ABHEATSINK BXB50,75,100,150.95"HRZ |
2,823 |
|
规格书 |
517 | Bulk | Active | Board Level | Half Brick DC/DC Converter | Bolt On, Thermal Material | Rectangular, Fins | 2.280" (57.90mm) | 2.401" (61.00mm) | - | 0.950" (24.13mm) | 11.0W @ 60°C | 2.00°C/W @ 300 LFM | - | Aluminum | Black Anodized |
|

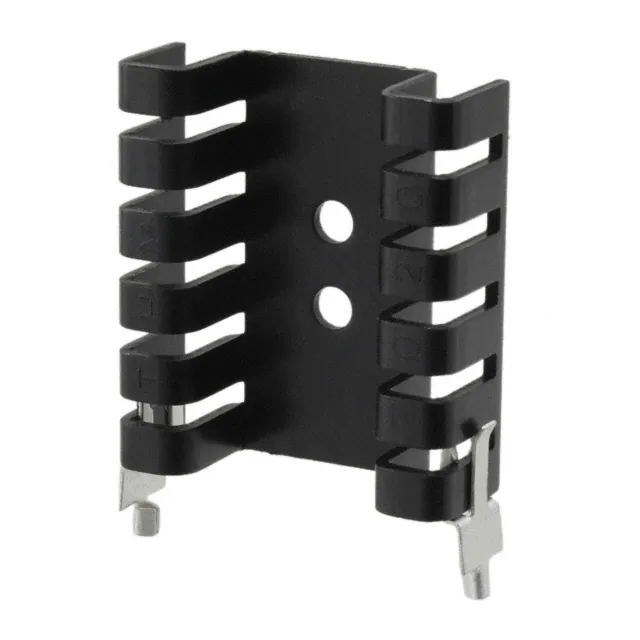

7020B-MTGHEATSINK TO-220 TAB FOLD 42.16MM |
1,892 |
|
规格书 |
- | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.450" (36.83mm) | 1.300" (33.02mm) | - | 0.470" (11.94mm) | 8.0W @ 70°C | 3.00°C/W @ 800 LFM | 8.70°C/W | Aluminum | Black Anodized |
|

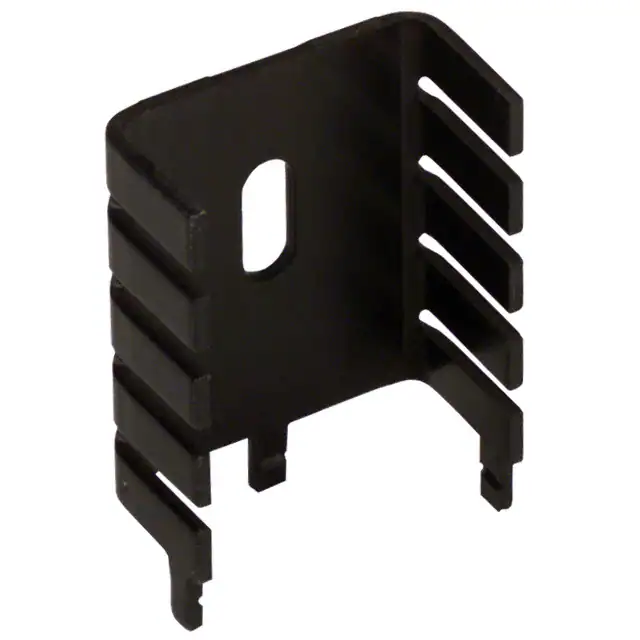

563002B00000GHEATSINK TO-220 VERT MNT 1.18" |
1,377 |
|
规格书 |
- | Bag | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.180" (29.97mm) | 1.000" (25.40mm) | - | 0.500" (12.70mm) | 1.0W @ 20°C | 7.00°C/W @ 200 LFM | 13.00°C/W | Aluminum | Black Anodized |
|

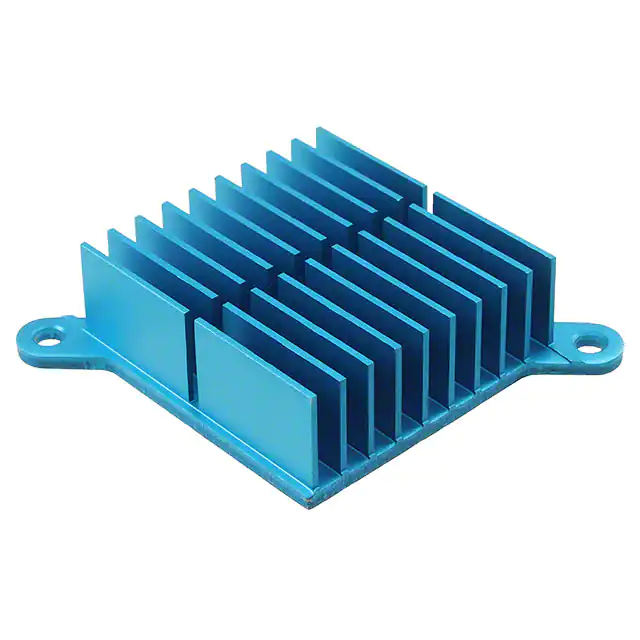

ATS-CPX040040015-154-C2-R0HEATSINK 40X40X15MM L-TAB CP |
134 |
|
规格书 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.590" (15.00mm) | - | 7.51°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
960-19-12-D-AB-0HEATSINK 19X12MM DIA PUSH PIN |
523 |
|
规格书 |
960 | Tray | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.472" (12.00mm) | - | 8.60°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

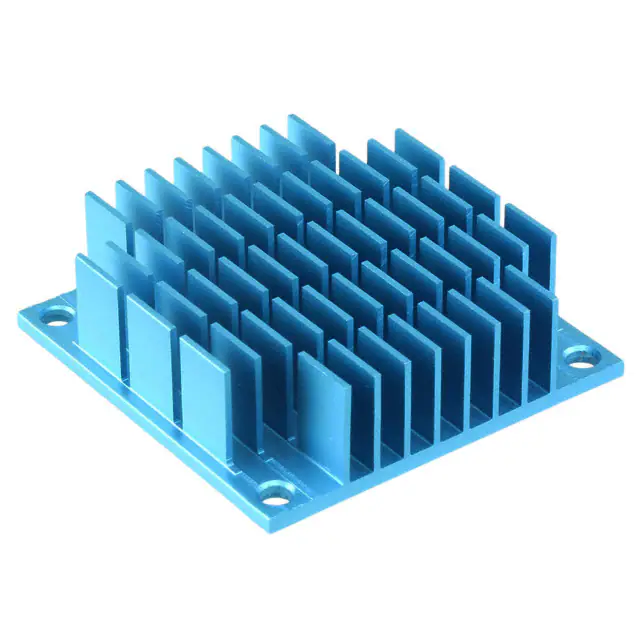

ATS-CPX050050015-122-C2-R0HEATSINK 50X50X15MM XCUT CP |
250 |
|
规格书 |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.590" (15.00mm) | - | 5.87°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

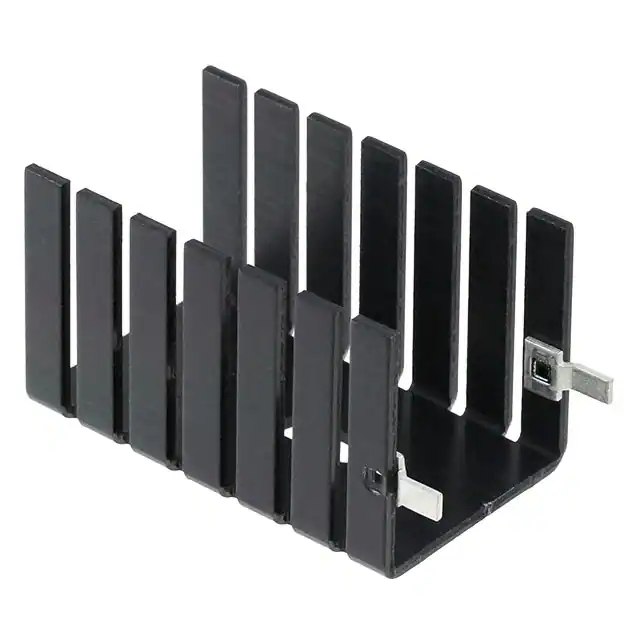

590302B03600GHEATSINK TO-220 CLIP-ON BLACK |
2,130 |
|
规格书 |
- | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.675" (42.55mm) | 1.000" (25.40mm) | - | 1.000" (25.40mm) | 4.0W @ 40°C | 4.00°C/W @ 300 LFM | 11.20°C/W | Aluminum | Black Anodized |
|

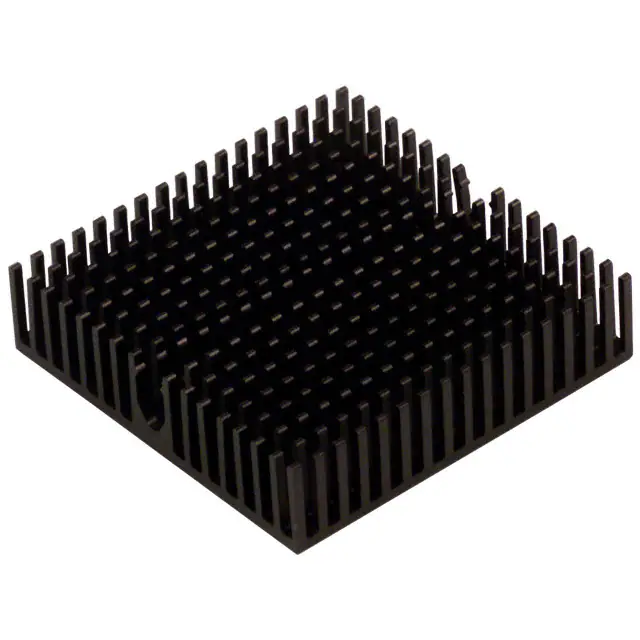

374924B00032GHEATSINK BGA W/ADHESIVE TAPE |
1,166 |
|
规格书 |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.575" (40.00mm) | 1.575" (40.01mm) | - | 0.394" (10.00mm) | 4.0W @ 80°C | 6.50°C/W @ 200 LFM | 20.30°C/W | Aluminum | Black Anodized |
|
CR101-75AEALUMINUM HEATSINK 75MM BLK ANODI |
239 |
|
规格书 |
CR | Box | Active | Board Level, Vertical | TO-101 | 3 Clips and PC Pin | Rectangular, Fins | 2.953" (75.00mm) | 1.969" (50.00mm) | - | - | - | - | 4.20°C/W | Aluminum Alloy | Black Anodized |
|
|
ATS010010019-SF-1RHEATSINK 10X10X19MM |
136 |
|
规格书 |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 0.394" (10.00mm) | 0.394" (10.00mm) | - | 0.748" (19.00mm) | - | 16.43°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

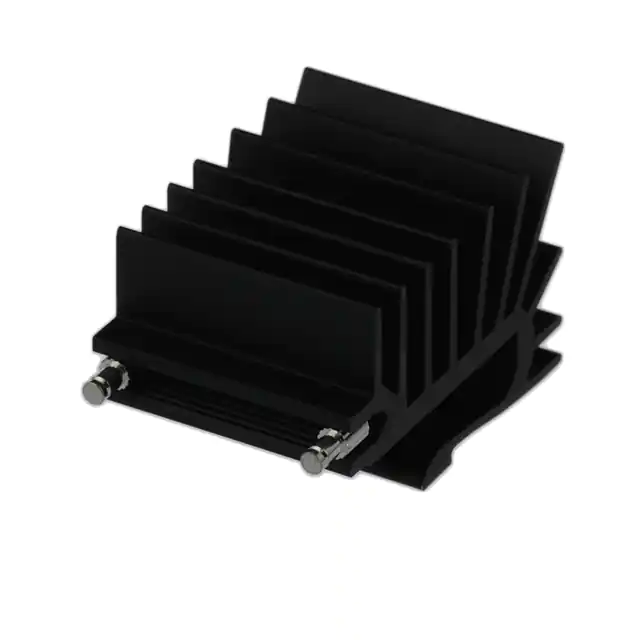

694-25HEATSINK TO247 W/CLIP 25MM |
151 |
|
规格书 |
694 | Box | Active | Board Level, Vertical | TO-247 | Clip and PC Pin | Rectangular, Fins | 0.984" (25.00mm) | 0.870" (22.10mm) | - | 1.380" (35.05mm) | - | - | - | Aluminum | Black Anodized |
|
|
960-19-15-F-AB-0HEATSINK 19X15MM FRONT PUSH PIN |
190 |
|
规格书 |
960 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.590" (15.00mm) | - | 6.80°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
374724B00032GHEATSINK BGA W/ADHESIVE TAPE |
1,420 |
|
规格书 |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.709" (18.00mm) | 3.0W @ 50°C | 5.20°C/W @ 200 LFM | 15.30°C/W | Aluminum | Black Anodized |
|

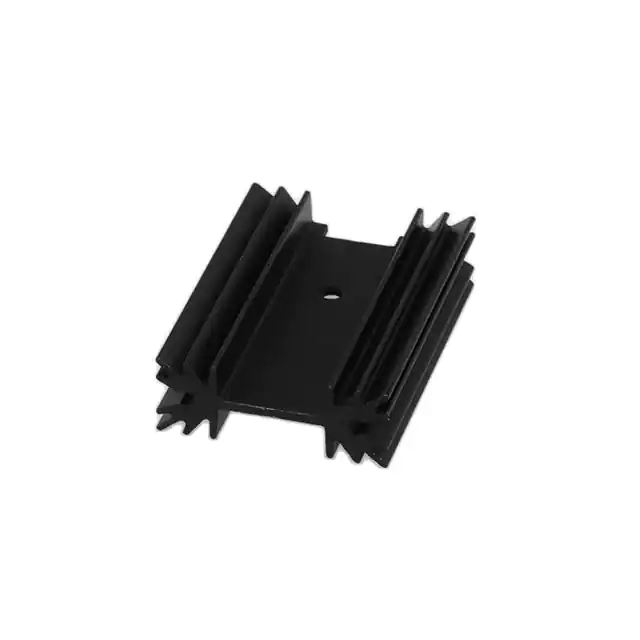

513202B02500GHEAT SINK |
442 |
|
规格书 |
- | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 2.000" (50.80mm) | 1.375" (34.93mm) | - | 0.500" (12.70mm) | 2.0W @ 20°C | 3.00°C/W @ 400 LFM | 9.00°C/W | Aluminum | Black Anodized |
|

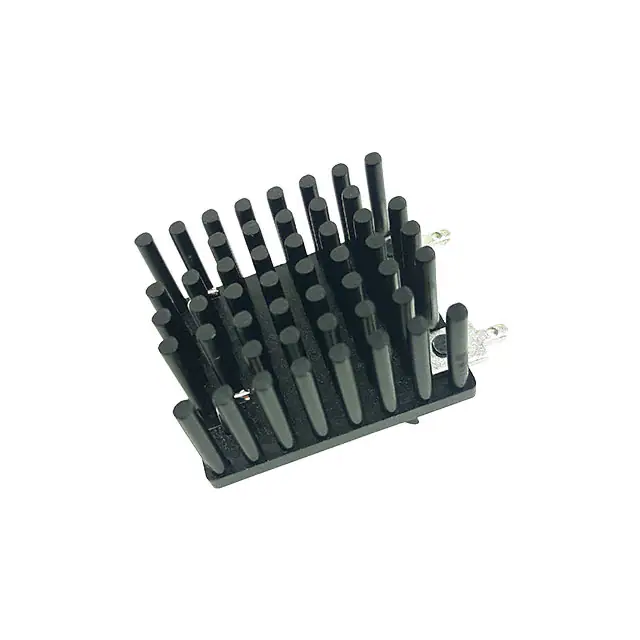

PA-T2X-38EPIN FIN HEATSINK |
238 |
|
规格书 |
P | Box | Active | Board Level, Vertical | TO-220, TO-247, TO-264 | Clip and PC Pin | Rectangular, Pin Fins | 1.180" (29.97mm) | 0.690" (17.53mm) | - | 1.500" (38.10mm) | - | - | 7.46°C/W | Aluminum | Black Anodized |
|
|
960-19-18-F-AB-0HEATSINK 19X18MM FRONT PUSH PIN |
175 |
|
规格书 |
960 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.709" (18.00mm) | - | 5.80°C/W @ 200 LFM | - | Aluminum | Black Anodized |
