| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 尖头 - 类型 | 连接类型 | 尖端长度 | 长度 - 总体 | 颜色 | 电压额定值 | 额定值 | 数量 | 电流额定值（安培） | 材质 - 本体 | 尖端材料 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S25-022SPRING PROBE SLEEVE |
4,153 |
|
规格书 |
S25-xx2 | Bulk | Active | Solder Cup | - | 0.205" (5.20mm) | 0.933" (23.70mm) | - | - | - | 1 Piece | - | - | Phosphor Bronze, Gold Plated | - |
|
S25-512SPRING PROBE SLEEVE |
1,543 |
|
规格书 |
S25-xx2 | Bulk | Active | Solder Crimp | P25-xx2 Series | 0.205" (5.20mm) | 0.933" (23.70mm) | - | - | - | 1 Piece | - | - | Phosphor Bronze, Gold Plated | - |
|
P25-12232.54MM CENTER TWO PART PROBE |
2,747 |
|
规格书 |
P25-xx23 | Bulk | Active | Concave Head | Sleeve S25-XX2 | 0.245" (6.20mm) | 0.972" (24.70mm) | - | - | - | 1 Piece | 3 A | Phosphor Bronze | Beryllium Copper, Gold Plated | -40 ~ 185°F (-40 ~ 85°C) |
|
P25-01232.54MM CENTER TWO PART PROBE |
1,612 |
|
规格书 |
P25-xx23 | Bulk | Active | Spear Head | Sleeve S25-XX2 | 0.245" (6.20mm) | 0.972" (24.70mm) | - | - | - | 1 Piece | 3 A | Phosphor Bronze | Beryllium Copper, Gold Plated | -40 ~ 185°F (-40 ~ 85°C) |
|
P25-04232.54MM CENTER TWO PART PROBE |
2,563 |
|
规格书 |
P25-xx23 | Bulk | Active | Spherical Radius Head | Sleeve S25-XX2 | 0.245" (6.20mm) | 0.972" (24.70mm) | - | - | - | 1 Piece | 3 A | Phosphor Bronze | Beryllium Copper, Gold Plated | -40 ~ 185°F (-40 ~ 85°C) |
|
P25-52232.54MM CENTER TWO PART PROBE |
2,722 |
|
规格书 |
P25-xx23 | Bulk | Active | Star Head | Sleeve S25-XX2 | 0.245" (6.20mm) | 0.972" (24.70mm) | - | - | - | 1 Piece | 3 A | Phosphor Bronze | Beryllium Copper, Gold Plated | -40 ~ 185°F (-40 ~ 85°C) |
|
P19-22211.90MM CENTER TWO PART PROBE |
3,082 |
|
规格书 |
P19-xx21 | Bulk | Active | Convex Head | Sleeve S19-501 | 0.159" (4.04mm) | 0.671" (17.04mm) | - | - | - | 1 Piece | 3 A | Phosphor Bronze | Beryllium Copper, Gold Plated | -40 ~ 185°F (-40 ~ 85°C) |
|
P19-11211.90MM CENTER TWO PART PROBE |
610 |
|
规格书 |
P19-xx21 | Bulk | Active | Concave Head | Sleeve S19-501 | 0.159" (4.04mm) | 0.671" (17.04mm) | - | - | - | 1 Piece | 3 A | Phosphor Bronze | Beryllium Copper, Gold Plated | -40 ~ 185°F (-40 ~ 85°C) |
|
P19-40211.90MM CENTER TWO PART PROBE |
1,098 |
|
规格书 |
P19-xx21 | Bulk | Active | Serrated Head | Sleeve S19-501 | 0.159" (4.04mm) | 0.671" (17.04mm) | - | - | - | 1 Piece | 3 A | Phosphor Bronze | Beryllium Copper, Gold Plated | -40 ~ 185°F (-40 ~ 85°C) |
|
P25-17262.54MM CENTER TWO PART PROBE |
676 |
|
规格书 |
P25-xx26 | Bulk | Active | Tulip Head | Sleeve S25-XX6 | 0.327" (8.30mm) | 1.311" (33.30mm) | - | - | - | 1 Piece | 3 A | Phosphor Bronze | Beryllium Copper, Gold Plated | -40 ~ 185°F (-40 ~ 85°C) |
|
P13-01231.27MM CENTER TWO PART PROBE |
3,677 |
|
规格书 |
P13-xx23 | Bulk | Active | Spear Head | Sleeve S13-503 | 0.132" (3.35mm) | 0.644" (16.35mm) | - | - | - | 1 Piece | 3 A | Phosphor Bronze | Beryllium Copper, Gold Plated | -40 ~ 185°F (-40 ~ 85°C) |
|
P13-21231.27MM CENTER TWO PART PROBE |
1,561 |
|
规格书 |
P13-xx23 | Bulk | Active | Convex Head | Sleeve S13-503 | 0.140" (3.55mm) | 0.652" (16.55mm) | - | - | - | 1 Piece | 3 A | Phosphor Bronze | Beryllium Copper, Gold Plated | -40 ~ 185°F (-40 ~ 85°C) |
|

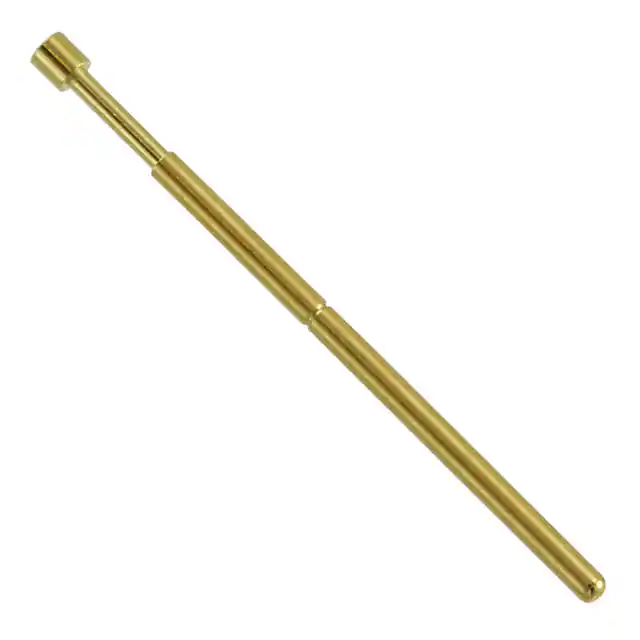

P13-11231.27MM CENTER TWO PART PROBE |
759 |
|
规格书 |
P13-xx23 | Bulk | Active | Concave Head | Sleeve S13-503 | 0.140" (3.55mm) | 0.652" (16.55mm) | - | - | - | 1 Piece | 3 A | Phosphor Bronze | Beryllium Copper, Gold Plated | -40 ~ 185°F (-40 ~ 85°C) |
|

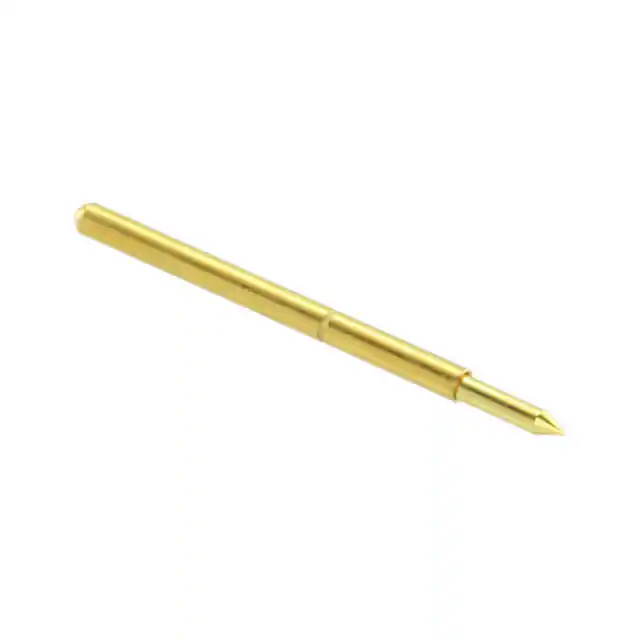

P19-01211.90MM CENTER TWO PART PROBE |
2,013 |
|
规格书 |
P19-xx21 | Bulk | Active | Spear Head | Sleeve S19-501 | 0.132" (3.35mm) | 0.644" (16.35mm) | - | - | - | 1 Piece | 3 A | Phosphor Bronze | Beryllium Copper, Gold Plated | -40 ~ 185°F (-40 ~ 85°C) |
|

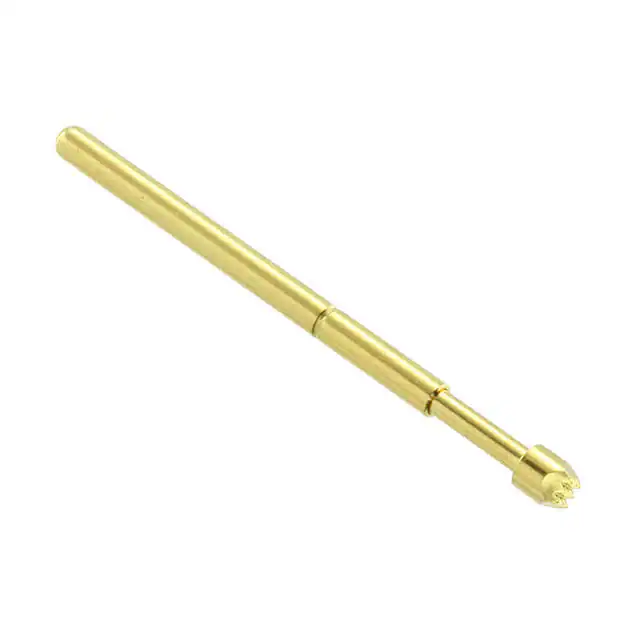

P25-40232.54MM CENTER TWO PART PROBE |
1,431 |
|
规格书 |
P25-xx23 | Bulk | Active | Serrated Head | Sleeve S25-XX2 | 0.245" (6.20mm) | 0.972" (24.70mm) | - | - | - | 1 Piece | 3 A | Phosphor Bronze | Beryllium Copper, Gold Plated | -40 ~ 185°F (-40 ~ 85°C) |
|

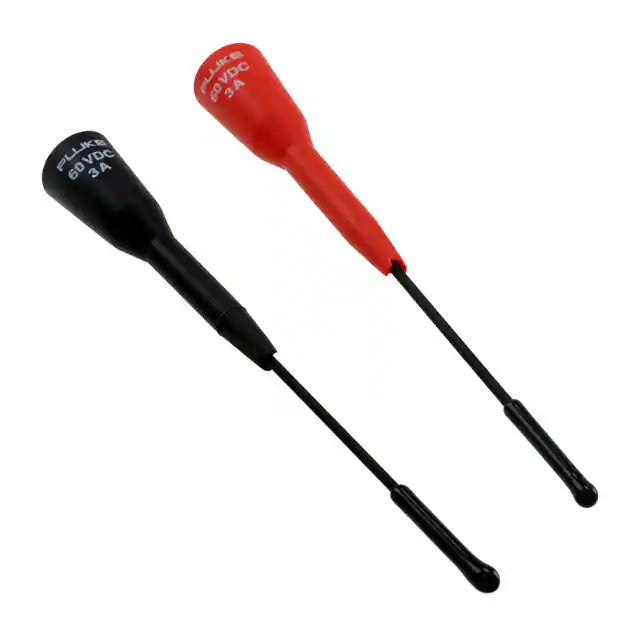

TP88PROBE PINS RIGID BACK |
223 |
|
规格书 |
- | Bulk | Active | Long Probe Tip | 0.080" (2.00mm) Probe Tips | 2.000" (50.80mm) | - | Black and Red | 60V | - | 1 Pair | - | - | - | - |
|
930176100TEST SOCKET BIL 20 BLK 4MM TEST |
497 |
|
规格书 |
- | Bulk | Active | - | Banana, Female Socket (Jack) | - | 0.925" (23.50mm) | Black | 30VAC, 60VDC | IEC 61010 | 1 Piece | 32 A | Polyamide | Brass, Nickel Plated | -25°C ~ 70°C |
|
930176101TEST SOCKET BIL 20 RED 4MM TEST |
431 |
|
规格书 |
- | Bulk | Active | - | Banana, Female Socket (Jack) | - | 0.925" (23.50mm) | Red | 30VAC, 60VDC | IEC 61010 | 1 Piece | 32 A | Polyamide | Brass, Nickel Plated | -25°C ~ 70°C |
|
5133PROBE TIP .080 MICROTIP SS |
127 |
|
规格书 |
Microtip™ 5133 | Bulk | Active | Sharp Tip, 0.040" (1.02mm) Dia | 0.080" (2.00mm) Probe Tips | 0.920" (23.37mm) | 1.261" (32.03mm) | - | 600VRMS | - | 1 Piece | 5 A | - | Steel, Stainless | - |
|

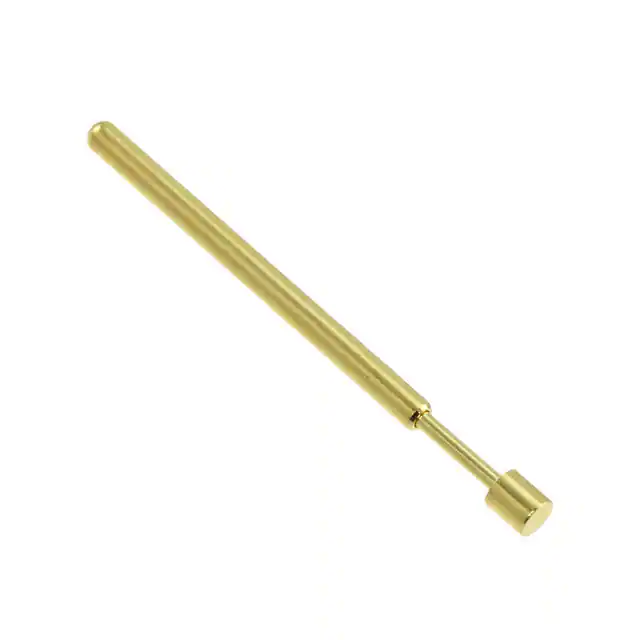

P25-08222.54MM CENTER TWO PART PROBE |
625 |
|
规格书 |
P25-xx22 | Bulk | Active | Flat Head | Sleeve S25-XX2 | 0.245" (6.20mm) | 0.972" (24.70mm) | - | - | - | 1 Piece | 3 A | Phosphor Bronze | Beryllium Copper, Gold Plated | -40 ~ 185°F (-40 ~ 85°C) |
