购物车机械式恒温器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 电路 | 切换温度 | 复位温度 | 电流额定值 - 交流 | 电流额定值 - 直流 | 容差 | 切换周期 | 端接样式 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
67F080THERMOSTAT 80DEG C NO TO220-2 |
2,056 |
|
规格书 |
6700 | TO-220-2 | Tube | Active | SPST-NO | 176°F (80°C) | 131°F (55°C) | - | 0.5A (48V) | ±9°F (±5°C) | 20K | PC Pins | Through Hole |
|
|
67F050THERMOSTAT 50DEG C NO TO220-2 |
612 |
|
规格书 |
6700 | TO-220-2 | Tube | Active | SPST-NO | 122°F (50°C) | 86°F (30°C) | - | 0.5A (48V) | ±9°F (±5°C) | 20K | PC Pins | Through Hole |
|
|
67F070THERMOSTAT 70DEG C NO TO220-2 |
530 |
|
规格书 |
6700 | TO-220-2 | Tube | Active | SPST-NO | 158°F (70°C) | 122°F (50°C) | - | 0.5A (48V) | ±9°F (±5°C) | 20K | PC Pins | Through Hole |
|
|
67F090THERMOSTAT 90DEG C NO TO220-2 |
451 |
|
规格书 |
6700 | TO-220-2 | Tube | Active | SPST-NO | 194°F (90°C) | 140°F (60°C) | - | 0.5A (48V) | ±9°F (±5°C) | 20K | PC Pins | Through Hole |
|
|
67L080THERMOSTAT 80DEG C NC TO220-2 |
4,473 |
|
规格书 |
6700 | TO-220-2 | Tube | Active | SPST-NC | 176°F (80°C) | 131°F (55°C) | - | 0.5A (48V) | ±9°F (±5°C) | 20K | PC Pins | Through Hole |
|
|
67L090THERMOSTAT 90DEG C NC TO220-2 |
840 |
|
规格书 |
6700 | TO-220-2 | Tube | Active | SPST-NC | 194°F (90°C) | 140°F (60°C) | - | 0.5A (48V) | ±9°F (±5°C) | 20K | PC Pins | Through Hole |
|
|
67L100THERMOSTAT 100DEG C NC TO220-2 |
727 |
|
规格书 |
6700 | TO-220-2 | Tube | Active | SPST-NC | 212°F (100°C) | 158°F (70°C) | - | 0.5A (48V) | ±9°F (±5°C) | 20K | PC Pins | Through Hole |
|
|
67L070THERMOSTAT 70DEG C NC TO220-2 |
218 |
|
规格书 |
6700 | TO-220-2 | Tube | Active | SPST-NC | 158°F (70°C) | 122°F (50°C) | - | 0.5A (48V) | ±9°F (±5°C) | 20K | PC Pins | Through Hole |
|
F20A13005ACFA06ETHERMOSTAT 130DEG C SPST-NC WIRE |
356 |
|
规格书 |
F20 | Potted - Wire Leads | Bulk | Active | SPST-NC | 266°F (130°C) | 212°F (100°C) | 1.6A (250V) | - | ±9°F (±5°C) | 7K | Wire Leads - 6" (152.4mm) | Through Hole |
|
|
F20A10505ACFA06ETHERMOSTAT 105DEG C SPST-NC WIRE |
200 |
|
规格书 |
F20 | Potted - Wire Leads | Bulk | Active | SPST-NC | 221°F (105°C) | 167°F (75°C) | 1.6A (250V) | - | ±9°F (±5°C) | 7K | Wire Leads - 6" (152.4mm) | Through Hole |
|
F20A085053600060THERMOSTAT 85DEG C SPST-NC 2SIP |
3,811 |
|
规格书 |
F20 | 2-SIP, Potted | Tube | Active | SPST-NC | 185°F (85°C) | 131°F (55°C) | 1.6A (250V) | - | ±9°F (±5°C) | 7K | PC Pins | Through Hole |
|
|
F20A100053600060THERMOSTAT 100DEG C SPST-NC 2SIP |
2,994 |
|
规格书 |
F20 | 2-SIP, Potted | Bulk | Active | SPST-NC | 212°F (100°C) | 158°F (70°C) | 1.6A (250V) | - | ±9°F (±5°C) | 7K | PC Pins | Through Hole |
|
|
67L060THERMOSTAT 60DEG C NC TO220-2 |
4,705 |
|
规格书 |
6700 | TO-220-2 | Tube | Active | SPST-NC | 140°F (60°C) | 105°F (40°C) | - | 0.5A (48V) | ±9°F (±5°C) | 20K | PC Pins | Through Hole |
|

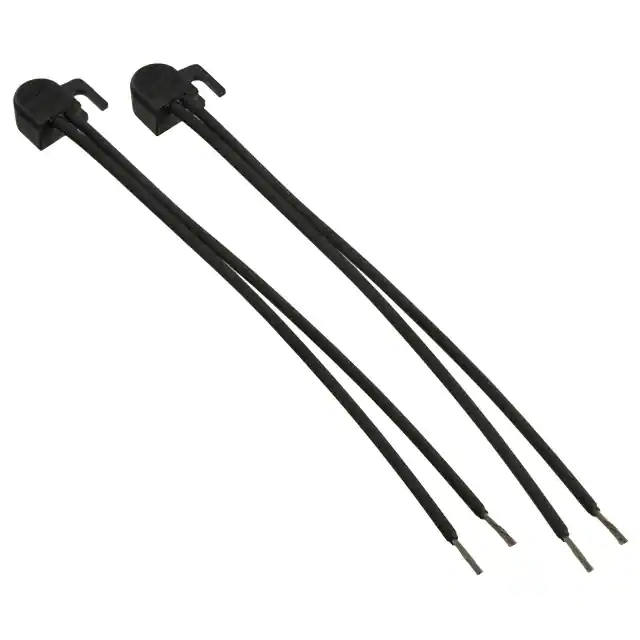

B12A07505AEDA0GETHERMOSTAT 75DEG C SPST-NC RAD |
333 |
|
规格书 |
B12 | Radial | Bag | Active | SPST-NC | 167°F (75°C) | 113°F (45°C) | 6A (250V) | - | ±9°F (±5°C) | 1K | Wire Leads - 4" (101.6mm) | Through Hole |
|

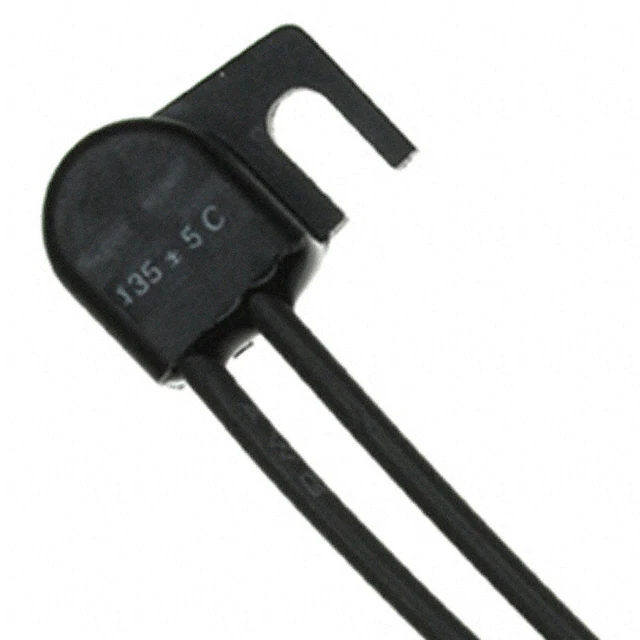

B12A13505AEDA0GETHERMOSTAT 135DEG C SPST-NC RAD |
174 |
|
规格书 |
B12 | Radial | Bag | Active | SPST-NC | 275°F (135°C) | 221°F (105°C) | 6A (250V) | - | ±9°F (±5°C) | 1K | Wire Leads - 4" (101.6mm) | Through Hole |
|

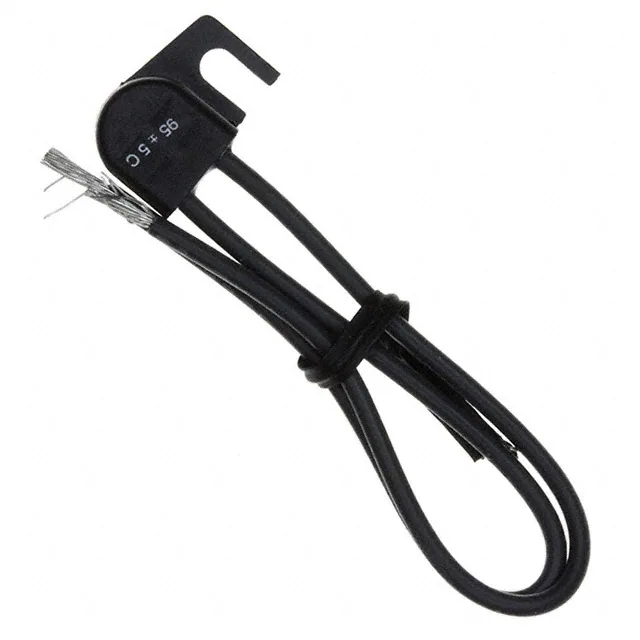

B12A09505AEDA0GETHERMOSTAT 95DEG C SPST-NC RAD |
114 |
|
规格书 |
B12 | Radial | Bag | Active | SPST-NC | 203°F (95°C) | 149°F (65°C) | 6A (250V) | - | ±9°F (±5°C) | 1K | Wire Leads - 4" (101.6mm) | Through Hole |
|
F20B09005ACFA06ETHERMOSTAT 90DEG C SPST-NO WIRE |
382 |
|
规格书 |
F20 | Potted - Wire Leads | Bulk | Active | SPST-NO | 194°F (90°C) | 140°F (60°C) | 1.6A (250V) | - | ±9°F (±5°C) | 7K | Wire Leads - 6" (152.4mm) | Through Hole |
|
|
F20B08005ACFA06ETHERMOSTAT 80DEG C SPST-NO WIRE |
306 |
|
规格书 |
F20 | Potted - Wire Leads | Bulk | Active | SPST-NO | 176°F (80°C) | 122°F (50°C) | 1.6A (250V) | - | ±9°F (±5°C) | 7K | Wire Leads - 6" (152.4mm) | Through Hole |
|
|
F20B065053600060THERMOSTAT 65DEG C SPST-NO 2SIP |
150 |
|
规格书 |
F20 | 2-SIP, Potted | Tube | Active | SPST-NO | 149°F (65°C) | 95°F (35°C) | 1.6A (250V) | - | ±9°F (±5°C) | 7K | PC Pins | Through Hole |
|
|
F20B080053600060THERMOSTAT 80DEG C SPST-NO 2SIP |
150 |
|
规格书 |
F20 | 2-SIP, Potted | Tube | Active | SPST-NO | 176°F (80°C) | 122°F (50°C) | 1.6A (250V) | - | ±9°F (±5°C) | 7K | PC Pins | Through Hole |
