购物车钽 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 电容 | 容差 | 额定电压 | 类型 | ESR（等效串联电阻） | 工作温度 | 寿命 @ 温度 | 安装类型 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 引线间距 | 制造商尺寸代码 | 额定值 | 特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

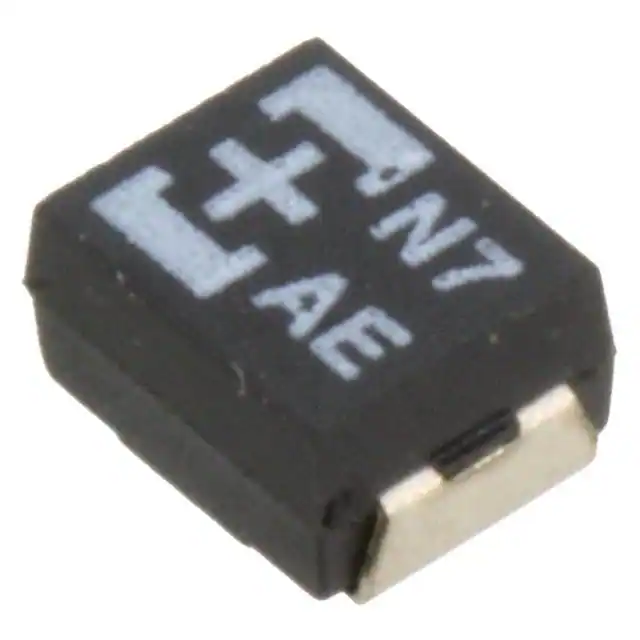

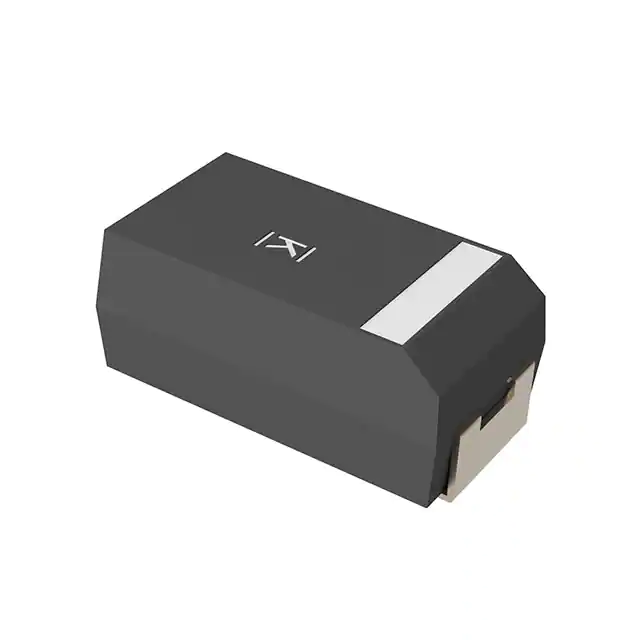

T591B476M010ATE070CAP TANT POLY 47UF 10V 1411 |
1,231 |
|
- |
KO-CAP® T591 | 1411 (3528 Metric) | Tape & Reel (TR) | Active | 47 µF | ±20% | 10 V | Molded | 70mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 105°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.083" (2.10mm) | - | B | - | General Purpose |
|
T525A106M010ATE080CAP TANT POLY 10UF 10V 1206 |
2,553 |
|
- |
KO-CAP® T525 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 10 µF | ±20% | 10 V | Molded | 80mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.071" (1.80mm) | - | A | - | General Purpose |
|
T58W0476M8R2C0500CAP TANT POLY 47UF 8.2V 0805 |
2,858 |
|
- |
vPolyTan™ T58 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 47 µF | ±20% | 8.2 V | Molded | 500mOhm @ 100kHz | -55°C ~ 105°C | 1000 Hrs @ 85°C | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) | - | W0 | - | General Purpose |
|
T598B225M035ATE150CAP TANT POLY 2.2UF 35V 1411 |
948 |
|
- |
KO-CAP® T598 | 1411 (3528 Metric) | Tape & Reel (TR) | Active | 2.2 µF | ±20% | 35 V | Molded | 150mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.083" (2.10mm) | - | B | AEC-Q200 | Automotive |
|
TCJB226M025R0150ECAP TANT POLY 22UF 25V 1210 |
5,719 |
|
- |
TCJ | 1210 (3528 Metric) | Tape & Reel (TR) | Active | 22 µF | ±20% | 25 V | Molded | 150mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.083" (2.10mm) | - | B | - | General Purpose |
|
|
TCJB226M016R0150CAP TANT POLY 22UF 16V 1210 |
3,218 |
|
- |
TCJ | 1210 (3528 Metric) | Tape & Reel (TR) | Active | 22 µF | ±20% | 16 V | Molded | 150mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.083" (2.10mm) | - | B | - | General Purpose |
.JPG)
|
10TPB33MCAP TANT POLY 33UF 10V 1411 |
981 |
|
- |
POSCAP™ TPB | 1411 (3528 Metric) | Tape & Reel (TR) | Active | 33 µF | ±20% | 10 V | Molded | 70mOhm @ 100kHz | -55°C ~ 105°C | - | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.079" (2.00mm) | - | B2 | - | General Purpose |
C.JPG)
|
T520C686M010ATE045CAP TANT POLY 68UF 10V 2312 |
10,640 |
|
- |
KO-CAP® T520 | 2312 (6032 Metric) | Tape & Reel (TR) | Active | 68 µF | ±20% | 10 V | Molded | 45mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.236" L x 0.126" W (6.00mm x 3.20mm) | 0.110" (2.80mm) | - | C | - | General Purpose |
|
|
T520C107M006ATE045CAP TANT POLY 100UF 6.3V 2312 |
8,049 |
|
- |
KO-CAP® T520 | 2312 (6032 Metric) | Tape & Reel (TR) | Active | 100 µF | ±20% | 6.3 V | Molded | 45mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.236" L x 0.126" W (6.00mm x 3.20mm) | 0.110" (2.80mm) | - | C | - | General Purpose |
V.JPG)
|
T520V227M006ATE018CAP TANT POLY 220UF 6.3V 2917 |
17,810 |
|
- |
KO-CAP® T520 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 220 µF | ±20% | 6.3 V | Molded | 18mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | - | V | - | General Purpose |
|
|
TCJB226M025R0100ECAP TANT POLY 22UF 25V 1210 |
6,422 |
|
- |
TCJ | 1210 (3528 Metric) | Tape & Reel (TR) | Active | 22 µF | ±20% | 25 V | Molded | 100mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.083" (2.10mm) | - | B | - | General Purpose |
|
|
TCJB227M006R0070ECAP TANT POLY 220UF 6.3V 1210 |
561 |
|
- |
TCJ | 1210 (3528 Metric) | Tape & Reel (TR) | Active | 220 µF | ±20% | 6.3 V | Molded | 70mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.083" (2.10mm) | - | B | - | General Purpose |
D.JPG)
|
T520D157M006ATE055CAP TANT POLY 150UF 6.3V 2917 |
1,347 |
|
- |
KO-CAP® T520 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 150 µF | ±20% | 6.3 V | Molded | 55mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
|
TCJB475M035R0200CAP TANT POLY 4.7UF 35V 1210 |
7,938 |
|
- |
TCJ | 1210 (3528 Metric) | Tape & Reel (TR) | Active | 4.7 µF | ±20% | 35 V | Molded | 200mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.083" (2.10mm) | - | B | - | General Purpose |
|
|
TCJB157M006R0035CAP TANT POLY 150UF 6.3V 1210 |
70,372 |
|
- |
TCJ | 1210 (3528 Metric) | Tape & Reel (TR) | Active | 150 µF | ±20% | 6.3 V | Molded | 35mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.083" (2.10mm) | - | B | - | General Purpose |
|
|
T521V476M020ATE090CAP TANT POLY 47UF 20V 2917 |
25,249 |
|
- |
KO-CAP® T521 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 47 µF | ±20% | 20 V | Molded | 90mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | V | - | General Purpose |
|
|
TCJA107M006R0100ECAP TANT POLY 100UF 6.3V 1206 |
9,357 |
|
- |
TCJ | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 100 µF | ±20% | 6.3 V | Molded | 100mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.071" (1.80mm) | - | A | - | General Purpose |
|
|
TCJB225M035R0200CAP TANT POLY 2.2UF 35V 1210 |
2,000 |
|
- |
TCJ | 1210 (3528 Metric) | Tape & Reel (TR) | Active | 2.2 µF | ±20% | 35 V | Molded | 200mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.083" (2.10mm) | - | B | - | General Purpose |
|
|
10TPB47MCAP TANT POLY 47UF 10V 1411 |
1,834 |
|
- |
POSCAP™ TPB | 1411 (3528 Metric) | Tape & Reel (TR) | Active | 47 µF | ±20% | 10 V | Molded | 70mOhm @ 100kHz | -55°C ~ 105°C | - | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.079" (2.00mm) | - | B2 | - | General Purpose |
|
|
TCJB227M004R0035CAP TANT POLY 220UF 4V 1210 |
10,715 |
|
- |
TCJ | 1210 (3528 Metric) | Tape & Reel (TR) | Active | 220 µF | ±20% | 4 V | Molded | 35mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.083" (2.10mm) | - | B | - | General Purpose |
