购物车钽 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 电容 | 容差 | 额定电压 | 类型 | ESR（等效串联电阻） | 工作温度 | 寿命 @ 温度 | 安装类型 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 引线间距 | 制造商尺寸代码 | 额定值 | 特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F320G337MCCCAP TANT POLY 330UF 4V 2312 Nichicon |
9,221 |
|
- |
F32 | 2312 (6032 Metric) | Tape & Reel (TR) | Obsolete | 330 µF | ±20% | 4 V | Molded | 55mOhm @ 100kHz | -55°C ~ 105°C | - | Surface Mount | 0.236" L x 0.126" W (6.00mm x 3.20mm) | 0.106" (2.70mm) | - | C | - | General Purpose |
|
|
F320E337MCCCAP TANT POLY 330UF 2.5V 2312 Nichicon |
4,489 |
|
- |
F32 | 2312 (6032 Metric) | Tape & Reel (TR) | Obsolete | 330 µF | ±20% | 2.5 V | Molded | 55mOhm @ 100kHz | -55°C ~ 105°C | - | Surface Mount | 0.236" L x 0.126" W (6.00mm x 3.20mm) | 0.106" (2.70mm) | - | C | - | General Purpose |
|
F310J106MPACAP TANT POLY 10UF 6.3V 0805 Nichicon |
3,274 |
|
- |
F31 | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | 10 µF | ±20% | 6.3 V | Molded | 200mOhm @ 100kHz | -55°C ~ 105°C | - | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.047" (1.20mm) | - | P | - | General Purpose |
|
|
F311A106MAACAP TANT POLY 10UF 10V 1206 Nichicon |
3,141 |
|
- |
F31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | 10 µF | ±20% | 10 V | Molded | 200mOhm @ 100kHz | -55°C ~ 105°C | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.047" (1.20mm) | - | A | - | General Purpose |
|

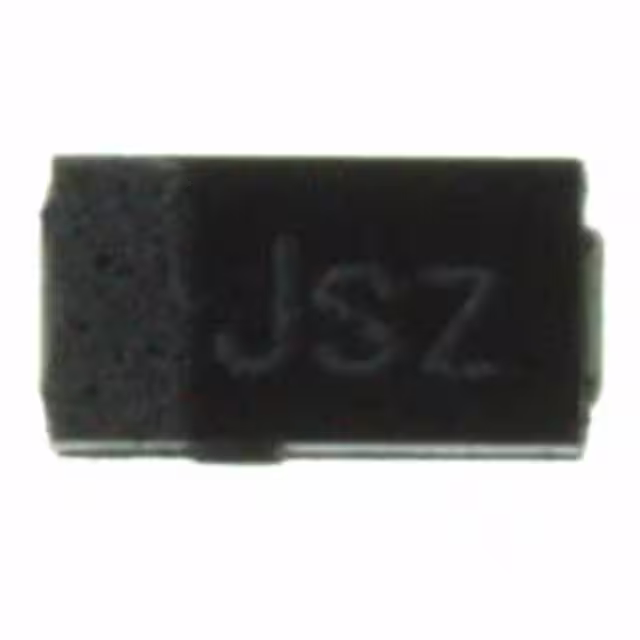

F320J476MAACAP TANT POLY 47UF 6.3V 1206 Nichicon |
2,900 |
|
- |
F32 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | 47 µF | ±20% | 6.3 V | Molded | 180mOhm @ 100kHz | -55°C ~ 105°C | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.071" (1.80mm) | - | A | - | General Purpose |
|
F321A336MAACAP TANT POLY 33UF 10V 1206 Nichicon |
3,080 |
|
- |
F32 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | 33 µF | ±20% | 10 V | Molded | 200mOhm @ 100kHz | -55°C ~ 105°C | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.071" (1.80mm) | - | A | - | General Purpose |
|
F310G476MBACAP TANT POLY 47UF 4V 1411 Nichicon |
8,516 |
|
- |
F31 | 1411 (3528 Metric) | Tape & Reel (TR) | Obsolete | 47 µF | ±20% | 4 V | Molded | 70mOhm @ 100kHz | -55°C ~ 105°C | - | Surface Mount | 0.134" L x 0.110" W (3.40mm x 2.80mm) | 0.047" (1.20mm) | - | B | - | General Purpose |
|
|
F310J476MBACAP TANT POLY 47UF 6.3V 1411 Nichicon |
9,607 |
|
- |
F31 | 1411 (3528 Metric) | Tape & Reel (TR) | Obsolete | 47 µF | ±20% | 6.3 V | Molded | 70mOhm @ 100kHz | -55°C ~ 105°C | - | Surface Mount | 0.134" L x 0.110" W (3.40mm x 2.80mm) | 0.047" (1.20mm) | - | B | - | General Purpose |
|

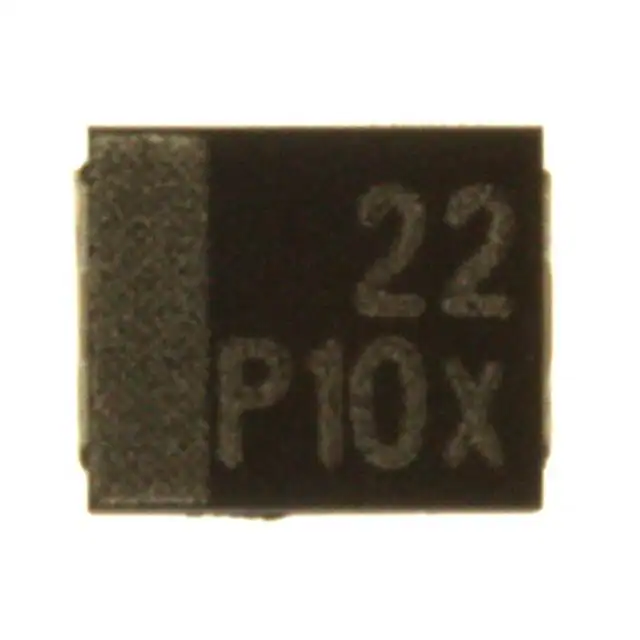

F311A226MBACAP TANT POLY 22UF 10V 1411 Nichicon |
4,485 |
|
- |
F31 | 1411 (3528 Metric) | Tape & Reel (TR) | Obsolete | 22 µF | ±20% | 10 V | Molded | 70mOhm @ 100kHz | -55°C ~ 105°C | - | Surface Mount | 0.134" L x 0.110" W (3.40mm x 2.80mm) | 0.047" (1.20mm) | - | B | - | General Purpose |
|
F311A476MBACAP TANT POLY 47UF 10V 1411 Nichicon |
7,604 |
|
- |
F31 | 1411 (3528 Metric) | Tape & Reel (TR) | Obsolete | 47 µF | ±20% | 10 V | Molded | 70mOhm @ 100kHz | -55°C ~ 105°C | - | Surface Mount | 0.134" L x 0.110" W (3.40mm x 2.80mm) | 0.047" (1.20mm) | - | B | - | General Purpose |
