购物车钽 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 电容 | 容差 | 额定电压 | 类型 | ESR（等效串联电阻） | 工作温度 | 寿命 @ 温度 | 安装类型 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 引线间距 | 制造商尺寸代码 | 额定值 | 特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

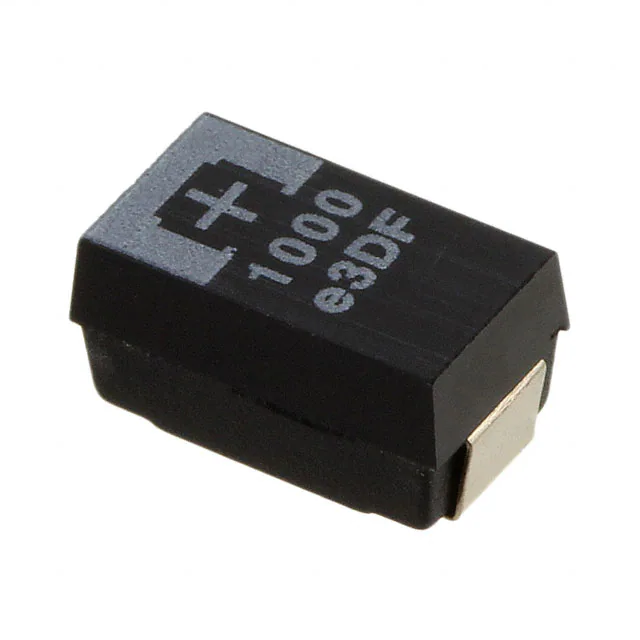

ETPF1000M5HCAP TANT POLY 1000UF 2.5V 2917 |
7,674 |
|
- |
POSCAP™ TPF | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 1000 µF | ±20% | 2.5 V | Molded | 5mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.157" (4.00mm) | - | D4 | - | General Purpose |
.jpg)
|
TCN4337M016R0070ECAP TANT POLY 330UF 16V 2924 |
427 |
|
- |
TCN | 2924 (7361 Metric) | Tape & Reel (TR) | Active | 330 µF | ±20% | 16 V | Molded | 70mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.240" W (7.30mm x 6.10mm) | 0.079" (2.00mm) | - | 4 | - | General Purpose |
|
T521X156M063ATE035CAP TANT POLY 15UF 63V 2917 |
1,594 |
|
- |
KO-CAP® T521 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 15 µF | ±20% | 63 V | Molded | 35mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | - | X | - | General Purpose |
|
|
T521V107M020ATE055CAP TANT POLY 100UF 20V 2917 |
8,300 |
|
- |
KO-CAP® T521 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 100 µF | ±20% | 20 V | Molded | 55mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | V | - | General Purpose |
|
|
T521X107M025ATE060CAP TANT POLY 100UF 25V 2917 |
6,641 |
|
- |
KO-CAP® T521 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 100 µF | ±20% | 25 V | Molded | 60mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | - | X | - | General Purpose |
|
T530D227M010ATE006CAP TANT POLY 220UF 10V 2917 |
265 |
|
- |
KO-CAP® T530 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 220 µF | ±20% | 10 V | Molded | 6mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
T52M9107M035C0055CAP TANT POLY 100UF 35V 2924 |
665 |
|
- |
vPolyTan™ T52 | 2924 (7361 Metric) | Tape & Reel (TR) | Active | 100 µF | ±20% | 35 V | Molded | 55mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.236" W (7.30mm x 6.00mm) | 0.075" (1.90mm) | - | M9 | - | General Purpose |
|
T528Z227M006ATE009CAP TANT POLY 220UF 6.3V 2917 |
352 |
|
- |
KO-CAP® T528 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 220 µF | ±20% | 6.3 V | Molded | 9mOhm @ 100kHz | -55°C ~ 105°C | - | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.067" (1.70mm) | - | Z | - | General Purpose |
|
T598D227M010AHS025CAP TANT POLY 220UF 10V 2917 |
269 |
|
- |
KO-CAP® T598 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 220 µF | ±20% | 10 V | Molded | 25mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | AEC-Q200 | Automotive |
|
|
T530Y477M006ATE005CAP TANT POLY 470UF 6.3V 2917 |
2,184 |
|
- |
KO-CAP® T530 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 470 µF | ±20% | 6.3 V | Molded | 5mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.157" (4.00mm) | - | Y | - | General Purpose |
|
TCJU157M035R0100ECAP TANT POLY 150UF 35V 2924 |
389 |
|
- |
TCJ | 2924 (7361 Metric) | Tape & Reel (TR) | Active | 150 µF | ±20% | 35 V | Molded | 100mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.240" W (7.30mm x 6.10mm) | 0.169" (4.30mm) | - | U | - | General Purpose |
|
T543B107M006ATW025CAP TANT POLY 100UF 6.3V 1411 |
858 |
|
- |
KO-CAP® T543 | 1411 (3528 Metric) | Tape & Reel (TR) | Active | 100 µF | ±20% | 6.3 V | Molded | 25mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.083" (2.10mm) | - | B | COTS | High Reliability |
|
|
T530X687M006AHE010CAP TANT POLY 680UF 6.3V 2917 |
1,136 |
|
- |
KO-CAP® T530 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 680 µF | ±20% | 6.3 V | Molded | 10mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | - | X | - | General Purpose |
|
TCN4157M025R0070CAP TANT POLY 150UF 25V 2924 |
3,147 |
|
- |
TCN J-CAP | 2924 (7361 Metric) | Tape & Reel (TR) | Active | 150 µF | ±20% | 25 V | Molded | 70mOhm @ 100kHz | -55°C ~ 85°C | 2000 Hrs @ 85°C | Surface Mount | 0.287" L x 0.240" W (7.30mm x 6.10mm) | 0.079" (2.00mm) | - | 4 | - | General Purpose |
|
|
T530D477M004ATE006CAP TANT POLY 470UF 4V 2917 |
960 |
|
- |
KO-CAP® T530 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 470 µF | ±20% | 4 V | Molded | 6mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
T523H108M010APE070CAP TANT POLY 1000UF 10V 2924 |
3,359 |
|
- |
KO-CAP® T523 | 2924 (7360 Metric) | Tape & Reel (TR) | Active | 1000 µF | ±20% | 10 V | Molded | 70mOhm @ 100kHz | -55°C ~ 85°C | 2000 Hrs @ 85°C | Surface Mount | 0.287" L x 0.236" W (7.30mm x 6.00mm) | 0.079" (2.00mm) | - | H | - | General Purpose |
|
|
T530X108M2R5ATE006CAP TANT POLY 1000UF 2.5V 2917 |
252 |
|
- |
KO-CAP® T530 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 1000 µF | ±20% | 2.5 V | Molded | 6mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | - | X | - | General Purpose |
|

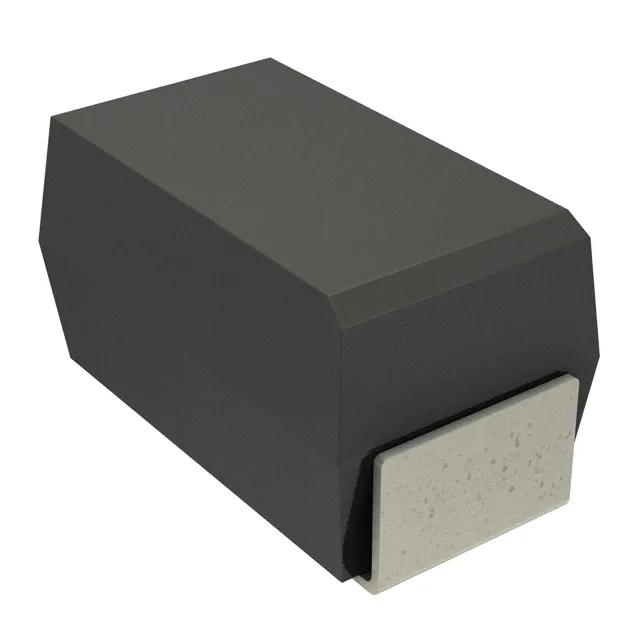

T545X337M016ATE025CAP TANT POLY 330UF 16V 2917 |
176 |
|
- |
KO-CAP® T545 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 330 µF | ±20% | 16 V | Molded | 25mOhm @ 100kHz | -55°C ~ 125°C | - | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | - | X | - | General Purpose |
|
|
T530D227M010ATE010CAP TANT POLY 220UF 10V 2917 |
4,609 |
|
- |
KO-CAP® T530 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 220 µF | ±20% | 10 V | Molded | 10mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
2R5TPF680M6LCAP TANT POLY 680UF 2.5V 2917 |
51,816 |
|
- |
POSCAP™ TPF | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 680 µF | ±20% | 2.5 V | Molded | 6mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | - | D3L | - | General Purpose |
