开关转换器、开关电源（SMPS）变压器

图片	型号	库存	价格	数量	规格书	系列	包装	产品状态	类型	应用	适用芯片组	芯片组制造商	电压 - 初级	电压 - 辅助	电压 - 隔离	电感 @ 频率	频率	工作温度	等级	认证	安装类型	尺寸 / 尺寸	高度 - 安装后（最大值）	占地面积	样式
	PLN071-ER20A12S TRANSF PLANAR 71W 12V OUT Bourns Inc.	181	-	立即询价	规格书	PLN0xx-ER20	Tape & Reel (TR)	Active	For DC/DC Converters	Power Over Ethernet (PoE)	-	-	36 ~ 72V	12V @ 30mA	1500Vrms	18µH @ 100kHz	200kHz	-40°C ~ 125°C	-	-	Surface Mount	0.886" L x 0.827" W (22.50mm x 21.00mm)	0.315" (8.00mm)	-	Planar
	PLN070-ED21A05S XFMR POE DC/DC CONV 150UH SMD Bourns Inc.	146	-	立即询价	规格书	PLN	Tape & Reel (TR)	Active	For DC/DC Converters	Power Over Ethernet (PoE)	-	-	33 ~ 57V	12V	1750V	150µH @ 100kHz	250kHz	-40°C ~ 125°C	-	-	Surface Mount	1.024" L x 0.969" W (26.00mm x 24.60mm)	0.386" (9.80mm)	-	Planar
	PLN050-ED21A05S XFMR POE DC/DC CONV 153UH SMD Bourns Inc.	128	-	立即询价	规格书	PLN	Tape & Reel (TR)	Active	For DC/DC Converters	Power Over Ethernet (PoE)	-	-	33 ~ 57V	12.5V	1750V	153µH @ 100kHz	250kHz	-40°C ~ 125°C	-	-	Surface Mount	1.024" L x 0.969" W (26.00mm x 24.60mm)	0.386" (9.80mm)	-	Planar
	BS64042CS XFMR FLYBACK 270UH SMD Bourns Inc.	1,245	-	立即询价	-	-	Tape & Reel (TR)	Obsolete	-	Flyback Converters	ADP1031	Analog Devices	4.5 ~ 60V	-	2200V	270µH @ 250kHz	100kHz	-40°C ~ 125°C	-	-	Surface Mount	0.413" L x 0.386" W (10.50mm x 9.80mm)	0.433" (11.00mm)	0.374" L x 0.138" W (9.50mm x 3.50mm)	-
	POE025-PD13050S XFMR POE DC/DC CONV 65UH SMD Bourns Inc.	150	-	立即询价	规格书	POE-PD	Tape & Reel (TR)	Active	For DC/DC Converters	Power Over Ethernet (PoE)	-	-	36 ~ 57V	10.5V	1500Vrms	65µH @ 1kHz	200kHz	-40°C ~ 125°C	-	-	Surface Mount	0.638" L x 0.551" W (16.20mm x 14.00mm)	0.571" (14.50mm)	-	-
	POE012-PD13050S XFMR POE DC/DC CONV 150UH SMD Bourns Inc.	150	-	立即询价	规格书	POE-PD	Tape & Reel (TR)	Active	For DC/DC Converters	Power Over Ethernet (PoE)	-	-	36 ~ 57V	10.5V	1500Vrms	150µH @ 1kHz	200kHz	-40°C ~ 125°C	-	-	Surface Mount	0.638" L x 0.551" W (16.20mm x 14.00mm)	0.571" (14.50mm)	-	-
	POE030-PD13050S XFMR POE DC/DC CONV 70UH SMD Bourns Inc.	146	-	立即询价	规格书	POE-PD	Tape & Reel (TR)	Active	For DC/DC Converters	Power Over Ethernet (PoE)	-	-	33 ~ 57V	11.5V	1500Vrms	70µH @ 100kHz	200kHz	-40°C ~ 125°C	-	-	Surface Mount	0.638" L x 0.551" W (16.20mm x 14.00mm)	0.571" (14.50mm)	-	-
	POE060-FD20120S XFMR POE DC/DC CONV 100UH SMD Bourns Inc.	1,185	-	立即询价	规格书	POE-FD	Tape & Reel (TR)	Active	For DC/DC Converters	Power Over Ethernet (PoE)	-	-	36 ~ 72V	12V	1875V	100µH @ 100kHz	250kHz	-40°C ~ 105°C	-	-	Surface Mount	0.846" L x 0.831" W (21.50mm x 21.10mm)	0.472" (12.00mm)	-	-

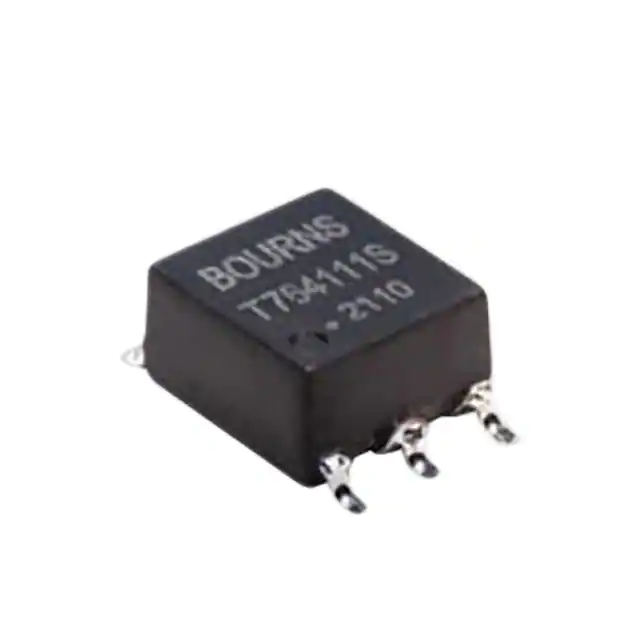

	PAD002-T764111S XFMR FWD P-P DC/DC CONV 475UH SM Bourns Inc.	2,558	-	立即询价	规格书	PAD00x-T764	Tape & Reel (TR)	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	-	-	3100Vrms	475µH @ 100kHz	-	-40°C ~ 125°C	-	-	Surface Mount	0.280" L x 0.258" W (7.10mm x 6.55mm)	0.157" (3.99mm)	0.388" L x 0.258" W (9.85mm x 6.55mm)	-

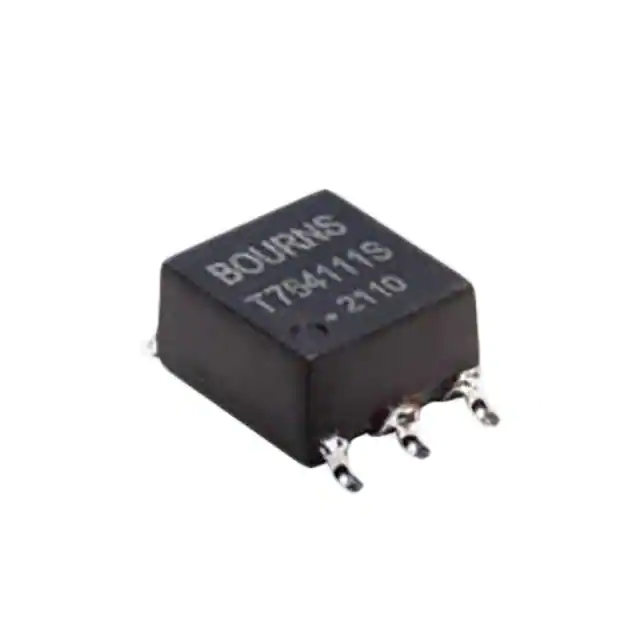

	PAD002-T764113S XFMR FWD P-P DC/DC CONV 475UH SM Bourns Inc.	2,924	-	立即询价	规格书	PAD00x-T764	Tape & Reel (TR)	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	-	-	3100Vrms	475µH @ 100kHz	-	-40°C ~ 125°C	-	-	Surface Mount	0.280" L x 0.258" W (7.10mm x 6.55mm)	0.157" (3.99mm)	0.388" L x 0.258" W (9.85mm x 6.55mm)	-

共 43 记录«上一页 1 234 5 下一页»
