开关转换器、开关电源（SMPS）变压器

图片	型号	库存	价格	数量	规格书	系列	包装	产品状态	类型	应用	适用芯片组	芯片组制造商	电压 - 初级	电压 - 辅助	电压 - 隔离	电感 @ 频率	频率	工作温度	等级	认证	安装类型	尺寸 / 尺寸	高度 - 安装后（最大值）	占地面积	样式
	EPC3668G-LF XFMR P-P DC/DC CONV 1MH SMD PCA Electronics, Inc.	1,602	-	立即询价	规格书	EPC-SMT6	Tape & Reel (TR)	Active	For DC/DC Converters	Push-Pull Converters	SN6501, SN6505B	Texas Instruments	5V	5V	2500Vrms	1mH @ 10KHz	300 ~ 620kHz	-40°C ~ 125°C	-	-	Surface Mount	-	0.165" (4.19mm)	0.276" L x 0.433" W (7.01mm x 11.00mm)	-
	EPC3410G-LF XFMR FLYBACK DC/DC CONV 37UH SMD PCA Electronics, Inc.	500	-	立即询价	规格书	EPC-EP13	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	LT42691	Analog Devices	36 ~ 57V	12V	1500Vrms	37µH @ 100KHz	250kHz	-40°C ~ 85°C	-	-	Surface Mount	-	0.500" (12.70mm)	0.550" L x 0.669" W (13.97mm x 17.00mm)	-
	EPC3409G-LF XFMR FLYBACK DC/DC CONV 39UH SMD PCA Electronics, Inc.	165	-	立即询价	规格书	EPC-EP13	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	LT42691	Analog Devices	36 ~ 57V	5V	1500Vrms	39µH @ 100KHz	250kHz	-40°C ~ 85°C	-	-	Surface Mount	-	0.500" (12.70mm)	0.550" L x 0.669" W (13.97mm x 17.00mm)	-

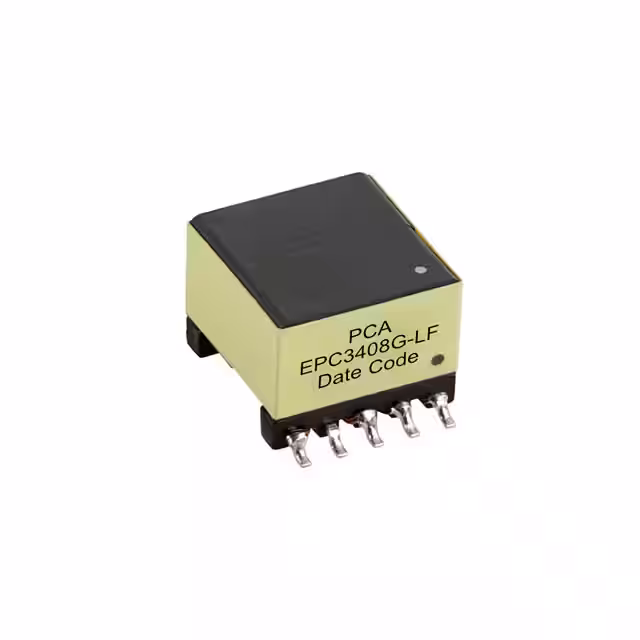

	EPC3408G-LF XFMR FLYBCK DC/DC CONV 37.5UH SM PCA Electronics, Inc.	179	-	立即询价	规格书	EPC-EP13	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	LT42691	Analog Devices	36 ~ 57V	3.3V	1500Vrms	37.5µH @ 100KHz	250kHz	-40°C ~ 85°C	-	-	Surface Mount	-	0.500" (12.70mm)	0.550" L x 0.669" W (13.97mm x 17.00mm)	-

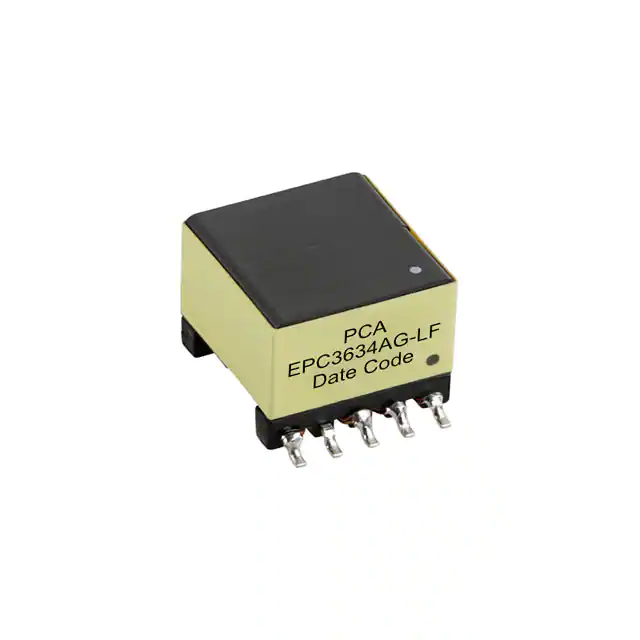

	EPC3634AG-LF POE FLYBACK XFM 12V, 36W PCA Electronics, Inc.	105	-	立即询价	规格书	EPC-EP13	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	LT4295	Analog Devices	42 ~ 57V	12V	1500Vrms	26µH @ 100KHz	250kHz	-40°C ~ 85°C	-	-	Surface Mount	-	0.485" (12.32mm)	0.550" L x 0.695" W (13.97mm x 17.65mm)	-

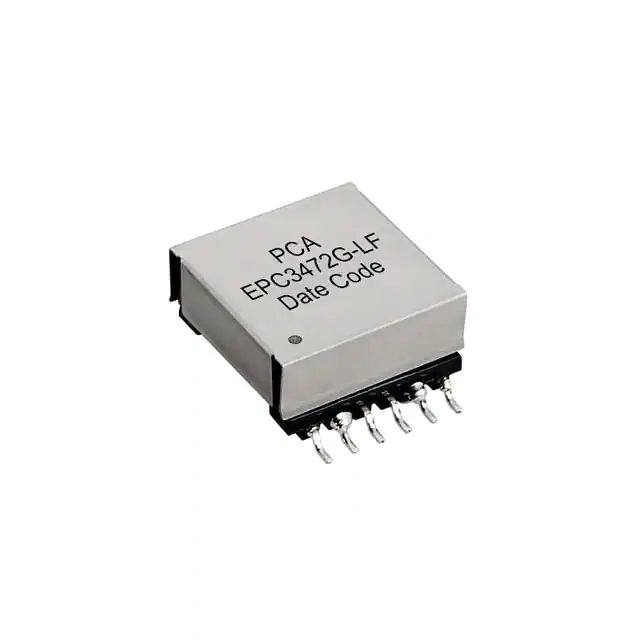

	EPC3472G-LF XFMR FLYBACK DC/DC CONV 9UH SMD PCA Electronics, Inc.	417	-	立即询价	规格书	EPC-EFD20	Tray	Active	For DC/DC Converters	Flyback Converters	LTC4278	Analog Devices	9 ~ 57V	5V	1500Vrms	9µH @ 100KHz	250kHz	-40°C ~ 85°C	-	-	Surface Mount	-	0.453" (11.51mm)	0.866" L x 1.140" W (22.00mm x 28.96mm)	-
	EPC3577G-LF XFMR FWD CON DC/DC CON 180UH SM PCA Electronics, Inc.	314	-	立即询价	规格书	EFC-EFD20	Tape & Reel (TR)	Active	For DC/DC Converters	Forward Converters	LT4276A, LT4295	Analog Devices	33 ~ 57V	12V	1500Vrms	180µH @ 100KHz	200kHz	-40°C ~ 125°C	-	-	Surface Mount	-	0.453" (11.51mm)	0.830" L x 1.140" W (21.08mm x 28.86mm)	-

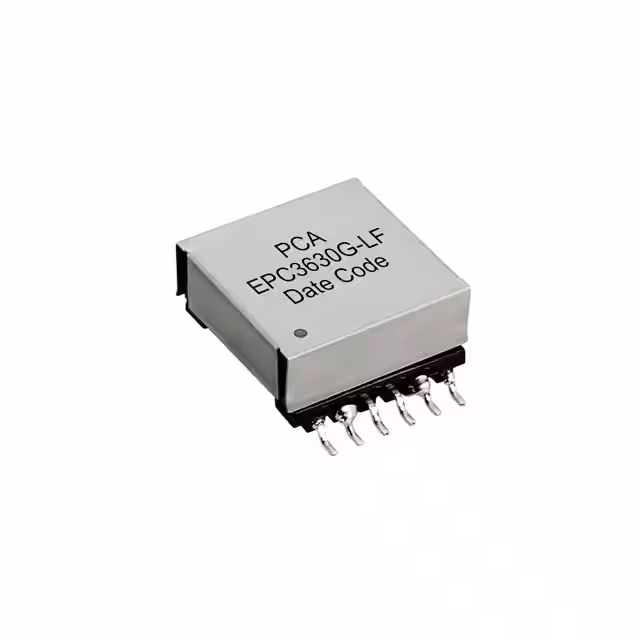

	EPC3630G-LF XFMR FLYBACK DC/DC CONV 15UH SMD PCA Electronics, Inc.	139	-	立即询价	规格书	EPC-EFD25	Tray	Active	For DC/DC Converters	Flyback Converters	LT4295	Analog Devices	40 ~ 57V	24V	1500Vrms	15µH @ 100KHz	250kHz	-40°C ~ 125°C	-	-	Surface Mount	-	0.540" (13.72mm)	1.036" L x 1.250" W (26.31mm x 31.75mm)	-
