BOM
购物车扬声器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 技术 | 类型 | 频率范围 | 频率 - 自谐振 | 阻抗 | 效率 - dBA | 效率 - 测试 | 效率 - 类型 | 额定功率 | 功率 - 最大值 | 端口位置 | 形状 | 材料 - 锥体 | 材料 - 磁体 | 防护等级 | 额定值 | 端接方式 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

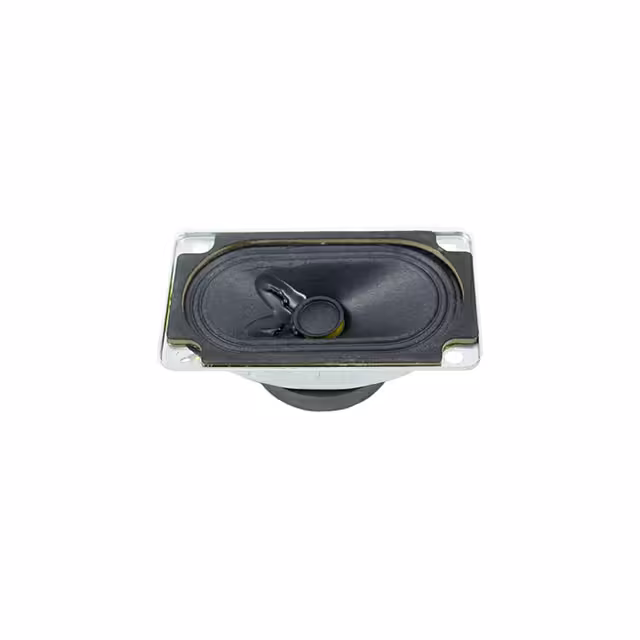

SP-5090-4YSPEAKER 4 OHM 10W 96DB 270HZ |
2,797 |
|
规格书 |
SP | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
AS05008MR-RSPEAKER 8OHM 200MW TOP PORT 80DB |
4,374 |
|
规格书 |
AS | Tray | Active | Magnetic | General Purpose | 550 Hz ~ 4.5 kHz | 550Hz | 8 Ohms | 80.00 | 1W/500mm | Sound Pressure Level (SPL) | 200 mW | 400 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.969" Dia (50.00mm) |
|

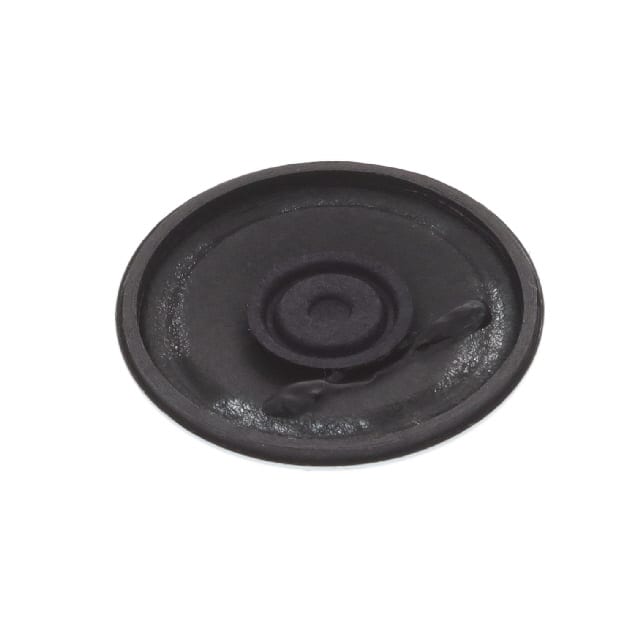

AS04032PR-RSPEAKER 32OHM 1W TOP PORT 78DB |
2,374 |
|
规格书 |
AS | Tray | Active | Magnetic | General Purpose | 600 Hz ~ 5 kHz | 600Hz | 32 Ohms | 78.00 | 1W/1M | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round | Paper | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.575" Dia (40.00mm) |
|
K 10.30 - 8 OHMSPEAKER 8OHM 500MW TOP PORT 85DB |
1,984 |
|
规格书 |
Miniature Speaker | Bulk | Active | Magnetic | General Purpose | 750 Hz ~ 20 kHz | 1.2kHz | 8 Ohms | 85.00 | 1W/1M | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Oval, Rectangular Frame | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 1.181" L x 0.394" W (30.00mm x 10.00mm) |
|
PSR50F25SKSPEAKR 25OHM 200MW TOP PORT 79DB |
2,462 |
|
规格书 |
PSR | Bulk | Active | Magnetic | General Purpose | 350 Hz ~ 12 kHz | 350Hz | 25 Ohms | 79.00 | 1W/1M | Sound Pressure Level (SPL) | 200 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 1.969" Dia (50.00mm) |
|

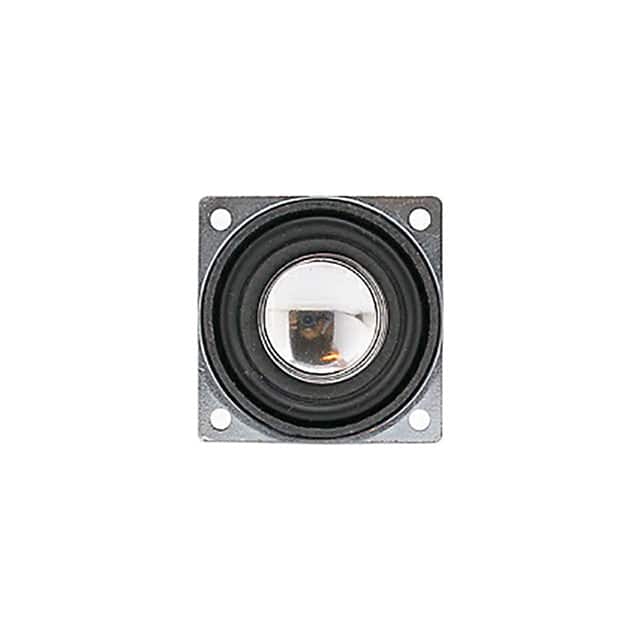

SP-2811NSPEAKER 8OHM 2W TOP PORT 84DB |
2,079 |
|
规格书 |
SP | Tray | Active | Magnetic | General Purpose | 380 Hz ~ 20 kHz | 380Hz | 8 Ohms | 84.00 | 100mW/100mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Square | Paper, Polyurethane (PU) | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.102" L x 1.102" W (28.00mm x 28.00mm) |
|
SW390608-1SPEAKER 8OHM 1.5W TOP PORT 95DB |
3,108 |
|
规格书 |
SW | Tray | Active | Magnetic | General Purpose | 600 Hz ~ 20 kHz | 600Hz | 8 Ohms | 95.00 | 100mm | Sound Pressure Level (SPL) | 1.5 W | 2 W | Top | Oval | Polyester, Polyethylene Terephthalate (PET) | - | IP67 - Dust Tight, Waterproof | - | Solder Pads | - |
|
AS04008PO-2-WR-RSPEAKER 8OHM 1W TOP PORT 84DB |
2,579 |
|
规格书 |
AS | Tray | Active | Magnetic | General Purpose | 450 Hz ~ 20 kHz | 450Hz | 8 Ohms | 84.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Oval, Rectangular Frame | Paper, Coated | Nd-Fe-B | Water Resistant | - | Solder Eyelet(s) | 1.575" L x 1.114" W (40.00mm x 28.30mm) |
|
SPM-3040LSPEAKER 4OHM 2W TOP PORT 86DB |
1,287 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 800 Hz ~ 10 kHz | 800Hz | 4 Ohms | 86.00 | 1W/500mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Rectangular | Cloth | Nd-Fe-B | - | - | Wire Leads | 1.575" L x 1.181" W (40.00mm x 30.00mm) |
|
K 28 WPC - 50 OHMSPEAKER 50OHM 1W TOP PORT 75DB |
3,319 |
|
规格书 |
Miniature Speaker | Bulk | Active | - | General Purpose | 300 Hz ~ 20 kHz | 800Hz | 50 Ohms | 75.00 | 1W/1M | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 1.102" Dia (28.00mm) |
|
SC570708-1SPEAKER 8OHM 2W TOP PORT 98DB |
2,415 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 700 Hz ~ 20 kHz | 700Hz | 8 Ohms | 98.00 | 100mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Rectangle | Cloth | - | - | - | Wire Leads | - |
|

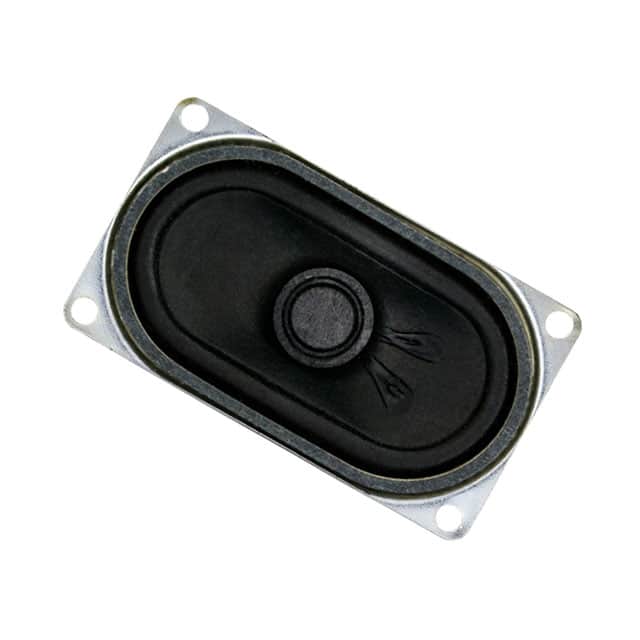

SP-7140SPEAKER 4OHM 3W TOP PORT 85DB |
1,337 |
|
规格书 |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 20 kHz | 300Hz | 4 Ohms | 85.00 | 100mW/100mm | Sound Pressure Level (SPL) | 3 W | 5 W | Top | Rectangular | Paper/Cloth | Nd-Fe-B | - | - | Solder Eyelet(s) | 2.795" L x 1.575" W (71.00mm x 40.00mm) |
|

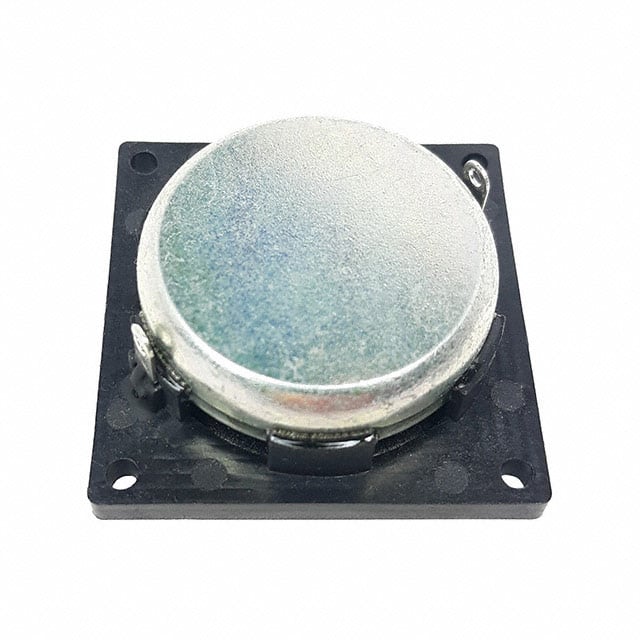

SP-4014YSPEAKER 8OHM 4W TOP PORT 84DB |
1,946 |
|
规格书 |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 400 Hz ~ 10 kHz | 400Hz | 8 Ohms | 84.00 | 1W/500mm | Sound Pressure Level (SPL) | 4 W | 6 W | Top | Round, Square Frame | - | Nd-Fe-B | - | - | Quick Connect | 1.579" L x 1.579" W (40.10mm x 40.10mm) |
|

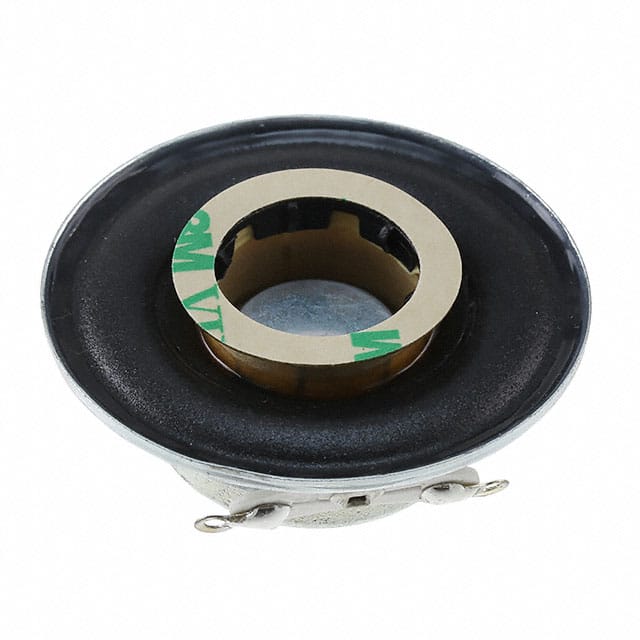

ASX04004-RSPEAKER 4OHM 3W TOP PORT 86DB |
3,902 |
|
规格书 |
ASX | Bulk | Active | Magnetic | Exciter | 450 Hz ~ 10.5 kHz | 450Hz | 4 Ohms | 86.00 | 1W/100mm | Sound Pressure Level (SPL) | 3 W | 5 W | Top | Round | - | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.575" Dia (40.00mm) |
|
CSS-10246-108SPEAKER 8OHM 10W TOP PORT 89DB |
1,556 |
|
规格书 |
CSS | Box | Active | Magnetic | General Purpose | 160 Hz ~ 20 kHz | 200Hz | 8 Ohms | 89.00 | 1W/500mm | Sound Pressure Level (SPL) | 10 W | 12 W | Top | Round, Square Frame | Paper | Ferrite | - | - | Solder Eyelet(s) | 4.055" L x 4.055" W (103.00mm x 103.00mm) |
|
|
RAB-31761-000SPEAKER |
100 |
|
规格书 |
RAB | Tray | Active | - | General Purpose | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
BF 45 S - 8 OHMSPEAKER 8OHM 4W TOP PORT 79DB |
1,104 |
|
规格书 |
Miniature Speaker | Bulk | Active | - | General Purpose | 90 Hz ~ 20 kHz | 160Hz | 8 Ohms | 79.00 | 1W/1M | Sound Pressure Level (SPL) | 4 W | 8 W | Top | Round | Aluminum (AI) | - | - | - | Quick Connect | 2.402" Dia (61.00mm) |
|
|
RAB-32057-000SPEAKER 140OHM TOP PORT 101.5DB |
1,967 |
|
规格书 |
RAB | Bulk | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 6.1 kHz | - | 140 Ohms | 101.50 | - | Sound Pressure Level (SPL) | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.203" L x 1.117" W (5.15mm x 2.96mm) |
|
|
RAB-32066-000SPEAKER 135OHM TOP PORT 101.5DB |
1,829 |
|
规格书 |
RAB | Bulk | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 6.1 kHz | - | 135 Ohms | 101.50 | - | Sound Pressure Level (SPL) | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.209" L x 0.129" W (5.30mm x 3.28mm) |
|
|
CSS-13050-204SPEAKER 4OHM 20W TOP PORT 90DB |
4,997 |
|
规格书 |
CSS | Box | Active | Magnetic | General Purpose | 104 Hz ~ 15 kHz | 130Hz | 4 Ohms | 90.00 | 1W/500mm | Sound Pressure Level (SPL) | 20 W | 25 W | Top | Round | Paper | Ferrite | - | - | Solder Eyelet(s) | 5.098" Dia (129.50mm) |
