购物车扬声器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 技术 | 类型 | 频率范围 | 频率 - 自谐振 | 阻抗 | 效率 - dBA | 效率 - 测试 | 效率 - 类型 | 额定功率 | 功率 - 最大值 | 端口位置 | 形状 | 材料 - 锥体 | 材料 - 磁体 | 防护等级 | 额定值 | 端接方式 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CAC22-01W150-07-1XCHAMBER ASSEMBLY Challenge Electronics |
998 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 1.2 kHz ~ 20 kHz | 1.5kHz | 8 Ohms | 95.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Polyethylene Naphthalate (PEN) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads | 0.866" Dia (22.00mm) |
|

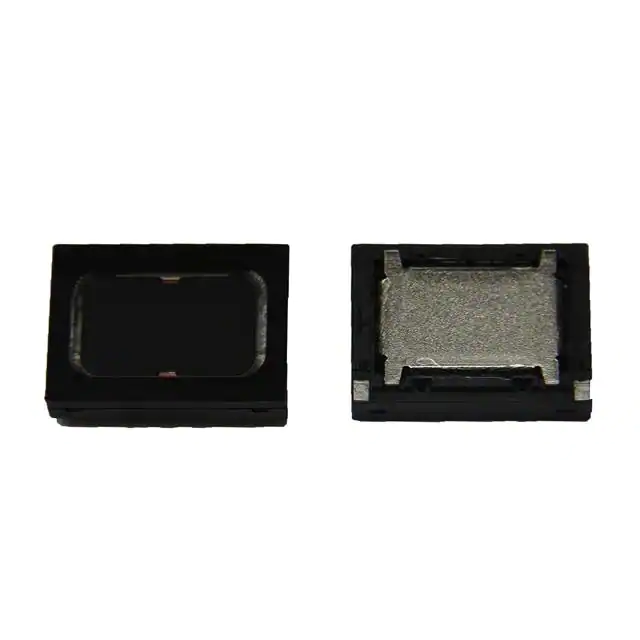

CS18-01P95-04-1XSPEAKER 8OHM 1W TOP PORT 100DB Challenge Electronics |
930 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 760 Hz ~ 20 kHz | 950Hz | 8 Ohms | 100.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.709" L x 0.512" W (18.00mm x 13.00mm) |
|
|
CS30-02P65-04-1XSPEAKER 4OHM 2W 90DB Challenge Electronics |
988 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 520 Hz ~ 20 kHz | 650Hz | 4 Ohms | 90.00 | 100mW/100mm | Sound Pressure Level (SPL) | 2 W | 2.2 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IPX7 | - | Solder Pads | 1.181" Dia (30.00mm) |
|
|
CS28-01W75-06-1XSPEAKER IP67 8OHM 1.5W 101DB Challenge Electronics |
1,049 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose, Enclosure Included | 600 Hz ~ 7 kHz | 750Hz | 8 Ohms | 101.00 | 1W/100mm | Sound Pressure Level (SPL) | 1.5 W | 2 W | Top | Round | Polyethylenimine (PEI) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Connector | 1.102" Dia (28.00mm) |
|
CAC25-01W75-07-1XSPEAKER 6OHM 1W TOP PORT 93DB Challenge Electronics |
615 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose, Enclosure Included | 640 Hz ~ 20 kHz | 800Hz | 6 Ohms | 93.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Square | Polyetheretherketone (PEEK) | Nd-Fe-B | IPX7 | - | Wire Leads | 0.984" L x 0.984" W (25.00mm x 25.00mm) |
|
|
CS12-00P43-02-1XSPEAKER 8OHM 0.7W 81DB Challenge Electronics |
939 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 344 Hz ~ 20 kHz | 430Hz | 8 Ohms | 81.00 | 100mW/10cm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyetheretherketone (PEEK), Aluminum | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.472" L x 0.315" W (12.00mm x 8.00mm) |
|
|
CAC20-01W95-07-1XCHAMBER ASSEMBLY Challenge Electronics |
2,928 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 760 Hz ~ 20 kHz | 950Hz | 8 Ohms | 94.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.3 W | Top | Square | Polyphthalamide (PPA) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads | 0.787" L x 0.787" W (20.00mm x 20.00mm) |
|
|
CS20-01P63-02-1SPEAKER 8OHM 1W 94.5DB Challenge Electronics |
990 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 630Hz | 8 Ohms | 94.50 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Rectangular | Thermoplastic Polyester Elastomer (TPEE) | Nd-Fe-B | - | - | Solder Pads | 0.787" L x 0.630" W (20.00mm x 16.00mm) |
|
CS23-01P100-03-1XSPEAKER 8OHM 1.5W TOP PORT 103DB Challenge Electronics |
785 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 800 Hz ~ 20 kHz | 1kHz | 8 Ohms | 103.00 | 1.5W/100mm | Sound Pressure Level (SPL) | 1.5 W | 1.7 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.906" L x 0.433" W (23.00mm x 11.00mm) |
|
CS18-02P110-03-1XSPEAKER 4OHM 2W TOP PORT 104DB Challenge Electronics |
446 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 880 Hz ~ 20 kHz | 1.1kHz | 4 Ohms | 104.00 | 2W/100mm | Sound Pressure Level (SPL) | 2 W | 2.2 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.709" L x 0.630" W (18.00mm x 16.00mm) |
