| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 技术 | 类型 | 频率范围 | 频率 - 自谐振 | 阻抗 | 效率 - dBA | 效率 - 测试 | 效率 - 类型 | 额定功率 | 功率 - 最大值 | 端口位置 | 形状 | 材料 - 锥体 | 材料 - 磁体 | 防护等级 | 额定值 | 端接方式 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

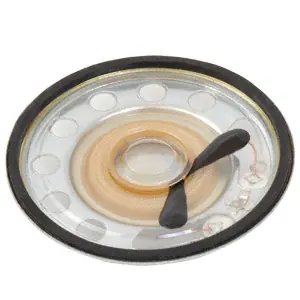

CLS0501M-L152SPEAKER 8OHM 200MW TOP PORT 80DB |
297 |
|
规格书 |
CLS | Bulk | Active | Magnetic | Low Profile | 550 Hz ~ 13 kHz | 550Hz | 8 Ohms | 80.00 | 200mW/500mm | Sound Pressure Level (SPL) | 200 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 1.969" Dia (50.00mm) |
|
GC0351P-1SPEAKER 4OHM 1W TOP PORT 82DB |
369 |
|
规格书 |
GC | Tray | Active | Magnetic | General Purpose | 630 Hz ~ 13 kHz | 630Hz | 4 Ohms | 82.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Oval, Rectangular Frame | Cloth | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.378" L x 0.630" W (35.00mm x 16.00mm) |
|

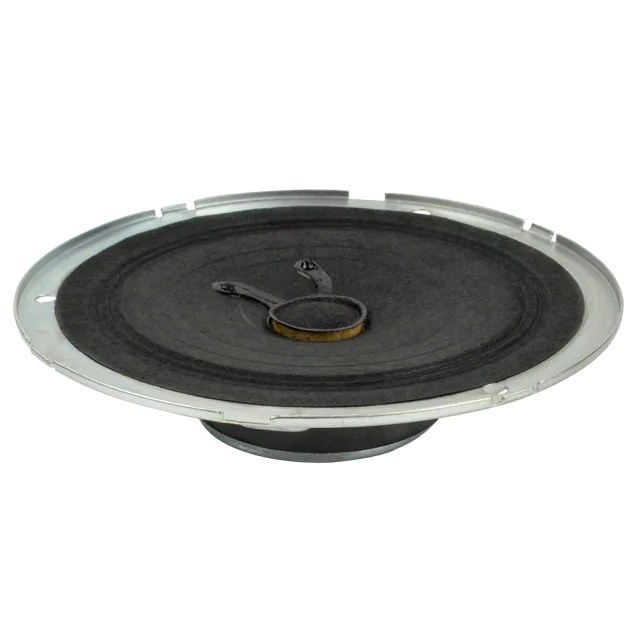

GF1207SPEAKER 8OHM 5W TOP PORT 96DB |
985 |
|
规格书 |
GF | Box | Active | Magnetic | General Purpose | 160 Hz ~ 8 kHz | 160Hz | 8 Ohms | 96.00 | 1W/500mm | Sound Pressure Level (SPL) | 5 W | 10 W | Top | Round | Paper | Ferrite | - | - | Solder Eyelet(s) | - |
|

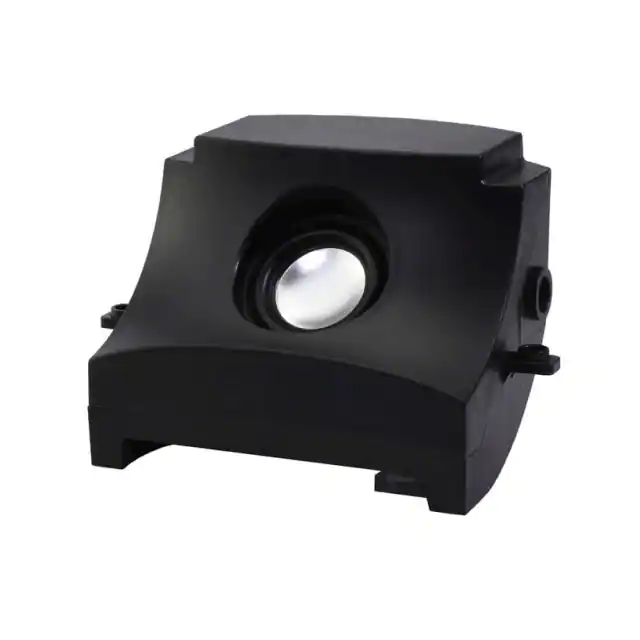

CES-885955-26PMSPEAKER 6OHM 2W TOP PORT 91DB |
187 |
|
规格书 |
CES | Tray | Active | Magnetic | General Purpose, Enclosure Included | 256 Hz ~ 20 kHz | 320Hz | 6 Ohms | 91.00 | 1W/100mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Rectangular | Aluminum, Polyurethane (PU) | Nd-Fe-B | - | - | Wire Leads | 3.461" L x 2.334" W (87.90mm x 59.29mm) |
|
GD30-31488-000SPEAKER 281OHM TOP PORT 100DB |
100 |
|
规格书 |
GD30 | Bulk | Active | Magnetic | Receiver, Balanced Armature | 100 Hz ~ 6.7 kHz | - | 281 Ohms | 100.00 | - | Sound Pressure Level (SPL) | - | 10 mW | Top | Rectangular | - | - | - | - | Solder Pads | 0.240" L x 0.126" W (6.10mm x 3.20mm) |
|
|
HODTEC-31230-000SPEAKER TOP PORT 120DB |
3,491 |
|
- |
- | Tray | Active | Magnetic | Receiver, Balanced Armature | 100 Hz ~ 7 kHz | - | - | 120.00 | - | - | - | - | Top | - | - | - | - | - | - | - |
|
SPKR.10.4.ASPEAKER 4OHM 80W TOP PORT 10INCH |
4,764 |
|
规格书 |
- | Box | Active | Magnetic | Subwoofer | 20 Hz ~ 200 Hz | - | 4 Ohms | - | - | Sound Pressure Level (SPL) | 80 W | 160 W | Top | Round | - | - | - | - | Solder Eyelet(s) | 10.079" Dia (256.00mm) |
|
|
GR-31502-000SPEAKER 170OHM TOP PORT 103DB |
100 |
|
规格书 |
GR | Tray | Active | Magnetic | Receiver, Balanced Armature | 100 Hz ~ 5.58 kHz | - | 170 Ohms | 103.00 | - | Sound Pressure Level (SPL) | - | 10 mW | Top | Rectangular | - | - | - | - | Solder Pads | 0.240" L x 0.126" W (6.10mm x 3.20mm) |
|
|
GR-31570-000SPEAKER 87.7OHM TOP PORT 103DB |
100 |
|
规格书 |
GR | Tray | Active | Magnetic | Receiver, Balanced Armature | 100 Hz ~ 5.58 kHz | - | 87.7 Ohms | 103.00 | - | Sound Pressure Level (SPL) | - | 10 mW | Top | Rectangular | - | - | - | - | Solder Pads | 0.240" L x 0.126" W (6.10mm x 3.20mm) |
|
|
CMS-1545-058L5515MM ROUND, .5W, 8, 1000HZ |
870 |
|
规格书 |
CMS | Tray | Active | Magnetic | General Purpose | 800 Hz ~ 20 kHz | 1kHz | 8 Ohms | 90.00 | 500mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Round | Polyethylene Naphthalate (PEN) | Nd-Fe-B | - | - | Wire Leads | 0.591" Dia (15.00mm) |
|
|
CMS-241535-078L6524X15MM OVAL, .7W, 8, 850HZ |
1,033 |
|
规格书 |
CMS | Tray | Active | Magnetic | General Purpose | 680 Hz ~ 20 kHz | 850Hz | 8 Ohms | 95.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Oval, Rectangular Frame | Polyethylene Naphthalate (PEN) | Nd-Fe-B | - | - | Wire Leads | 0.945" L x 0.591" W (24.00mm x 15.00mm) |
|
|
SP-2014L-2SPEAKER, 8 OHM, 0.8/1.0W, 90DB, |
2,492 |
|
规格书 |
SP | Bulk | Active | Magnetic | General Purpose | 950 Hz ~ 20 kHz | 950Hz | 8 Ohms | 90.00 | 800mW/100mm | Sound Pressure Level (SPL) | 800 mW | 1 W | Top | Oval | Polyethylene Naphthalate (PEN) | Nd-Fe-B | - | - | Solder Pads | 0.787" L x 0.551" W (20.00mm x 14.00mm) |
|
|
SP-2003SPEAKER, 8 OHM, 0.3/0.5W, 90DB, |
980 |
|
规格书 |
SP | Bulk | Active | Magnetic | General Purpose | 650 Hz ~ 20 kHz | 650Hz | 8 Ohms | 90.00 | 300mW/100mm | Sound Pressure Level (SPL) | 300 mW | 500 mW | Top | Round | Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | - | 0.787" Dia (20.00mm) |
|
|
CMS-3047-18L30030MM ROUND, 1W, 8, 600HZ |
987 |
|
规格书 |
CMS | Tray | Active | Magnetic | General Purpose | 480 Hz ~ 6 kHz | 600Hz | 8 Ohms | 97.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Round | Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 1.181" Dia (30.00mm) |
|
|
SP-2014FSPEAKER, 8 OHM, 1.0/1.3W 93DB, 9 |
878 |
|
规格书 |
SP | Bulk | Active | Magnetic | General Purpose | 900 Hz ~ 20 kHz | 900Hz | 8 Ohms | 93.00 | 100mW/50mm | Sound Pressure Level (SPL) | 1 W | 1.3 W | Top | Oval | Polyethylene Naphthalate (PEN) | Nd-Fe-B | - | - | - | 0.787" L x 0.551" W (20.00mm x 14.00mm) |
|
|
SP-1504L-1SPEAKER, 8 OHM, 0.5/0.8W, 92DB, |
992 |
|
规格书 |
SP | Bulk | Active | Magnetic | General Purpose | 1 kHz ~ 20 kHz | 1kHz | 8 Ohms | 92.00 | 500mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Round | Polyethylene Naphthalate (PEN) | Nd-Fe-B | - | - | Wire Leads | 0.591" Dia (15.00mm) |
|
|
WSPH-1511SSPEAKER, IP67, 8 OHM, 0.7/1.0W, |
2,000 |
|
规格书 |
WSP | Bulk | Active | Magnetic | General Purpose | 800 Hz ~ 2 kHz | 800Hz | 8 Ohms | 83.00 | 100mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Round | Polyetheretherketone (PEEK) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
|
SP-1217SPEAKER, 8 OHM, 0.8/1.0W, 90DB, |
949 |
|
规格书 |
SP | Bulk | Active | Magnetic | General Purpose | 1.1 kHz ~ 20 kHz | 1.1kHz | 8 Ohms | 85.00 | 100mW/100mm | Sound Pressure Level (SPL) | 800 mW | 1 W | Top | Oval | Polyethylene Terephthalate (PET) | Nd-Fe-B-N38 | - | - | Solder Pads | 0.472" L x 0.669" W (12.00mm x 17.00mm) |
|
|
SP-2305SPEAKER, 8 OHM, 0.5/0.8W, 89DB, |
1,199 |
|
规格书 |
SP | Bulk | Active | Magnetic | General Purpose | 750 Hz ~ 20 kHz | 750Hz | 8 Ohms | 89.00 | 500mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Round | Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | - | 0.906" Dia (23.00mm) |
|
|
SP-2004FWSPEAKER, 8 OHM, 0.5/0.8W, 91DB, |
963 |
|
规格书 |
SP | Bulk | Active | Magnetic | General Purpose | 750 Hz ~ 10 kHz | 750Hz | 8 Ohms | 91.00 | 500mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Round | Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 0.787" Dia (20.00mm) |
