| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 技术 | 类型 | 频率范围 | 频率 - 自谐振 | 阻抗 | 效率 - dBA | 效率 - 测试 | 效率 - 类型 | 额定功率 | 功率 - 最大值 | 端口位置 | 形状 | 材料 - 锥体 | 材料 - 磁体 | 防护等级 | 额定值 | 端接方式 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

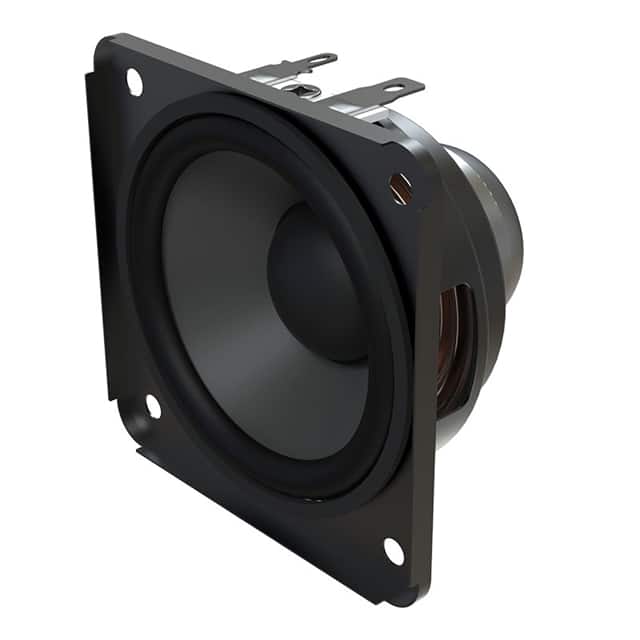

SUFR5015SPEAKER 12OHM 15W TOP PORT 83DB |
3,311 |
|
规格书 |
SUFR | Box | Active | Magnetic | General Purpose | 180 Hz ~ 20 kHz | 196Hz | 12 Ohms | 83.00 | 1W/1M | Sound Pressure Level (SPL) | 15 W | 20 W | Top | Rectangular | Paper | Nd-Fe-B | - | - | Solder Eyelet(s) | 2.854" L x 0.906" W (72.50mm x 23.00mm) |
|
SUFR6325SPEAKER 4OHM 25W TOP PORT 82DB |
1,834 |
|
- |
SUFR | Box | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 112Hz | 4 Ohms | 82.00 | 1W/1M | Sound Pressure Level (SPL) | 25 W | 25 W | Top | Rectangular | - | Ferrite | - | - | Solder Eyelet(s) | 2.921" L x 2.921" W (74.20mm x 74.20mm) |
|

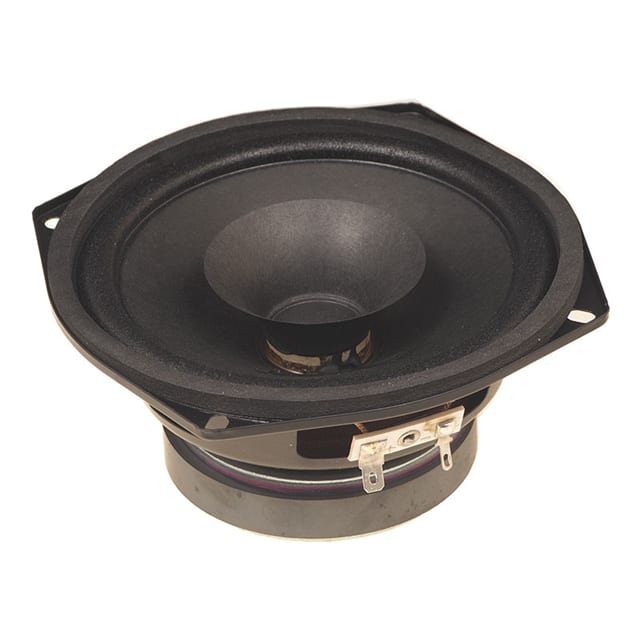

SUFR12025SPEAKER 8OHM 25W TOP PORT 87DB |
2,239 |
|
规格书 |
SUFR | Box | Active | Magnetic | General Purpose | 100 Hz ~ 18 kHz | 100Hz | 8 Ohms | 87.00 | 1W/1M | Sound Pressure Level (SPL) | 25 W | 40 W | Top | Round, Rectangular Frame | Paper | Ferrite | - | - | Solder Eyelet(s) | 5.276" Dia (134.00mm) |
|

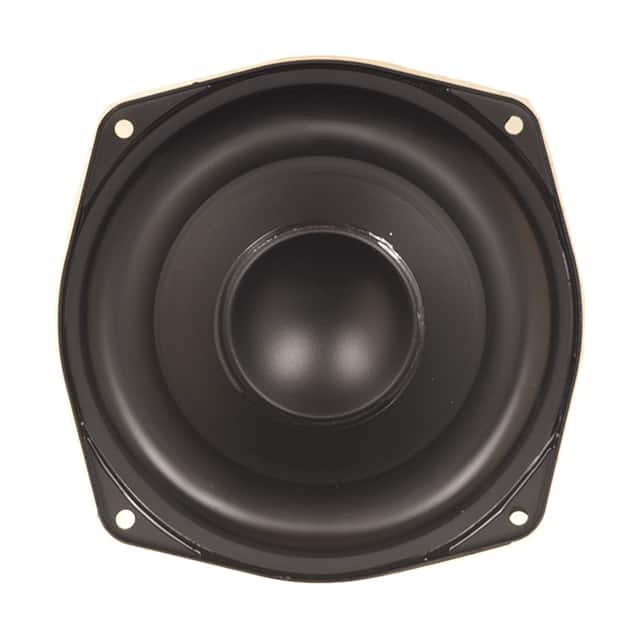

SUBS11580SPEAKER OHMW TOP PORT 78DB |
4,694 |
|
规格书 |
SUBS | Box | Active | Magnetic | General Purpose | 70 Hz ~ 3 kHz | 70Hz | - | 78.00 | 1W/1M | Sound Pressure Level (SPL) | - | - | Top | Round, Rectangular Frame | Polypropylene (PP) | Ferrite | - | - | Solder Eyelet(s) | 4.961" Dia (126.00mm) |
|
FEC-26368-I06-VAMSPEAKER RECEIVER |
3,752 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
10826827SPEAKER RECEIVER |
3,678 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
10146773SPEAKER RECEIVER |
2,135 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SR6438NWS-158SPEAKER SMD |
2,641 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RVA-90017-N05SPEAKER SMD |
1,802 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SR6438NWS-B79SPEAKER SMD |
4,085 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

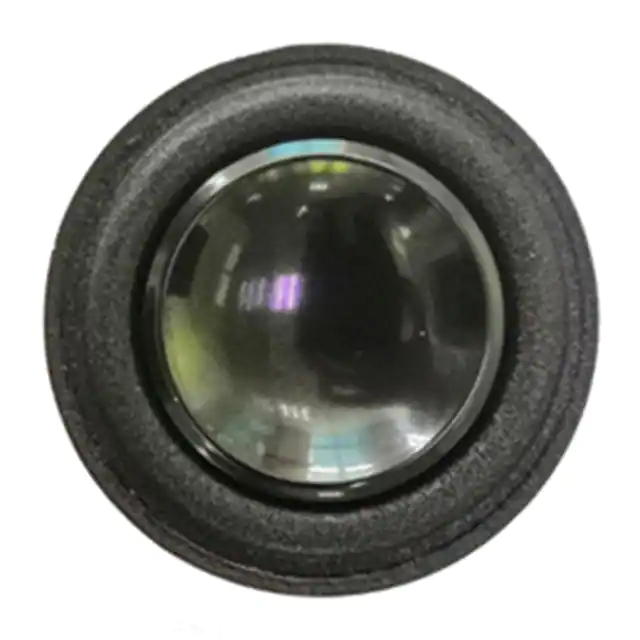

NS28D-0402-07SPEAKER 4OHM 2W 91DB |
2,020 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 400 Hz ~ 20 kHz | 450Hz | 4 Ohms | 91.00 | - | Sound Pressure Level (SPL) | 2 W | 3 W | - | Round | Foam | Nd-Fe-B | - | - | Solder Pads | 1.102" Dia (28.00mm) |
|

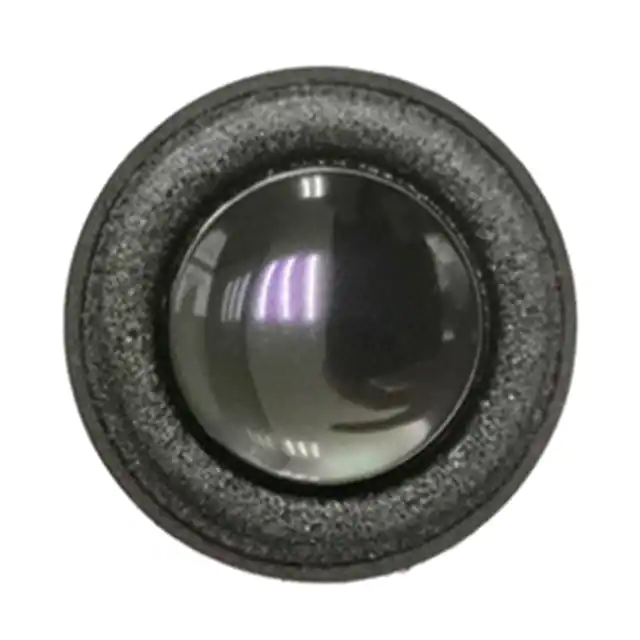

NS28D-0402-10SPEAKER 4OHM 1.5W 80DB |
4,846 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 160 Hz ~ 16 kHz | 200Hz | 4 Ohms | 80.00 | - | Sound Pressure Level (SPL) | 1.5 W | 2 W | - | Round | - | Nd-Fe-B | - | - | Solder Pads | 1.102" Dia (28.00mm) |
|
|
AS07708PS-7-WR-RSPEAKER 8OHM 4W TOP PORT 90DB |
1,170 |
|
规格书 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SPK-I-81368SPEAKER 4OHM 3W 95DB |
2,312 |
|
规格书 |
- | Bag | Active | Magnetic | Bone Conduction Transducer | 800 Hz ~ 2 kHz | 1kHz | 4 Ohms | 95.00 | - | - | 3 W | 5 W | - | Rectangular | - | - | - | - | - | - |
|
|
TEBM65C20F-8BALANCED MODE RADIATOR 108mm |
3,052 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 60 Hz ~ 20000 Hz | 104Hz | 8 Ohms | 81.00 | 1W/1m | Sensitivity | 30 W | - | Top | Round | Paper | Nd-Fe-B | - | - | - | 4.252" Dia (108.00mm) |
|
|
TEBM36S12-4ABALANCED MODE RADIATOR 65x65mm |
3,326 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 80 Hz ~ 20000 Hz | 165Hz | 4 Ohms | 83.00 | 1W/1m | Sensitivity | 12 W | - | Top | Square | Paper | Nd-Fe-B | - | - | - | 2.559" L x 2.559" W (65.00mm x 65.00mm) |
|
|
SR8850NSS-000MINI SIRENS RECEIVER |
2,472 |
|
规格书 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
VSR-32773-000WATERPROOF MINI SIRENS ASSEMBLY |
1,383 |
|
规格书 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RAB-32037-000RECEIVER |
2,501 |
|
规格书 |
RAB | Bulk | Active | - | Receiver | 200 Hz ~ 6.2 kHz | - | 124 Ohms | 101.00 | - | Sensitivity | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.208" L x 0.117" W (5.28mm x 2.97mm) |
|
|
RAF-32873-000RECEIVER |
3,355 |
|
规格书 |
RAF | Bulk | Active | - | Receiver | 200 Hz ~ 11 kHz | - | 50 Ohms | 106.20 | - | Sensitivity | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.203" L x 0.117" W (5.15mm x 2.96mm) |
