| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 技术 | 类型 | 频率范围 | 频率 - 自谐振 | 阻抗 | 效率 - dBA | 效率 - 测试 | 效率 - 类型 | 额定功率 | 功率 - 最大值 | 端口位置 | 形状 | 材料 - 锥体 | 材料 - 磁体 | 防护等级 | 额定值 | 端接方式 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
58406-947AUDIO WARE PWRSPKR 15W |
2,308 |
|
- |
- | Box | Active | - | General Purpose | 300 Hz ~ 3.2 kHz | - | 4 Ohms | - | - | Sensitivity | 20 W | - | Free Hanging | Rectangular | - | - | - | - | Terminal Block | 5.500" L x 4.300" W (139.70mm x 109.22mm) |
|
|
50210DK 97 8 OHM |
4,102 |
|
规格书 |
- | Retail Package | Active | - | General Purpose | 380 Hz ~ 20 kHz | - | 8 Ohms | 100.00 | 1W/1M | Sound Pressure Level (SPL) | 6 W | 10 W | User Defined | Round | - | - | IP67 - Dust Tight, Waterproof | - | Wire Leads | 3.819" Dia (97.00mm) |
|

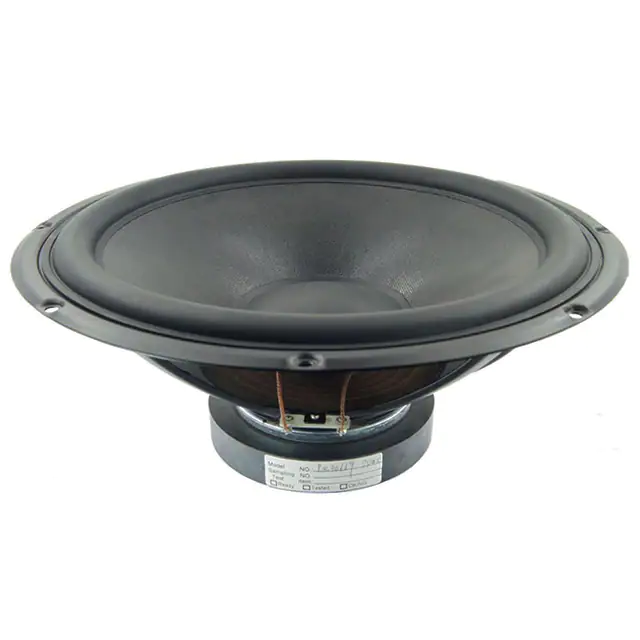

SLS-P830669SPEAKR 6.95OHM 100W TOP 89.2DB |
4,587 |
|
规格书 |
SLS | Bulk | Active | Magnetic | Woofer | 30 Hz ~ 2 kHz | 31.48Hz | 6.95 Ohms | 89.20 | 1W/1M | Half Space Sensitivity | 100 W | - | Top | Round | Paper, Coated | Ferrite | - | - | Solder Eyelet(s) | 12.382" Dia (314.50mm) |
|
|
9069SPEAKER W 300 8 OHM |
1,629 |
|
- |
- | Retail Package | Active | Magnetic | General Purpose | 32 Hz ~ 2.5 kHz | 32Hz | 8 Ohms | 91.00 | 1W/1M | Sound Pressure Level (SPL) | 120 W | 180 W | Top | Round | - | - | - | - | Quick Connect | 12.008" Dia (305.00mm) |
|
|
50373WL 25.20 EV 100 V |
1,384 |
|
规格书 |
- | Retail Package | Active | - | General Purpose | 120 Hz ~ 17 kHz | - | - | 85.00 | 1W/1M | Sound Pressure Level (SPL) | 1.5 W | 6 W | User Defined | Rectangular | - | - | - | - | - | 10.000" L x 8.031" W (254.00mm x 204.00mm) |
|
|
4560HX 10 4 OHM |
1,035 |
|
规格书 |
- | Retail Package | Active | Magnetic | General Purpose | 50 Hz ~ 22 kHz | 70Hz | 4 Ohms | 81.00 | 1W/1M | Sound Pressure Level (SPL) | 40 W | 60 W | Top | Round | Aluminum | - | - | - | Solder Eyelet(s) | 4.961" Dia (126.00mm) |
|

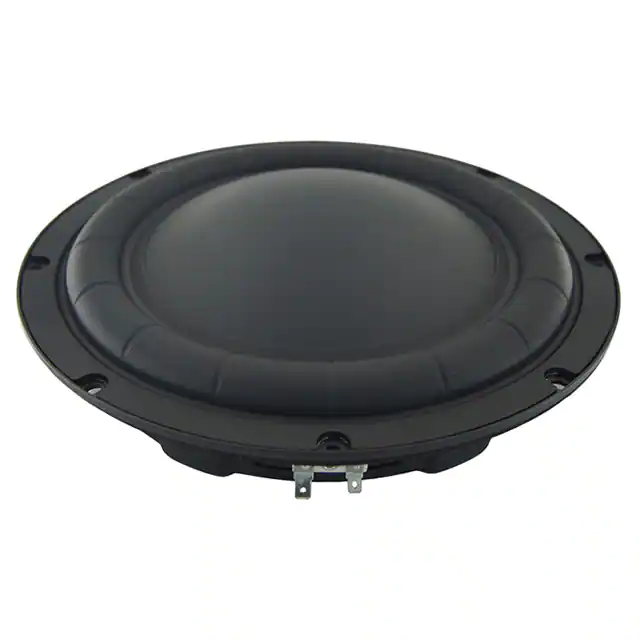

GBS-250F38CP01-04SPEAKR 4.85OHM 200W TOP 85.8DB |
4,021 |
|
规格书 |
GBS | Bulk | Active | Magnetic | Subwoofer | 50 Hz ~ 2 kHz | 37.69Hz | 4.85 Ohms | 85.80 | 1W/1M | Half Space Sensitivity | 200 W | - | Top | Round | Paper | Ferrite | - | - | Solder Eyelet(s) | 10.394" Dia (264.00mm) |
|
|
9035SPEAKER W 250 S 8 OHM |
4,004 |
|
- |
- | Retail Package | Active | Magnetic | General Purpose | 31 Hz ~ 5.5 kHz | 31Hz | 8 Ohms | 90.00 | 1W/1M | Sound Pressure Level (SPL) | 100 W | 150 W | Top | Round | Paper | - | - | - | Quick Connect | 11.142" Dia (283.00mm) |
|
|
9034SPEAKER W 250 S 4 OHM |
2,954 |
|
- |
- | Retail Package | Active | Magnetic | General Purpose | 33 Hz ~ 5.5 kHz | 33Hz | 4 Ohms | 90.00 | 1W/1M | Sound Pressure Level (SPL) | 100 W | 150 W | Top | Round | Paper | - | - | - | Quick Connect | 11.142" Dia (283.00mm) |
-VIEW-A.jpg)
|

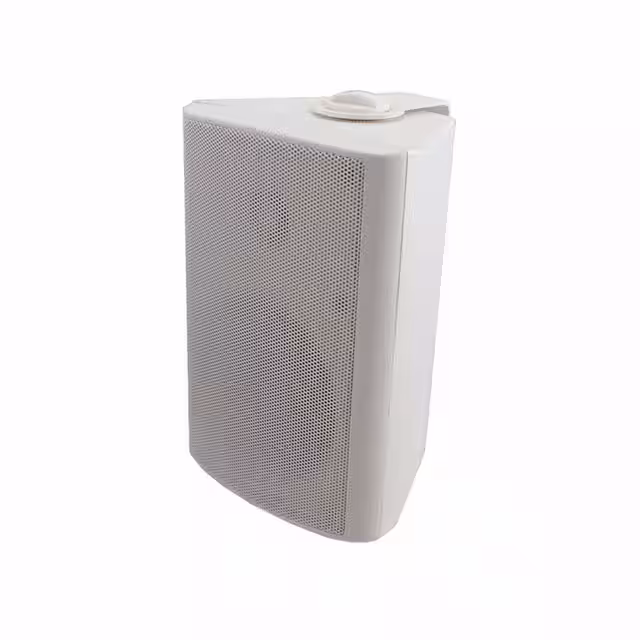

WB 10 - 100 V/8 OHM (WHITE)SPEAKER 8OHM 40W 91DB 2-WAY |
1,759 |
|
规格书 |
- | Bulk | Active | - | General Purpose, Enclosure Included | 100 Hz ~ 20 kHz | - | 8 Ohms | 91.00 | 1W/1M | Sound Pressure Level (SPL) | 40 W | 60 W | User Defined | Rectangular | - | - | IP54 | - | - | 4.528" Dia x 8.189" L (115.00mm x 208.00mm) |
|
|
50312WB 10 BLACK 100V+8 OHM |
2,936 |
|
规格书 |
- | Retail Package | Active | - | General Purpose | 100 Hz ~ 20 kHz | - | 8 Ohms | 91.00 | 1W/1M | Sound Pressure Level (SPL) | 40 W | 60 W | User Defined | Rectangular | - | - | IP54 | - | None | 4.528" Dia x 8.189" L (115.00mm x 208.00mm) |
|
|
50310WB 10 WHITE 100V+8 OHM |
4,402 |
|
规格书 |
- | Retail Package | Active | - | General Purpose | 100 Hz ~ 20 kHz | - | 8 Ohms | 91.00 | 1W/1M | Sound Pressure Level (SPL) | 40 W | 60 W | User Defined | Rectangular | - | - | IP54 | - | None | 4.528" Dia x 8.189" L (115.00mm x 208.00mm) |
|
|
WL 16 EV - 100 VSPEAKER 92DB RECTANGULAR |
4,203 |
|
规格书 |
- | Bulk | Active | - | - | 150 Hz ~ 20 kHz | - | - | 92.00 | 1W/1M | Sound Pressure Level (SPL) | 1.5 W | 6 W | User Defined | Rectangular | - | - | - | - | - | 10.000" L x 8.031" W (254.00mm x 204.00mm) |
|

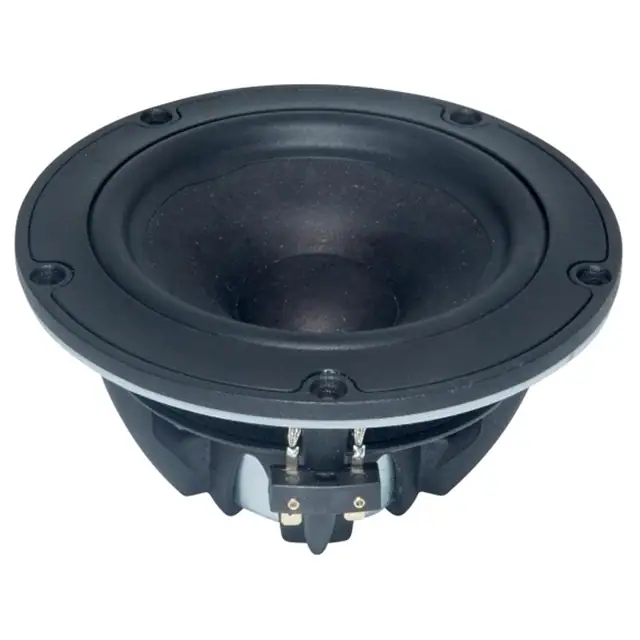

NE149W-04SPEAKR 5.07OHM 60W TOP PT 87.2DB |
2,811 |
|
规格书 |
NE | Bulk | Active | Magnetic | Tweeter | 50 Hz ~ 5 kHz | 70.24Hz | 5.07 Ohms | 87.20 | 1W/1M | Half Space Sensitivity | 60 W | - | Top | Round | Paper | Nd-Fe-B | - | - | Terminal Block | 5.866" Dia (149.00mm) |
|

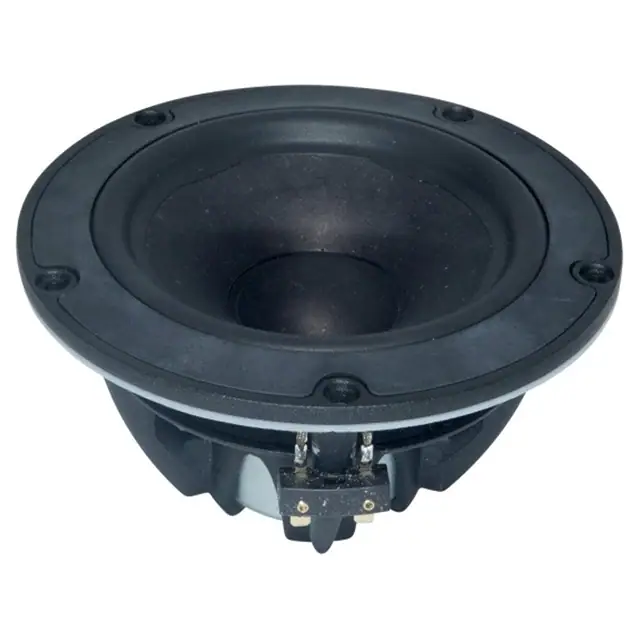

NE149W-08SPEAKR 7.41OHM 60W TOP PT 86.7DB |
4,447 |
|
规格书 |
NE | Bulk | Active | Magnetic | Tweeter | 50 Hz ~ 5 kHz | 53.94Hz | 7.41 Ohms | 86.70 | 1W/1M | Half Space Sensitivity | 60 W | - | Top | Round | Paper | Nd-Fe-B | - | - | Terminal Block | 5.866" Dia (149.00mm) |
|
|
50370WL 16 EV 100 V |
4,801 |
|
- |
- | Retail Package | Active | - | General Purpose | 150 Hz ~ 20 kHz | - | - | 92.00 | 1W/1M | Sound Pressure Level (SPL) | 1.5 W | 6 W | User Defined | Rectangular | - | - | - | - | - | 10.000" L x 8.031" W (254.00mm x 204.00mm) |
|
|
SOUNDBAR PCSPEAKER RECTANGULAR |
1,664 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | Rectangular | - | - | - | - | - | 3.543" L x 28.346" W (90.00mm x 720.00mm) |
|
|
G 50 FFL - 8 OHMSPEAKER 8OHM TOP PORT 90DB |
4,916 |
|
规格书 |
- | Bulk | Active | Magnetic | - | 300 Hz ~ 12 kHz | 455Hz | 8 Ohms | 90.00 | 1W/1M | Sound Pressure Level (SPL) | - | - | Top | Round | - | - | - | - | Quick Connect | 5.512" Dia (140.00mm) |
|
|
9051SPEAKER WF 130 ND 8 OHM |
2,591 |
|
- |
- | Retail Package | Active | Magnetic | General Purpose | 46 Hz ~ 10 kHz | 46Hz | 8 Ohms | 84.00 | 1W/1M | Sound Pressure Level (SPL) | 40 W | 60 W | Top | Round | Polypropylene (PP) | Nd | - | - | Solder Eyelet(s) | 5.846" Dia (148.50mm) |
|
|
5879LS-KIT SOUNDBAR PC |
1,206 |
|
- |
- | Retail Package | Active | - | General Purpose | - | - | - | - | - | - | - | - | - | Rectangular | - | - | - | - | - | 3.543" L x 28.346" W (90.00mm x 720.00mm) |
