| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 技术 | 类型 | 频率范围 | 频率 - 自谐振 | 阻抗 | 效率 - dBA | 效率 - 测试 | 效率 - 类型 | 额定功率 | 功率 - 最大值 | 端口位置 | 形状 | 材料 - 锥体 | 材料 - 磁体 | 防护等级 | 额定值 | 端接方式 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8018SC 8 N 8 OHM |
3,619 |
|
规格书 |
- | Retail Package | Active | Magnetic | General Purpose | 70 Hz ~ 20 kHz | 110Hz | 8 Ohms | 81.00 | 1W/1M | Sound Pressure Level (SPL) | 30 W | 50 W | Top | Round, Square Frame | - | - | - | - | Solder Eyelet(s) | 5.835" Dia x 3.051" L (148.20mm x 77.50mm) |
|

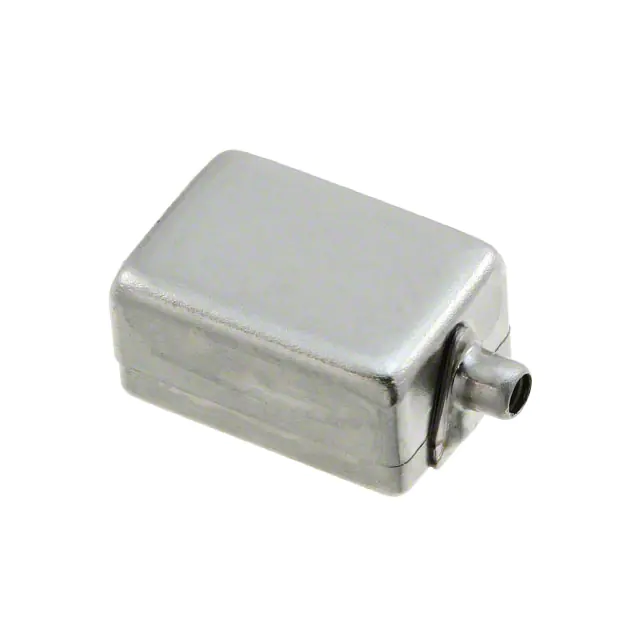

BK-21615-000SPEAKER 1.2 KOHM TOP PORT 126DB |
3,613 |
|
规格书 |
BK | Tray | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 4 kHz | - | 1.2 kOhms | 126.00 | - | Sensitivity | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.310" L x 0.220" W (7.87mm x 5.59mm) |
|
BK-30039-000SPEAKER RECTANGULAR |
2,208 |
|
规格书 |
BK | Bulk | Active | Magnetic | Receiver, Balanced Armature | - | - | - | - | - | - | - | - | - | Rectangular | - | - | - | - | Solder Pads | - |
|
|
8011SC 10 N 8 OHM |
3,200 |
|
- |
- | Retail Package | Active | Magnetic | General Purpose | 1 kHz ~ 20 kHz | 1.7kHz | 8 Ohms | 90.00 | 1W/1M | Sound Pressure Level (SPL) | - | - | Top | Round | - | - | - | - | - | 4.094" Dia (104.00mm) |
|

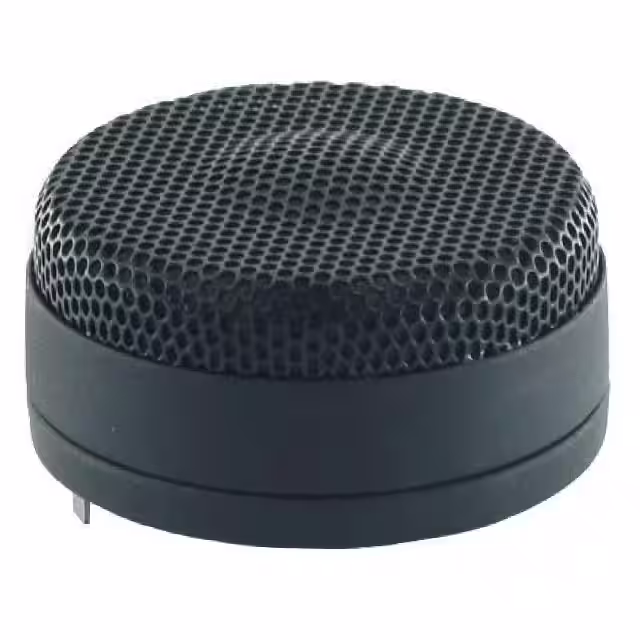

D26NC05-06SPEAKR 5.99OHM 30W TOP PT 87.4DB |
4,379 |
|
规格书 |
D | Bulk | Active | Magnetic | Tweeter | 1.3 kHz ~ 20 kHz | 1579.09Hz | 5.99 Ohms | 87.40 | 1W/1M | Half Space Sensitivity | 30 W | - | Top | Round | Cloth | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.772" Dia (45.00mm) |
|
4692FX 10 4 OHM |
3,294 |
|
规格书 |
- | Retail Package | Active | Magnetic | General Purpose | 70 Hz ~ 22 kHz | 110Hz | 4 Ohms | 84.00 | 1W/1M | Sound Pressure Level (SPL) | 40 W | 70 W | Top | Round | Polypropylene (PP) | - | Waterproof | - | Quick Connect | - |
|
|
50097DL 5 8 OHM |
2,336 |
|
规格书 |
- | Retail Package | Active | Magnetic | General Purpose | 150 Hz ~ 20 kHz | 280Hz | 8 Ohms | 89.00 | 1W/1M | Sound Pressure Level (SPL) | 4 W | 10 W | Top | Round | - | - | IP54 | - | Terminal Block | 2.087" Dia (53.00mm) |
|
|
FED-26554-I04SPEAKER 510OHM TOP PORT 102.5DB |
4,797 |
|
规格书 |
FED | Bulk | Obsolete | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 4 kHz | - | 510 Ohms | 102.50 | - | Sound Pressure Level (SPL) | - | - | Top | Rectangular | - | Ferrite | - | - | Solder Pads | 0.248" L x 0.169" W (6.30mm x 4.29mm) |
|
|
FED-26565-I04SPEAKER 128OHM TOP PORT 102.5DB |
3,977 |
|
规格书 |
FED | Bulk | Obsolete | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 4 kHz | - | 128 Ohms | 102.50 | - | Sound Pressure Level (SPL) | - | - | Top | Rectangular | - | Ferrite | - | - | Solder Pads | 0.248" L x 0.169" W (6.30mm x 4.29mm) |
|
|
FED-26788-I04SPEAKER 52OHM SIDE PORT 102.5DB |
4,494 |
|
- |
FED | Bulk | Obsolete | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 4 kHz | - | 52 Ohms | 102.50 | - | - | - | - | Side | Rectangular | - | Ferrite | - | - | Solder Pads | 0.248" L x 0.169" W (6.30mm x 4.29mm) |
|
|
FED-26849-I06SPEAKER 100OHM TOP PORT 102.5DB |
1,541 |
|
规格书 |
FED | Bulk | Obsolete | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 4 kHz | - | 100 Ohms | 102.50 | - | Sound Pressure Level (SPL) | - | - | Top | Rectangular | - | Ferrite | - | - | Solder Pads | 0.248" L x 0.169" W (6.30mm x 4.29mm) |
|
|
FED-26859-I06SPEAKER 100OHM TOP PORT 102.5DB |
1,225 |
|
规格书 |
FED | Bulk | Obsolete | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 4 kHz | - | 100 Ohms | 102.50 | - | Sound Pressure Level (SPL) | - | - | Top | Rectangular | - | Ferrite | - | - | Solder Pads | 0.248" L x 0.169" W (6.30mm x 4.29mm) |
|
|
FED-27235-I04SPEAKR 1.54 KOHM SIDE PORT 103DB |
4,501 |
|
- |
FED | Bulk | Obsolete | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 4 kHz | - | 1.54 kOhms | 103.00 | - | - | - | - | Side | Rectangular | - | Ferrite | - | - | Solder Pads | 0.248" L x 0.169" W (6.30mm x 4.29mm) |
|
|
TEC-30033-B22SPEAKER 31OHM TOP PORT 107DB |
1,829 |
|
- |
TEC | Tray | Obsolete | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 6.49 kHz | - | 31 Ohms | 107.00 | - | Sound Pressure Level (SPL) | - | - | Top | Rectangular | - | - | - | - | Solder Pads | - |
|
SDS-P830855SPEAKR 6.43OHM 30W TOP PT 83.8DB |
2,642 |
|
规格书 |
SDS | Bulk | Active | Magnetic | Woofer | 60 Hz ~ 5 kHz | 63.26Hz | 6.43 Ohms | 83.80 | 1W/1M | Half Space Sensitivity | 30 W | - | Top | Round | Paper, Coated | Ferrite | - | - | Solder Eyelet(s) | 4.854" Dia (123.30mm) |
|
|
4532EX 30 S 8 OHM |
2,725 |
|
规格书 |
- | Retail Package | Active | - | Exciter | - | - | 8 Ohms | - | - | - | - | 10 W | Top | Round, Square Frame | - | - | - | - | Quick Connect | 1.181" L x 1.181" W (30.00mm x 30.00mm) |
|

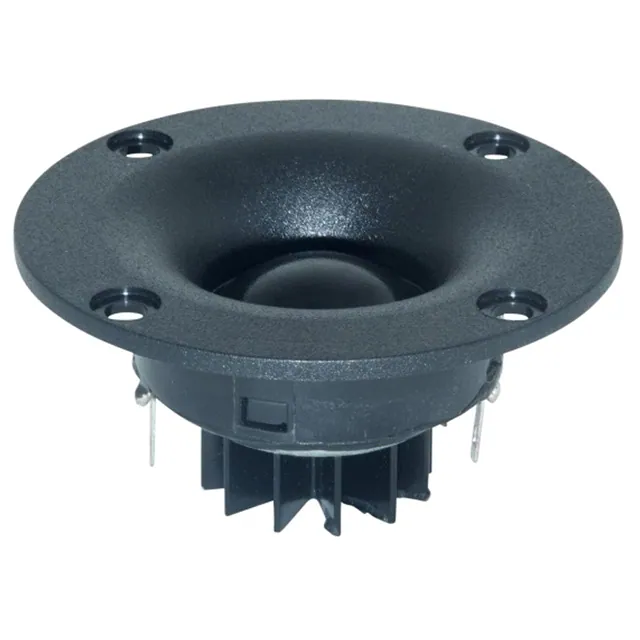

BC25SC08-08SPEAKR 8.2OHM 100W TOP PT 94.1DB |
4,699 |
|
规格书 |
BC | Bulk | Active | Magnetic | Tweeter | 2.5 kHz ~ 20 kHz | 1731.62Hz | 8.2 Ohms | 94.10 | 1W/1M | Half Space Sensitivity | 100 W | - | Top | Round | Cloth | Nd-Fe-B | - | - | Solder Eyelet(s) | 2.756" Dia (70.00mm) |
|
|
EF-27534-017SPEAKER 110OHM 126DB RECT |
2,322 |
|
- |
EF | Tray | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 6.3 kHz | - | 110 Ohms | 126.00 | - | Sensitivity | - | - | - | Rectangular | - | - | - | - | Solder Pads | 0.310" L x 0.220" W (7.87mm x 5.59mm) |
|
|
ED-21739-000SPEAKER 1.5 KOHM TOP PORT 107DB |
4,512 |
|
规格书 |
ED | Bulk | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 5 kHz | - | 1.5 kOhms | 107.00 | - | Sensitivity | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.248" L x 0.169" W (6.30mm x 4.29mm) |
|
|
ED-21992-000SPEAKER 760OHM TOP PORT 107DB |
2,595 |
|
规格书 |
ED | Bulk | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 5 kHz | - | 760 Ohms | 107.00 | - | Sensitivity | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.248" L x 0.169" W (6.30mm x 4.29mm) |
