购物车电磁铁
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 技术 | 类型 | 占空比 | 额定电压 | 行程长度 | 功率（瓦特） | 直流电阻 (DCR) | 衬套螺纹 | 安装类型 | 端接样式 | 尺寸 / 尺寸 | 轴直径 | 轴详细信息 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DSTL-0418-24SOLENOID PULL CONTINUOUS 24V |
3,488 |
|
规格书 |
DSTL | Box | Active | Electromechanical | Closed Frame (Pull), Tubular | Continuous | 24VDC | 0.125" (3.18mm) | 1.4 W | 407Ohm | - | Chassis Mount | Wire Leads with Connector | 0.504" Dia x 0.689" L (12.80mm x 17.50mm) | 0.156" (3.97mm) | Round |
|
DSML-1153-24PSOLENOID LATCH PULL PULSE 24V |
3,621 |
|
规格书 |
DSML | Box | Active | Electromechanical | Open Frame Latching (Pull) | Pulse | 24VDC | 0.750" (19.05mm) | 70 W | 8.2Ohm | - | Chassis Mount | Quick Connect - 0.110"/0.187" | 2.010" L x 1.000" W x 1.220" H (51.05mm x 25.40mm x 30.99mm) | 0.438" (11.13mm) | Clevis |
|

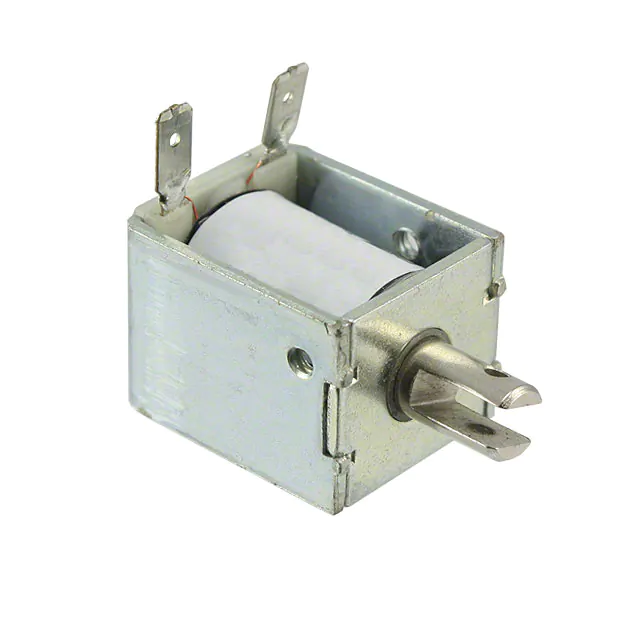

F0421ASOLENOID PULL CONTINUOUS 12V |
2,641 |
|
规格书 |
L-20 | Bulk | Active | Electromechanical | Open Frame (Pull) | Continuous | 12VDC | 0.500" (12.70mm) | 6.4 W | 22.5Ohm | - | Chassis Mount | Quick Connect - 0.187" (4.7mm) | 1.160" L x 0.810" W x 0.940" H (29.46mm x 20.57mm x 23.88mm) | 0.312" (7.93mm) | Clevis |
|

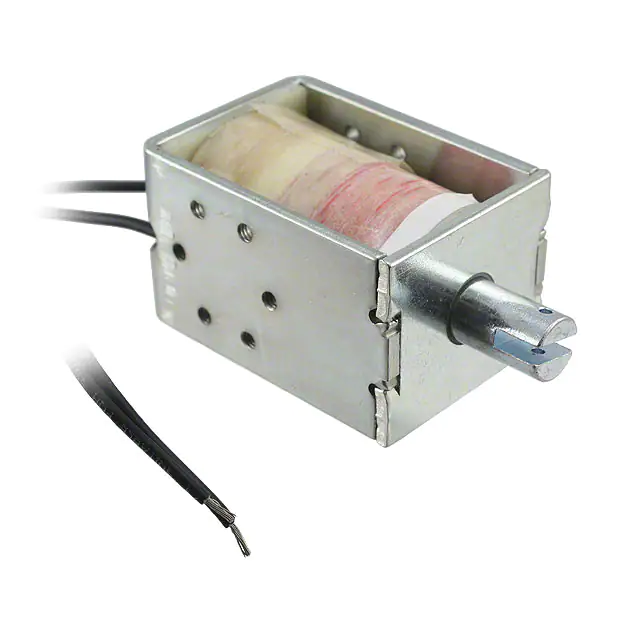

F0461ASOLENOID PULL CONTINUOUS 12V |
1,344 |
|
规格书 |
L-90 | Bulk | Active | Electromechanical | Open Frame (Pull) | Continuous | 12VDC | 1.250" (31.75mm) | 13 W | 11Ohm | - | Chassis Mount | Wire Leads | 2.630" L x 1.560" W x 1.820" H (66.80mm x 39.62mm x 46.23mm) | 0.500" (12.70mm) | Clevis |
|

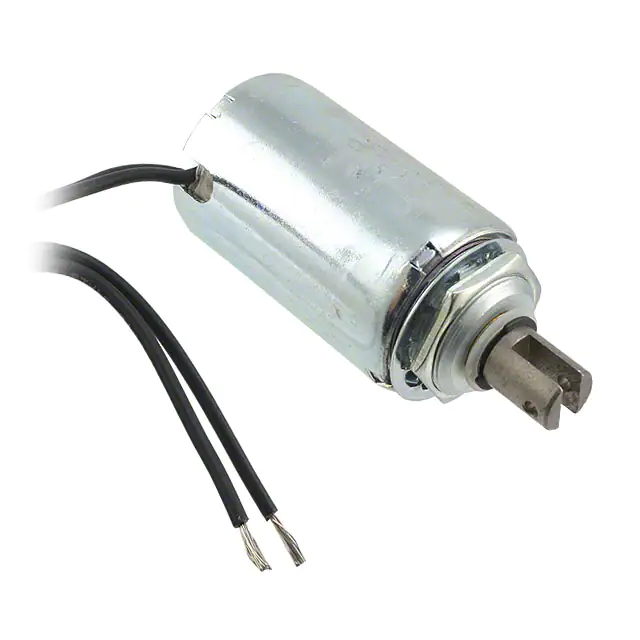

F0491ASOLENOID PULL CONTINUOUS 12V |
4,032 |
|
规格书 |
L-15-2 | Bulk | Active | Electromechanical | Closed Frame (Pull), Tubular | Continuous | 12VDC | 1.250" (31.75mm) | 14 W | 10Ohm | 1-27 UNS-2A | Panel Mount | Wire Leads | 1.490" Dia x 2.380" L (37.85mm x 60.45mm) | 0.500" (12.70mm) | Clevis |
|

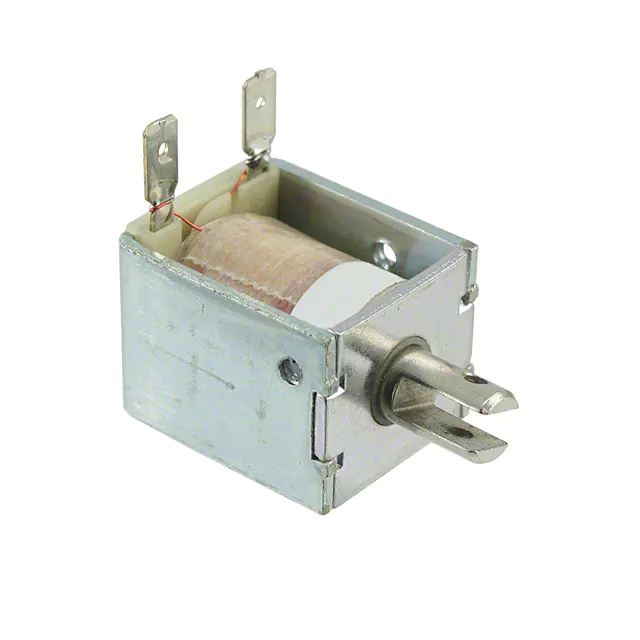

F0422ASOLENOID PULL INTERMITTENT 12V |
2,701 |
|
规格书 |
L-20 | Bulk | Active | Electromechanical | Open Frame (Pull) | Intermittent | 12VDC | 0.500" (12.70mm) | 12.5 W | 11.5Ohm | - | Chassis Mount | Quick Connect - 0.187" (4.7mm) | 1.160" L x 0.810" W x 0.940" H (29.46mm x 20.57mm x 23.88mm) | 0.312" (7.93mm) | Clevis |
|
F0442ASOLENOID PULL INTERMITTENT 12V |
1,045 |
|
规格书 |
L-82 | Bulk | Active | Electromechanical | Open Frame (Pull) | Intermittent | 12VDC | 0.750" (19.05mm) | 19 W | 7.6Ohm | - | Chassis Mount | Quick Connect - 0.187" (4.7mm) | 2.010" L x 1.000" W x 1.220" H (51.05mm x 25.40mm x 30.99mm) | 0.438" (11.13mm) | Clevis |
|
DSRS-0640-15-45DDC SOLENOID,CLOSE FRAME, ROTARY, |
1,799 |
|
规格书 |
- | Bulk | Active | Electromechanical | - | Pulse | 15VDC | - | 24 W | 90Ohm | - | Chassis Mount | Wire Leads | 1.551" Dia x 0.964" L (39.40mm x 24.50mm) | 0.219" (5.57mm) | Round |
|
|
DSRS-0640-18-45DDC SOLENOID, CLOSE FRAME, ROTARY |
3,960 |
|
规格书 |
- | Bulk | Active | Electromechanical | - | Pulse | 18VDC | - | 53 W | 5.8Ohm | - | Chassis Mount | Wire Leads | 1.551" Dia x 0.964" L (39.40mm x 24.50mm) | 0.219" (5.57mm) | Round |
|
|
AIR-E-VALVE-3VSOLENOID PULL 3VDC |
1,405 |
|
- |
- | Bulk | Active | Electromechanical | Open Frame (Pull) | - | 3VDC | - | - | 45Ohm | - | Chassis Mount | Wire Leads | 0.512" L x 0.492" W x 0.787" H (13.00mm x 12.50mm x 20.00mm) | 0.098" (2.50mm) | Round |
|
|
1671-9A10001TUBULAR SOLE 75 PULL - 30 AWG (R |
2,144 |
|
规格书 |
75 | Box | Active | Electromechanical | Closed Frame (Pull), Tubular | Continuous | 12VDC | 0.600" (15.24mm) | 7 W | 20.7Ohm | 9/16-18 UNF | Panel Mount | Wire Leads with Connector | 0.770" Dia x 1.550" L (19.56mm x 39.37mm) | 0.312" (7.93mm) | Clevis |
|
|
1671-9A50005TUBULAR SOLE 75 PULL - 34 AWG (R |
1,507 |
|
规格书 |
75 | Box | Active | Electromechanical | Closed Frame (Pull), Tubular | Continuous | 30VDC | 0.600" (15.24mm) | 7 W | 128.6Ohm | 9/16-18 UNF | Panel Mount | Wire Leads with Connector | 0.770" Dia x 1.550" L (19.56mm x 39.37mm) | 0.312" (7.93mm) | Clevis |
|
|
1671-9A30003TUBULAR SOLE 75 PULL - 33 AWG (R |
4,104 |
|
规格书 |
75 | Box | Active | Electromechanical | Closed Frame (Pull), Tubular | Continuous | 24VDC | 0.600" (15.24mm) | 7 W | 83.5Ohm | 9/16-18 UNF | Panel Mount | Wire Leads with Connector | 0.770" Dia x 1.550" L (19.56mm x 39.37mm) | 0.312" (7.93mm) | Clevis |
|
|
1671-9B30009TUBULAR SOLE 100 PULL - 26 AWG ( |
3,000 |
|
规格书 |
100 | Box | Active | Electromechanical | Closed Frame (Pull), Tubular | Continuous | 9.4VDC | 0.600" (15.24mm) | 10 W | 8.7Ohm | 3/4-16 UNF | Panel Mount | Wire Leads with Connector | 1.020" Dia x 2.050" L (25.91mm x 52.07mm) | 0.431" (10.95mm) | Clevis |
|
|
1671-9B10007TUBULAR SOLE 100 PULL - 24 AWG ( |
1,689 |
|
规格书 |
100 | Box | Active | Electromechanical | Closed Frame (Pull), Tubular | Continuous | 5.2VDC | 0.600" (15.24mm) | 10 W | 2.7Ohm | 3/4-16 UNF | Panel Mount | Wire Leads with Connector | 1.020" Dia x 2.050" L (25.91mm x 52.07mm) | 0.431" (10.95mm) | Clevis |
|
|
1671-9A20002TUBULAR SOLE 75 PUSH - 25 AWG (R |
2,446 |
|
规格书 |
75 | Box | Active | Electromechanical | Closed Frame (Push), Tubular | Continuous | 3.9VDC | 0.600" (15.24mm) | 7 W | 2.1Ohm | 9/16-18 UNF | Panel Mount | Wire Leads with Connector | 0.770" Dia x 1.550" L (19.56mm x 39.37mm) | 0.094" (2.39mm) | Round |
|
|
1671-9A60006TUBULAR SOLE 75 PUSH - 30 AWG (R |
2,164 |
|
规格书 |
75 | Box | Active | Electromechanical | Closed Frame (Push), Tubular | Continuous | 12VDC | 0.600" (15.24mm) | 7 W | 20.7Ohm | 9/16-18 UNF | Panel Mount | Wire Leads with Connector | 0.770" Dia x 1.550" L (19.56mm x 39.37mm) | 0.094" (2.39mm) | Round |
|
|
1671-9A40004TUBULAR SOLE 75 PUSH - 29 AWG (R |
2,479 |
|
规格书 |
75 | Box | Active | Electromechanical | Closed Frame (Push), Tubular | Continuous | 9.4VDC | 0.600" (15.24mm) | 7 W | 12.5Ohm | 9/16-18 UNF | Panel Mount | Wire Leads with Connector | 0.770" Dia x 1.550" L (19.56mm x 39.37mm) | 0.094" (2.39mm) | Round |
|
|
1671-9B20008TUBULAR SOLE 100 PUSH - 24 AWG ( |
4,907 |
|
规格书 |
100 | Box | Active | Electromechanical | Closed Frame (Push), Tubular | Continuous | 5.2VDC | 0.600" (15.24mm) | 10 W | 2.7Ohm | 3/4-16 UNF | Panel Mount | Wire Leads with Connector | 1.020" Dia x 2.050" L (25.91mm x 52.07mm) | 0.125" (3.18mm) | Round |
|
|
1671-9B40010TUBULAR SOLE 100 PUSH - 29 AWG ( |
4,099 |
|
规格书 |
100 | Box | Active | Electromechanical | Closed Frame (Push), Tubular | Continuous | 17.7VDC | 0.600" (15.24mm) | 10 W | 31.2Ohm | 3/4-16 UNF | Panel Mount | Wire Leads with Connector | 1.020" Dia x 2.050" L (25.91mm x 52.07mm) | 0.125" (3.18mm) | Round |
