BOM
购物车滑动开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 触点时间 | 开关功能 | 电流额定值（安培） | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 触点材料 | 触点表面处理 | 安装类型 | 端接样式 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C46206LFRSWITCH SLIDE DPDT 3A 125V |
1,832 |
|
- |
46200R | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | On-On (Line Voltage Selector) | 3A (AC), 500mA (DC) | 125 V | 125 V | Screwdriver Slot | Flush | Copper Alloy | - | Through Hole | PC Pin | 115V-230V Marking |
|
|
46204LESWITCH SLIDE DPST 3A 125V |
3,392 |
|
- |
46200E | Bulk | Obsolete | DPST | Non-Shorting (BBM) | On-Off | 3A (AC), 500mA (DC) | 125 V | 125 V | Standard | 8.74mm | Copper Alloy | - | Panel Mount | Solder Lug | - |
|
|
G-2011-0000SWITCH SLIDE SPST 13A 125V |
2,464 |
|
规格书 |
2000 | Bulk | Active | SPST | Not Specified | On-Off | 13A (AC) | 125 V | - | Standard | 6.60mm | Copper | Silver | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | Black Actuator and Housing |
|
|
G-2011-0004SWITCH SLIDE SPST 13A 125V |
1,147 |
|
规格书 |
2000 | Bulk | Active | SPST | Not Specified | On-Off | 13A (AC) | 125 V | - | Standard | 10.08mm | Copper | Silver | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | White Actuator |
|
|
G-2011-0023SWITCH SLIDE SPST 8A 125V |
1,340 |
|
规格书 |
2000 | Bulk | Active | SPST | Not Specified | On-Off | 8A (AC) | 125 V | - | Standard | 12.70mm | Copper | Silver | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | White Actuator and Housing |
|
|
G-128S-0011SWITCH SLIDE DP3T 500MA 125V |
2,261 |
|
规格书 |
G | Bulk | Active | DP3T | Not Specified | On-On-On | 500mA (AC/DC) | 125 V | 125 V | Standard | 5.08mm | Copper | Silver | Panel Mount | PC Pin | - |
|
|
G-2011-0007SWITCH SLIDE SPST |
2,285 |
|
规格书 |
2000 | Bulk | Active | SPST | Not Specified | On-Off | - | - | - | - | - | - | - | - | - | - |
|
|
G-2011-0027SWITCH SLIDE SPST |
3,643 |
|
规格书 |
2000 | Bulk | Active | SPST | Not Specified | On-Off | - | - | - | - | - | - | - | - | - | - |
|
|
G-2011-0029SWITCH SLIDE SPST |
2,361 |
|
规格书 |
2000 | Bulk | Active | SPST | Not Specified | On-Off | - | - | - | - | - | - | - | - | - | - |
|
|
G-2011-0036SWITCH SLIDE SPST |
3,875 |
|
规格书 |
2000 | Bulk | Active | SPST | Not Specified | On-Off | - | - | - | - | - | - | - | - | - | - |
|
|
G-332-0016SWITCH SLIDE SPDT 3A 125V |
3,295 |
|
规格书 |
G | Bulk | Active | SPDT | Not Specified | On-Mom | 3A (AC), 500mA (DC) | 125 V | 125 V | Standard | 4.78mm | Copper | Silver | Panel Mount | Solder Lug | - |
|
|
G-332-0023SWITCH SLIDE SPDT 3A 125V |
3,850 |
|
规格书 |
G | Bulk | Active | SPDT | Not Specified | On-Mom | 3A (AC), 500mA (DC) | 125 V | 125 V | Standard | 8.74mm | Copper | Silver | Panel Mount | PC Pin | - |
|

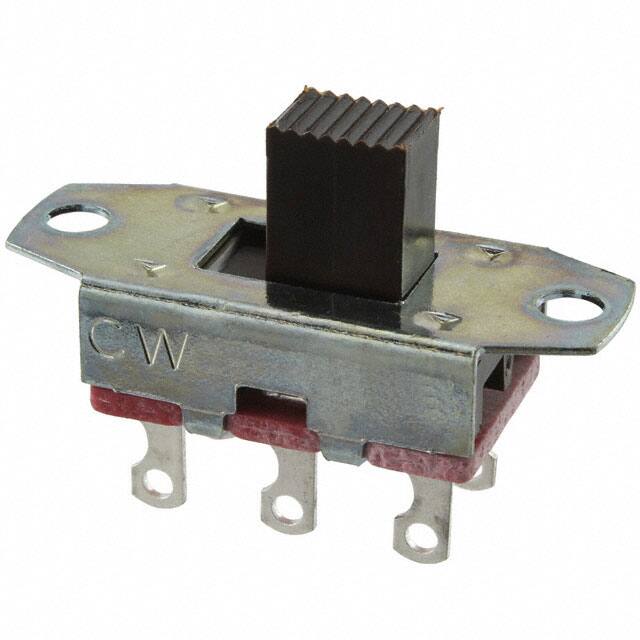

GF-1326-0008SWITCH SLIDE DPDT 13A 125V |
4,364 |
|
规格书 |
GF | Bulk | Active | DPDT | Not Specified | On-On | 13A (AC), 500mA (DC) | 125 V | 125 V | Standard | 8.74mm | Copper | Silver | Panel Mount | Solder Lug | - |
|
|
SLSA2201SWITCH SLIDE DPDT 500MA 125V |
1,269 |
|
- |
SLSA | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | On-On | 500mA (AC) | 125 V | - | Standard | 4.80mm | Copper Alloy | Silver | Through Hole | Solder Turret | Epoxy Sealed Terminals |
|
|
G-1328S-0019SWITCH SLIDE DP3T 13A 125V |
4,256 |
|
规格书 |
G | Bulk | Active | DP3T | Not Specified | On-On-On | 13A (AC), 500mA (DC) | 125 V | 125 V | Standard | 8.74mm | Copper | Silver | Panel Mount | Solder Lug | - |
|
|
GS-115-0000SWITCH SLIDE SPDT 500MA 125V |
4,471 |
|
规格书 |
GS | Bulk | Active | SPDT | Not Specified | On-On | 500mA (AC/DC) | 125 V | 125 V | Standard | 3.18mm | Copper Alloy | Silver | Panel Mount | Press-Fit | - |
|
|
MSS2220SWITCH SLIDE DPDT 300MA 125V |
4,588 |
|
- |
MSS | Bulk | Obsolete | DPDT | Shorting (MBB) | On-On | 300mA (AC) | 125 V | - | Standard | 5.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
MSS6350SWITCH SLIDE 6P3T 300MA 125V |
4,528 |
|
规格书 |
MSS | Bulk | Obsolete | 6P3T | Shorting (MBB) | On-On-On | 300mA (AC) | 125 V | - | Standard | 12.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
G-1328S-0021SWITCH SLIDE DP3T 13A 125V |
3,875 |
|
规格书 |
G | Bulk | Active | DP3T | Not Specified | On-On-On | 13A (AC), 500mA (DC) | 125 V | 125 V | Standard | 15.88mm | Copper | Silver | Panel Mount | Solder Lug | - |
|
|
G-386-0020SWITCH SLIDE DP3T 3A 125V |
4,792 |
|
规格书 |
G | Bulk | Active | DP3T | Not Specified | On-On-On | 3A (AC), 500mA (DC) | 125 V | 125 V | Standard | 13.08mm | Copper | Silver | Through Hole, Right Angle | PC Pin | - |
