| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 触点时间 | 开关功能 | 电流额定值（安培） | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 触点材料 | 触点表面处理 | 安装类型 | 端接样式 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GF-626-6014SWITCH SLIDE DPDT 6A 125V |
2,297 |
|
规格书 |
GF | Bulk | Active | DPDT | Not Specified | On-On | 6A (AC), 500mA (DC) | 125 V | 125 V | Standard | 8.74mm | Copper | Silver | Panel Mount | Wire Wrap | - |
|
|
GS-111-0047SWITCH SLIDE SPDT 500MA 125V |
3,083 |
|
规格书 |
GS | Bulk | Active | SPDT | Not Specified | On-On | 500mA (AC/DC) | 125 V | 125 V | Standard | 8.69mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|
|
MSS1400SWITCH SLIDE SP4T 300MA 125V |
3,526 |
|
规格书 |
MSS | Bulk | Obsolete | SP4T | Shorting (MBB) | On-On-On-On | 300mA (AC) | 125 V | - | Standard | 3.50mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
1571601-1SWITCH SLIDE DP3T 4A 14V |
3,381 |
|
规格书 |
- | Bulk | Obsolete | DP3T | Non-Shorting (BBM) | On-On-On | 4A (DC) | - | 14 V | Standard | 12.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
G-168S-0043SWITCH SLIDE 3P3T 500MA 125V |
1,326 |
|
规格书 |
G | Bulk | Active | 3P3T | Not Specified | On-On-On | 500mA (AC/DC) | 125 V | 125 V | Standard | 5.08mm | Copper | Silver | Through Hole | PC Pin | - |
|
|
G-2012-0014SWITCH SLIDE SPDT |
3,487 |
|
规格书 |
2000 | Bulk | Active | SPDT | Not Specified | On-On | - | - | - | - | - | - | - | - | - | - |
|
GF-1324-0002SWITCH SLIDE SPDT 13A 125V |
4,460 |
|
规格书 |
GF | Bulk | Active | SPDT | Not Specified | On-On | 13A (AC), 500mA (DC) | 125 V | 125 V | Standard | 15.88mm | Copper | Silver | Panel Mount | Solder Lug | - |
|
|
GF-325-0000SWITCH SLIDE DPST 3A 125V |
2,840 |
|
规格书 |
GF | Bulk | Active | DPST | Not Specified | On-Off | 3A (AC), 500mA (DC) | 125 V | 125 V | Standard | 8.74mm | Copper | Silver | Panel Mount | Solder Lug | - |
|
|
GF-326-0034SWITCH SLIDE DPDT 3A 125V |
3,819 |
|
规格书 |
GF | Bulk | Active | DPDT | Not Specified | On-On | 3A (AC), 500mA (DC) | 125 V | 125 V | Standard | 4.78mm | Copper | Silver | Panel Mount | Solder Lug | - |
|
|
GF-326-0127SWITCH SLIDE DPDT 3A 125V |
1,577 |
|
规格书 |
GF | Bulk | Active | DPDT | Not Specified | On-On (Line Voltage Selector) | 3A (AC), 500mA (DC) | 125 V | 125 V | Screwdriver Slot | 0.79mm | Copper | Silver | Through Hole | PC Pin | - |
|
|
GF-326-0245SWITCH SLIDE DPDT 3A 125V |
3,430 |
|
规格书 |
GF | Bulk | Active | DPDT | Not Specified | On-On | 3A (AC), 500mA (DC) | 125 V | 125 V | Push-Pull | 1.65mm | Copper | Silver | Through Hole | PC Pin | - |
|
|
GF-625-0000SWITCH SLIDE DPST 6A 125V |
3,417 |
|
规格书 |
GF | Bulk | Active | DPST | Not Specified | On-Off | 6A (AC), 500mA (DC) | 125 V | 125 V | Standard | 8.74mm | Copper | Silver | Panel Mount | Solder Lug | - |
|
|
GG-350-0000SWITCH SLIDE DPDT 3A 125V |
1,797 |
|
规格书 |
GG | Bulk | Active | DPDT | Not Specified | On-On | 3A (AC), 500mA (DC) | 125 V | 125 V | Standard | 13.08mm | Copper | Silver | Panel Mount, Right Angle | Solder Lug | - |
|
|
GG-372-0001SWITCH SLIDE SPDT 3A 125V |
1,733 |
|
规格书 |
GG | Bulk | Active | SPDT | Not Specified | On-On | 3A (AC), 500mA (DC) | 125 V | 125 V | Standard | 13.08mm | Copper | Silver | Through Hole, Right Angle | PC Pin | - |
|
CL-SB-22B-02SWITCH SLIDE DPDT 200MA 12V |
2,277 |
|
规格书 |
CL-SB | Bulk | Active | DPDT | Non-Shorting (BBM) | On-On | 200mA (DC) | - | 12 V | Standard | 2.00mm | Copper | Gold | Surface Mount | Gull Wing | - |
|

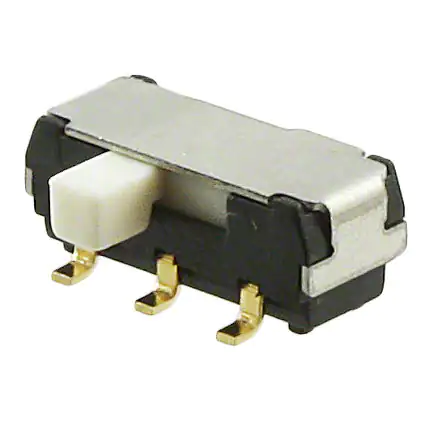

CL-SB-22B-12SWITCH SLIDE DPDT 200MA 12V |
1,185 |
|
规格书 |
CL-SB | Bulk | Active | DPDT | Non-Shorting (BBM) | On-On | 200mA (DC) | - | 12 V | Standard | 2.00mm | Copper | Gold | Surface Mount, Right Angle | Gull Wing | - |
|
CL-SB-22A-02SWITCH SLIDE DPDT 200MA 12V |
2,093 |
|
规格书 |
CL-SB | Bulk | Active | DPDT | Non-Shorting (BBM) | On-On | 200mA (DC) | - | 12 V | Standard | 2.00mm | Copper | Gold | Surface Mount | J Lead | - |
|
CL-SB-22A-12SWITCH SLIDE DPDT 200MA 12V |
1,913 |
|
规格书 |
CL-SB | Bulk | Active | DPDT | Non-Shorting (BBM) | On-On | 200mA (DC) | - | 12 V | Standard | 2.00mm | Copper | Gold | Surface Mount, Right Angle | J Lead | - |
|
|
MHS233KSWITCH SLIDE DP3T 300MA 125V |
2,284 |
|
- |
MHS | Bulk | Obsolete | DP3T | Shorting (MBB) | On-On-On | 300mA (AC) | 125 V | - | Baton | 10.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
GG-350-0020SWITCH SLIDE DPDT 3A 125V |
4,683 |
|
规格书 |
GG | Bulk | Active | DPDT | Not Specified | On-On | 3A (AC), 500mA (DC) | 125 V | 125 V | Standard | 7.62mm | Copper | Silver | Through Hole, Right Angle | PC Pin | - |
