购物车滑动开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 触点时间 | 开关功能 | 电流额定值（安培） | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 触点材料 | 触点表面处理 | 安装类型 | 端接样式 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

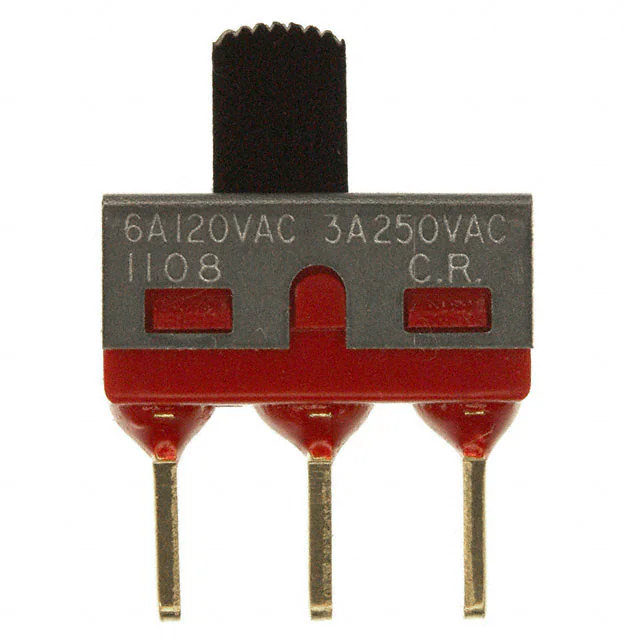

1108M2S3CGE2SWITCH SLIDE SPDT 6A 120V |
4,569 |
|
规格书 |
1000 | Bulk | Active | SPDT | Not Specified | On-Mom | 6A (AC/DC) | 120 V | 28 V | Standard | 5.08mm | Copper | Gold | Through Hole | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|

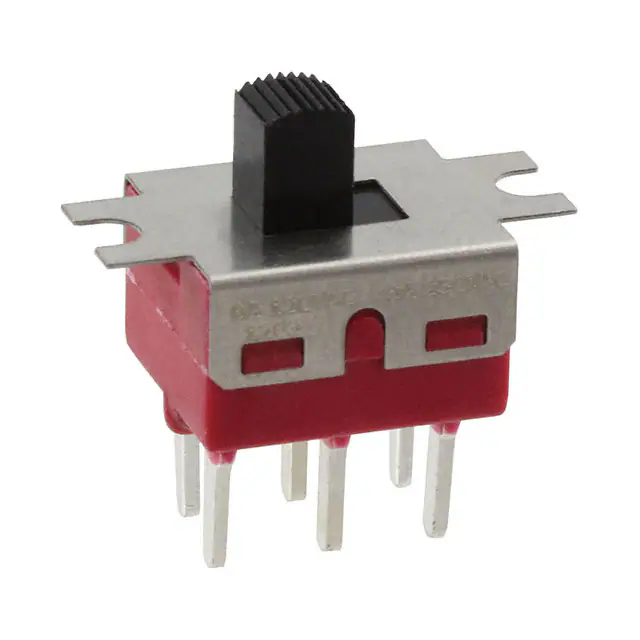

1203M1S3CQE2SWITCH SLIDE DPDT 6A 120V |
3,165 |
|
规格书 |
1000 | Bulk | Active | DPDT | Not Specified | On-Off-On | 6A (AC/DC) | 120 V | 28 V | Standard | 5.08mm | Copper | Silver | Panel Mount | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|
S602131SS03GSWITCH SLIDE DPDT 12A 125V |
1,522 |
|
规格书 |
S | Bulk | Active | DPDT | Not Specified | On-On (Line Voltage Selector) | 12A (AC), 1A (DC) | 125 V | 125 V | Screwdriver Slot | 1.27mm | Copper | Gold | Panel Mount | Solder Lug | No Marking |
|

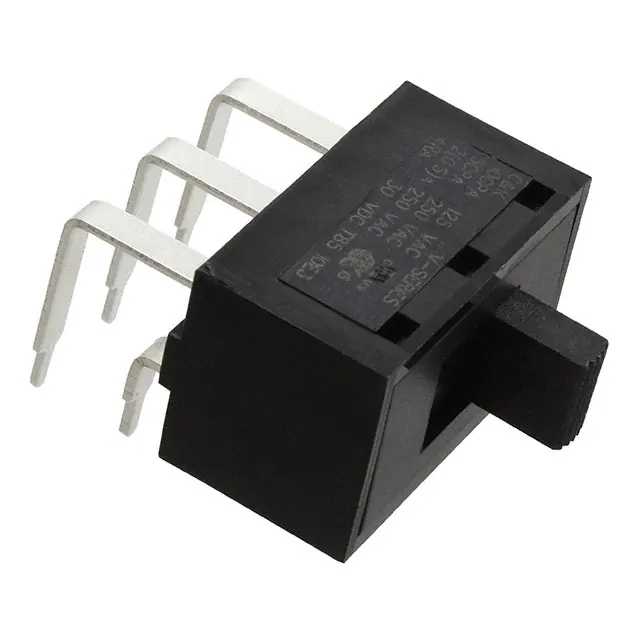

V80201MA08QSWITCH SLIDE DPDT 10A 125V |
1,114 |
|
规格书 |
V | Tray | Active | DPDT | Not Specified | On-On | 10A (AC), 4A (DC) | 125 V | 30 V | Standard | 7.36mm | Copper | Silver | Through Hole, Right Angle | PC Pin | - |
|

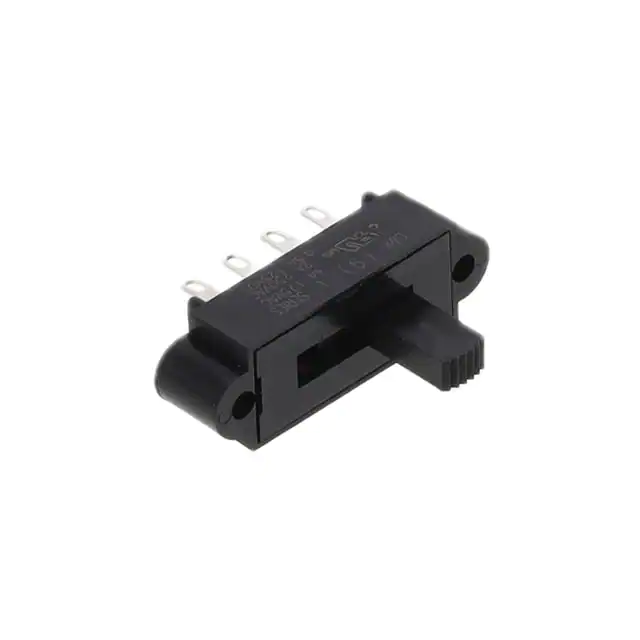

L203031TS03QSWITCH SLIDE DP3T 4A 125V |
4,005 |
|
规格书 |
L | Bulk | Active | DP3T | Not Specified | On-On-On | 4A (AC/DC) | 125 V | 28 V | Standard | 9.53mm | Copper | Silver | Panel Mount | Solder Lug | - |
|

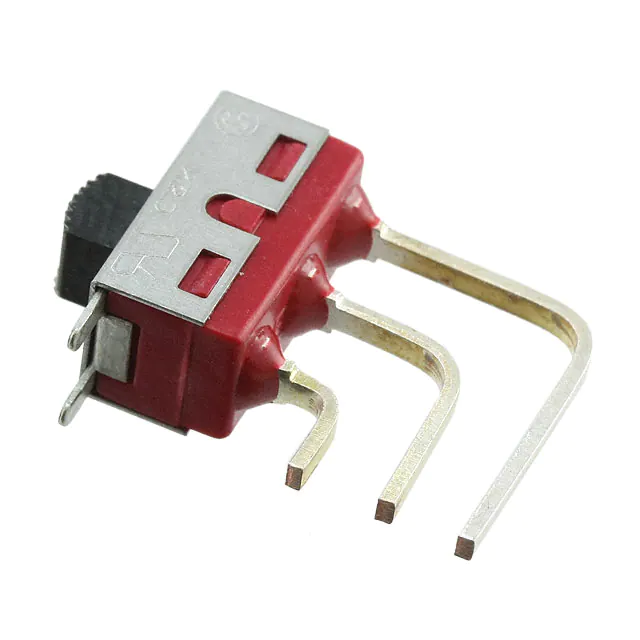

1101M2S2AV2QE2SWITCH SLIDE SPDT 6A 120V |
3,684 |
|
规格书 |
1000 | Tray | Active | SPDT | Not Specified | On-On | 6A (AC/DC) | 120 V | 28 V | Standard | 3.20mm | Copper | Silver | Through Hole, Right Angle, Vertical | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|

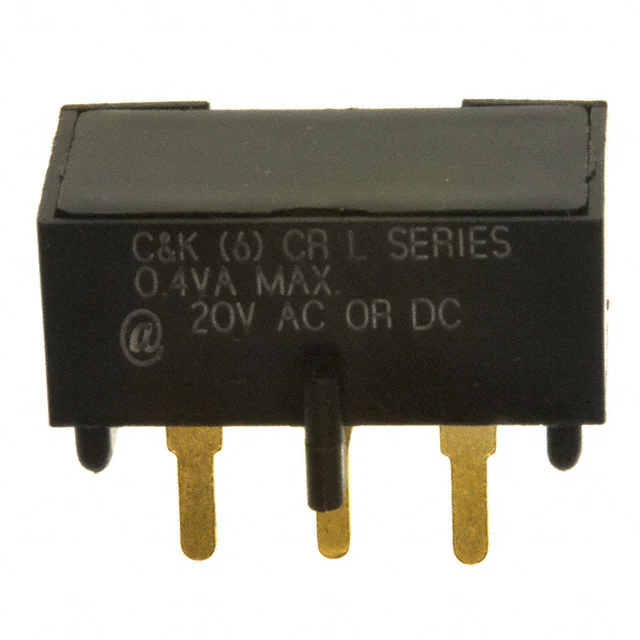

L102121ML04BSWITCH SLIDE SPDT 0.4VA 20V |
1,406 |
|
规格书 |
L | Tray | Active | SPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Screwdriver Slot | 1.65mm | Copper | Gold | Through Hole, Right Angle | PC Pin | - |
|
V80202MS02QSWITCH SLIDE DPDT 10A 125V |
2,977 |
|
规格书 |
V | Tray | Active | DPDT | Not Specified | On-On | 10A (AC), 4A (DC) | 125 V | 30 V | Standard | 7.36mm | Copper | Silver | Through Hole | PC Pin | O - Marking |
|
V80213MA08QESWITCH SLIDE DPDT 10A 125V |
4,822 |
|
规格书 |
V | Tray | Active | DPDT | Not Specified | On-On (Line Voltage Selector) | 10A (AC), 4A (DC) | 125 V | 30 V | Screwdriver Slot | Flush | Copper | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals, No Marking |
|
1103M2S3AV2BE2SWITCH SLIDE SPDT 0.4VA 20V |
2,616 |
|
规格书 |
1000 | Bulk | Active | SPDT | Not Specified | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 4.72mm | Copper | Gold | Through Hole, Right Angle, Vertical | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|

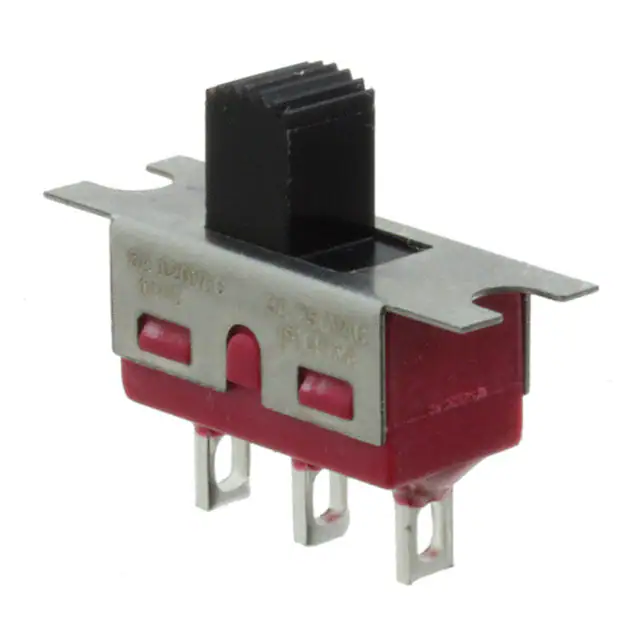

1108M1S3ZQE2SWITCH SLIDE SPDT 6A 120V |
4,981 |
|
规格书 |
1000 | Bulk | Active | SPDT | Not Specified | On-Mom | 6A (AC/DC) | 120 V | 28 V | Standard | 5.08mm | Copper | Silver | Panel Mount | Solder Lug | Black Actuator, Epoxy Sealed Terminals |
|
1203M2S3ABE2SWITCH SLIDE DPDT 0.4VA 20V |
1,669 |
|
规格书 |
1000 | Bulk | Active | DPDT | Not Specified | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 4.72mm | Copper | Gold | Through Hole, Right Angle | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|
GF-124-0013SWITCH SLIDE SPDT 500MA 125V |
4,137 |
|
规格书 |
GF | Bulk | Active | SPDT | Not Specified | On-On | 500mA (AC/DC) | 125 V | 125 V | Standard | 5.08mm | Copper | Silver | Panel Mount | PC Pin | - |
|
SLW-867569-4A-N-D8.6 X 7.5 X 6.9 MM, 4 MM RAISED |
2,412 |
|
规格书 |
SLW | Box | Active | DPDT | Non-Shorting (BBM) | On-On | 300mA (DC) | - | 50 V | Standard | 4.00mm | Phosphor Copper | Silver | Through Hole | PC Pin | - |
|
|
SLW-865144-2A-N-SMT-TR8.6 X 5.1 X 4.4 MM, 2 MM RAISED |
2,056 |
|
规格书 |
SLW | Tape & Reel (TR) | Active | SPDT | Non-Shorting (BBM) | On-On | 300mA (DC) | - | 50 V | Standard | 2.00mm | Phosphor Copper | Silver | Surface Mount | Gull Wing | - |
|
|
MFP 221 NSWITCH SLIDE ON - ON |
2,042 |
|
规格书 |
MFP | Bag | Active | DPDT | Non-Shorting (BBM) | On-On | 350mA (DC) | - | 30 V | Standard | 7.00mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|
|
SLW-133538-2A-SMT-TR13 X 3.5 X 3.2 MM, 2 MM RAISED S |
3,043 |
|
规格书 |
SLW | Tape & Reel (TR) | Active | DP3T | Non-Shorting (BBM) | On-On-On | 300mA (DC) | - | 12 V | Standard | 2.00mm | Brass | Silver | Surface Mount, Right Angle | J Lead | - |
|
|
MFP 213 PSWITCH SLIDE ON ON ON |
4,090 |
|
规格书 |
MFP | Bag | Active | DP3T | Shorting (MBB) | On-On-On | 100mA (DC) | - | 12 V | Standard | 4.00mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|
|
MMP 1010 D-RA-1SWITCH SLIDE ON - ON |
2,292 |
|
规格书 |
MMP | Bag | Active | SPDT | Not Specified | On-On | 300mA (AC/DC) | 24 V | 24 V | Standard | 1.40mm | Nickel | Gold | Through Hole, Right Angle | PC Pin | - |
|
GPI-152-0000SWITCH SLIDE DPDT 500MA 125V |
2,321 |
|
规格书 |
GPI | Bulk | Active | DPDT | Not Specified | On-On | 500mA (AC/DC) | 125 V | 125 V | Standard | 5.08mm | Copper | Silver | Through Hole, Right Angle | PC Pin | - |
