购物车滑动开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 触点时间 | 开关功能 | 电流额定值（安培） | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 触点材料 | 触点表面处理 | 安装类型 | 端接样式 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MS2301L3SWITCH SLIDE DP3T 0.2A 30V |
1,963 |
|
规格书 |
MS2301 | Tray | Active | DP3T | Not Specified | On-On-On | 200mA (DC) | - | 30 V | Standard | 3.00mm | Phosphor Bronze | Silver | Through Hole | PC Pin | - |
|
|
MS2301L4.5SWITCH SLIDE DP3T 0.2A 30V |
1,808 |
|
规格书 |
MS2301 | Tray | Active | DP3T | Not Specified | On-On-On | 200mA (DC) | - | 30 V | Standard | 4.50mm | Phosphor Bronze | Silver | Through Hole | PC Pin | - |
|
|
MS2301L6SWITCH SLIDE DP3T 0.2A 30V |
1,997 |
|
规格书 |
MS2301 | Tray | Active | DP3T | Not Specified | On-On-On | 200mA (DC) | - | 30 V | Standard | 6.00mm | Phosphor Bronze | Silver | Through Hole | PC Pin | - |
|
|
MS2309L4SWITCH SLIDE DP3T 0.3A 50V |
1,999 |
|
规格书 |
MS2309 | Tray | Active | DP3T | Not Specified | On-On-On | 300mA (DC) | - | 50 V | Standard | 4.00mm | Phosphor Bronze | Silver | Through Hole, Right Angle | PC Pin | - |
|
|
MS2309L6SWITCH SLIDE DP3T 0.3A 50V |
1,889 |
|
规格书 |
MS2309 | Tray | Active | DP3T | Not Specified | On-On-On | 300mA (DC) | - | 50 V | Standard | 6.00mm | Phosphor Bronze | Silver | Through Hole, Right Angle | PC Pin | - |
|
|
MFP 213 N-RASWITCH SLIDE ON - ON |
1,785 |
|
规格书 |
MFP | Bag | Active | DPDT | Non-Shorting (BBM) | On-On | 100mA (DC) | - | 12 V | Standard | 4.00mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | - |
|
|
MS2202L8BSWITCH SLIDE DPDT 0.2A 30V |
1,998 |
|
规格书 |
MS2202 | Bag | Active | DPDT | Not Specified | On-On | 200mA (DC) | - | 30 V | Standard | 8.00mm | Phosphor Bronze | Silver | Panel Mount | Solder Lug | - |
|
|
MS2202L8ASWITCH SLIDE DPDT 0.2A 30V |
1,995 |
|
规格书 |
MS2202 | Bag | Active | DPDT | Not Specified | On-On | 200mA (DC) | - | 30 V | Standard | 8.00mm | Phosphor Bronze | Silver | Panel Mount | Solder Lug | - |
|
|
MS2202L5BSWITCH SLIDE DPDT 0.2A 30V |
1,967 |
|
规格书 |
MS2202 | Bag | Active | DPDT | Not Specified | On-On | 200mA (DC) | - | 30 V | Standard | 5.00mm | Phosphor Bronze | Silver | Panel Mount | Solder Lug | - |
|
|
MS2202L9ASWITCH SLIDE DPDT 0.2A 30V |
1,959 |
|
规格书 |
MS2202 | Bag | Active | DPDT | Not Specified | On-On | 200mA (DC) | - | 30 V | Standard | 9.00mm | Phosphor Bronze | Silver | Panel Mount | Solder Lug | - |
|
|
MS2202L9BSWITCH SLIDE DPDT 0.2A 30V |
1,958 |
|
规格书 |
MS2202 | Bag | Active | DPDT | Not Specified | On-On | 200mA (DC) | - | 30 V | Standard | 9.00mm | Phosphor Bronze | Silver | Panel Mount | Solder Lug | - |
|
|
MS2202L5ASWITCH SLIDE DPDT 0.2A 30V |
1,443 |
|
规格书 |
MS2202 | Bag | Active | DPDT | Not Specified | On-On | 200mA (DC) | - | 30 V | Standard | 5.00mm | Phosphor Bronze | Silver | Panel Mount | Solder Lug | - |
|
CSS-1312MCSWITCH SLIDE SP3T 100MA 12V |
485 |
|
规格书 |
CSS | Tube | Active | SP3T | Non-Shorting (BBM) | Mom-On-Mom | 100mA (DC) | - | 12 V | Standard | 2.00mm | Copper Alloy | Gold | Through Hole, Right Angle | PC Pin | - |
|
|
MFP 113 D-RASWITCH SLIDE ON - ON |
450 |
|
规格书 |
MFP | Bag | Active | SPDT | Non-Shorting (BBM) | On-On | 100mA (DC) | - | 12 V | Standard | 4.00mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | - |
|

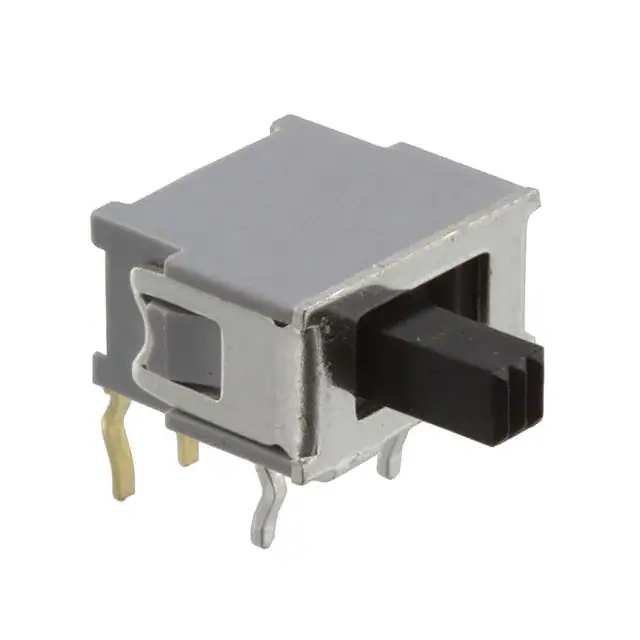

MFS201N-23-ZSWITCH SLIDE DPDT 300MA 30V |
387 |
|
规格书 |
MFS | Bulk | Active | DPDT | Non-Shorting (BBM) | On-On | 300mA (DC) | - | 30 V | Standard | 2.50mm | - | - | Through Hole, Right Angle | PC Pin | - |
|
|
MFP 1220SWITCH SLIDE 13.0 MMX7.5 MM |
1,090 |
|
规格书 |
MFP | Bag | Active | SPDT | Shorting (MBB) | On-On | 350mA (DC) | - | 30 V | Standard | 4.00mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|

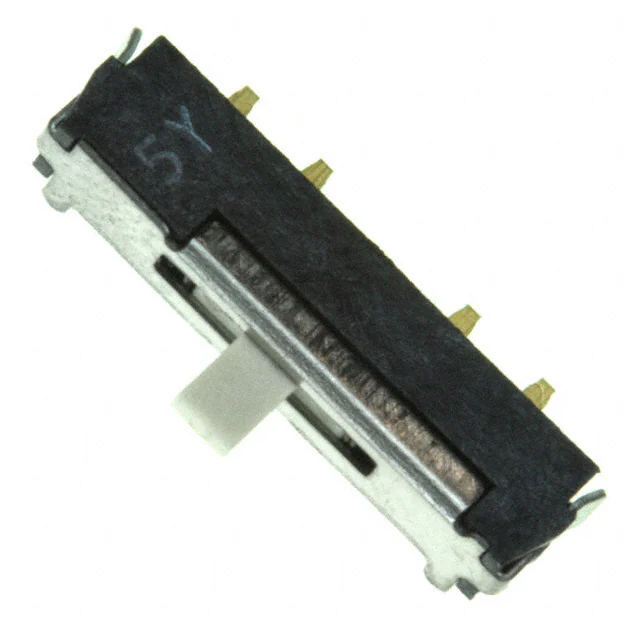

CSS-1312TBSWITCH SLIDE SP3T 100MA 12V |
917 |
|
规格书 |
CSS | Tape & Reel (TR) | Active | SP3T | Non-Shorting (BBM) | Mom-On-Mom | 100mA (DC) | - | 12 V | Standard | 2.00mm | Copper Alloy | Gold | Surface Mount, Right Angle | Gull Wing | - |
|
|
MFP 120SWITCH SLIDE 11.0 MMX6.7 MM |
744 |
|
规格书 |
MFP | Bag | Active | SPDT | Non-Shorting (BBM) | On-On | 350mA (DC) | - | 30 V | Standard | 5.00mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|
|
MFP 130SWITCH SLIDE 15.0 MMX10.0 MM |
747 |
|
规格书 |
MFP | Bag | Active | SP3T | Non-Shorting (BBM) | On-On-On | 350mA (DC) | - | 30 V | Standard | 5.00mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|
|
MFP 1323SWITCH SLIDE 15.5 MMX10.2 MM |
600 |
|
规格书 |
MFP | Bag | Active | SP3T | Shorting (MBB) | On-On-On | 350mA (DC) | - | 30 V | Standard | 4.00mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
