购物车滑动开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 触点时间 | 开关功能 | 电流额定值（安培） | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 触点材料 | 触点表面处理 | 安装类型 | 端接样式 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1825290-6SWITCH SLIDE DP3T 0.4VA 20V |
3,984 |
|
规格书 |
MHS | Bulk | Obsolete | DP3T | Shorting (MBB) | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 4.50mm | Copper Alloy | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
C56313L1SWITCH SLIDE DP3T 500MA 125V |
3,238 |
|
- |
56300 | Bulk | Obsolete | DP3T | Non-Shorting (BBM) | On-On-On | 500mA (AC/DC) | 125 V | 125 V | Standard | 4.75mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|
SLS260PCSWITCH SLIDE DP6T 250MA 125V |
3,236 |
|
规格书 |
SLS | Bulk | Obsolete | DP6T | Non-Shorting (BBM) | - | 250mA (AC), 150mA (DC) | 125 V | 12 V | Standard | 5.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
500SSP1S4M7REASWITCH SLIDE SPDT 0.4VA 20V |
1,469 |
|
规格书 |
500 | Bulk | Active | SPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 3.20mm | Copper Alloy | Gold | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|
S101031MS02QESWITCH SLIDE SPST 6A 125V |
4,637 |
|
规格书 |
S | Bulk | Active | SPST | Not Specified | On-Off | 6A (AC), 1A (DC) | 125 V | 125 V | Standard | 8.51mm | Copper | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
500SDP1S2M2QEASWITCH SLIDE DPDT 5A 120V |
1,777 |
|
规格书 |
500 | Bulk | Active | DPDT | Not Specified | On-On | 5A (AC/DC) | 120 V | 28 V | Standard | 7.24mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

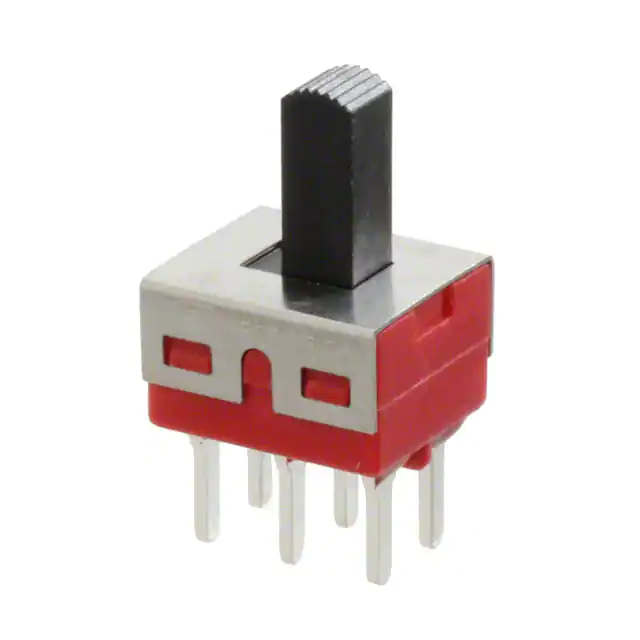

500SDP1S3M2QEASWITCH SLIDE DPDT 5A 120V |
1,976 |
|
规格书 |
500 | Bulk | Active | DPDT | Not Specified | On-On | 5A (AC/DC) | 120 V | 28 V | Standard | 9.40mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
1203A3DQEBSWITCH SLIDE DPDT 5A 120V |
3,549 |
|
规格书 |
1000 | Bag | Active | DPDT | Not Specified | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard | 9.40mm | Copper Alloy | Silver | Panel Mount | Quick Connect - 0.062" (1.5mm) | - |
|
|
500SDP3S1M1QEBSWITCH SLIDE DPDT 5A 120V |
2,818 |
|
规格书 |
500 | Bulk | Active | DPDT | Not Specified | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard | 5.08mm | Copper Alloy | Silver | Panel Mount | Solder Lug | - |
|
|
CMS-2302BSWITCH SLIDE DP3T 0.1A 12V |
2,445 |
|
- |
CMS | Bulk | Active | DP3T | Non-Shorting (BBM) | On-On-On | 100mA (DC) | - | 12 V | Standard | 2.00mm | Copper Alloy | Gold | Surface Mount | Gull Wing | - |
|
|
CMS-2302CSWITCH SLIDE DP3T 0.1A 12V |
2,772 |
|
- |
CMS | Bulk | Active | DP3T | Non-Shorting (BBM) | On-On-On | 100mA (DC) | - | 12 V | Standard | 2.00mm | Copper Alloy | Gold | Through Hole | PC Pin | - |
|
|
CMS-2302WCSWITCH SLIDE DP3T 0.1A 12V |
1,522 |
|
- |
CMS | Tray | Active | DP3T | Non-Shorting (BBM) | On-On-On | 100mA (DC) | - | 12 V | Standard | 2.00mm | Copper Alloy | Gold | Through Hole | PC Pin | - |
|
|
500SSP3S1M6REASWITCH SLIDE SPDT 0.4VA 20V |
2,297 |
|
规格书 |
500 | Bulk | Active | SPDT | Not Specified | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 4.72mm | Copper Alloy | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
1201A4VREASWITCH SLIDE DPDT 0.4VA 20V |
1,919 |
|
规格书 |
1000 | Bag | Active | DPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 3.24mm | Copper Alloy | Gold | Through Hole, Right Angle, Vertical | PC Pin | - |
|
|
1201A4HREASWITCH SLIDE DPDT 0.4VA 20V |
1,704 |
|
规格书 |
1000 | Bag | Active | DPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 3.24mm | Copper Alloy | Gold | Through Hole, Right Angle | PC Pin | - |
|
|
500SSP3S4M6QEASWITCH SLIDE SPDT 5A 120V |
1,762 |
|
规格书 |
500 | Bulk | Active | SPDT | Not Specified | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard | 3.20mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
500SSP3S4M6QEBSWITCH SLIDE SPDT 5A 120V |
2,702 |
|
规格书 |
500 | Bulk | Active | SPDT | Not Specified | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard | 3.20mm | Copper Alloy | Silver | Panel Mount, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
MSS6350RSWITCH SLIDE 6P3T 300MA 125V |
3,222 |
|
规格书 |
MSS | Bulk | Obsolete | 6P3T | Shorting (MBB) | On-On-On | 300mA (AC) | 125 V | - | Standard | 12.50mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
SL660SWITCH SLIDE SP6T 250MA 125V |
3,005 |
|
规格书 |
SL | Bulk | Obsolete | SP6T | Non-Shorting (BBM) | - | 250mA (AC), 150mA (DC) | 125 V | 12 V | Standard | 14.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
MHS222GSWITCH SLIDE DPDT 0.4VA 20V |
4,360 |
|
- |
MHS | Bulk | Obsolete | DPDT | Shorting (MBB) | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 4.50mm | Copper Alloy | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
