购物车信号继电器（最大2安培）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 负载 - 最大切换 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 线圈绝缘 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 | 继电器类型 | 等级 | 认证 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
J1MSW-26XMRELAY GEN PURPOSE SPDT 1A 26.5V |
4,394 |
|
规格书 |
1MS, CII | Bulk | Active | Through Hole | 26.5VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 6.6 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 4 ms | 2.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
2-1617541-3RELAY GEN PURPOSE SPDT 1A 26.5V |
3,990 |
|
规格书 |
1MS, CII | Bulk | Active | Through Hole | 26.5VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 6.6 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 4 ms | 2.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
J1MSP-12XMRELAY GEN PURPOSE SPDT 1A 12V |
1,772 |
|
规格书 |
1MS, CII | Bulk | Active | Through Hole | 12VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 11.7 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.63 VDC | 4 ms | 2.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
5-1617543-9RELAY GENERAL PURPOSE DPDT 1A 5V |
3,887 |
|
规格书 |
MST, CII | Bulk | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 50 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 2.6 VDC | 0.23 VDC | 4 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|

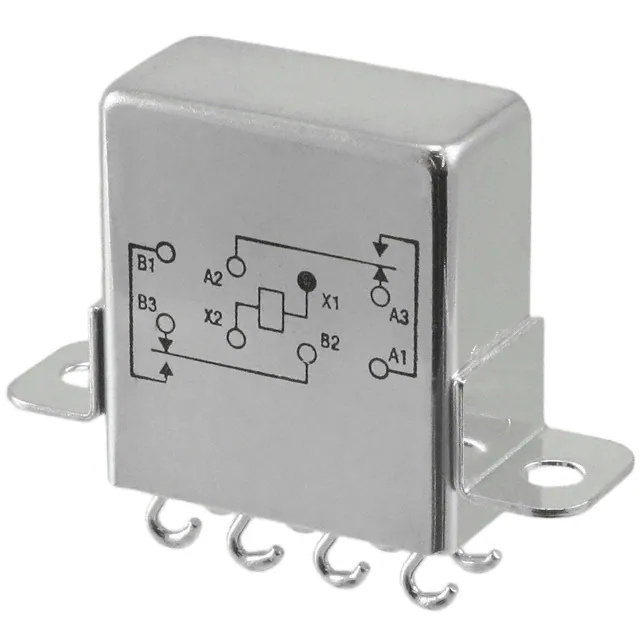

FW1120G01RELAY GEN PURPOSE DPDT 2A 26.5V |
1,120 |
|
规格书 |
FW, CII | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | - | Non Latching | - | Solder Hook | - | - | 13 VDC | 2.3 VDC | 6 ms | 6 ms | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-5757/10 |
|
|
J1MAW-18XPRELAY GEN PURPOSE SPDT 1A 18V |
4,940 |
|
规格书 |
1MA, CII | Bulk | Active | Through Hole | 18VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 15.9 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 10.5 VDC | 0.91 VDC | 2 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
3-1617532-4RELAY GENERAL PURPOSE DPDT 2A |
4,341 |
|
规格书 |
- | Bulk | Active | Through Hole | - | DPDT (2 Form C) | 2 A | - | - | - | Non Latching | - | PC Pin | Sealed - Hermetically | - | - | - | - | - | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
9-1393808-5RELAY GEN PURPOSE 4PDT 2A 24V |
1,886 |
|
规格书 |
V23154, AXICOM | Bulk | Obsolete | Socketable | 24VDC | 4PDT (4 Form C) | 2 A | 125VAC, 150VDC - Max | 250VA, 300W | 27 mA | Non Latching | - | Plug In | - | - | 22 VDC | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
2-1393809-2RELAY GEN PURPOSE 4PDT 2A 32V |
3,406 |
|
规格书 |
V23154, AXICOM | Bulk | Obsolete | Socketable | 32VDC | 4PDT (4 Form C) | 2 A | 125VAC, 150VDC - Max | 250VA, 300W | 18.8 mA | Non Latching | - | Plug In | - | - | 33.8 VDC | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
JMGACD-26PWRELAY GEN PURPOSE DPDT 1A 26.5V |
2,373 |
|
规格书 |
MGA, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 28VDC - Nom | - | 17 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/18 |
|

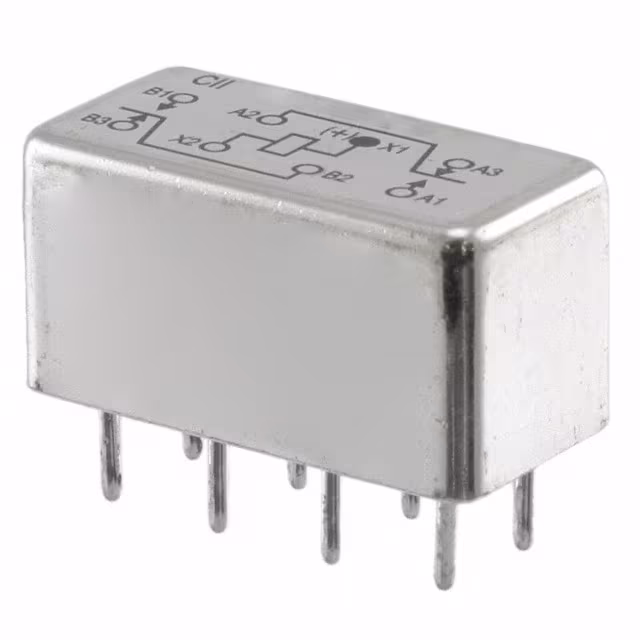

HMS1201S110PRELAY GEN PURPOSE DPDT 2A 12V |
4,647 |
|
规格书 |
HMS, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 38.7 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 5.6 VDC | 0.55 VDC | 6 ms | 5 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | Military | MIL-R-39016/44 |
|
1617020-4RELAY GEN PURPOSE DPDT 2A 26.5V |
3,115 |
|
规格书 |
FW, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | - | Non Latching | - | PC Pin | - | - | 13 VDC | 2.3 VDC | 6 ms | 6 ms | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-5757/10 |
|
|
1-1617542-4RELAY GEN PURPOSE DPDT 1A 12V |
4,638 |
|
规格书 |
MA, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 30.8 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.63 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/9 |
|
|
7-1617351-4RELAY GENERAL PURPOSE SPDT 1A 9V |
4,844 |
|
规格书 |
1MA, CII | Bulk | Active | Through Hole | 9VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | - | 32.1 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 5.3 VDC | 0.54 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
6-1393807-6RELAY GENERAL PURPOSE 4PDT 2A |
1,306 |
|
规格书 |
V23154, AXICOM | Bulk | Active | Socketable | - | 4PDT (4 Form C) | 2 A | 125VAC, 150VDC - Max | 250VA, 300W | - | Non Latching | - | Plug In | - | - | - | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
J1MACD-5XPRELAY GENERAL PURPOSE SPDT 1A 5V |
3,000 |
|
规格书 |
1MA, CII | Bulk | Active | Through Hole | 5VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 79.4 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 2.8 VDC | 0.23 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
J1MACDD-12XLSRELAY GEN PURPOSE SPDT 1A 12V |
2,080 |
|
规格书 |
1MA, CII | Bulk | Active | Through Hole | 12VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 24 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 8 VDC | 0.63 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
JMAWDG-12XPRELAY GEN PURPOSE DPDT 1A 12V |
4,401 |
|
规格书 |
MAD, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 30.8 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.63 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/15 |
|
R10-E1Z8-V350RELAY GEN PURPOSE 8PDT 2A 24V |
2,765 |
|
规格书 |
R10 | Bulk | Active | Socketable | 24VDC | 8PDT (8 Form C) | 2 A | 120VAC, 30VDC - Max | 240VA, 60W | 68.6 mA | Non Latching | - | Plug In | - | - | 18 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) | General Purpose | - | - |
|
|
JMAPDD-5XLRELAY GENERAL PURPOSE DPDT 1A 5V |
3,623 |
|
规格书 |
MADD, CII | Bulk | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 128.2 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 3.2 VDC | 0.6 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/20 |
