购物车信号继电器（最大2安培）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 负载 - 最大切换 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 线圈绝缘 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 | 继电器类型 | 等级 | 认证 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JMSC-12XLRELAY GEN PURPOSE DPDT 1A 12V |
1,448 |
|
规格书 |
MS, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 14.1 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.64 VDC | 4 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/11 |
|
|
HFW1201F01RELAY GENERAL PURPOSE DPDT 2A 6V |
1,214 |
|
规格书 |
HFW, CII | Bulk | Active | Through Hole | 6VDC | DPDT (2 Form C) | 2 A | - | - | 150 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 3.2 VDC | 0.35 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
J1MAP-26XLRELAY GEN PURPOSE SPDT 1A 26.5V |
4,728 |
|
规格书 |
1MA, CII | Bulk | Active | Through Hole | 26.5VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 13.3 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
1617149-2RELAY GEN PURPOSE DPDT 1A 12V |
2,997 |
|
规格书 |
MGS, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 15 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.64 VDC | 4 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/41 |
|

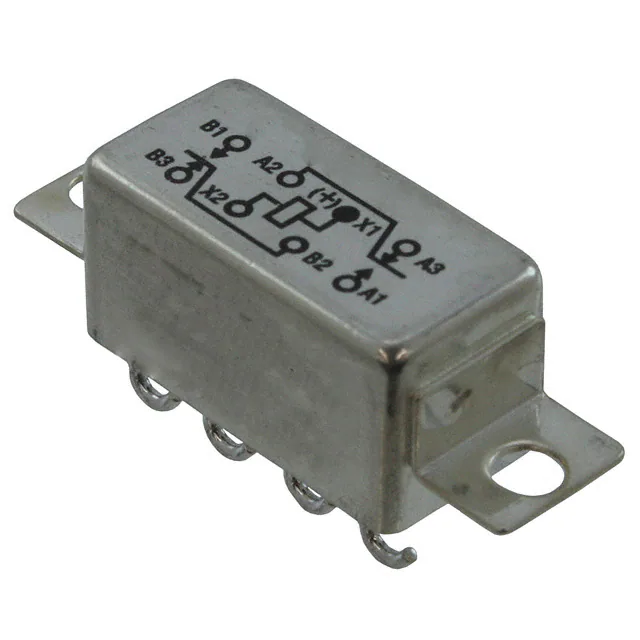

HFW1130K06PRELAY GEN PURPOSE DPDT 2A 26.5V |
3,800 |
|
规格书 |
HFW, CII | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 37.9 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | - | - | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/6 |
|
|
HFW1106K12PRELAY GEN PURPOSE DPDT 2A 26.5V |
1,012 |
|
规格书 |
HFW, CII | Bulk | Active | - | 26.5VDC | DPDT (2 Form C) | 2 A | - | - | 37.9 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
3-1617028-7RELAY GEN PURPOSE DPDT 2A 26.5V |
2,967 |
|
规格书 |
HFW | Box | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 115VAC, 28VDC - Max | - | 37.9 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
1617127-8RELAY GEN PURPOSE DPDT 1A 26.5V |
4,661 |
|
规格书 |
MS, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 8 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 14 VDC | 1.4 VDC | 4 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/11 |
|
|
JMGACD-26MWRELAY GEN PURPOSE DPDT 1A 26.5V |
3,268 |
|
- |
MGAD, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 17 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/18 |
|
|
JMSC-12XLSRELAY GEN PURPOSE DPDT 1A 12V |
1,357 |
|
规格书 |
MS, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 14.1 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.64 VDC | 4 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/11 |
|
J1MAC-26XPRELAY GEN PURPOSE SPDT 1A 26.5V |
3,984 |
|
规格书 |
1MA, CII | Bulk | Active | Through Hole | 26.5VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 13.3 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/7 |
|
|
1617118-6RELAY GEN PURPOSE SPDT 1A 26.5V |
194 |
|
规格书 |
1MAC | Bulk | Active | Through Hole | 26.5VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | - | 13.3 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
JMAWD-26XPRELAY GEN PURPOSE DPDT 1A 26.5V |
2,847 |
|
规格书 |
MAD, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 17 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/15 |
|
|
JMGSCD-18MWRELAY GEN PURPOSE DPDT 1A 18V |
1,283 |
|
规格书 |
MGSD, CII | Bulk | Active | Through Hole | 18VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 11.3 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 9.8 VDC | 0.92 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/42 |
|
|
HM-12BRELAY GEN PURPOSE DPDT 1A 12V |
4,873 |
|
规格书 |
HM, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | - | - | 30.8 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 8.4 VDC | - | 4 ms | 3 ms | -55°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
1393807-6RELAY GEN PURPOSE DPDT 2A 48V |
1,675 |
|
规格书 |
V23154, AXICOM | Bulk | Obsolete | Socketable | 48VDC | DPDT (2 Form C) | 2 A | 125VAC, 150VDC - Max | 250VA, 300W | 15 mA | Non Latching | - | Plug In | - | - | 23 VDC | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
PRMSCD-26XRELAY GEN PURPOSE DPDT 1A 26.5V |
3,519 |
|
规格书 |
MS, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 8 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 14 VDC | 8 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
1617541-7RELAY GENERAL PURPOSE SPDT 1A 6V |
1,977 |
|
规格书 |
1MS, CII | Bulk | Active | Through Hole | 6VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 23.5 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 3.5 VDC | 0.28 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
JMGACDD-26LRELAY GEN PURPOSE DPDT 1A 26.5V |
2,330 |
|
规格书 |
MGA, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 28VDC - Nom | - | 17 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 15.2 VDC | 1.4 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/19 |
|
|
M39016/15-115PPower/Signal Relay, 2 Form C, DP |
160 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
