购物车信号继电器（最大2安培）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 负载 - 最大切换 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 线圈绝缘 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 | 继电器类型 | 等级 | 认证 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1-1393810-3RELAY GEN PURP DPDT 200MA 1.1V |
4,079 |
|
- |
V23154, AXICOM | Bulk | Active | Through Hole | 1.1VDC | DPDT (2 Form C) | 200 mA | 30VAC, 36VDC - Max | - | 550 mA | Non Latching | - | PC Pin | - | - | 0.4 VDC | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Gold (Au) | General Purpose | - | - |
|
|
G6JU-2FL-Y-TR DC9RELAY TELECOM DPDT 1A 9V |
2,448 |
|
规格书 |
G6J-Y | Tape & Reel (TR) | Active | Surface Mount | 9VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 11.1 mA | Latching, Single Coil | - | Gull Wing | Sealed - Fully | - | 6.75 VDC | - | 3 ms | 3 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
G6KU2FY3TRDC24RELAY TELECOM DPDT 1A 24V |
3,001 |
|
规格书 |
G6K | Tape & Reel (TR) | Active | Surface Mount | 24VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 125VA, 60W | 4.6 mA | Latching, Single Coil | - | Gull Wing | Sealed - Fully | - | 18 VDC | - | 3 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
|
2-1393761-8RELAY GENERAL PURPOSE |
2,664 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | Non Latching | - | - | - | - | - | - | - | - | - | - | General Purpose | - | - |
|
|
3-1393761-4RELAY GENERAL PURPOSE |
3,318 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | Non Latching | - | - | - | - | - | - | - | - | - | - | General Purpose | - | - |
|
|
1-1393762-8RELAY GEN PURPOSE |
3,597 |
|
- |
- | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9-1393761-4RELAY GENERAL PURPOSE |
3,034 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1393809-6RELAY GENERAL PURPOSE 24V |
3,377 |
|
规格书 |
V23154, AXICOM | Bulk | Active | Socketable | 24VDC | - | - | - | - | 27 mA | Non Latching | - | Plug In | - | - | - | - | 7.5 ms | 3 ms | -40°C ~ 70°C | - | General Purpose | - | - |
|
|
VS6500-RELAYRELAY DIP MOUNT 1FORMC 14-DIP |
2,783 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
G2RV-SL500-AP AC/DC24RELAY GEN PURPOSE SPDT 50MA 24V |
2,784 |
|
规格书 |
G2RV | Bulk | Obsolete | DIN Rail | 24VAC/DC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 13 mA | Non Latching | Socket Included | Spring Terminal | - | - | 19.2 VAC/DC | 2.4 VAC/DC | 20 ms | 40 ms | -40°C ~ 55°C | Silver Tin Indium (AgSnIn), Gold (Au) | General Purpose | - | - |
|
|
G2RV-SL500-AP AC/DC48RELAY GEN PURPOSE SPDT 50MA 48V |
4,574 |
|
规格书 |
G2RV | Bulk | Obsolete | DIN Rail | 48VAC/DC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 5.2 mA | Non Latching | Socket Included | Spring Terminal | - | - | 38.4 VAC/DC | 4.8 VAC/DC | 20 ms | 40 ms | -40°C ~ 55°C | Silver Tin Indium (AgSnIn), Gold (Au) | General Purpose | - | - |
|
|
G2RV-SL500-AP DC24RELAY GEN PURPOSE SPDT 50MA 24V |
1,517 |
|
规格书 |
G2RV | Bulk | Obsolete | DIN Rail | 24VDC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 13.3 mA | Non Latching | Socket Included | Spring Terminal | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 40 ms | -40°C ~ 55°C | Silver Tin Indium (AgSnIn), Gold (Au) | General Purpose | - | - |
|
|
G2RV-SL700-AP AC230RELAY GEN PURP SPDT 50MA 230V |
4,864 |
|
规格书 |
G2RV | Bulk | Obsolete | DIN Rail | 230VAC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 7.3 mA | Non Latching | Socket Included | Screw Terminal | - | - | 184 VAC | 23 VAC | 20 ms | 40 ms | -40°C ~ 55°C | - | General Purpose | - | - |
|
G2RV-SL700-AP AC/DC24RELAY GEN PURPOSE SPDT 50MA 24V |
2,768 |
|
规格书 |
G2RV | Bulk | Obsolete | DIN Rail | 24VAC/DC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 13 mA | Non Latching | Socket Included | Screw Terminal | - | - | 19.2 VAC/DC | 2.4 VAC/DC | 20 ms | 40 ms | -40°C ~ 55°C | - | General Purpose | - | - |
|
|
G2RV-SL700-AP AC/DC48RELAY GEN PURPOSE SPDT 50MA 48V |
2,248 |
|
规格书 |
G2RV | Bulk | Obsolete | DIN Rail | 48VAC/DC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 5.2 mA | Non Latching | Socket Included | Screw Terminal | - | - | 38.4 VAC/DC | 4.8 VAC/DC | 20 ms | 40 ms | -40°C ~ 55°C | - | General Purpose | - | - |
|

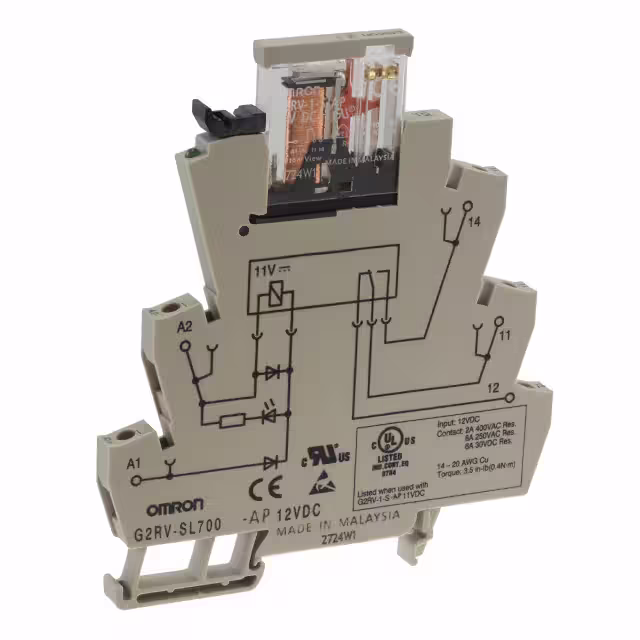

G2RV-SL700-AP DC12RELAY GEN PURPOSE SPDT 50MA 12V |
1,939 |
|
规格书 |
G2RV | Bulk | Obsolete | DIN Rail | 12VDC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 27.2 mA | Non Latching | Socket Included | Screw Terminal | - | - | 9.6 VDC | 1.2 VDC | 20 ms | 40 ms | -40°C ~ 55°C | - | General Purpose | - | - |
|
|
G2RV-SL700-AP DC24RELAY GEN PURPOSE SPDT 50MA 24V |
1,950 |
|
规格书 |
G2RV | Bulk | Obsolete | DIN Rail | 24VDC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 13.3 mA | Non Latching | Socket Included | Screw Terminal | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 40 ms | -40°C ~ 55°C | - | General Purpose | - | - |
|
|
DIL-CL-1A81-4/4-18MRELAY TELECOM SPST 400MA |
2,933 |
|
规格书 |
DIL-CL | Tube | Active | Through Hole | - | SPST-NO (1 Form A) | 400 mA | 200VAC, 200VDC - Max | - | 429 mA | Non Latching | - | PC Pin | - | - | - | - | 0.5 ms | 0.1 ms | -20°C ~ 55°C | - | Telecom | - | - |
|
UC2-12SNURELAY GEN PURPOSE DPDT 1A 12V |
3,815 |
|
规格书 |
UC2 | Tube | Obsolete | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 8.3 mA | Latching, Single Coil | - | PC Pin | - | - | 9 VDC | - | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
|
HC4ED-L-AC120VRELAY GEN PURPOSE 4PDT 1A 120V |
1,277 |
|
规格书 |
HCE | Bulk | Obsolete | Socketable | 120VAC | 4PDT (4 Form C) | 1 A | 250VAC - Max | 250VA | 10.9 mA | Non Latching | Lighted Indicator | Plug In | - | - | 96 VAC | 36 VAC | 20 ms | 20 ms | -40°C ~ 60°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
