购物车信号继电器（最大2安培）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 负载 - 最大切换 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 线圈绝缘 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 | 继电器类型 | 等级 | 认证 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JMACDD-18XPRELAY GEN PURPOSE DPDT 1A 18V |
1,336 |
|
- |
MAC | Bulk | Active | Through Hole | 18VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 20.5 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 11.5 VDC | 1.4 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
3-1617539-1RELAY GENERAL PURPOSE DPDT 2A |
3,846 |
|
- |
HMS, CII | Bulk | Active | Through Hole | - | DPDT (2 Form C) | 2 A | 115VAC, 28VDC - Max | 300VA, 56W | - | Non Latching | - | PC Pin | Sealed - Hermetically | - | - | - | 6 ms | 5 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
1617353-8RELAY GEN PURPOSE SPDT 1A 26.5V |
2,226 |
|
规格书 |
1MA, CII | Bulk | Active | Through Hole | 26.5VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 13.3 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 14.4 VDC | 1.25 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
1-1617542-9RELAY GEN PURPOSE DPDT 1A 18V |
2,591 |
|
规格书 |
MAT, CII | Bulk | Active | Through Hole | 18VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 24 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 10.5 VDC | 0.91 VDC | 2 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-28776/1 |
|
|
2-1617542-0RELAY GEN PURPOSE DPDT 1A 26.5V |
1,277 |
|
规格书 |
MAC | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 17 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
1617164-4RELAY GEN PURPOSE DPDT 1A 26.5V |
1,612 |
|
规格书 |
MAC | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 17 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
1-1617542-6RELAY GEN PURPOSE DPDT 1A 12V |
3,230 |
|
规格书 |
MAT, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 35.8 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.63 VDC | 2 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-28776/1 |
|
R10-E1Z6-V1.5KRELAY GEN PURPOSE 6PDT 2A 48V |
2,316 |
|
规格书 |
R10 | Bulk | Active | Socketable | 48VDC | 6PDT (6 Form C) | 2 A | 120VAC, 30VDC - Max | 240VA, 60W | 32 mA | Non Latching | - | Plug In | - | - | 36 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) | General Purpose | - | - |
|
|
6-1617594-5RELAY GENERAL PURPOSE |
4,890 |
|
- |
MAT, CII | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5-1617540-6RELAY GEN PURPOSE SPDT 1A 12V |
4,503 |
|
规格书 |
1MA, CII | Bulk | Active | Through Hole | 12VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | - | 24 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 8 VDC | 0.63 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
PRMGAT-26XWRELAY GEN PURPOSE DPDT 1A 26.5V |
2,845 |
|
规格书 |
MGA, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 17 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.3 VDC | 2 ms | - | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
J1MAWDD-18XPRELAY GEN PURPOSE SPDT 1A 18V |
3,715 |
|
规格书 |
1MA, CII | Bulk | Active | Through Hole | 18VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 15.9 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 11.6 VDC | 0.91 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
PRMGSTE-5YWRELAY GENERAL PURPOSE DPDT 1A 5V |
1,040 |
|
- |
MGS, CII | Bulk | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 50 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 2.6 VDC | 0.23 VDC | 4 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
HFW1201G00RELAY GEN PURPOSE DPDT 2A 12V |
1,057 |
|
规格书 |
HFW, CII | Bulk | Discontinued at Digi-Key | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 75 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 6.4 VDC | 0.7 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | - | - |
|
|
3-1617030-6RELAY GEN PURPOSE DPDT 2A 18V |
1,166 |
|
规格书 |
HFW, CII | Bulk | Discontinued at Digi-Key | Through Hole | 18VDC | DPDT (2 Form C) | 2 A | 115VAC, 28VDC - Max | 230VA, 56W | 34.6 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 9.5 VDC | 0.95 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
HFW1201L00RELAY GENERAL PURPOSE DPDT 2A 5V |
1,660 |
|
- |
HFW, CII | Bulk | Discontinued at Digi-Key | Through Hole | 5VDC | DPDT (2 Form C) | 2 A | - | - | 185.2 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 2.7 VDC | 0.29 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|

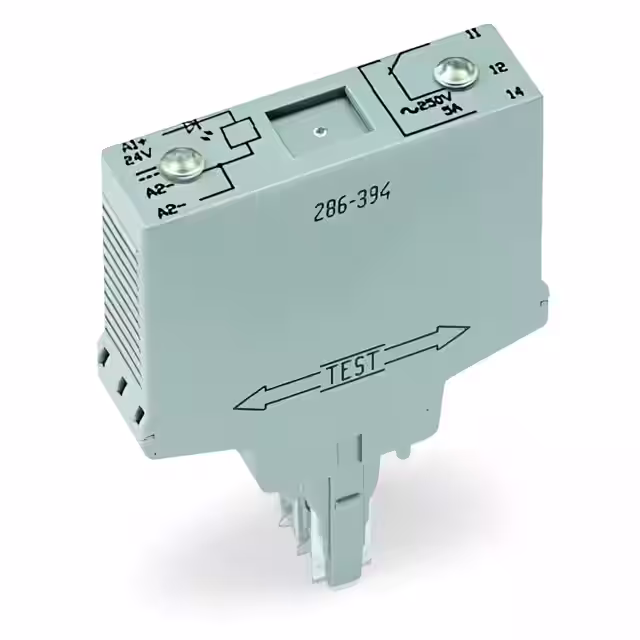

286-394/004-000RELAY GEN PURPOSE SPDT 1A 24V |
3,800 |
|
规格书 |
286 | Box | Active | Socketable | 24VDC | SPDT (1 Form C) | 1 A | 250VAC - Max | 250VA | 7.1 mA | Non Latching | - | Plug In | - | - | - | - | 8 ms | 4 ms | -25°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
|
1-1617599-4RELAY GEN PURPOSE DPDT 1A 26.5V |
1,021 |
|
规格书 |
MGA, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 17 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 15.2 VDC | 1.8 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
JMAWT-18XPRELAY GEN PURPOSE DPDT 1A 18V |
4,706 |
|
- |
MAT, CII | Bulk | Active | Through Hole | 18VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 24 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 10.5 VDC | 0.91 VDC | 2 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-28776/1 |
|
|
JMAPT-12XPRELAY GEN PURPOSE DPDT 1A 12V |
3,468 |
|
- |
MAT, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 35.8 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.63 VDC | 2 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-28776/1 |
