购物车信号继电器（最大2安培）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 负载 - 最大切换 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 线圈绝缘 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 | 继电器类型 | 等级 | 认证 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G2RV-SR700-AP AC/DC48RELAY GEN PURPOSE SPDT 50MA 48V |
2,398 |
|
规格书 |
G2RV-SR | Bulk | Obsolete | DIN Rail | 48VAC/DC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 6.1 mA | Non Latching | Socket Included | Screw Terminal | - | - | 38.4 VAC/DC | 4.8 VAC/DC | 20 ms | 40 ms | -40°C ~ 55°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
G2RV-SR700-AP DC12RELAY GEN PURPOSE SPDT 50MA 12V |
4,081 |
|
规格书 |
G2RV-SR | Bulk | Obsolete | DIN Rail | 12VDC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 27.9 mA | Non Latching | Socket Included | Screw Terminal | - | - | 9.6 VDC | 1.2 VDC | 20 ms | 20 ms | -40°C ~ 55°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
2966333RELAY GEN PURPOSE SPST 50MA 230V |
4,212 |
|
规格书 |
PLC-RSC | Bulk | Active | DIN Rail | 230VAC/DC | SPST-NO (1 Form A) | 50 mA | 30VAC, 36VDC - Max | - | 3.2 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 7 ms | 15 ms | -25°C ~ 55°C | Silver Tin Oxide (AgSnO), Gold (Au) | General Purpose | - | - |
|
|
2909656RELAY GEN PURPOSE SPDT 50MA 24V |
3,817 |
|
规格书 |
PLC-RSC | Bulk | Active | DIN Rail | 24VAC/DC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 11 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 6 ms | 15 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO), Gold (Au) | General Purpose | - | - |
|
|
G2RV-ST700-AP AC100RELAY GEN PURP SPDT 50MA 100V |
1,451 |
|
规格书 |
G2RV-ST | Box | Active | DIN Rail | 100VAC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 7.1 mA | Non Latching | Socket Included | Screw Terminal | - | - | 80 VAC | 10 VAC | 20 ms | 40 ms | -40°C ~ 55°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
|
G2RV-ST700-AP AC230RELAY GEN PURP SPDT 50MA 230V |
2,803 |
|
规格书 |
G2RV-ST | Box | Active | DIN Rail | 230VAC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 8.2 mA | Non Latching | Socket Included | Screw Terminal | - | - | 184 VAC | 23 VAC | 20 ms | 40 ms | -40°C ~ 55°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
|
G2RV-ST700-AP AC110RELAY GEN PURP SPDT 50MA 110V |
4,664 |
|
规格书 |
G2RV-ST | Box | Active | DIN Rail | 110VAC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 6.4 mA | Non Latching | Socket Included | Screw Terminal | - | - | 88 VAC | 11 VAC | 20 ms | 40 ms | -40°C ~ 55°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
|
G2RV-ST700-AP AC200RELAY GEN PURP SPDT 50MA 200V |
1,912 |
|
规格书 |
G2RV-ST | Box | Active | DIN Rail | 200VAC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 7.3 mA | Non Latching | Socket Included | Screw Terminal | - | - | 160 VAC | 20 VAC | 20 ms | 40 ms | -40°C ~ 55°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
|
2909664RELAY GEN PURPOSE SPST 50MA 120V |
2,568 |
|
规格书 |
PLC-RSC | Bulk | Active | DIN Rail | 120VAC/DC | SPST-NO (1 Form A) | 50 mA | 30VAC, 36VDC - Max | - | 3.5 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 6 ms | 15 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO), Gold (Au) | General Purpose | - | - |
|
|
G2RV-ST500-AP AC230RELAY GEN PURP SPDT 50MA 230V |
2,103 |
|
规格书 |
G2RV-ST | Box | Active | DIN Rail | 230VAC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 8.2 mA | Non Latching | Socket Included | Spring Terminal | - | - | 184 VAC | 23 VAC | 20 ms | 40 ms | -40°C ~ 55°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
|
G2RV-ST500-AP AC100RELAY GEN PURP SPDT 50MA 100V |
1,814 |
|
规格书 |
G2RV-ST | Box | Active | DIN Rail | 100VAC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 7.1 mA | Non Latching | Socket Included | Spring Terminal | - | - | 80 VAC | 10 VAC | 20 ms | 40 ms | -40°C ~ 55°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
|
G2RV-ST500-AP AC200RELAY GEN PURP SPDT 50MA 200V |
1,759 |
|
规格书 |
G2RV-ST | Box | Active | DIN Rail | 200VAC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 7.3 mA | Non Latching | Socket Included | Spring Terminal | - | - | 160 VAC | 20 VAC | 20 ms | 40 ms | -40°C ~ 55°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
|
G2RV-ST500-AP AC110RELAY GEN PURP SPDT 50MA 110V |
2,354 |
|
规格书 |
G2RV-ST | Box | Active | DIN Rail | 110VAC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 6.4 mA | Non Latching | Socket Included | Spring Terminal | - | - | 88 VAC | 11 VAC | 20 ms | 40 ms | -40°C ~ 55°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
|
PIR6WB-1PS-230VAC/DC-R01RELAY GEN PURPOSE SPDT 50MA 230V |
1,493 |
|
规格书 |
PIR6WB-1PS | Bulk | Active | DIN Rail | 230VAC/DC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | - | - | - | Spring Terminal | - | - | - | - | 8 ms | 10 ms | -40°C ~ 55°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
2909657RELAY GEN PURPOSE SPDT 50MA 120V |
3,403 |
|
- |
PLC-RSC | Bulk | Active | DIN Rail | 120VAC/DC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 3.5 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | 93.6 VAC/DC | - | 6 ms | 15 ms | -40°C ~ 55°C | Silver Tin Oxide (AgSnO), Gold (Au) | General Purpose | - | - |
|
R10-E1Z6-S1.2KRELAY GEN PURPOSE 6PDT 2A 24V |
3,537 |
|
规格书 |
R10 | Bulk | Obsolete | Socketable | 24VDC | 6PDT (6 Form C) | 2 A | 120VAC, 30VDC - Max | 240VA, 60W | 20 mA | Non Latching | - | Plug In | - | - | 18 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) | General Purpose | - | - |
|

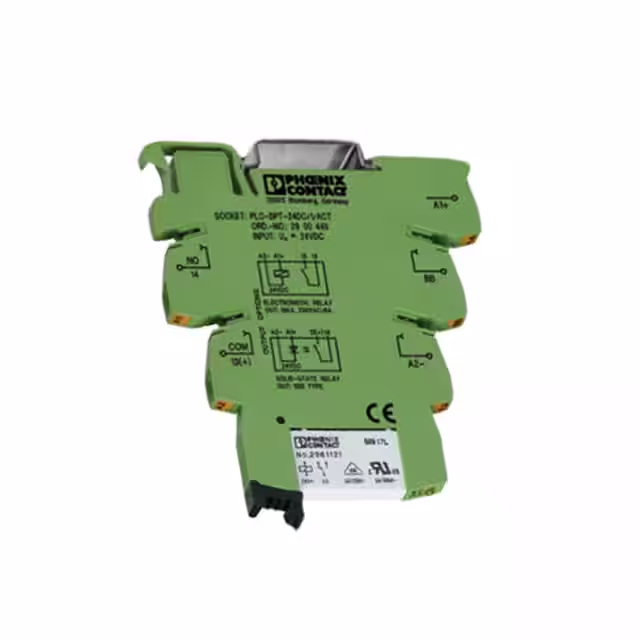

2900315RELAY GEN PURPOSE SPST 50MA 230V |
2,479 |
|
规格书 |
PLC-RPT | Bulk | Active | DIN Rail | 230VAC/DC | SPST-NO (1 Form A) | 50 mA | 30VAC, 36VDC - Max | - | 3.2 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 7 ms | 15 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO), Gold (Au) | General Purpose | - | - |
|
|
MYQ4Z-AC110/120RELAY GEN PURPOSE 4PDT 1A 120V |
4,782 |
|
规格书 |
MY | Bulk | Active | Socketable | 120VAC | 4PDT (4 Form C) | 1 A | 250VAC, 125VDC - Max | 250VA, 125W | 9.2 mA | Non Latching | - | Plug In | Sealed - Fully | - | 96 VAC | 36 VAC | 20 ms | 20 ms | -55°C ~ 60°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
2987286RELAY GEN PURPOSE SPDT 10MA 60V |
3,472 |
|
规格书 |
PLC-RSC | Bulk | Active | DIN Rail | 60VDC | SPDT (1 Form C) | 10 mA | 30VAC, 36VDC - Max | - | 3 mA | Non Latching | Socket Included | Screw Terminal | - | - | - | - | 7 ms | 15 ms | -25°C ~ 55°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
2909676RELAY GEN PURPOSE SPDT 50MA 230V |
2,018 |
|
- |
PLC-RPT | Bulk | Active | DIN Rail | 230VAC/DC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 3.2 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | 179.4 VAC/DC | - | 7 ms | 15 ms | -40°C ~ 55°C | Silver Tin Oxide (AgSnO), Gold (Au) | General Purpose | - | - |
