购物车信号继电器（最大2安培）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 负载 - 最大切换 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 线圈绝缘 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 | 继电器类型 | 等级 | 认证 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RJ22V-C-D12RELAY GEN PURPOSE DPDT 1A 12V |
3,107 |
|
- |
RJ | Bulk | Obsolete | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 250VAC, 125VDC - Max | 250VA, 125W | 44.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 8.4 VDC | 1.2 VDC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
|
RJ22V-C-D48RELAY GEN PURPOSE DPDT 1A 48V |
2,607 |
|
- |
RJ | Bulk | Obsolete | Through Hole | 48VDC | DPDT (2 Form C) | 1 A | 250VAC, 125VDC - Max | 250VA, 125W | 11 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 33.6 VDC | 4.8 VDC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
G6AK-474P-ST20-US DC5RELAY GENERAL PURPOSE 4PDT 2A 5V |
2,714 |
|
规格书 |
G6A | Tube | Obsolete | Through Hole | 5VDC | 4PDT (4 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | - | Latching, Dual Coil | - | PC Pin | - | - | 3.5 VDC | - | 7 ms | 7 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|

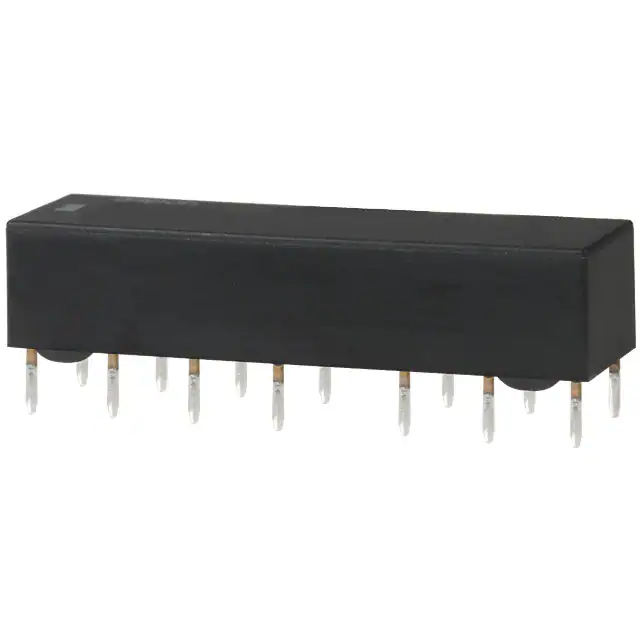

G6AU-434P-ST-US DC5RELAY GENERAL PURPOSE 4PDT 1A 5V |
4,752 |
|
规格书 |
G6A | Tube | Obsolete | Through Hole | 5VDC | 4PDT (4 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 64 mA | Latching, Single Coil | - | PC Pin | - | - | 3.5 VDC | - | 7 ms | 7 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
G6AU-474P-ST-US DC12RELAY GEN PURPOSE 4PDT 2A 12V |
2,618 |
|
规格书 |
G6A | Tube | Obsolete | Through Hole | 12VDC | 4PDT (4 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 26.7 mA | Latching, Single Coil | - | PC Pin | - | - | 8.4 VDC | - | 7 ms | 7 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
G6AU-474P-ST-US DC24RELAY GEN PURPOSE 4PDT 2A 24V |
1,834 |
|
规格书 |
G6A | Tube | Obsolete | Through Hole | 24VDC | 4PDT (4 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 13.3 mA | Latching, Single Coil | - | PC Pin | - | - | 16.8 VDC | - | 7 ms | 7 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
G6AU-474P-ST-US DC5RELAY GENERAL PURPOSE 4PDT 2A 5V |
4,316 |
|
规格书 |
G6A | Tube | Obsolete | Through Hole | 5VDC | 4PDT (4 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 64 mA | Latching, Single Coil | - | PC Pin | - | - | 3.5 VDC | - | 7 ms | 7 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
G2RV-1-S-AP DC11RELAY GEN PURPOSE SPDT 50MA 12V |
3,080 |
|
规格书 |
G2RV | Bulk | Obsolete | Socketable | 12VDC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 27.2 mA | Non Latching | - | Plug In | - | - | 9.6 VDC | 1.2 VDC | 20 ms | 40 ms | -40°C ~ 55°C | Silver Tin Indium (AgSnIn), Gold (Au) | General Purpose | - | - |
|
G2RV-1-S-AP DC21RELAY GEN PURPOSE SPDT 50MA 24V |
1,453 |
|
规格书 |
G2RV | Bulk | Obsolete | Socketable | 24VDC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 13.3 mA | Non Latching | - | Plug In | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 40 ms | -40°C ~ 55°C | Silver Tin Indium (AgSnIn), Gold (Au) | General Purpose | - | - |
|
|
G2RV-1-S-AP DC48RELAY GEN PURPOSE SPDT 50MA 48V |
1,023 |
|
规格书 |
G2RV | Bulk | Obsolete | Socketable | 48VDC | SPDT (1 Form C) | 50 mA | 30VAC, 36VDC - Max | - | 5.2 mA | Non Latching | - | Plug In | - | - | 38.4 VDC | 4.8 VDC | 20 ms | 40 ms | -40°C ~ 55°C | Silver Tin Indium (AgSnIn), Gold (Au) | General Purpose | - | - |
|
|
G6A-474P-ST20-US DC6RELAY GENERAL PURPOSE 4PDT 2A 6V |
3,758 |
|
规格书 |
G6A | Tube | Obsolete | Through Hole | 6VDC | 4PDT (4 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 33.3 mA | Non Latching | - | PC Pin | - | - | 4.2 VDC | 0.6 VDC | 7 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
RJ22V-A-D100RELAY GEN PURP DPDT 1A 100-110V |
2,719 |
|
- |
RJ | Bulk | Obsolete | Through Hole | 100 ~ 110VDC | DPDT (2 Form C) | 1 A | 250VAC, 125VDC - Max | 250VA, 125W | 5.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | - | - | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
|
RJ22V-C-D100RELAY GEN PURP DPDT 1A 100-110V |
1,325 |
|
- |
RJ | Bulk | Obsolete | Through Hole | 100 ~ 110VDC | DPDT (2 Form C) | 1 A | 250VAC, 125VDC - Max | 250VA, 125W | 5.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | - | - | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
DIL-CL-1A81-9-13MRELAY TELECOM SPST 250MA |
1,466 |
|
规格书 |
DIL-CL | Tube | Active | Through Hole | - | SPST-NO (1 Form A) | 250 mA | 110VAC, 110VDC - Max | - | 357 mA | Non Latching | - | PC Pin | - | - | - | - | 0.5 ms | 0.1 ms | -20°C ~ 70°C | - | Telecom | - | - |
|
|
RJ22S-C-D5RELAY GEN PURPOSE DPDT 1A 5V |
2,356 |
|
- |
RJ | Bulk | Active | Socketable | 5VDC | DPDT (2 Form C) | 1 A | 250VAC, 125VDC - Max | 250VA, 125W | 106 mA | Non Latching | - | Plug In | - | - | 3.5 VDC | 0.5 VDC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
|
RJ22S-C-D24RELAY GEN PURPOSE DPDT 1A 24V |
2,382 |
|
- |
RJ | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 1 A | 250VAC, 30VDC - Max | 250VA, 30W | 22.1 mA | Non Latching | - | Plug In | - | - | 16.8 VDC | 2.4 VDC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
RJ22S-C-D12RELAY GEN PURPOSE DPDT 1A 12V |
3,844 |
|
- |
RJ | Bulk | Active | Socketable | 12VDC | DPDT (2 Form C) | 1 A | 250VAC, 125VDC - Max | 250VA, 125W | 44.2 mA | Non Latching | - | Plug In | - | - | 8.4 VDC | 1.2 VDC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
|
RJ22S-C-D48RELAY GEN PURPOSE DPDT 1A 48V |
3,073 |
|
- |
RJ | Bulk | Active | Socketable | 48VDC | DPDT (2 Form C) | 1 A | 250VAC, 125VDC - Max | 250VA, 125W | 11 mA | Non Latching | - | Plug In | - | - | 33.6 VDC | 4.8 VDC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
|
RJ22V-A-A12RELAY GEN PURPOSE DPDT 1A 12V |
2,833 |
|
- |
RJ | Bulk | Active | Through Hole | 12VAC | DPDT (2 Form C) | 1 A | 250VAC, 125VDC - Max | 250VA, 125W | 75 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 9.6 VAC | 3.6 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
|
RJ22V-A-A24RELAY GEN PURPOSE DPDT 1A 24V |
3,946 |
|
- |
RJ | Bulk | Active | Through Hole | 24VAC | DPDT (2 Form C) | 1 A | 250VAC, 125VDC - Max | 250VA, 125W | 37.5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 19.2 VAC | 7.2 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
