购物车信号继电器（最大2安培）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 负载 - 最大切换 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 线圈绝缘 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 | 继电器类型 | 等级 | 认证 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DS1E-S-DC5V-TBRELAY GENERAL PURPOSE SPDT 2A 5V |
4,661 |
|
规格书 |
DS | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
1422015-8RELAY GENERAL PURPOSE SPDT 1A 9V |
1,748 |
|
- |
V23026, AXICOM | Tape & Reel (TR) | Obsolete | Surface Mount | 9VDC | SPDT (1 Form C) | 1 A | 150VAC, 125VDC - Max | 150VA, 125W | 7.6 mA | Latching, Dual Coil | - | Gull Wing | - | - | - | - | 2 ms | 2 ms | -40°C ~ 85°C | Palladium Nickel (PdNi), Rhodium (Rh), Gold (Au) | General Purpose | - | - |
|
TXD2SS-L-4.5V-3RELAY GEN PURPOSE DPDT 2A 4.5V |
1,758 |
|
规格书 |
TX-D | Tube | Active | Surface Mount | 4.5VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440W | 51.1 mA | Latching, Single Coil | - | Gull Wing | Sealed - Fully | - | 3.38 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TXD2SS-L-4.5V-4RELAY GEN PURPOSE DPDT 10MA 4.5V |
2,546 |
|
规格书 |
TX-D | Tube | Active | Surface Mount | 4.5VDC | DPDT (2 Form C) | 10 mA | 10VDC - Max | - | 51.1 mA | Latching, Single Coil | - | Gull Wing | Sealed - Fully | - | 3.38 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
TXD2SA-3V-3RELAY GENERAL PURPOSE DPDT 2A 3V |
2,457 |
|
规格书 |
TX-D | Tube | Active | Surface Mount | 3VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440W | 93.5 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 2.25 VDC | 0.3 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TXD2SA-L-6V-4RELAY GEN PURPOSE DPDT 10MA 6V |
3,645 |
|
规格书 |
TX-D | Tube | Active | Surface Mount | 6VDC | DPDT (2 Form C) | 10 mA | 10VDC - Max | - | 38.5 mA | Latching, Single Coil | - | Gull Wing | Sealed - Fully | - | 4.5 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
1422015-9RELAY GENERAL PURPOSE SPDT 1A 9V |
1,856 |
|
规格书 |
V23026, AXICOM | Bulk | Active | Surface Mount | 9VDC | SPDT (1 Form C) | 1 A | 150VAC, 125VDC - Max | 150VA, 125W | 8.8 mA | Non Latching | - | Gull Wing | - | - | - | - | 2 ms | 2 ms | -40°C ~ 85°C | Palladium Nickel (PdNi), Rhodium (Rh), Gold (Au) | General Purpose | - | - |
|
V23026D1023B201RELAY GEN PURPOSE SPDT 1A 15V |
1,346 |
|
- |
V23026, AXICOM | Tape & Reel (TR) | Obsolete | Surface Mount | 15VDC | SPDT (1 Form C) | 1 A | 150VAC, 125VDC - Max | 150VA, 125W | 5.3 mA | Non Latching | - | Gull Wing | - | - | 11.25 VDC | 1.5 VDC | 2 ms | 2 ms | -40°C ~ 85°C | Palladium Nickel (PdNi), Rhodium (Rh), Gold (Au) | General Purpose | - | - |
|
V23101D 3B201RELAY GEN PURPOSE SPDT 1.25A 5V |
4,163 |
|
规格书 |
V23101, AXICOM | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 1.25 A | 125VAC, 120VDC - Max | 62.5VA, 30W | 89.2 mA | Non Latching | - | PC Pin | - | - | 3.5 VDC | 0.5 VDC | 7 ms | 5 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
V23101D1003B201RELAY GEN PURPOSE SPDT 1.25A 5V |
3,776 |
|
规格书 |
V23101, AXICOM | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 1.25 A | 125VAC, 120VDC - Max | 62.5VA, 30W | 89.2 mA | Non Latching | - | PC Pin | - | - | 3.5 VDC | 0.5 VDC | 7 ms | 5 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|

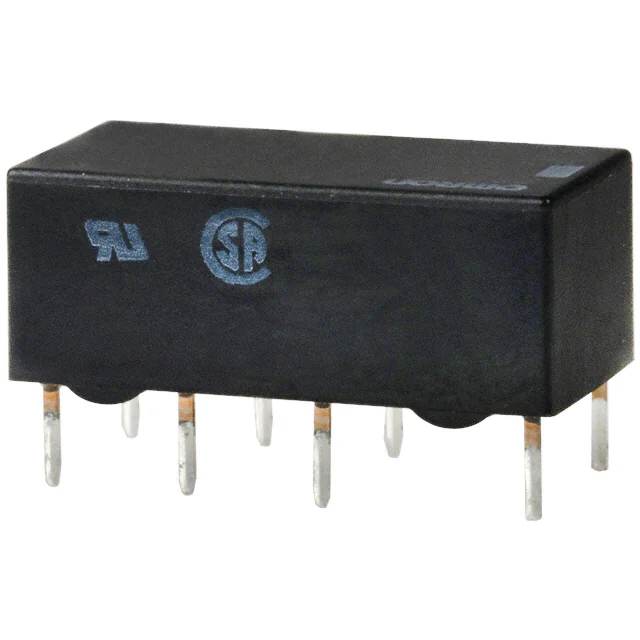

G6A-234P-BS-DC12RELAY GEN PURPOSE DPDT 1A 12V |
1,390 |
|
规格书 |
G6A | Tube | Obsolete | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 16.7 mA | Non Latching | - | PC Pin | - | - | 8.4 VDC | 1.2 VDC | 5 ms | 3 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
G6A-234P-BS-DC24RELAY GEN PURPOSE DPDT 1A 24V |
2,626 |
|
规格书 |
G6A | Tube | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 8.3 mA | Non Latching | - | PC Pin | - | - | 16.8 VDC | 2.4 VDC | 5 ms | 3 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
G6A-234P-BS-DC4.5RELAY GEN PURPOSE DPDT 1A 4.5V |
3,959 |
|
规格书 |
G6A | Tube | Obsolete | Through Hole | 4.5VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 44.4 mA | Non Latching | - | PC Pin | - | - | 3.15 VDC | 0.45 VDC | 5 ms | 3 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
G6A-234P-BS-DC5RELAY GENERAL PURPOSE DPDT 1A 5V |
2,915 |
|
规格书 |
G6A | Tube | Obsolete | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 40 mA | Non Latching | - | PC Pin | - | - | 3.5 VDC | 0.5 VDC | 5 ms | 3 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
TXD2SA-1.5V-3RELAY GEN PURPOSE DPDT 2A 1.5V |
1,702 |
|
规格书 |
TX-D | Tube | Active | Surface Mount | 1.5VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440W | 188 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 1.13 VDC | 0.15 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TXD2SA-1.5V-4RELAY GEN PURPOSE DPDT 10MA 1.5V |
2,766 |
|
规格书 |
TX-D | Tube | Active | Surface Mount | 1.5VDC | DPDT (2 Form C) | 10 mA | 10VDC - Max | - | 188 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 1.13 VDC | 0.15 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
TXD2SA-12V-3RELAY GEN PURPOSE DPDT 2A 12V |
3,722 |
|
规格书 |
TX-D | Tube | Active | Surface Mount | 12VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440W | 23.3 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 9 VDC | 1.2 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TXD2SA-12V-4RELAY GEN PURPOSE DPDT 10MA 12V |
1,314 |
|
规格书 |
TX-D | Tube | Active | Surface Mount | 12VDC | DPDT (2 Form C) | 10 mA | 10VDC - Max | - | 23.3 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 9 VDC | 1.2 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
TXD2SA-3V-4RELAY GEN PURPOSE DPDT 10MA 3V |
2,403 |
|
规格书 |
TX-D | Tube | Active | Surface Mount | 3VDC | DPDT (2 Form C) | 10 mA | 10VDC - Max | - | 93.5 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 2.25 VDC | 0.3 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
TXD2SA-4.5V-3RELAY GEN PURPOSE DPDT 2A 4.5V |
3,073 |
|
规格书 |
TX-D | Tube | Active | Surface Mount | 4.5VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440W | 62.5 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 3.38 VDC | 0.45 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
