购物车信号继电器（最大2安培）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 负载 - 最大切换 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 线圈绝缘 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 | 继电器类型 | 等级 | 认证 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
19022D2U0RELAY GEN PURPOSE DPDT 2A 48V TE Connectivity Potter & Brumfield Relays |
4,830 |
|
规格书 |
190 | Tray | Active | Through Hole | 48VDC | DPDT (2 Form C) | 2 A | 125VAC, 125VDC - Max | - | 12 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 36 VDC | 2.4 VDC | 7 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|

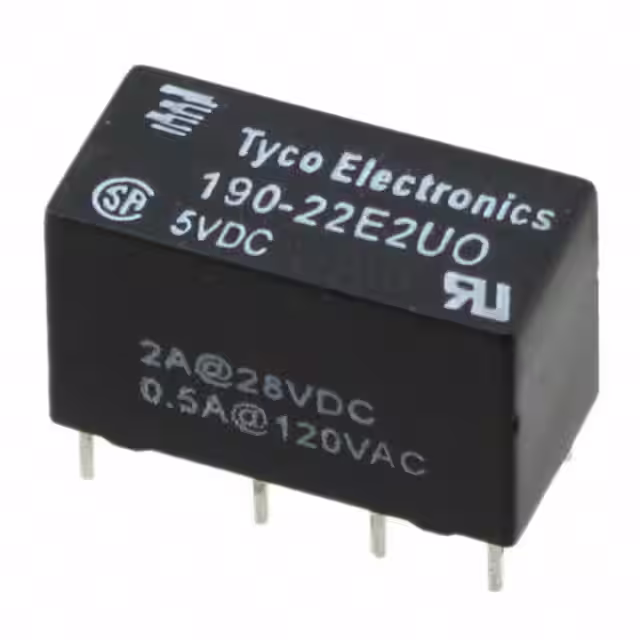

19022E2U0RELAY GENERAL PURPOSE DPDT 2A 5V TE Connectivity Potter & Brumfield Relays |
1,566 |
|
规格书 |
190 | Tray | Obsolete | Through Hole | 5VDC | DPDT (2 Form C) | 2 A | 125VAC, 125VDC - Max | - | 100 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.25 VDC | 7 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|

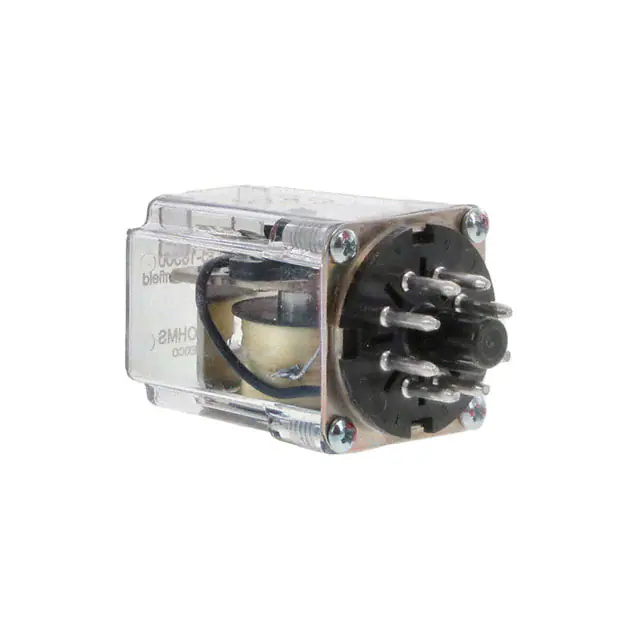

KCP-11-10000RELAY GENERAL PURPOSE DPDT 2A TE Connectivity Potter & Brumfield Relays |
4,342 |
|
规格书 |
KCP | Bulk | Obsolete | Socketable | - | DPDT (2 Form C) | 2 A | 120VAC - Max | 240VA | - | - | - | Plug In, 8 Pin (Octal) | - | - | - | - | 20 ms | 10 ms | -35°C ~ 85°C | Silver (Ag) | General Purpose | - | - |
|
|
KCP-11-5000RELAY GENERAL PURPOSE DPDT 2A TE Connectivity Potter & Brumfield Relays |
4,013 |
|
规格书 |
KCP | Bulk | Obsolete | Socketable | - | DPDT (2 Form C) | 2 A | 120VAC - Max | 240VA | - | - | - | Plug In, 8 Pin (Octal) | - | - | - | - | 20 ms | 10 ms | -35°C ~ 85°C | Silver (Ag) | General Purpose | - | - |
|
KCP-5-10000RELAY GENERAL PURPOSE SPDT 2A TE Connectivity Potter & Brumfield Relays |
2,038 |
|
规格书 |
KCP | Bulk | Obsolete | Socketable | - | SPDT (1 Form C) | 2 A | 120VAC - Max | 240VA | - | - | - | Plug In, 8 Pin (Octal) | - | - | - | - | 20 ms | 10 ms | -35°C ~ 85°C | Silver (Ag) | General Purpose | - | - |
|
OUAZ-SH-105D,405RELAY TELECOM SPDT 1A 5V TE Connectivity Potter & Brumfield Relays |
1,154 |
|
- |
OUAZ, OEG | Tube | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 90.9 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.5 VDC | 0.25 VDC | 5 ms | 7 ms | -30°C ~ 60°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
|
OUAZ-SH-124D,900RELAY TELECOM SPDT 1A 24V TE Connectivity Potter & Brumfield Relays |
2,654 |
|
规格书 |
OUAZ, OEG | Tube | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 18.8 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 1.2 VDC | 5 ms | 7 ms | -30°C ~ 60°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
|
OUAZ-SS-112L,900RELAY TELECOM SPDT 1A 12V TE Connectivity Potter & Brumfield Relays |
4,811 |
|
规格书 |
OUAZ, OEG | Tube | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 17 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 9 VDC | 1.2 VDC | 10 ms | 7 ms | -30°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
D3223RELAY TELECOM DPDT 2A 5V TE Connectivity Potter & Brumfield Relays |
3,091 |
|
规格书 |
FX2, AXICOM | Tube | Obsolete | Through Hole | 5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 16 mA | Non Latching | - | PC Pin | - | - | 3.5 VDC | 0.5 VDC | 4 ms | 3 ms | -40°C ~ 85°C | Palladium (Pd), Ruthenium (Ru), Gold (Au) | Telecom | - | - |
|
|
D3227RELAY TELECOM DPDT 2A 24V TE Connectivity Potter & Brumfield Relays |
4,023 |
|
规格书 |
FX2, AXICOM | Tube | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 5.8 mA | Non Latching | - | PC Pin | - | - | 16.8 VDC | 2.4 VDC | 4 ms | 3 ms | -40°C ~ 85°C | Palladium (Pd), Ruthenium (Ru), Gold (Au) | Telecom | - | - |
