购物车选择器开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电路 | 位置数量 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 安装类型 | 端接样式 | 面板开孔尺寸 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
K1151259SWITCH SELECT 2POS SPST 250A 32V |
1,204 |
|
规格书 |
35 | Bulk | Active | Battery Disconnect | SPST | 2 | On-Off | 250A (DC) | - | 32 V | Non-Illuminated | - | - | Panel Mount | Stud | - | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
35-210-100-R-900SWITCH SELECT 2POS SPST 250A 20V |
3,893 |
|
规格书 |
35 | Box | Active | Battery Disconnect | SPST | 2 | On-Off | 250A (AC/DC) | 20 V | 32 V | Non-Illuminated | - | - | Panel Mount | Stud | - | IP67 - Dust Tight, Waterproof | Long Lever | -40°C ~ 85°C |
|
|
M-284-BXSWITCH SELECT 2POS DPST 175A 36V |
3,010 |
|
规格书 |
M-284 | Bulk | Active | Battery Disconnect | DPST | 2 | Off-On | 175A (DC) | - | 36 V | Non-Illuminated | - | - | Panel Mount | Stud | - | - | - | -40°C ~ 85°C |
|
|
M-284-BPSWITCH SELECT 2POS SPST 175A 36V |
4,379 |
|
规格书 |
M-284 | Bulk | Active | Battery Disconnect | SPST | 2 | Off-On | 175A (DC) | - | 36 V | Non-Illuminated | - | - | Panel Mount | Stud | - | Circular - 20.62mm Dia | - | -40°C ~ 85°C |
|
|
75904-BXSWITCH SELECT 2POS DPST 175A 36V |
135 |
|
规格书 |
75900 | Bulk | Active | Battery Disconnect | DPST | 2 | Off-On | 175A (DC) | - | 36 V | Non-Illuminated | - | - | Panel Mount | Stud | - | - | - | - |
|
|
75930-02High Current Switches |
1,707 |
|
规格书 |
75930 | Bulk | Active | Battery Disconnect | DPST | 2 | Off-On | 300A (DC) | - | 32 V | Non-Illuminated | - | - | Panel Mount | Stud | Circular - 20.62mm Dia | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | -40°C ~ 85°C |
|
|
M-750-BPSWITCH SELECT 4POS SP3T 10A 36V |
4,718 |
|
规格书 |
M-750 | Bulk | Active | Battery Disconnect | SP3T | 4 | Off-On-On-On | 10A (DC) | - | 36 V | Non-Illuminated | - | - | Panel Mount | Stud | - | - | - | - |
|

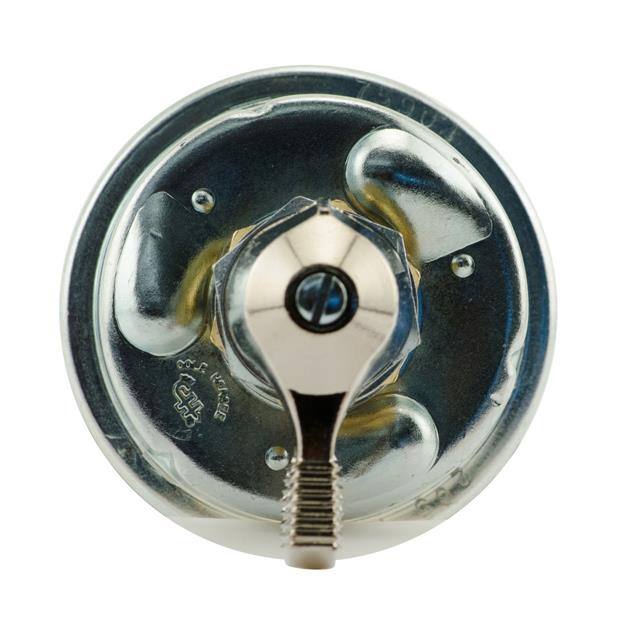

75904SWITCH SELECT 2POS DPST 175A 36V |
1,846 |
|
规格书 |
75900 | Bulk | Active | Battery Disconnect | DPST | 2 | Off-On | 175A (DC) | - | 36 V | Non-Illuminated | - | - | Panel Mount | Stud | - | - | - | - |
|

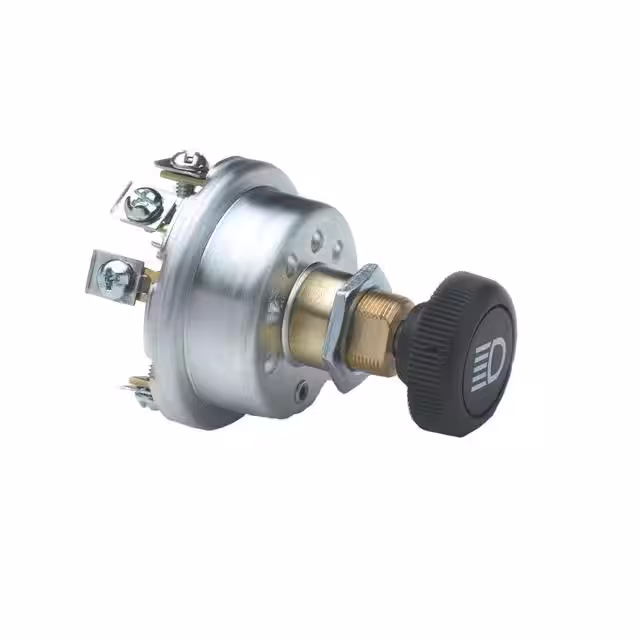

72079-01SWITCH SELECTOR 4POS 20A 12V |
1,927 |
|
- |
- | Bulk | Active | Standard | - | 4 | Off-On-On-On | 20A (DC) | - | 12 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | - | - | - | - |
|

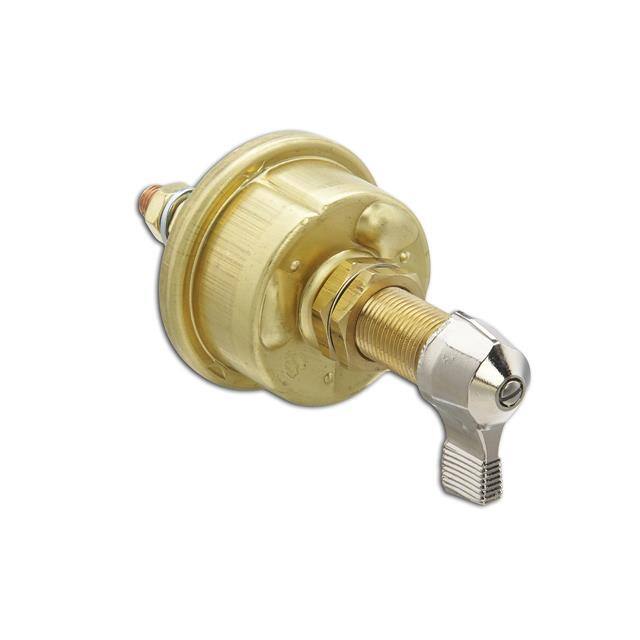

M-284SWITCH SELECT 2POS SPST 175A 36V |
4,918 |
|
规格书 |
- | Bulk | Active | Standard | SPST | 2 | Off-On | 175A (DC) | - | 36 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | - | - | - | - |
|

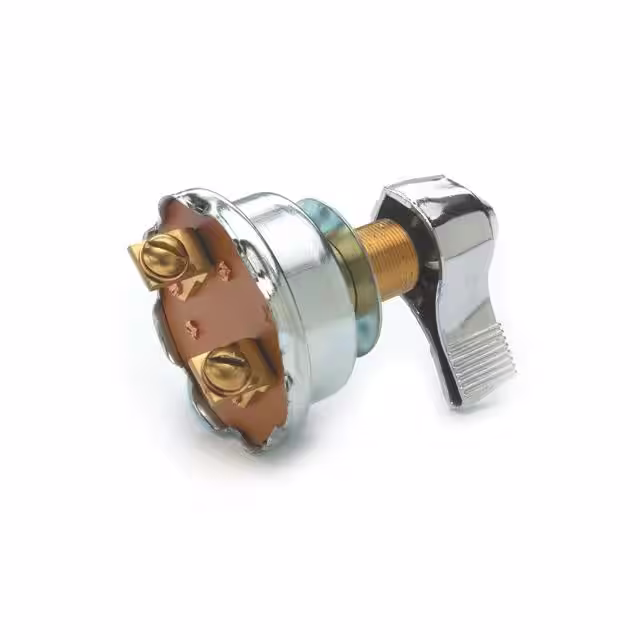

M-288SWITCH SELECT 2POS SPST 50A 12V |
100 |
|
规格书 |
95 | Bulk | Active | Battery Disconnect | SPST-NO | 2 | Off-Mom | 50A (DC) | - | 12 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | - | - | - | - |
|
|
75940-02High Current Switches |
3,680 |
|
规格书 |
75940 | Bulk | Active | Battery Disconnect | SPST | 2 | Off-On | 300A (DC) | - | 32 V | Non-Illuminated | - | - | Panel Mount | Stud | Circular - 20.62mm Dia | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | -40°C ~ 85°C |
|
|
75940-03High Current Switches |
4,282 |
|
规格书 |
75940 | Bulk | Active | Battery Disconnect | SPST | 2 | Off-On | 300A (DC) | - | 32 V | Non-Illuminated | - | - | Panel Mount | Stud | Circular - 20.62mm Dia | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | -40°C ~ 85°C |
|
|
K1167316SWITCH SELECT 2POS SPST 250A 1KV |
4,650 |
|
规格书 |
35 | Bulk | Active | Battery Disconnect | SPST | 2 | On-Off | 250A (DC) | - | 1 kV | Non-Illuminated | - | - | Panel Mount | Stud | - | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
75601-14SWITCH SELECTOR 5POS 10A 16V |
2,050 |
|
规格书 |
- | Bulk | Active | Standard | - | 5 | Off-On-On-On-On | 10A (DC) | - | 16 V | Non-Illuminated | - | - | Panel Mount | Wire Leads with Connector | - | - | - | - |
|
|
75600SWITCH SELECTOR 5POS 15A 16V |
3,201 |
|
规格书 |
- | Bulk | Active | Standard | - | 5 | Off-On-On-On-On | 15A (DC) | - | 16 V | Non-Illuminated | - | - | Panel Mount | Wire Leads with Connector | - | - | - | - |
|
|
75600-02SWITCH SELECTOR 5POS 15A 16V |
3,271 |
|
规格书 |
- | Bulk | Active | Standard | - | 5 | Off-On-On-On-On | 15A (DC) | - | 16 V | Non-Illuminated | - | - | Panel Mount | Wire Leads with Connector | - | - | - | - |
|
|
35-414-131-S-900SWITCH SELECT 2POS SPST 400A 20V |
1,841 |
|
规格书 |
35 | Box | Active | Battery Disconnect | SPST | 2 | On-Off | 400A (AC/DC) | 20 V | 32 V | Non-Illuminated | - | - | Panel Mount | Stud | - | IP67 - Dust Tight, Waterproof | Long Lever | -40°C ~ 85°C |
|
75600-01SWITCH SELECTOR 5POS 10A 16V |
1,467 |
|
规格书 |
- | Bulk | Active | Standard | - | 5 | Off-On-On-On-On | 10A (DC) | - | 16 V | Non-Illuminated | - | - | Panel Mount | Wire Leads with Connector | - | - | - | - |
|
W22S3-HW-10/01SWITCH SELECT 3POS DPST 10A 72V |
188 |
|
- |
22 | Bag | Active | Standard | DPST-NO/NC | 3 | On-Off-Off, On-On-Off | 10A (AC), 2.5A (DC) | 72 V | 28 V | Non-Illuminated | - | - | Panel Mount | Screw Terminal | Circular - 22.50mm Dia | IP66 - Dust Tight, Water Resistant | - | -40°C ~ 55°C |
