| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电路 | 位置数量 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 安装类型 | 端接样式 | 面板开孔尺寸 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
35-314-131-S-901SWITCH SELECT 2POS SPST 300A 20V TE Connectivity Deutsch Connectors |
4,456 |
|
规格书 |
35 | Box | Active | Battery Disconnect | SPST | 2 | On-Off | 300A (AC/DC) | 20 V | 32 V | Non-Illuminated | - | - | Panel Mount | Stud | - | IP67 - Dust Tight, Waterproof | Long Lever | -40°C ~ 85°C |
|
35-210-141-RSWITCH SELECT 2POS SPST 200A 20V TE Connectivity Deutsch Connectors |
4,284 |
|
规格书 |
35 | Box | Active | Battery Disconnect | SPST | 2 | On-Off | 200A (AC/DC) | 20 V | 32 V | Non-Illuminated | - | - | Panel Mount | Stud | - | IP67 - Dust Tight, Waterproof | Long Lever | -40°C ~ 85°C |
|

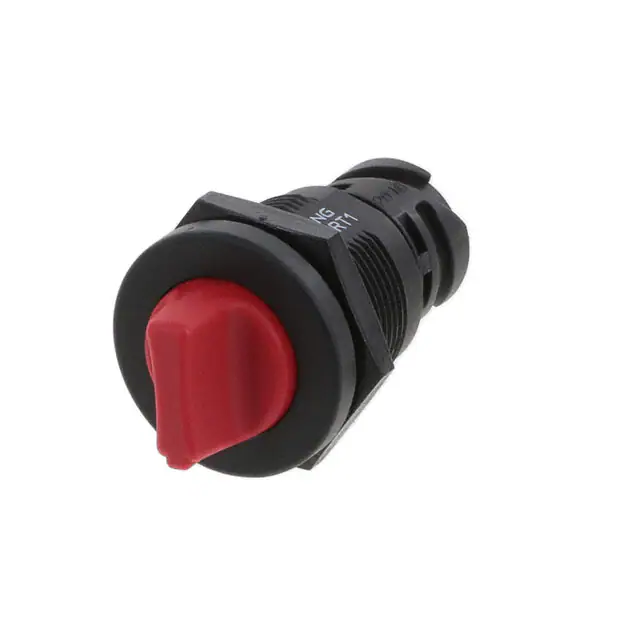

DS-221-RT1SWITCH SELECTOR 2POS DPDT 5A 20V TE Connectivity Deutsch Connectors |
1,469 |
|
规格书 |
DS | Box | Active | Standard | DPDT | 2 | On-On | 5A (AC/DC) | 20 V | 32 V | Non-Illuminated | - | - | Panel Mount | Connector | Circular - 30.50mm Dia | IP69K - Dust Tight, High Temp Water Jets, Waterproof | - | -40°C ~ 90°C |
|
35-413-151-RSWITCH SELECT 2POS DPST 400A 20V TE Connectivity Deutsch Connectors |
171 |
|
规格书 |
35 | Box | Active | Battery Disconnect | DPST | 2 | On-Off | 400A (AC/DC) | 20 V | 32 V | Non-Illuminated | - | - | Panel Mount | Stud | - | IP67 - Dust Tight, Waterproof | Long Lever | -40°C ~ 85°C |
|
DS-111-GE1SWITCH SELECTOR 2POS SPDT 5A 20V TE Connectivity Deutsch Connectors |
2,156 |
|
规格书 |
DS | Box | Active | Standard | SPDT | 2 | On-On | 5A (AC/DC) | 20 V | 32 V | Non-Illuminated | - | - | Chassis Mount | Connector | Circular - 30.50mm Dia | IP69K - Dust Tight, High Temp Water Jets, Waterproof | - | -40°C ~ 90°C |
|
K1151259SWITCH SELECT 2POS SPST 250A 32V TE Connectivity Deutsch Connectors |
1,204 |
|
规格书 |
35 | Bulk | Active | Battery Disconnect | SPST | 2 | On-Off | 250A (DC) | - | 32 V | Non-Illuminated | - | - | Panel Mount | Stud | - | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
35-210-100-R-900SWITCH SELECT 2POS SPST 250A 20V TE Connectivity Deutsch Connectors |
3,893 |
|
规格书 |
35 | Box | Active | Battery Disconnect | SPST | 2 | On-Off | 250A (AC/DC) | 20 V | 32 V | Non-Illuminated | - | - | Panel Mount | Stud | - | IP67 - Dust Tight, Waterproof | Long Lever | -40°C ~ 85°C |
|
|
35-414-131-S-900SWITCH SELECT 2POS SPST 400A 20V TE Connectivity Deutsch Connectors |
1,841 |
|
规格书 |
35 | Box | Active | Battery Disconnect | SPST | 2 | On-Off | 400A (AC/DC) | 20 V | 32 V | Non-Illuminated | - | - | Panel Mount | Stud | - | IP67 - Dust Tight, Waterproof | Long Lever | -40°C ~ 85°C |
|

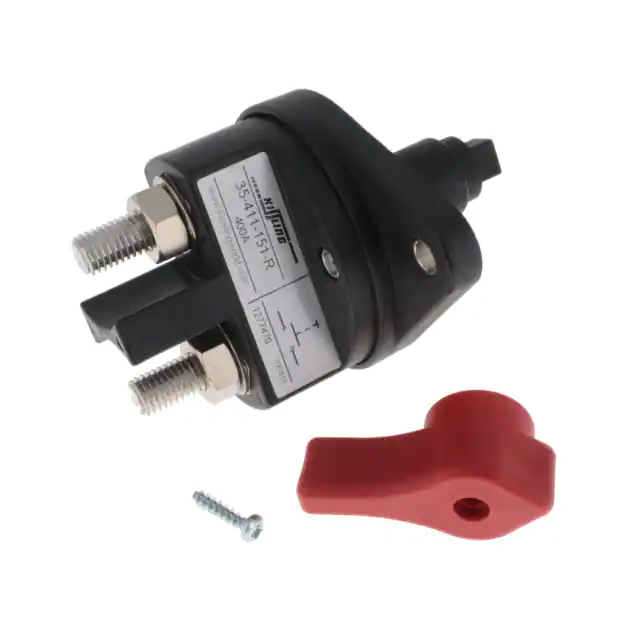

35-411-151-RSWITCH SELECT 2POS SPST 400A 20V TE Connectivity Deutsch Connectors |
2,921 |
|
规格书 |
35 | Box | Active | Battery Disconnect | SPST | 2 | On-Off | 400A (AC/DC) | 20 V | 32 V | Non-Illuminated | - | - | Panel Mount | Stud | - | IP67 - Dust Tight, Waterproof | Long Lever | -40°C ~ 85°C |
|

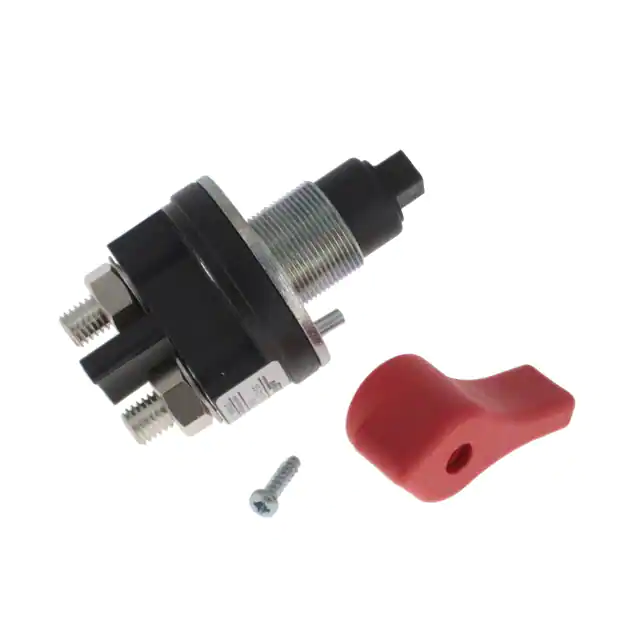

35-213-151-RSWITCH SELECT 2POS SPST 200A 20V TE Connectivity Deutsch Connectors |
3,943 |
|
规格书 |
35 | Box | Active | Battery Disconnect | SPST | 2 | On-Off | 200A (AC/DC) | 20 V | 32 V | Non-Illuminated | - | - | Panel Mount | Stud | - | IP67 - Dust Tight, Waterproof | Long Lever | -40°C ~ 85°C |
