| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 位置数量 | 索引停止点 | 甲板数量 | 每甲板的极数 | 每甲板的电路 | 触点时间 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 扳动角度 | 触点材料 | 触点表面处理 | 安装类型 | 端接样式 | 特性 | 面板后深度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
312-12SWITCH ROTARY 12POS 30A 300V |
2,732 |
|
规格书 |
312 | Bulk | Active | 12 | Fixed | 1 | 1 | SP12T | Non-Shorting (BBM) | 30A (AC/DC) | 300 V | 20 V | Flatted (6.35mm Dia) | 28.58mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 57.20mm |
|
312-5ESWITCH ROTARY 5POS 30A 300V |
1,489 |
|
规格书 |
312 | Bulk | Active | 5 | Fixed | 1 | 1 | SP5T | Non-Shorting (BBM) | 30A (AC/DC) | 300 V | 20 V | Flatted (6.35mm Dia) | 28.58mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 57.20mm |
|
|
312-8ESWITCH ROTARY 8POS 30A 300V |
1,689 |
|
规格书 |
312 | Bulk | Active | 8 | Fixed | 1 | 1 | SP8T | Non-Shorting (BBM) | 30A (AC/DC) | 300 V | 20 V | Flatted (6.35mm Dia) | 28.58mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 57.20mm |
|
|
312-10ESWITCH ROTARY 10POS 30A 300V |
1,192 |
|
规格书 |
312 | Bulk | Active | 10 | Fixed | 1 | 1 | SP10T | Non-Shorting (BBM) | 30A (AC/DC) | 300 V | 20 V | Flatted (6.35mm Dia) | 28.58mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 57.20mm |
|
|
412-12ESWITCH ROTARY 12POS 50A 300V |
1,666 |
|
规格书 |
412 | Bulk | Active | 12 | Fixed | 1 | 1 | SP12T | Non-Shorting (BBM) | 50A (AC/DC) | 300 V | 20 V | Flatted (6.35mm Dia) | 28.58mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 61.90mm |
|

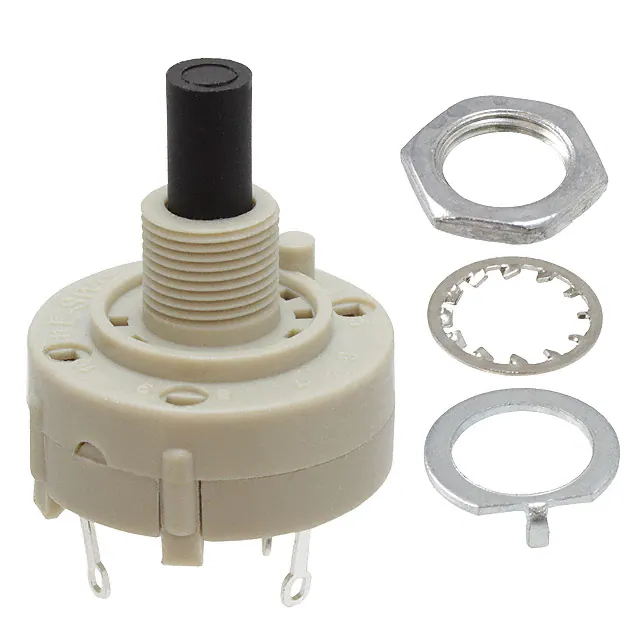

KC56B10.002NLSSWITCH ROTARY 3POS 350MA 125V |
2,301 |
|
规格书 |
KC | Bulk | Obsolete | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Round (6mm Dia) | 10.00mm | 90° | Copper Alloy | Silver | Panel Mount | Solder Lug | - | 18.50mm |
|

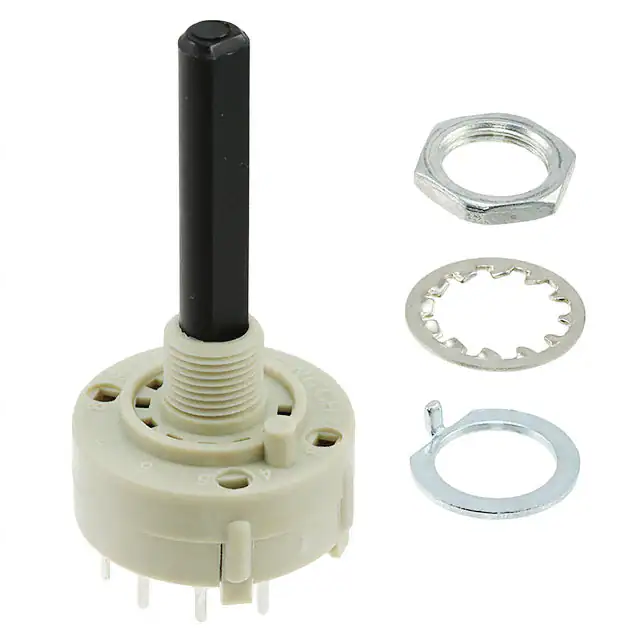

KC14A30.001NPSSWITCH ROTARY 4POS 350MA 125V |
4,005 |
|
规格书 |
KC | Bulk | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 30.00mm | 30° | Copper Alloy | Silver | Panel Mount, Through Hole | PC Pin | - | 14.20mm |
|
KC14A13.002NLSSWITCH ROTARY 4POS 350MA 125V |
3,859 |
|
规格书 |
KC | Bulk | Obsolete | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 13.00mm | 30° | Copper Alloy | Silver | Panel Mount | Solder Lug | - | 18.50mm |
|

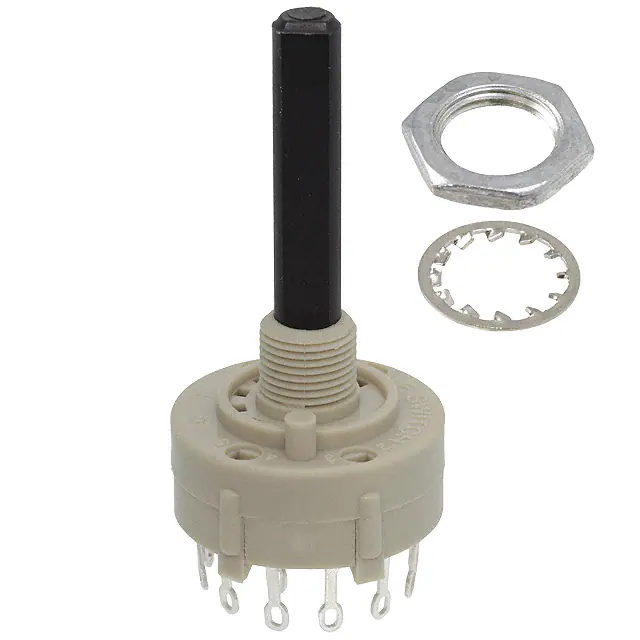

KC10A30.001NLSSWITCH ROTARY 12POS 350MA 125V |
2,953 |
|
规格书 |
KC | Bulk | Active | 12 | Continuous | 1 | 1 | SP12T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 30.00mm | 30° | Copper Alloy | Silver | Panel Mount | Solder Lug | - | 18.50mm |
|
A205S1MNZQSWITCH ROTARY 5POS 2.5A 125V |
1,398 |
|
规格书 |
A | Tray | Active | 5 | Fixed | 1 | 2 | DP5T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Screwdriver Slot | Flush | 30° | Silver (Ag) | Silver | Panel Mount | Solder Lug | - | 20.83mm |
|

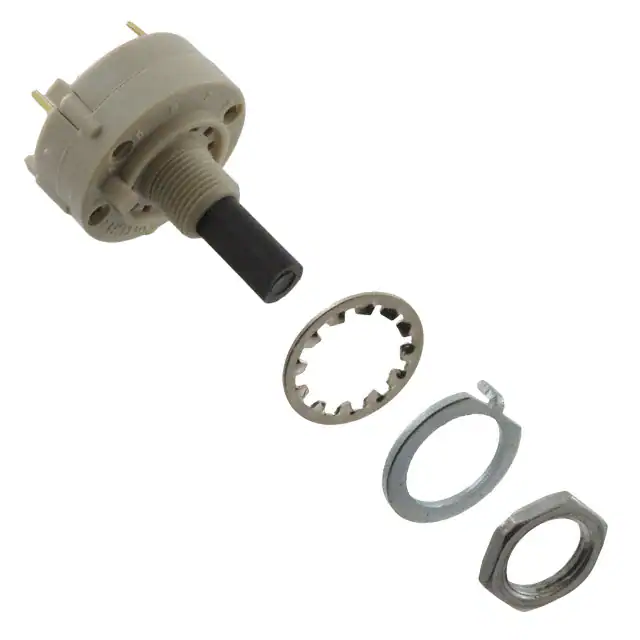

KC56A13.001NPFSWITCH ROTARY 3POS 350MA 125V |
1,009 |
|
规格书 |
KC | Bulk | Obsolete | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 13.00mm | 90° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | - | 14.20mm |
|

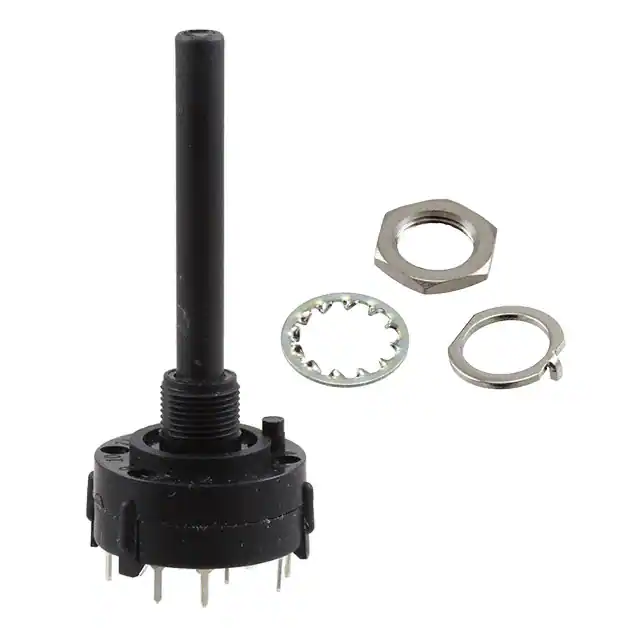

A12542MNCQSWITCH ROTARY 8POS 2.5A 125V |
3,537 |
|
规格书 |
A | Tray | Active | 8 | Fixed | 1 | 1 | SP8T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Round (6mm Dia) | 42.00mm | 45° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | - | 14.48mm |
|
|
A30405RNMCBFSWITCH ROTARY 4POS 0.4VA 20V |
4,968 |
|
规格书 |
A | Bulk | Active | 4 | Fixed | 1 | 3 | 3P4T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 20 V | 20 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | Modular Base | 14.48mm |
|

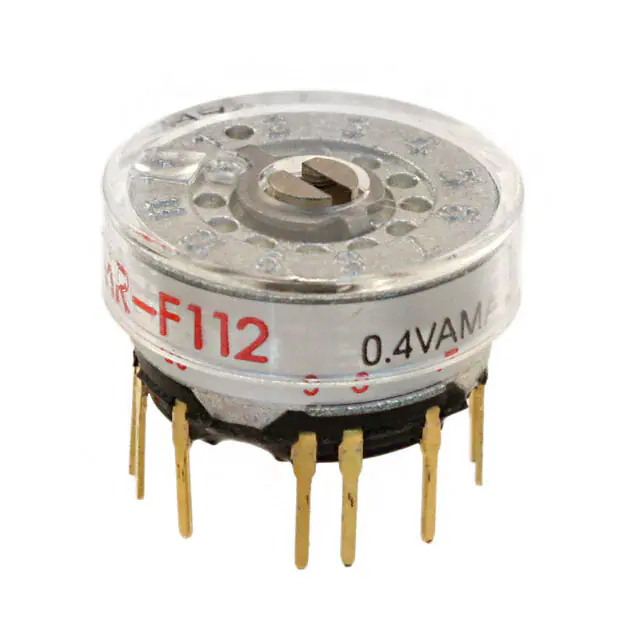

MRF112/328SWITCH ROTARY 2-12POS 0.4VA 28V |
2,623 |
|
规格书 |
MR | Box | Obsolete | 2 ~ 12 | Adjustable | 1 | 1 | SP12T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Screwdriver Slot | Flush | 30° | Phosphor Bronze | Gold | Through Hole | PC Pin | Process Sealed | - |
|
|
56BDP36-01-1-AJNSWITCH ROTARY 2-10POS 200MA 115V |
1,211 |
|
规格书 |
56 | Bulk | Active | 2 ~ 10 | Adjustable | 1 | 1 | SP10T | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Screwdriver Slot | 3.18mm | 36° | Brass | Silver | Panel Mount, Through Hole | PC Pin | - | 9.58mm |
|

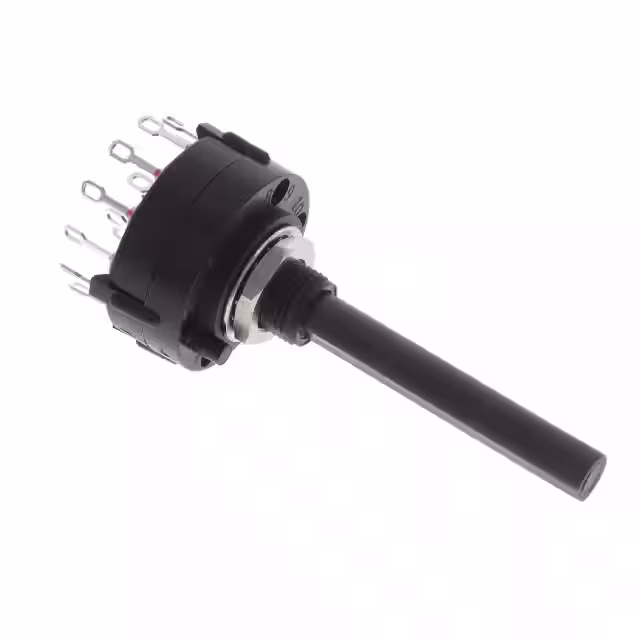

A40315RNZQESWITCH ROTARY 3POS 2.5A 125V |
4,916 |
|
规格书 |
A | Tray | Active | 3 | Fixed | 1 | 4 | 4P3T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 38.10mm | 30° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Epoxy Sealed Terminals | 20.83mm |
|
|
50PT45-01-2-04NSWITCH ROTARY 4POS 150MA 115V |
1,188 |
|
规格书 |
50 | Bulk | Active | 4 | Fixed | 1 | 2 | DP4T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 45° | - | Gold | Panel Mount, Through Hole | PC Pin | Process Sealed | 14.63mm |
|
|
50A45-01-1-08NSWITCH ROTARY 8POS 150MA 115V |
1,307 |
|
规格书 |
50 | Bulk | Active | 8 | Continuous | 1 | 1 | SP8T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 45° | - | Gold | Panel Mount | Solder Lug | - | 18.77mm |
|
|
51A30-01-1-06NSWITCH ROTARY 6POS 150MA 115V |
1,970 |
|
规格书 |
51 | Bulk | Active | 6 | Fixed | 1 | 1 | SP6T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 30° | - | Gold | Panel Mount | Solder Lug | - | 18.77mm |
|
|
A30415RNZGSWITCH ROTARY 4POS 2.5A 125V |
4,929 |
|
规格书 |
A | Bulk | Active | 4 | Fixed | 1 | 3 | 3P4T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 38.10mm | 30° | Silver (Ag) | Gold | Panel Mount | Solder Lug | - | 20.83mm |
