购物车旋转开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 位置数量 | 索引停止点 | 甲板数量 | 每甲板的极数 | 每甲板的电路 | 触点时间 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 扳动角度 | 触点材料 | 触点表面处理 | 安装类型 | 端接样式 | 特性 | 面板后深度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A20503RNCGESWITCH ROTARY 5POS 2.5A 125V |
2,073 |
|
规格书 |
A | Tray | Active | 5 | Fixed | 1 | 2 | DP5T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver (Ag) | Gold | Panel Mount, Through Hole | PC Pin | Epoxy Sealed Terminals | 14.48mm |
|
MRB12HSWITCH ROTARY 2POS 0.4VA 28V |
1,583 |
|
规格书 |
MRB | Bulk | Active | 2 | Fixed | 1 | 1 | SPDT | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Flatted (3.17mm Dia) | 10.00mm | 90° | Beryllium Copper | Gold | Panel Mount, Through Hole, Right Angle | PC Pin | Sealed - Fully | 12.56mm |
|

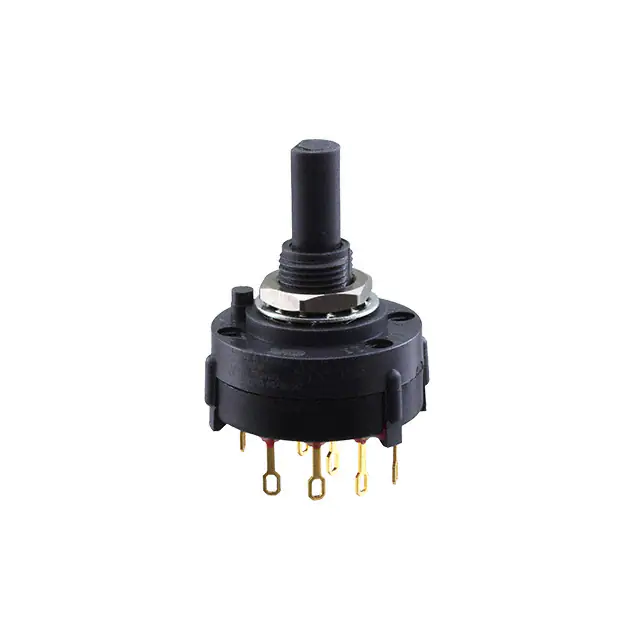

A20405RSZGKSWITCH ROTARY 4POS 2.5A 125V |
1,588 |
|
规格书 |
A | Tray | Active | 4 | Fixed | 1 | 2 | DP4T | Shorting (MBB) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver (Ag) | Gold | Panel Mount | Solder Lug | Epoxy Sealed Terminals, Splashproof Bushing Seal | 20.83mm |
|

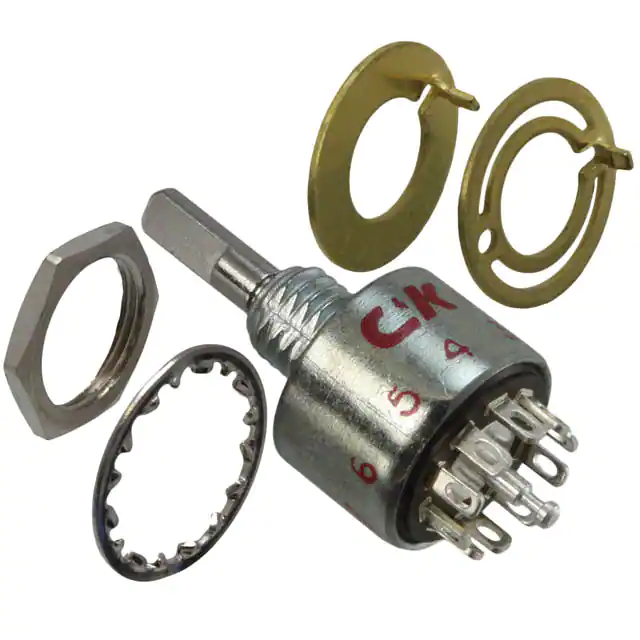

ME00L1NZQDSWITCH ROTARY 10POS 250MA 125V |
4,906 |
|
规格书 |
M | Tray | Active | 10 | Continuous | 1 | 1 | SP10T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | 36° | Copper Alloy | Silver | Panel Mount | Solder Lug | - | 15.88mm |
|

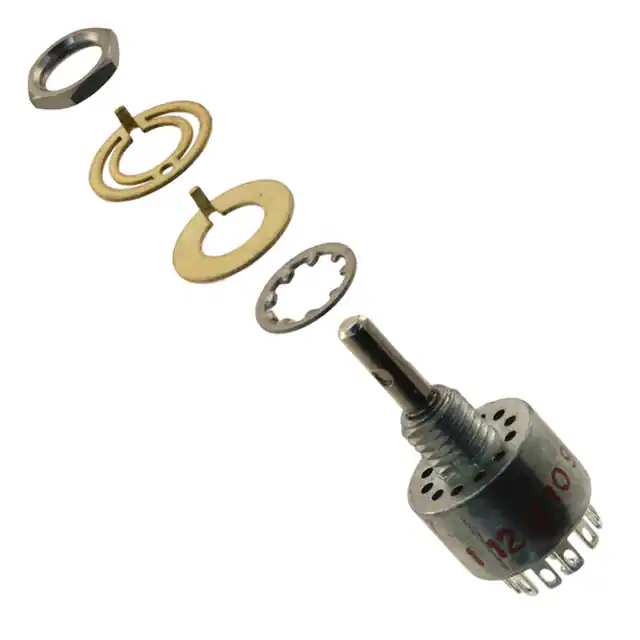

MG00L1NZQDSWITCH ROTARY 12POS 250MA 125V |
3,969 |
|
规格书 |
M | Tray | Active | 12 | Continuous | 1 | 1 | SP12T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | 30° | Copper Alloy | Silver | Panel Mount | Solder Lug | - | 15.88mm |
|

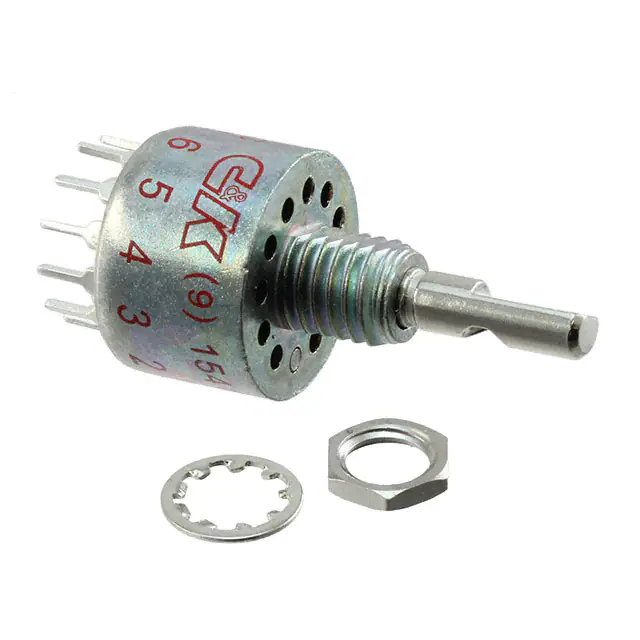

MC12L1NCQDSWITCH ROTARY 12POS 250MA 125V |
1,000 |
|
规格书 |
M | Tray | Active | 12 | Fixed | 1 | 1 | SP12T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | 30° | Copper Alloy | Silver | Panel Mount, Through Hole | PC Pin | - | 10.42mm |
|
56P36-01-1-09NSWITCH ROTARY 9POS 200MA 115V |
1,558 |
|
规格书 |
56 | Bulk | Active | 9 | Fixed | 1 | 1 | SP9T | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Brass | Silver | Panel Mount, Through Hole | PC Pin | - | 9.58mm |
|
56DP36-01-1-AJSSWITCH ROTARY 2-10POS 200MA 115V |
1,097 |
|
规格书 |
56 | Bulk | Active | 2 ~ 10 | Adjustable | 1 | 1 | SP10T | Shorting (MBB) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Brass | Silver | Panel Mount, Through Hole | PC Pin | - | 9.58mm |
|

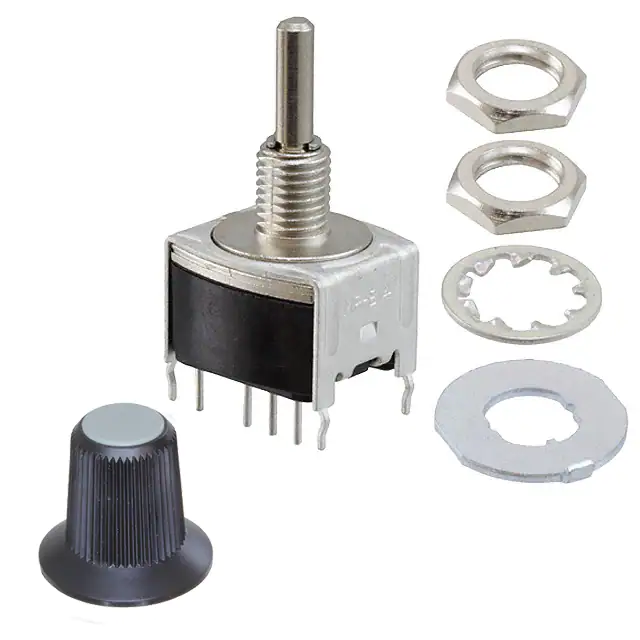

MRB14B-BHSWITCH ROTARY 3POS 0.4VA 28V |
1,595 |
|
规格书 |
MRB | Tray | Active | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Knob | 14.30mm | 45° | Beryllium Copper | Gold | Panel Mount, Through Hole | PC Pin | Sealed - Fully | 11.00mm |
|
A40303RSMCGKSWITCH ROTARY 3POS 2.5A 125V |
4,376 |
|
规格书 |
A | Tray | Active | 3 | Fixed | 1 | 4 | 4P3T | Shorting (MBB) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver (Ag) | Gold | Panel Mount, Through Hole | PC Pin | Modular Base | 14.48mm |
|
|
MRB24B-CASWITCH ROTARY 3POS 0.4VA 28V |
2,279 |
|
规格书 |
MRB | Box | Active | 3 | Fixed | 1 | 2 | DP3T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Knob | 15.80mm | 45° | Beryllium Copper | Gold | Panel Mount, Through Hole | PC Pin | Sealed - Fully | 11.00mm |
|

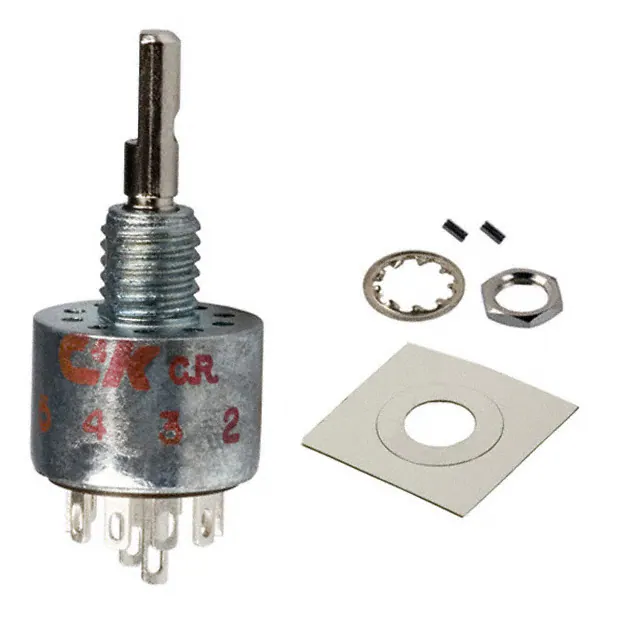

MB00L1NZQDSWITCH ROTARY 5POS 250MA 125V |
3,177 |
|
规格书 |
M | Tray | Active | 5 | Continuous | 1 | 2 | DP5T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | 36° | Copper Alloy | Silver | Panel Mount | Solder Lug | - | 14.86mm |
|
|
56SP30-01-1-04NSWITCH ROTARY 4POS 200MA 115V |
2,623 |
|
规格书 |
56 | Bulk | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Brass | Silver | Panel Mount, Through Hole | PC Pin | Shaft and Panel Sealed | 9.58mm |
|

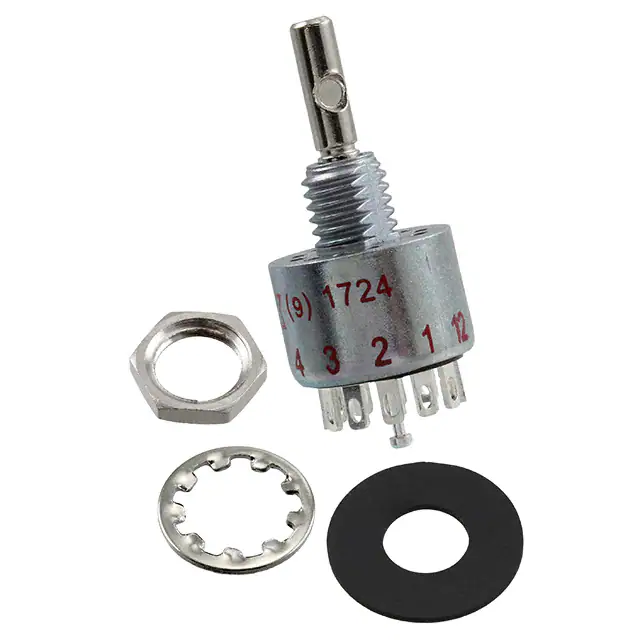

MC12L1NZQFSWITCH ROTARY 12POS 250MA 125V |
2,423 |
|
规格书 |
M | Tray | Active | 12 | Fixed | 1 | 1 | SP12T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | 30° | Copper Alloy | Silver | Panel Mount | Solder Lug | IP67 - Dust Tight, Waterproof | 14.86mm |
|
50DP90-01-2-AJNSWITCH ROTARY 2POS 150MA 115V |
2,734 |
|
规格书 |
50 | Bulk | Active | 2 | Adjustable | 1 | 2 | DPDT | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 90° | - | Gold | Panel Mount, Through Hole | PC Pin | - | 13.64mm |
|

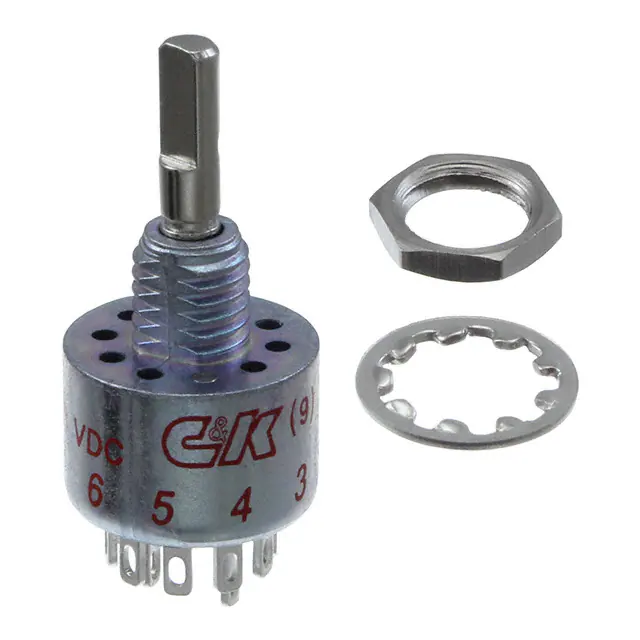

MB04L1NZQDSWITCH ROTARY 4POS 250MA 125V |
2,871 |
|
规格书 |
M | Tray | Active | 4 | Fixed | 1 | 2 | DP4T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | 36° | Copper Alloy | Silver | Panel Mount | Solder Lug | - | 14.86mm |
|
56SD36-01-2-AJNSWITCH ROTARY 2-5POS 200MA 115V |
3,962 |
|
规格书 |
56 | Bulk | Active | 2 ~ 5 | Adjustable | 1 | 2 | DP5T | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Brass | Silver | Panel Mount | Solder Lug | Shaft and Panel Sealed | 12.19mm |
|
|
56A30-01-4-02NSWITCH ROTARY 2POS 200MA 115V |
3,216 |
|
规格书 |
56 | Bulk | Active | 2 | Fixed | 1 | 4 | 4PDT | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 12.19mm |
|
|
56SD36-01-2-AJSSWITCH ROTARY 2-5POS 200MA 115V |
2,784 |
|
规格书 |
56 | Bulk | Active | 2 ~ 5 | Adjustable | 1 | 2 | DP5T | Shorting (MBB) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Brass | Silver | Panel Mount | Solder Lug | Shaft and Panel Sealed | 12.19mm |
|

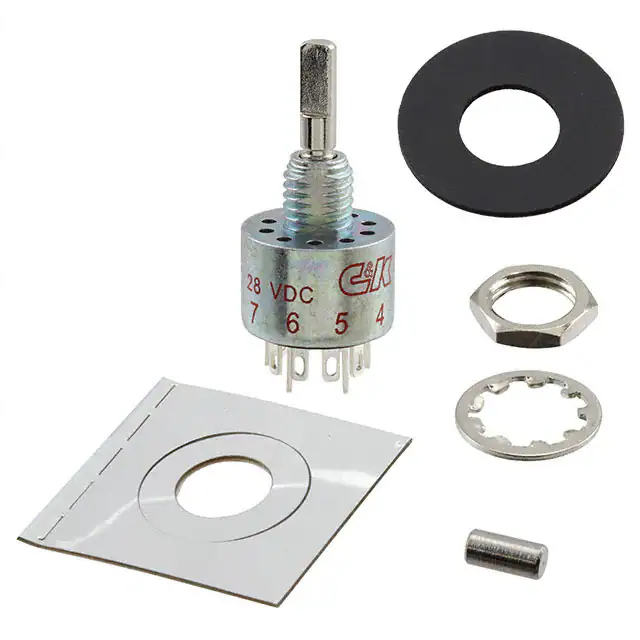

MB00L1NZQFSWITCH ROTARY 5POS 250MA 125V |
4,056 |
|
规格书 |
M | Tray | Active | 5 | Continuous | 1 | 2 | DP5T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | 36° | Copper Alloy | Silver | Panel Mount | Solder Lug | IP67 - Dust Tight, Waterproof | 14.86mm |
