购物车旋转电位器、变阻器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电阻（欧姆） | 容差 | 功率（瓦特） | 内置开关 | 转数 | 特性 | 电位器类型 | 帮派数量 | 调整类型 | 温度系数 | 旋转 | 电阻材料 | 端接样式 | 执行器类型 | 执行器长度 | 执行器直径 | 衬套螺纹 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P16NP472MAB15F2POT 4.7K OHM 1W CERMET LINEAR |
1,558 |
|
规格书 |
P16 | Box | Active | 4.7k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.346" (8.80mm) | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|

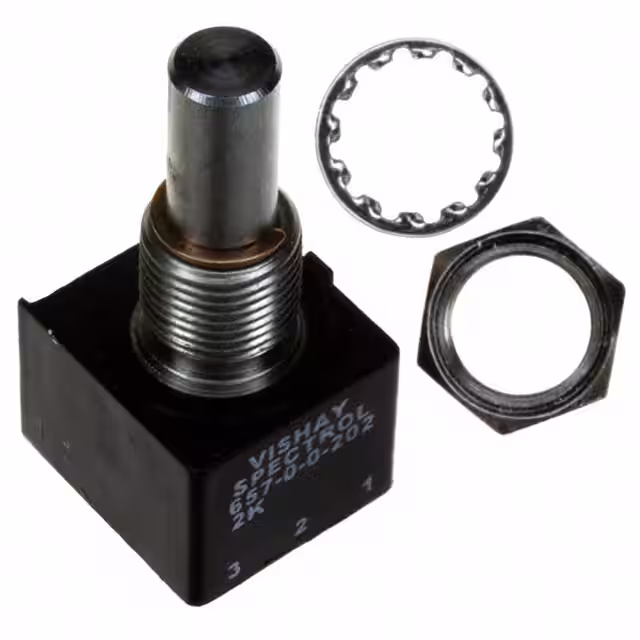

657BR0202POT 2K OHM 1W PLASTIC LINEAR |
2,181 |
|
规格书 |
657 | Bulk | Active | 2k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±600ppm/°C | 250° | Conductive Plastic | Solder Lug | Round | 0.875" (22.23mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
|
PA16FNP222MAPA16F NP 2K2 20% A BO E3 |
3,936 |
|
规格书 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PA16FNP105MAPA16F NP 1M 20% A BO E3 |
4,970 |
|
规格书 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PA16FNP223MAPA16F NP 22K 20% A BO E3 |
4,040 |
|
规格书 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PA16FNP224MAPA16F NP 220K 20% A BO E3 |
4,290 |
|
规格书 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PA16FNP471MAPA16F NP 470U 20% A BO E3 |
4,333 |
|
规格书 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PA16FNP473MAPA16F NP 4K7 20% A BO E3 |
4,761 |
|
规格书 |
- | Box | Active | 47k | ±20% | - | - | - | - | Linear | - | - | - | - | - | - | - | - | - | - | - |
|
|
P11A1F0GJSX10103MAPOT 10K OHM 1/2W PLASTIC LINEAR |
3,782 |
|
规格书 |
P11A | Box | Active | 10k | ±20% | 0.5W, 1/2W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±500ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8 | Panel Mount |
|
|
P16NP102MAB15CV1DP16 NP 1K 20% A BO E3 CV1D |
1,170 |
|
规格书 |
P16 | Box | Active | 1k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Round | 0.378" (9.60mm) | 0.346" (8.80mm) | M10 x 0.75 | Panel Mount |
|
|
P16NP104MAB15CV1DP16 NP 100K 20% A BO E3 CV1D |
1,505 |
|
规格书 |
P16 | Box | Active | 100k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Round | 0.378" (9.60mm) | 0.346" (8.80mm) | M10 x 0.75 | Panel Mount |
|
|
P16NP103MAB15CV1DP16 NP 10K 20% A BO E3 CV1D |
3,589 |
|
规格书 |
P16 | Box | Active | 10k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Round | 0.378" (9.60mm) | 0.346" (8.80mm) | M10 x 0.75 | Panel Mount |
|
|
3590P-2-202LPOT 2K OHM 2W WIREWOUND LINEAR |
2,615 |
|
规格书 |
3590 | Tray | Active | 2k | ±5% | 2W | None | 10.0 | - | Linear | 1 | Side Adjustment | ±50ppm/°C | 3600° | Wirewound | PC Pins | Slotted | 0.812" (20.63mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
3590S-291-203LPOT 20K OHM 2W WIREWOUND LINEAR |
3,796 |
|
规格书 |
3590 | Tray | Active | 20k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
|
P16FNP471KAPOT 470 OHM 1W CERMET LINEAR |
1,501 |
|
- |
P16F | Box | Active | 470 | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.709" (18.00mm) | 0.866" (22.00mm) | M10 x 0.75 | Panel Mount |
|
|
P16FNP104KAPOT 100K OHM 1W CERMET LINEAR |
2,312 |
|
- |
P16F | Box | Active | 100k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.709" (18.00mm) | 0.866" (22.00mm) | M10 x 0.75 | Panel Mount |
|
|
P16FNP102KAPOT 1K OHM 1W CERMET LINEAR |
3,796 |
|
- |
P16F | Box | Active | 1k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.709" (18.00mm) | 0.866" (22.00mm) | M10 x 0.75 | Panel Mount |
|
|
P16FNP222KAPOT 2.2K OHM 1W CERMET LINEAR |
1,992 |
|
- |
P16F | Box | Active | 2.2k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.709" (18.00mm) | 0.866" (22.00mm) | M10 x 0.75 | Panel Mount |
|
|
P16FNP472KAPOT 4.7K OHM 1W CERMET LINEAR |
3,049 |
|
- |
P16F | Box | Active | 4.7k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.709" (18.00mm) | 0.866" (22.00mm) | M10 x 0.75 | Panel Mount |
|
|
P16FNP103KAPOT 10K OHM 1W CERMET LINEAR |
2,600 |
|
- |
P16F | Box | Active | 10k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.709" (18.00mm) | 0.866" (22.00mm) | M10 x 0.75 | Panel Mount |
