购物车旋转电位器、变阻器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电阻（欧姆） | 容差 | 功率（瓦特） | 内置开关 | 转数 | 特性 | 电位器类型 | 帮派数量 | 调整类型 | 温度系数 | 旋转 | 电阻材料 | 端接样式 | 执行器类型 | 执行器长度 | 执行器直径 | 衬套螺纹 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
23ESA474MMF50AFPOT 470K OHM 0.4W CARBON LINEAR |
3,970 |
|
规格书 |
23, Citec | Bulk | Active | 470k | ±20% | 0.4W | Rotary, DPST | 1.0 | - | Linear | 1 | User Defined | 5% | 300° | Carbon | Solder Lug | Flatted | 1.969" (50.00mm) | 0.250" (6.35mm) | - | Panel Mount |
|
3852A-162-252ALPOT 2.5K OHM 2W CERMET LINEAR |
3,063 |
|
规格书 |
3852 | Bulk | Active | 2.5k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 280° | Cermet | Solder Lug | Slotted | 0.500" (12.70mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|

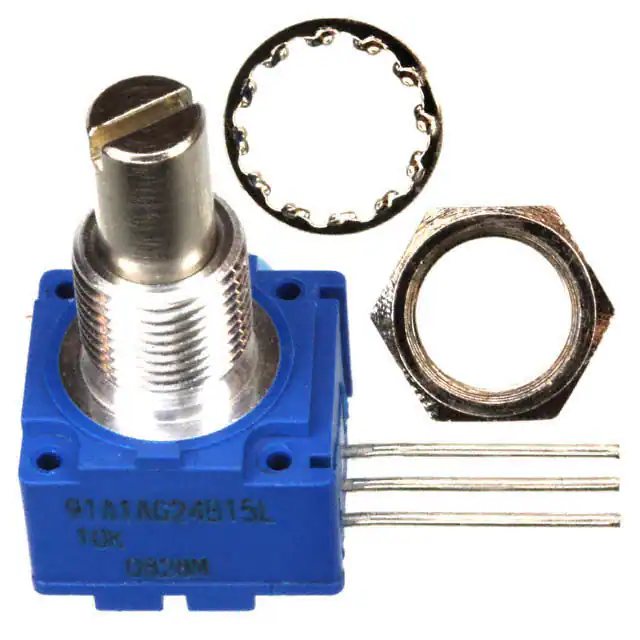

91A1A-G24-B15LPOT 10K OHM 1W PLASTIC LINEAR |
4,619 |
|
规格书 |
91 | Tray | Active | 10k | ±20% | 1W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.750" (19.05mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
51AAA-B24-B13LPOT 5K OHM 1/2W PLASTIC LINEAR |
3,823 |
|
规格书 |
Pro Audio 51 | Bulk | Active | 5k | ±20% | 0.5W, 1/2W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±1000ppm/°C | 290° | Conductive Plastic | PC Pins | Slotted | 0.750" (19.05mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
53RAA-R25-A18LPOT 50K OHM 1W CERMET LINEAR |
2,485 |
|
规格书 |
Pro Audio 53 | Bulk | Active | 50k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 290° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
3109605994POT 1W WIREWOUND LINEAR |
1,472 |
|
规格书 |
ABW 1 | Bulk | Active | - | - | 1W | None | 1.0 | - | Linear | 1 | User Defined | - | 285° | Wirewound | Solder Lug | Round | 1.969" (50.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
3310H-003-105LPOT 1M OHM 1/4W PLASTIC LINEAR |
3,815 |
|
规格书 |
Pro Audio 3310 | Tube | Active | 1M | ±20% | 0.25W, 1/4W | Rotary, SPST | 1.0 | Sealed | Linear | 1 | Top Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.500" (12.70mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
|
3310H-003-502LPOT 5K OHM 1/4W PLASTIC LINEAR |
1,812 |
|
规格书 |
Pro Audio 3310 | Tube | Active | 5k | ±20% | 0.25W, 1/4W | Rotary, SPST | 1.0 | Sealed | Linear | 1 | Top Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.500" (12.70mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
|
3310H-003-102LPOT 1K OHM 1/4W PLASTIC LINEAR |
1,608 |
|
规格书 |
Pro Audio 3310 | Tube | Active | 1k | ±20% | 0.25W, 1/4W | Rotary, SPST | 1.0 | Sealed | Linear | 1 | Top Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.500" (12.70mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
|
PRV6SAABBYB25101MAPOT 100 OHM 1.5W CERMET LINEAR |
1,934 |
|
规格书 |
PRV6 | Box | Active | 100 | ±20% | 1.5W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.492" (12.50mm) | 0.125" (3.18mm) | - | Panel Mount |
|

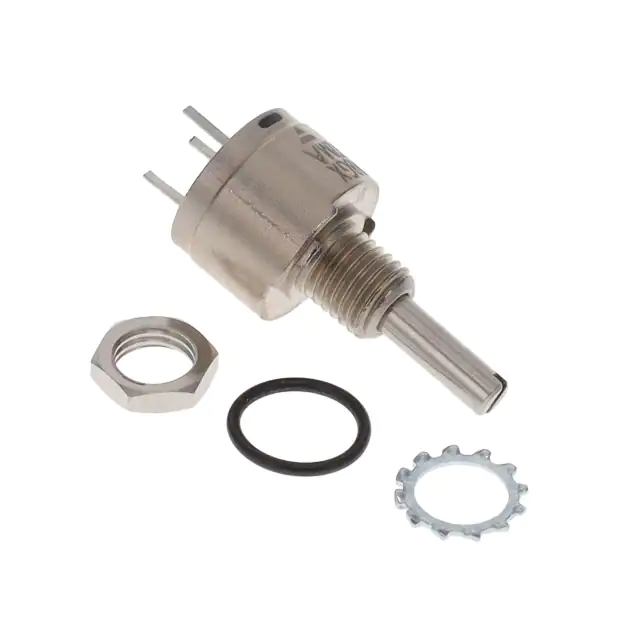

PRV6SAABGXB25472MAPOT 4.7K OHM 1.5W CERMET LINEAR |
1,696 |
|
规格书 |
PRV6 | Box | Active | 4.7k | ±20% | 1.5W | None | 1.0 | Sealed | Linear | 1 | Top Adjustment | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.630" (16.00mm) | 0.125" (3.18mm) | - | Panel Mount |
|

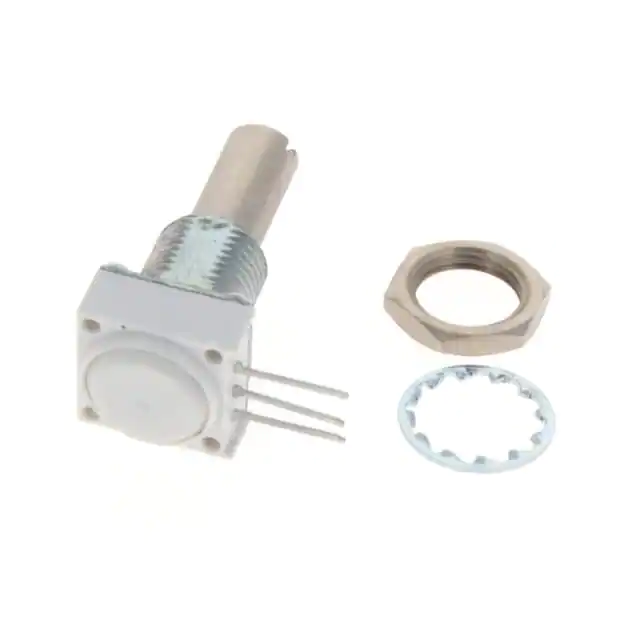

14910F0GJSX10502KAPOT 5K OHM 1W CERMET LINEAR |
3,021 |
|
规格书 |
149 | Box | Active | 5k | ±10% | 1W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Through Hole |
|
282TCBS103A26B1POT 10K OHM 1/4W PLASTIC LINEAR |
3,721 |
|
规格书 |
282 | Tray | Active | 10k | ±10% | 0.25W, 1/4W | None | 1.0 | Long Life | Linear | 1 | User Defined | - | 300° | Conductive Plastic | Solder Lug | Slotted | 0.591" (15.00mm) | 0.236" (6.00mm) | M9 x 0.75 | Panel Mount |
|
P11H1F0GHFW10472MAPOT 4.7K OHM 1W CERMET LINEAR |
2,936 |
|
规格书 |
P11H | Box | Active | 4.7k | ±20% | 1W | None | 1.0 | High Torque | Linear | 1 | Top Adjustment | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.750" (19.05mm) | 0.250" (6.35mm) | 3/8-32 | Through Hole |
|
|
249FGJS0XB25504KAPOT 500K OHM 0.18W CERMET LINEAR |
100 |
|
规格书 |
249 | Box | Active | 500k | ±10% | 0.18W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±150ppm/°C | 295° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|

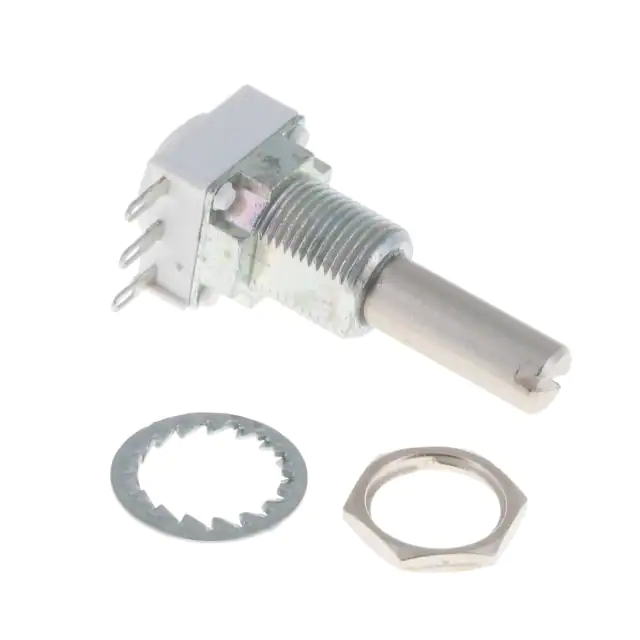

P11S1V0FLSY00501KAPOT 500 OHM 1W CERMET LINEAR |
2,320 |
|
规格书 |
P11S | Box | Active | 500 | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M6 x 0.75 | Panel Mount |
|

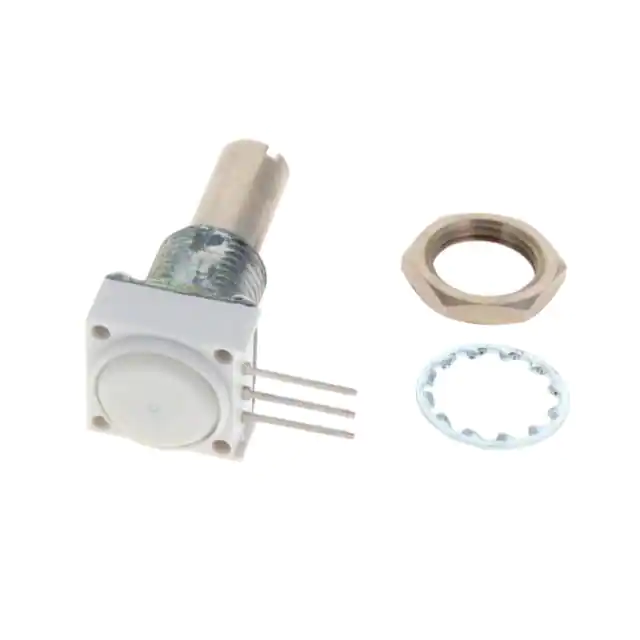

14910F0GJSX10503KAPOT 50K OHM 1W CERMET LINEAR |
2,237 |
|
规格书 |
149 | Box | Active | 50k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 1/4-32 | Through Hole |
|

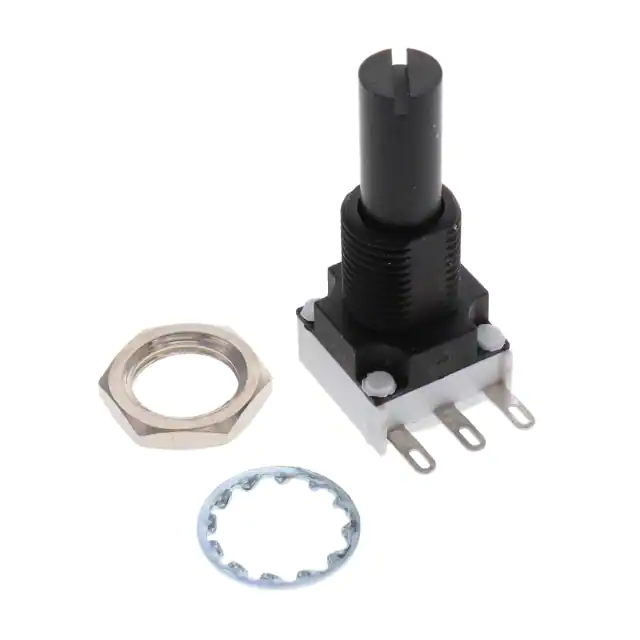

P11P1F0GJSY00102KAPOT 1K OHM 1W CERMET LINEAR |
4,913 |
|
规格书 |
P11P | Box | Active | 1k | ±10% | 1W | None | 1.0 | - | Linear | 1 | Top Adjustment | ±500ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.874" (22.20mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|

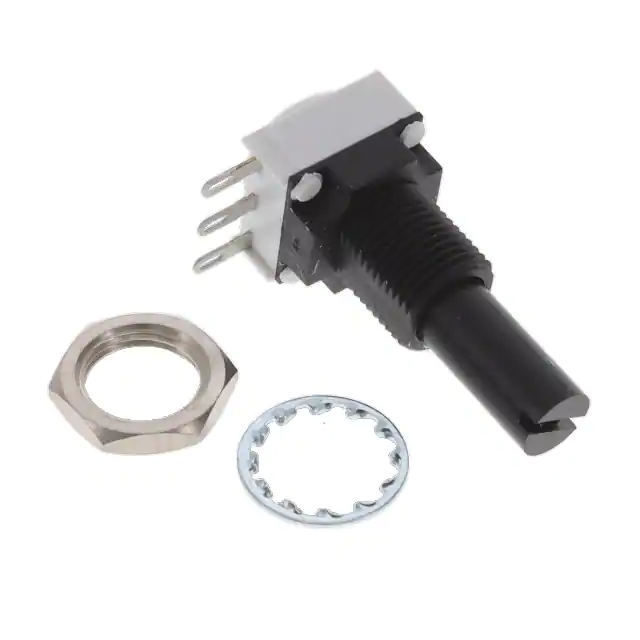

P11P1F0GJSY00503KAPOT 50K OHM 1W CERMET LINEAR |
3,967 |
|
规格书 |
P11P | Box | Active | 50k | ±10% | 1W | None | 1.0 | - | Linear | 1 | Top Adjustment | ±500ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.874" (22.20mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|

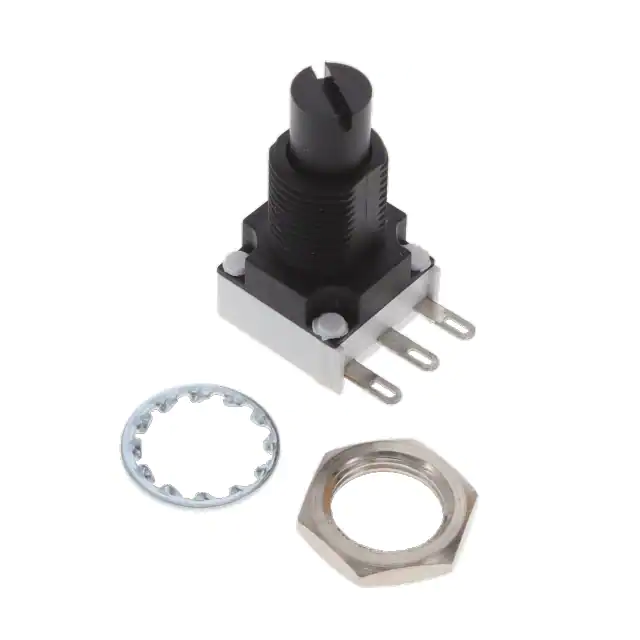

P11P1F0GGSY00502KAPOT 5K OHM 1W CERMET LINEAR |
3,668 |
|
规格书 |
P11P | Box | Active | 5k | ±10% | 1W | None | 1.0 | - | Linear | 1 | Top Adjustment | ±500ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.622" (15.80mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
