购物车射频天线
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0479501011RF ANT 2.4/5GHZ PCB TRC CAB .61" |
9,831 |
|
规格书 |
47950 | Tray | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.483.5GHz, 4.8GHz ~ 5.9GHz | PCB Trace | 2 | - | -10dB, -9dB | 3dBi, 4.8dBi | 2 W | Cable - 150mm | SMT Male | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, WLAN, Zigbee™ |
|
SRFC025-100RF ANT 892MHZ/1.9GHZ FLAT 100MM |
8,877 |
|
规格书 |
- | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Flat Patch | 2 | 2.2 | -17dB | 5.4dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | GSM, WCDMA |
|
APAE1575R2540BBDB1-TRF ANT 1.575GHZ CER PATCH PIN |
24,374 |
|
规格书 |
APAE | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.573GHz ~ 1.587GHz | Ceramic Patch | 1 | 1.5 | - | 4.5dBic | - | - | Pin | - | - | - | Adhesive | 0.181" (4.60mm) | GPS |
|
2108991-1HELICAL ANTENNA FOR IOT, T&R PKG |
1,030 |
|
规格书 |
- | Tape & Reel (TR) | Active | 802.15.4, Cellular | Wide Band | 700MHz, 800MHz, 850MHz, 900MHz, 915MHz | 698MHz ~ 960MHz | Helical | 5 | 3.5 | - | - | 10 W | - | - | - | - | - | Surface Mount | 0.062" (1.57mm) | CDMA, GSM, LTE, ISM, ZigBee™ |
|
AN012400M00R3200METAL SMD ANT 2.4GHZ AUTOMOTIVE |
590 |
|
规格书 |
AN012400M00 | Tape & Reel (TR) | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Stamped Metal | 1 | 2 | - | - | - | - | - | - | - | - | Surface Mount | 0.075" (1.90mm) | Bluetooth, Wi-Fi |
|
2108857-2PCB ANT, MHF, 100MM, WI-FI 6E TR |
3,005 |
|
规格书 |
- | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2 | - | 4.3dBi | - | Cable - 100mm | MHF | - | - | - | Adhesive | 0.276" (7.01mm) | Wi-Fi |
|
2344655-8WLAN DUAL BAND ANTENNA PCB H 200 |
2,662 |
|
规格书 |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 2 | - | 5dBi | - | Cable - 200mm | U.FL (UMCC), I-PEX MHF4 | - | - | - | Adhesive | 0.039" (1.00mm) | Bluetooth, WLAN, Zigbee™ |
|
2344654-8WLAN DUAL BAND ANTENNA PCB V 200 |
2,223 |
|
规格书 |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 2 | - | 5dBi | - | Cable - 200mm | U.FL (UMCC), I-PEX MHF4 | - | - | - | Adhesive | 0.039" (1.00mm) | Bluetooth, WLAN, Zigbee™ |
|
H2B1BC2A1B225LWIFI/BT 2400-2500 MHZ PCB ANTENN |
729 |
|
规格书 |
- | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.442GHz | - | PCB Trace | 1 | 2 | - | 3.2dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.020" (0.50mm) | 802.11b/g/n, Wi-Fi |
|
2344657-1WLAN DUAL BAND ANTENNA FPC H 50M |
655 |
|
规格书 |
- | Bulk | Active | - | - | - | - | PCB Trace | 2 | - | - | - | - | Cable - 50mm | - | - | - | - | Adhesive | 0.039" (1.00mm) | General Purpose |
|
|
APAE1575R1840AADB7-TRF ANT 1.575GHZ CER PATCH PIN |
897 |
|
规格书 |
APAE | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.580GHz ~ 1.586GHz | Ceramic Patch | 1 | 1.5 | - | - | - | - | Pin | - | - | - | Adhesive | 0.181" (4.60mm) | GPS |
|

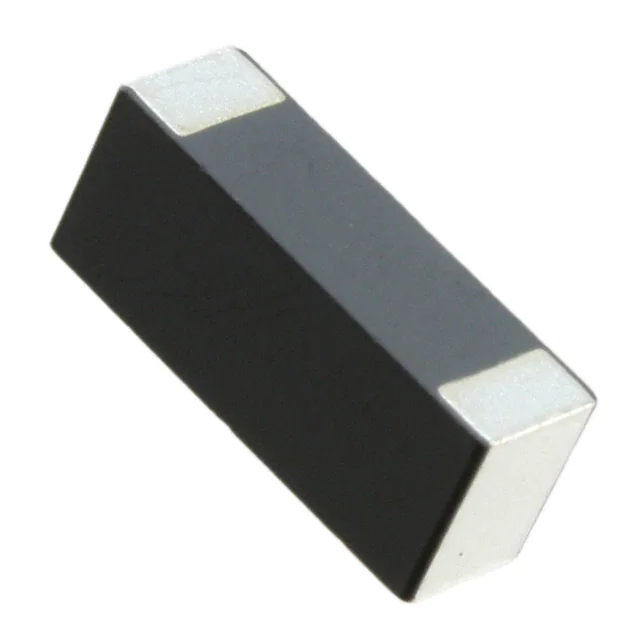

W3009RF ANT 1.575GHZ CHIP SOLDER SMD |
1,009 |
|
规格书 |
- | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.565GHz ~ 1.585GHz | Chip | 1 | - | -10dB | 3dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | GPS |
|
ACR1004UUWB ANT 3GHZ- 6GHZ SMD CHIP |
837 |
|
规格书 |
- | Tape & Reel (TR) | Active | - | SHF (f > 4GHz) | 4.5GHz | 3GHz ~ 6GHz | Chip | 1 | - | - | 5.79dBi | - | - | Solder | - | - | - | Surface Mount | 0.059" (1.50mm) | UWB |
|
M830320RF ANT 2.4GHZ CHIP SOLDER SMD |
56,660 |
|
规格书 |
Savvi™ | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 1.39dBi | 500 mW | - | Solder | - | - | - | Surface Mount | 0.051" (1.30mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
1001011RF ANT 1.561GHZ/1.575GHZ CHIP |
13,914 |
|
规格书 |
Prestta™ | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz | 1.57GHz ~ 1.58GHz | Chip | 2 | 2 | - | -1.8dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.130" (3.30mm) | GPS |
|
A1001013AUTOMOTIVE WI-FI/BLUETOOTH/ZIGBE |
1,753 |
|
规格书 |
A | Tape & Reel (TR) | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4425GHz | 2.4GHz ~ 2.485GHz | Chip | 1 | 1.5, 1.8 | - | 2.6dBi, 0.7dBi | 0.5 W | - | Solder | - | - | - | Surface Mount | 0.130" (3.30mm) | Bluetooth, Wi-Fi |
|
APAES1575R1040J34-TRF ANT 1.575GHZ CER PATCH PIN |
733 |
|
规格书 |
APAE | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.575GHz ~ 1.615GHz | Ceramic Patch | 1 | 1.5 | -10dB | -2dBic | - | - | Pin | - | - | - | Adhesive | 0.185" (4.70mm) | GPS |
|
|
H2B1BE1A1B345LWIFI/BT 2400-2500 MHZ PCB ANTENN |
1,710 |
|
规格书 |
- | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.442GHz | - | PCB Trace | 1 | 2 | - | 3.3dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.020" (0.50mm) | 802.11b/g/n, Wi-Fi |
|
7488910245RF ANT 2.4GHZ CHIP SOLDER SMD |
6,544 |
|
规格书 |
WE-MCA | Tape & Reel (TR) | Active | Bluetooth, Cellular, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 3dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | Bluetooth, GSM, WLAN |
|
2344656-3WLAN DUAL BAND ANTENNA FPC V 150 |
3,561 |
|
规格书 |
- | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 2 | - | 2dBi | - | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.007" (0.19mm) | Bluetooth, WLAN, Zigbee™ |
