| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
33-HC882-28DUAL BAND ANTENNA + L BAND Calian |
3,912 |
|
规格书 |
- | Bulk | Active | Cellular, Navigation | UHF (1GHz ~ 2GHz) | 1.2215GHz, 1.5655GHz | 1.189GHz ~ 1.254GHz, 1.525GHz ~ 1.606GHz | Helical | 2 | 1.8 | - | 28dB | - | - | SMA Male | IP67 | - | - | Connector Mount | 2.457" (62.40mm) | Beidou, Galileo, GLONASS, GPS, LTE |
|
33-3872-01-01PRE-FILTERED, DUAL BAND ANTENNA, Calian |
1,525 |
|
规格书 |
Accutenna® | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.2276GHz, 1.248GHz, 1.561GHz, 1.575GHz, 1.589GHz, 1.602GHz | 1.213GHz ~ 1.261GHz, 1.557GHz ~ 1.606GHz | Dome | 6 | 1.8 | - | 3.8dBi, 4.5dBi | - | LNA | TNC Female | IP67 | - | - | Panel Mount | 0.827" (21.00mm) | Beidou, Galileo, GLONASS, GPS |
|

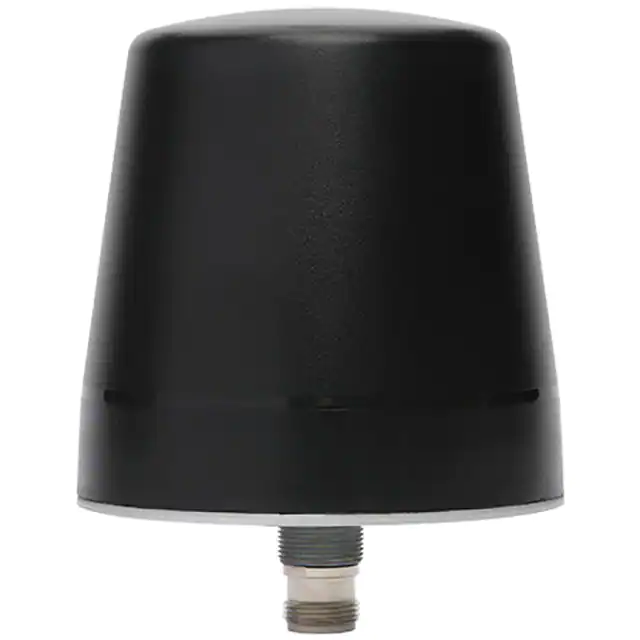

33-3742AJ-01-WBEIDOU/GALILEO/GPS/GLONASS, ANTI Calian |
1,008 |
|
规格书 |
Accutenna® | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.5815GHz | 1.557GHz ~ 1.606GHz | Dome | 1 | 1.8 | - | 4.25dBi | - | LNA | TNC Female | IP67 | - | - | Panel Mount | 1.870" (47.50mm) | Beidou, Galileo, GLONASS, GPS |
|
|

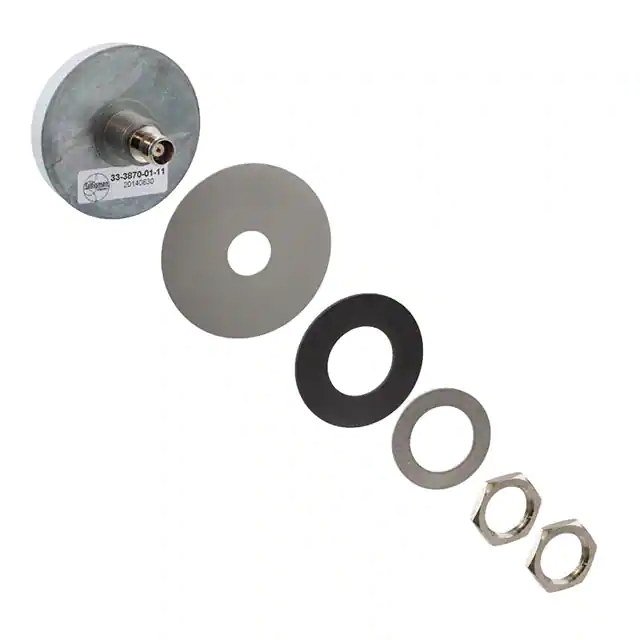

33-3870-01-11RF ANT 1.2GHZ/1.575GHZ DOME PAN Calian |
2,823 |
|
规格书 |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.2GHz, 1.575GHz, 1.602GHz | 1.228GHz ~ 1.248GHz, 1.575GHz ~ 1.602GHz | Dome | 4 | 1.5 | - | 3dBic, 4.5dBic | - | LNA | - | IP67 | - | - | Panel Mount | 0.827" (21.00mm) | GLONASS, GPS |
|
33-3967-05-0150EMBEDDED, TRI-BAND ANTENNA + L-B Calian |
3,585 |
|
规格书 |
Accutenna® | Bulk | Active | - | UHF (1GHz ~ 2GHz) | 1.209GHz, 1.5655GHz | 1.164GHz ~ 1.254GHz, 1.525GHz ~ 1.606GHz | Ceramic Patch | 2 | 1.8 | - | -1.5dBi, 2.5dBi, 4dBi | - | Cable - 150mm, LNA | MCX Male | - | - | - | Chassis Mount | 0.587" (14.90mm) | General Purpose |
|

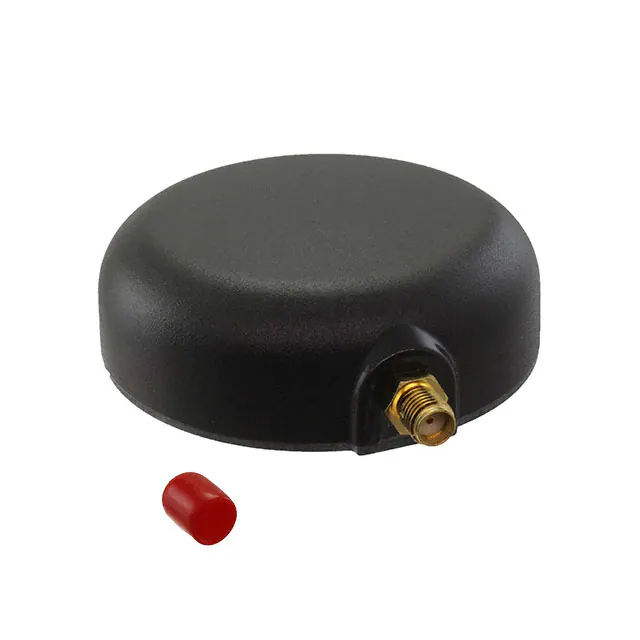

33-7900P-07PASSIVE ANTENNA, TRIPLE BAND, MA Calian |
2,650 |
|
规格书 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | SMA Female | - | - | - | Screw | - | General Purpose |
|

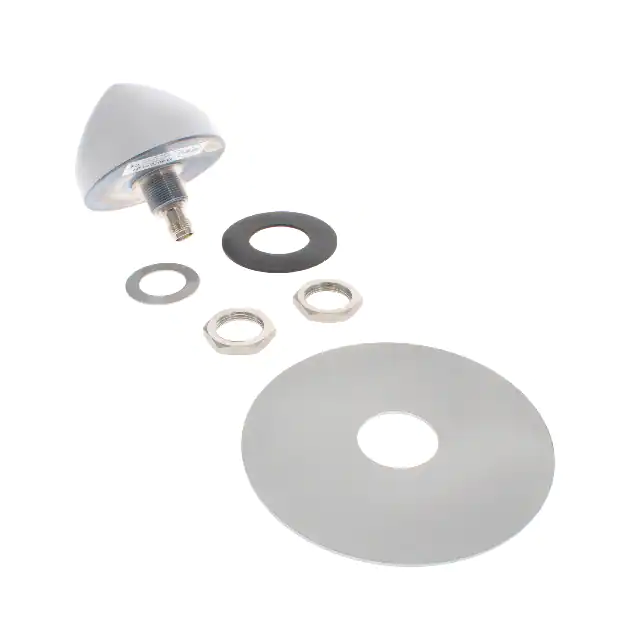

33-3972-01-01TRI-BAND + L-BAND (PRE-FILTERED) Calian |
1,034 |
|
规格书 |
Accutenna® | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.209GHz, 1.5655GHz | 1.164GHz ~ 1.254GHz, 1.525GHz ~ 1.606GHz | Dome | 2 | 1.8 | - | -1.5dBi, 2.5dBi, 4dBi | - | LNA | TNC Female | IP67 | - | - | Panel Mount | 0.827" (21.00mm) | Beidou, Galileo, GLONASS, GPS |
|

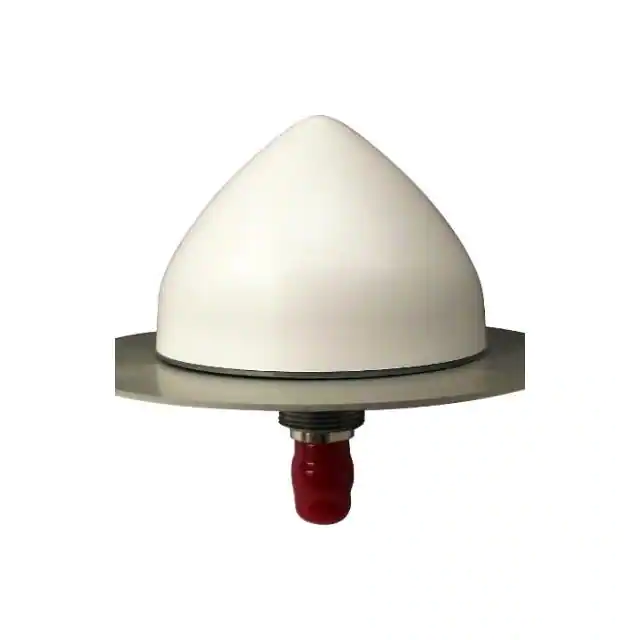

33-3972XF-01-01EXTENDED FILTER, TRIPLE BAND Calian |
4,462 |
|
- |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.2075GHz, 1.549GHz, 1.5825GHz | 1.16GHz ~ 1.255GHz, 1.539GHz ~ 1.559GHz, 1.559GHz ~ 1.606GHz | Dome | 3 | 1.8 | - | -1.5dBic, 2.5dBic, 3.5dBic, 4dBic | - | LNA, Filter | M18 | IP69K | - | - | Through Hole | 0.827" (21.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|

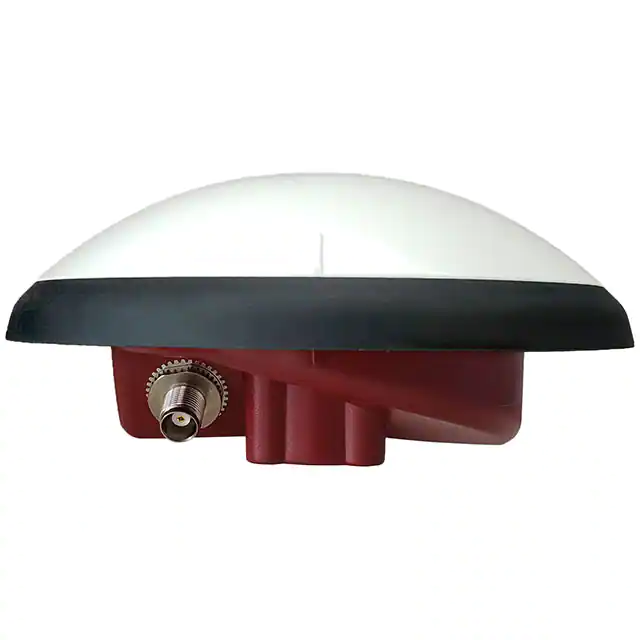

33-VSP6037L-01FULL GNSS BANDWIDTH + L-BAND Calian |
3,846 |
|
规格书 |
VeroStar™ | Box | Active | - | UHF (1GHz ~ 2GHz) | 1.230GHz, 1.549GHz, 1.584GHz | 1.164GHz ~ 1.3GHz, 1.539GHz ~ 1.61GHz | Dome | 3 | 1.8 | - | 37dB | - | LNA | TNC Female | IP67 | - | - | Pole Mount | 2.972" (75.50mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|

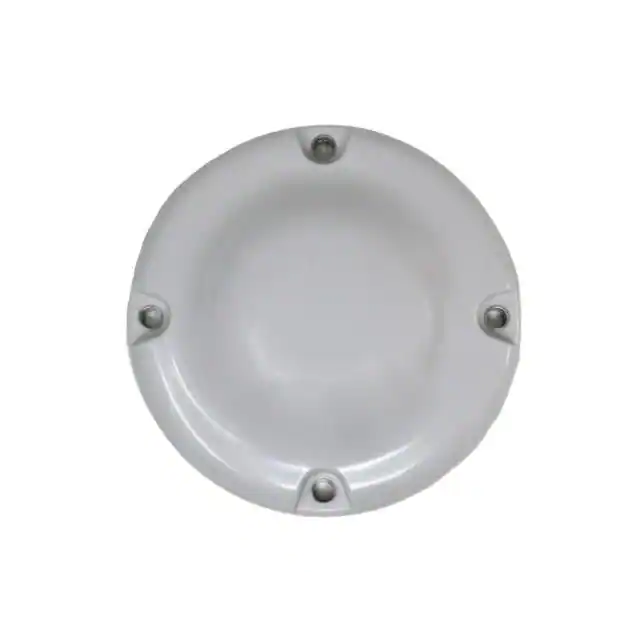

33-VSS6037LFULL BAND GNSS, SURFACE MOUNT Calian |
3,897 |
|
规格书 |
- | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.23GHz, 1.549GHz, 1.5825GHz | 1.16GHz ~ 1.3GHz, 1.539GHz ~ 1.559GHz, 1.559GHz ~ 1.606GHz | Dome | 3 | 1.8 | - | 4dBic, 4.5dBic | - | LNA, Filter | TNC Female | IP67 | - | - | Surface Mount | 1.726" (43.85mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
