| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

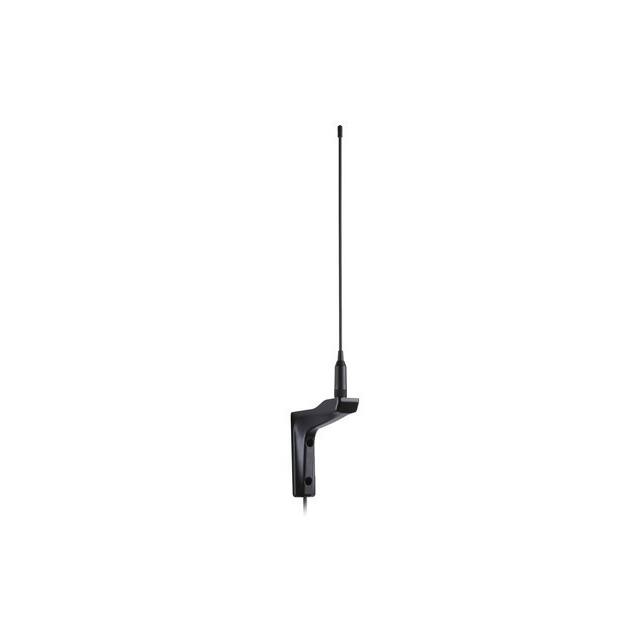

WM.80.B.305111RF ANT 169MHZ WHIP STR SMA MALE Taoglas Limited |
2,520 |
|
规格书 |
Cyclops | Box | Active | - | VHF (f < 300MHz) | 169MHz | - | Whip, Straight | 1 | - | - | 0dBi | 50 W | - | SMA Male | IP67 | - | - | Bracket Mount | 10.945" (278.00mm) | - |
|
TLS.20.105111RF ANT 460MHZ DOME SMA MALE PAN Taoglas Limited |
3,378 |
|
规格书 |
Shockwave | Box | Active | Cellular | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Dome | 1 | - | -5dB | -0.7dB | 100 W | - | SMA Male | IP69K | - | - | Panel Mount | 3.128" (79.45mm) | CDMA |
|

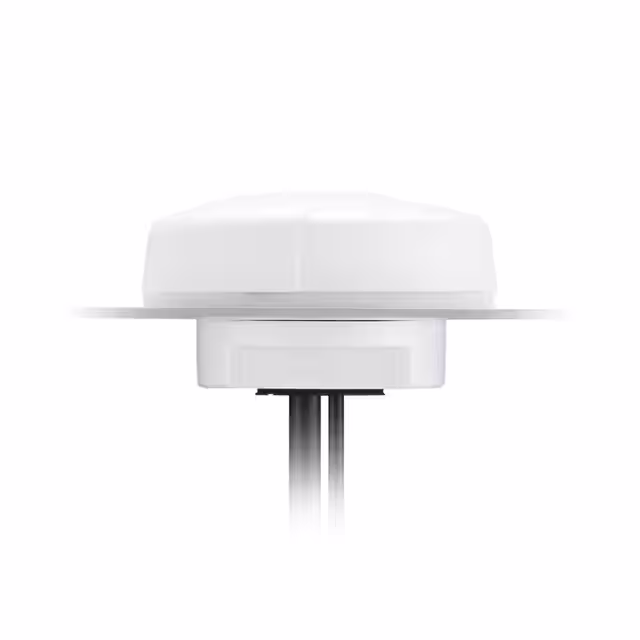

MA111.W.C.LB.001RF ANT 850MHZ/900MHZ DOME PNL MT Taoglas Limited |
1,741 |
|
规格书 |
Ultima | Bag | Active | Cellular, Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.575GHz, 1.602GHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.574GHz ~ 1.606GHz, 1.71GHz ~ 2.17GHz | Dome | 7 | 2.5, 2, 2, 3.5, 3, 3 | - | 1.5dBi, 3dBi, -1.4dB, -1.3dBi, 2dBi, 4dBi, 2.5dBi | - | Cable - 3m, LNA, Filter | SMA Male (2) | IP67, IP69K | - | - | Panel Mount | 0.772" (19.60mm) | CDMA, GLONASS, GPS, GSM, UMTS |
|

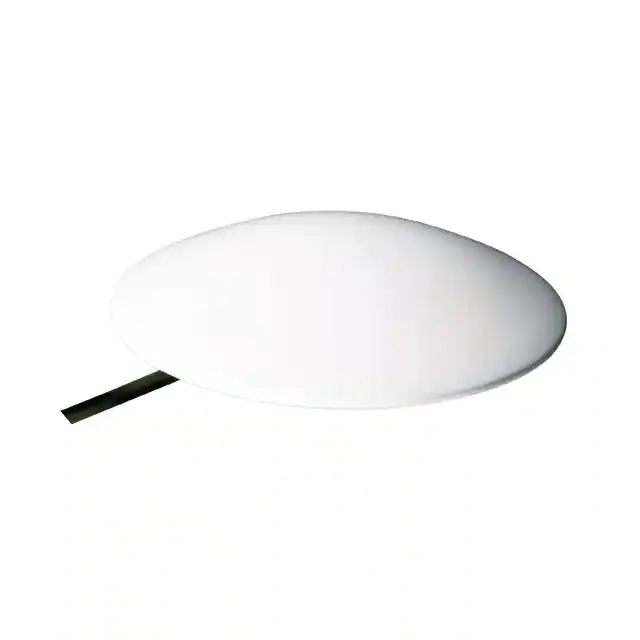

RI.02.01.3000WRF ANT 915MHZ DOME SMB MALE ADH Taoglas Limited |
3,979 |
|
规格书 |
- | Box | Obsolete | - | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Dome | 1 | - | -18dB | 3.2dBi | 10 W | - | SMB Male | IP67 | - | - | Adhesive | 0.693" (17.60mm) | - |
|

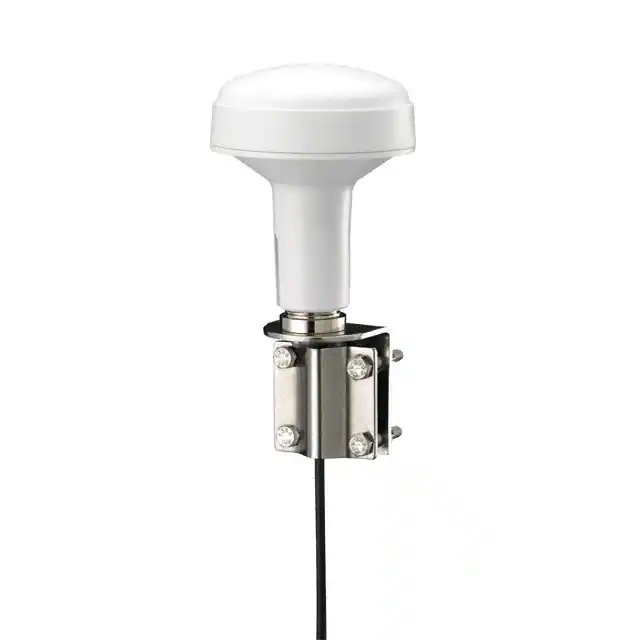

IMA.01.306111RF ANT 1.6GHZ DOME SMA ML BRK MT Taoglas Limited |
3,775 |
|
- |
- | Bag | Active | - | UHF (1GHz ~ 2GHz) | 1.6GHz | 1.616GHz ~ 1.626GHz | Dome | 1 | 1.5 | - | - | - | Cable - 3m | SMA Male | - | - | - | Bracket Mount | 4.252" (108.00mm) | Iridium™ |
|

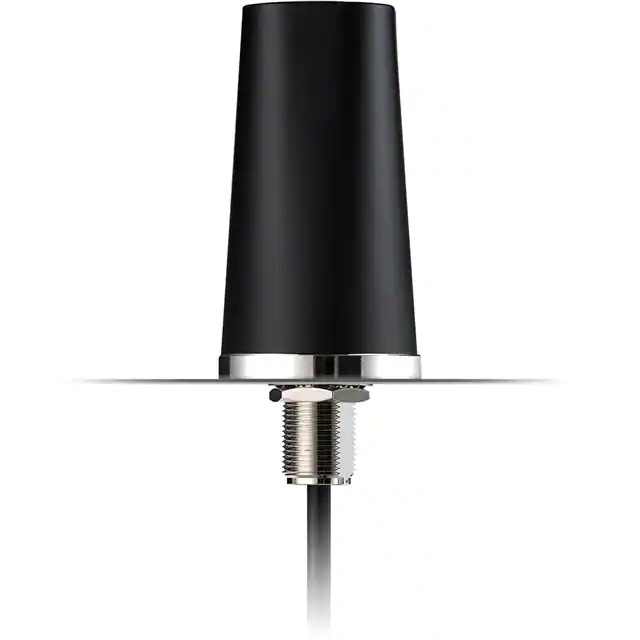

TLS.01.305721RF ANT 829MHZ/1.575GHZ WHIP STR Taoglas Limited |
2,152 |
|
规格书 |
Shockwave | Bag | Active | Cellular, Navigation | Wide Band | 829MHz, 1.575GHz, 2.2GHz | 698MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.7GHz | Whip, Straight | 3 | - | -10dB | 4.6dB | 100 W | - | SMA Male | IP69K | - | - | Panel Mount | 3.134" (79.60mm) | GPS, LTE |
|

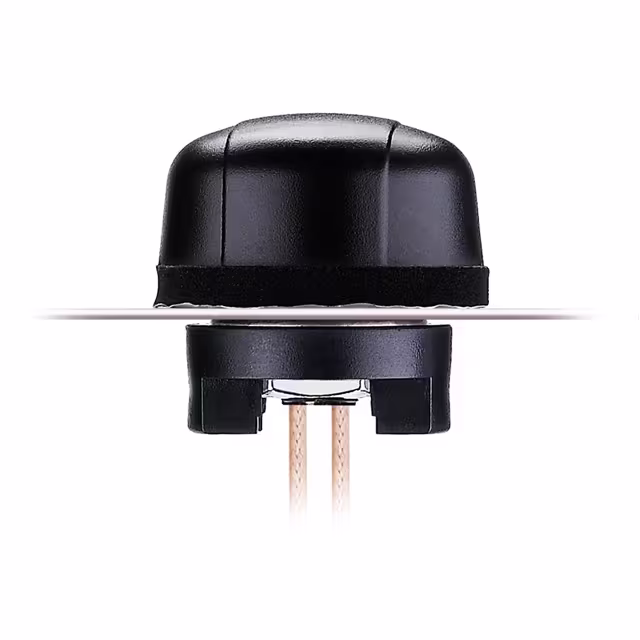

MA120.A.QP.001RF ANT 450MHZ/868MHZ DOME PNL MT Taoglas Limited |
1,875 |
|
规格书 |
Hercules | Bag | Active | - | UHF (300MHz ~ 1GHz) | 450MHz, 868MHz | - | Dome | 2 | - | -10dB | 3.91dBi, 1.11dBi | 5 W | Cable - 1m | SMA Male (2) | IP67, IP69K | - | - | Panel Mount | 1.122" (28.50mm) | - |
|

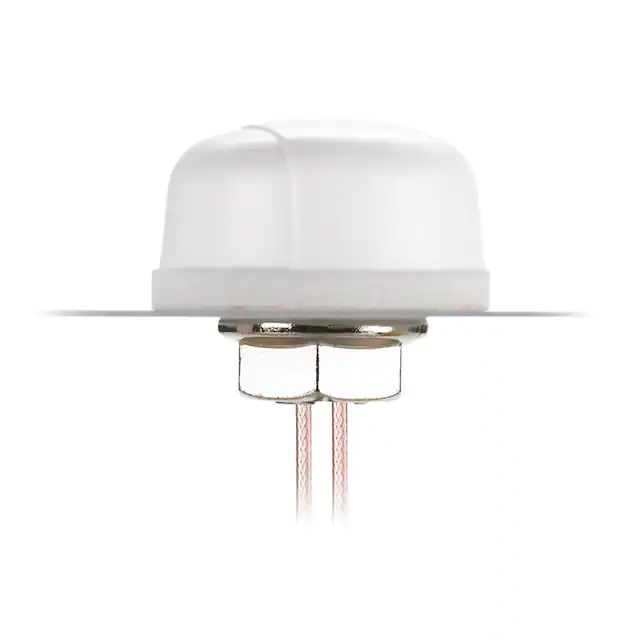

MA510.C.W.CG.002RF ANT 2.4GHZ/5.3GHZ DOME RP-SMA Taoglas Limited |
2,910 |
|
规格书 |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.3GHz | 2.4GHz ~ 2.5GHz, 4.8GHz ~ 5.8GHz | Dome | 2 | 2 | -10dB | 3.9dBi | 2 W | - | RP-SMA Male | IP69K | - | - | Panel Mount | 1.150" (29.20mm) | Bluetooth, WLAN, Zigbee™ |
|

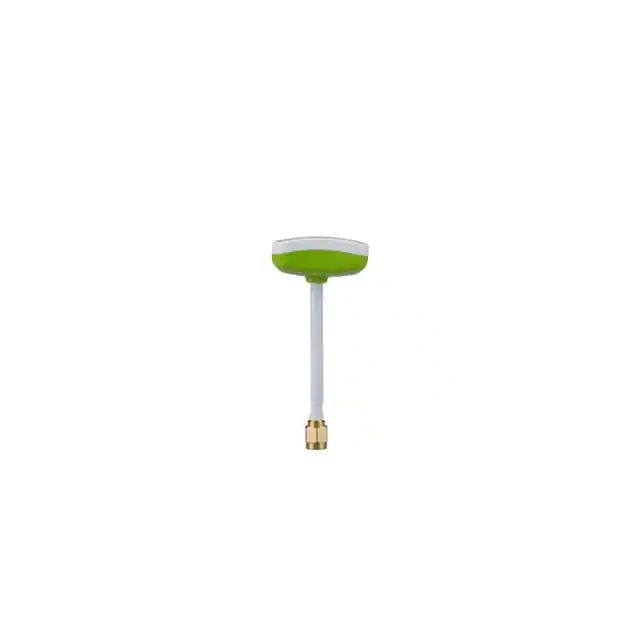

WCM.10.005QQ1115.8GHZ 3DBI SMA(M) CONNECTOR MOU Taoglas Limited |
4,435 |
|
规格书 |
- | Box | Obsolete | - | SHF (f > 4GHz) | 5.5GHz | 5.15GHz ~ 5.85GHz | Module | 1 | - | -10dB, -15dB | 3.8dBi, 3.2dBi | - | Cable - 50mm | RP-SMA Male | IP67 | - | - | Connector Mount | 0.669" (17.00mm) | General Purpose |
|
RG.02.02.3000WRF ANT 892MHZ/1.85GHZ DOME SMB Taoglas Limited |
1,832 |
|
规格书 |
- | Box | Obsolete | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.85GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | Dome | 2 | - | -18dB | 2.5dBi | 10 W | - | SMB Male | IP67 | - | - | Adhesive | 0.693" (17.60mm) | GSM |
