| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

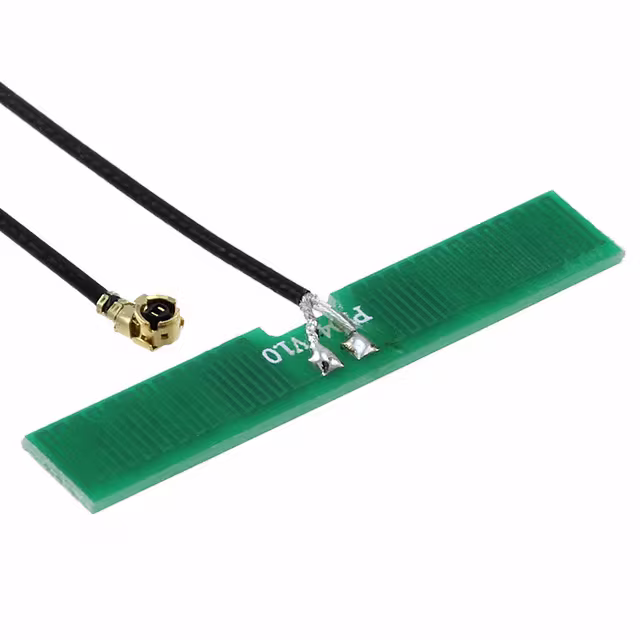

ECHO30/0.1M/IPEX/S/S/26RF ANT 892MHZ/2.1GHZ PCB TRACE Siretta Ltd |
269 |
|
规格书 |
ECHO 30 | Bulk | Active | Cellular | Wide Band | 892MHz, 2.1GHz | - | PCB Trace | 2 | 3 | - | 2dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.047" (1.20mm) | GPRS, GSM |
|

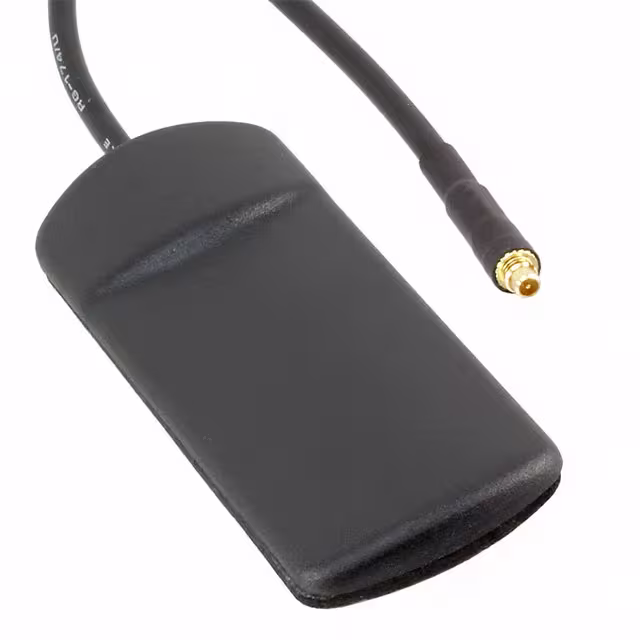

ALPHA3A/0.2M/MMCXM/S/S/26RF ANT 850MHZ/868MHZ BLADE MMCX Siretta Ltd |
112 |
|
规格书 |
ALPHA 3A | Bulk | Active | 802.15.4, Bluetooth, Cellular, WiFi | Wide Band | 850MHz, 868MHz, 900MHz, 915MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz | - | Blade | 8 | 2 | - | 3dBi | - | - | MMCX Male | - | - | - | Adhesive | 0.098" (2.50mm) | Bluetooth, GPRS, GSM, UMTS, WLAN, Zigbee™ |
|

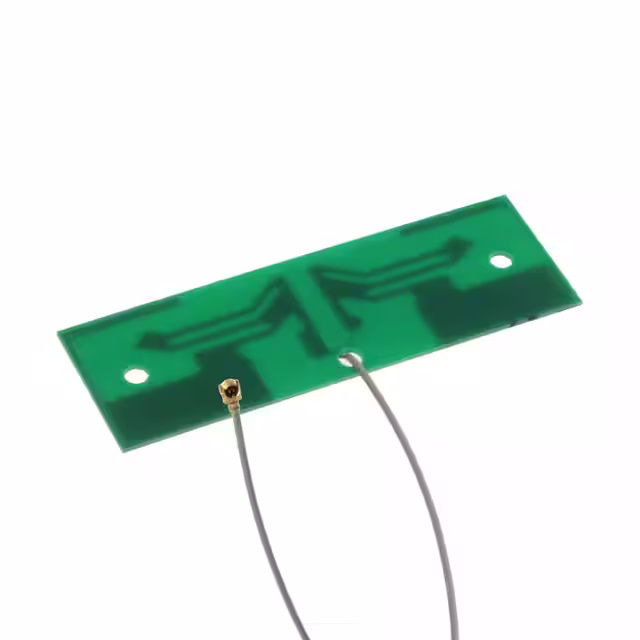

ECHO2/0.2M/UFL/S/S/1RF ANT 850/868MHZ PCB TRACE CAB Siretta Ltd |
114 |
|
规格书 |
ECHO 2 | Bulk | Active | - | Wide Band | 850MHz, 868MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz | - | PCB Trace | 7 | 1.5 | - | 2dBi | - | Cable - 200mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.039" (1.00mm) | - |
|
ECHO44/0.1M/UFL/365G C-BAND AND WI-FI 7 FLEXIBLE P Siretta Ltd |
500 |
|
规格书 |
Echo 44 | Bulk | Active | 802.15.4, Bluetooth, General ISM, WiFi | Wide Band | 4.35GHz, 4.487GHz | 2GHz ~ 6.525GHz, 2.45GHz ~ 6.7GHz | Flat Patch | 2 | - | - | 6.93dBi, 6.93dBi | 50 W | Cable - 100mm | MHF1, U.FL | - | - | - | Adhesive | 0.009" (0.24mm) | 5G, 802.11 ac/ax/be, Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
|
ECHO44/0.1M/MHF4/365G C-BAND AND WI-FI 7 FLEXIBLE P Siretta Ltd |
490 |
|
规格书 |
Echo 44 | Bulk | Active | 802.15.4, Bluetooth, General ISM, WiFi | Wide Band | 4.35GHz, 4.487GHz | 2GHz ~ 6.525GHz, 2.45GHz ~ 6.7GHz | Flat Patch | 2 | - | - | 6.93dBi, 6.93dBi | 50 W | Cable - 100mm | I-PEX MHF4 | - | - | - | Adhesive | 0.009" (0.24mm) | 5G, 802.11 ac/ax/be, Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
|
ECHO47/0.1M/UFL/365G/4G FLEXIBLE PRINTED CIRCUIT W Siretta Ltd |
500 |
|
规格书 |
Echo 47 | Bulk | Active | 802.15.4, Bluetooth, Cellular, General ISM, WiFi | Wide Band | 1.155GHz, 3.479GHz, 3.95GHz | 410MHz ~ 1.9GHz, 433MHz ~ 5.9GHz, 2GHz ~ 6.525GHz | Flat Patch | 3 | - | - | 5.84dBi, 5.84dBi | 50 W | Cable - 100mm | MHF1, U.FL | - | - | - | Adhesive | 0.009" (0.24mm) | 3G, 4G, 5G, Bluetooth, ISM, LoRa, LTE, Sigfox, UMTS, Zigbee™ |
|
|
ECHO47/0.1M/MHF4/365G/4G FLEXIBLE PRINTED CIRCUIT W Siretta Ltd |
493 |
|
规格书 |
Echo 47 | Bulk | Active | 802.15.4, Bluetooth, Cellular, General ISM, WiFi | Wide Band | 1.155GHz, 3.479GHz, 3.95GHz | 410MHz ~ 1.9GHz, 433MHz ~ 5.9GHz, 2GHz ~ 6.525GHz | Flat Patch | 3 | - | - | 5.84dBi, 5.84dBi | 50 W | Cable - 100mm | I-PEX MHF4 | - | - | - | Adhesive | 0.009" (0.24mm) | 3G, 4G, 5G, Bluetooth, ISM, LoRa, LTE, Sigfox, UMTS, Zigbee™ |
|
|
DELTA47/SMAM/365G HINGED BLADE ANTENNA FOR 600- Siretta Ltd |
463 |
|
规格书 |
Delta 47 | Bulk | Active | 802.15.4, Bluetooth, Cellular, General ISM | Wide Band | 1.155GHz, 3.116GHz, 3.95GHz | 410MHz ~ 1.9GHz, 433MHz ~ 5.8GHz, 2GHz ~ 5.9GHz | Whip, Straight | 3 | - | - | 7.77dBi, 7.77dBi, 7.77dBi | 10 W | - | SMA Male | - | - | - | Direct Mount | 5.508" (139.90mm) | 2G, 3G, 4G, 5G, Bluetooth, GSM, ISM, LoRa, LTE, Sigfox, UMTS, Zigbee™ |
|

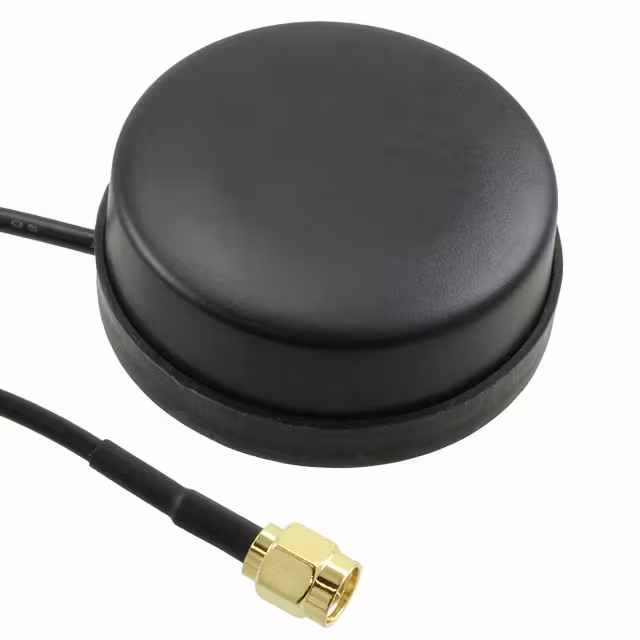

TANGO20A/3M/SMAM/S/S/26RF ANT 1.592GHZ PUCK SMA MALE Siretta Ltd |
2,515 |
|
规格书 |
TANGO 20A | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.592GHz | - | Puck | 1 | 2 | - | 28dB | - | - | SMA Male | IP67 | - | - | Panel Mount | 0.571" (14.50mm) | GLONASS, GPS |
|
TANGO43/0.5M/SMAM/SMAM/RP/S/S/17RF ANT DOME RP-SMA MALE PAN MT Siretta Ltd |
4,674 |
|
规格书 |
- | Bulk | Active | Cellular, WiFi | UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz) | - | - | Dome | 3 | 1.5 | - | 2dBi | 60 W | - | RP-SMA Male | IP67 | - | - | Panel Mount | 0.571" (14.50mm) | LTE, Wi-Fi |
