购物车射频天线
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

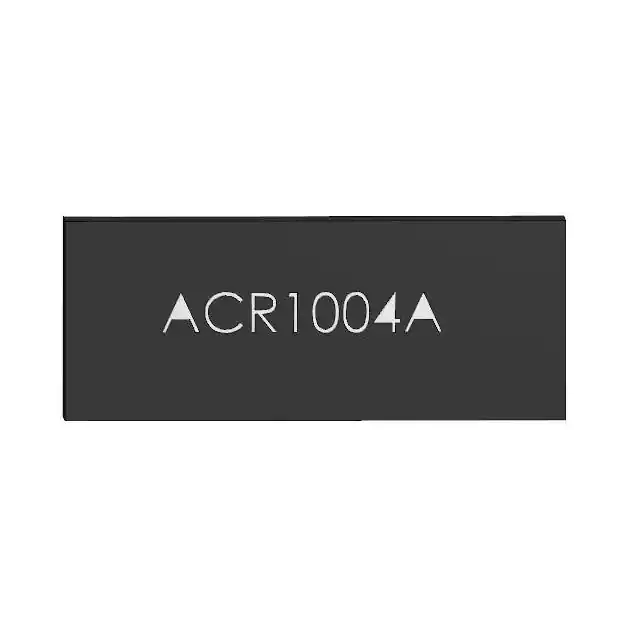

ACR1004A2.4/5/6GHZ WIFI/BT/ZIGBEE ANT Abracon LLC |
1,864 |
|
规格书 |
ACR | Tape & Reel (TR) | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (3GHz ~ 4GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz, 6.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 7.125GHz | Chip | 3 | - | -5dB | 4.02dBi | - | - | Solder | - | - | - | Surface Mount | 0.059" (1.50mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|

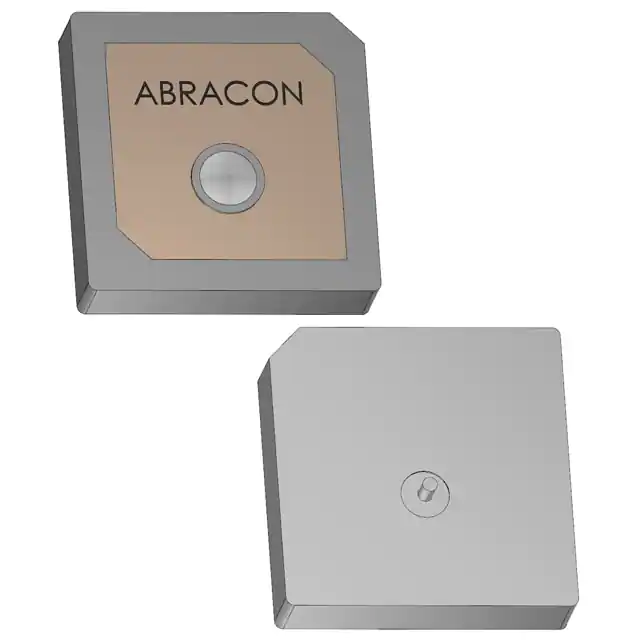

APARM1804-SG3GNSS/GPS/GLONASS/BEIDOU PTCH ANT Abracon LLC |
697 |
|
规格书 |
APARM | Bulk | Active | Navigation | Wide Band | 1.561GHz, 1.575GHz, 1.586GHz, 1.602GHz | 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.583GHz ~ 1.589GHz, 1.597GHz ~ 1.607GHz | Ceramic Patch | 4 | 1.8 | -10dB | 2dBi, 3dBi, 4dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
PRO-IS-587INSIDE 2400 TRIANGULAR 10CM MHF4 Abracon LLC |
374 |
|
规格书 |
Embedded Antenna | Bag | Active | General ISM | UHF (2GHz ~ 3GHz) | 2.4425GHz | 2.4GHz ~ 2.485GHz | PCB Trace | 1 | 2 | - | 3dBi | - | Cable - 100mm | I-PEX MHF4 | - | - | - | Adhesive | 0.039" (1.00mm) | ISM |
|

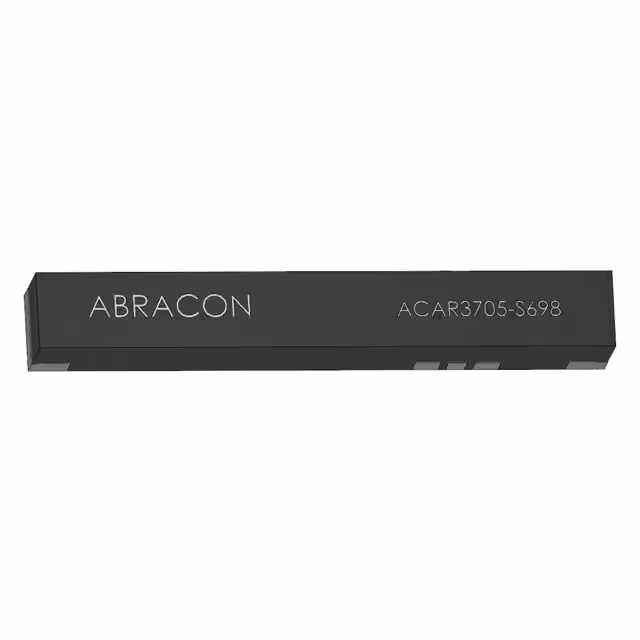

ACAR3705-S6984G/LTE CERAMIC CHIP ANT Abracon LLC |
1,292 |
|
规格书 |
ACAR | Tape & Reel (TR) | Active | Cellular | Wide Band | 830MHz, 1.94GHz, 2.6GHz | 700MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz | Chip | 3 | 4.5 | -4.34dB, 4.62dB, -6.49dB, -8.49dB, -8.5dB, -13.87dB | -1.13dBi, -3.77dBi | - | - | Solder | - | - | - | Surface Mount | 0.197" (5.00mm) | 2G, 3G, 4G, GSM, LTE |
|
ACG0806UUWB ANT 3.3GHZ- 7.2GHZ SMD CHIP Abracon LLC |
1,177 |
|
规格书 |
- | Tape & Reel (TR) | Active | Navigation | Wide Band | 5.25GHz | 3.3GHz ~ 7.2GHz | Chip | 1 | 3.5 | - | - | - | Filter | - | - | - | - | Surface Mount | 0.047" (1.20mm) | UWB |
|
AEACCA115021-S850RF ANT 1.71GHZ FLT BAR SMA FAKRA Abracon LLC |
156 |
|
规格书 |
AEAC | Bulk | Active | Cellular | UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz) | 892MHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Flat Bar | 2 | 2 | - | 2dBi | 10 W | - | Fakra, SMA | - | - | - | Adhesive | 0.228" (5.80mm) | GSM |
|

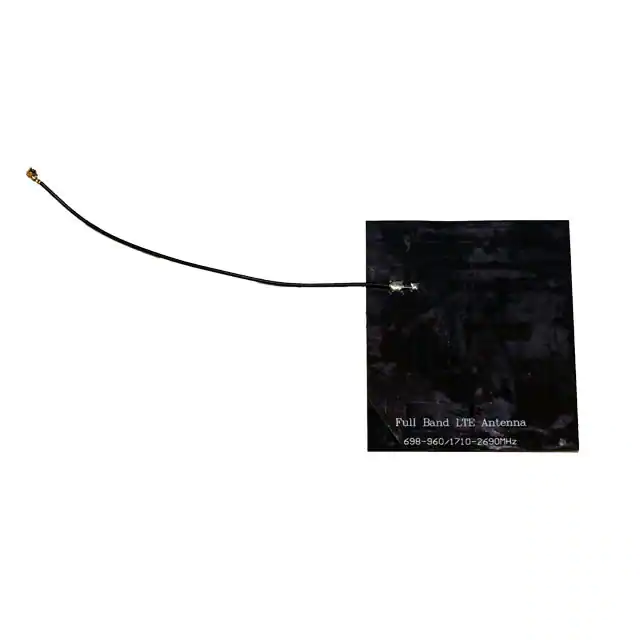

AFAC5867-S698RF ANT 4G/LTE FLEX PRINTED Abracon LLC |
467 |
|
规格书 |
AFAC | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | PCB Trace | 2 | 2 | - | 2dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.008" (0.20mm) | 4G, LTE |
|
PRO-IS-578INSIDE WLAN TRIANGLE 100MM MHF4 Abracon LLC |
412 |
|
规格书 |
Embedded Antenna | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4425GHz, 5.5125GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 3 | - | 3dBi | - | Cable - 100mm | I-PEX MHF4 | - | - | - | Adhesive | 0.039" (1.00mm) | Bluetooth, ISM, WLAN, Zigbee™ |
|

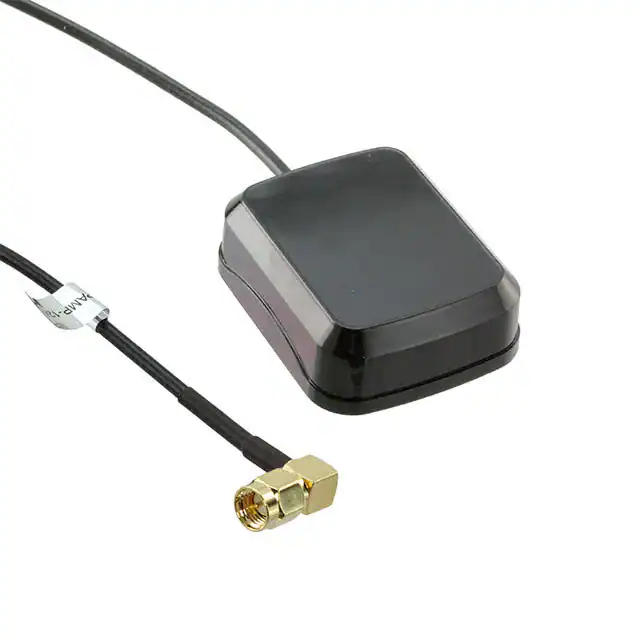

APAMP-124RF ANT 1.575GHZ DOME SMA ML MAG Abracon LLC |
3,901 |
|
规格书 |
APAMP | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Dome | 1 | 1.5 | - | 5dBic | - | - | SMA Male | - | - | - | Magnetic | 0.610" (15.50mm) | GPS |
|
AEACAC053010Z-S433ANTENNA AUTO 433MHZ EXT WHIP Abracon LLC |
177 |
|
规格书 |
AEAC | Bulk | Active | 802.15.4, General ISM | UHF (300MHz ~ 1GHz) | 433MHz | - | Whip, Tilt | 1 | 2 | - | 2dBi | 10 W | - | SMA Male | - | - | - | Connector Mount | 2.102" (53.40mm) | ISM, LoRa, Sigfox |
