| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1461530250RF ANT 2.4/5GHZ FLAT PATCH 250MM Molex |
1,711 |
|
规格书 |
146153 | Bulk | Active | 802.15.4, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz | Flat Patch | 2 | - | -10dB | 2.4dBi, 3.7dBi | 2 W | Cable - 250mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | WLAN, Zigbee™ |
|

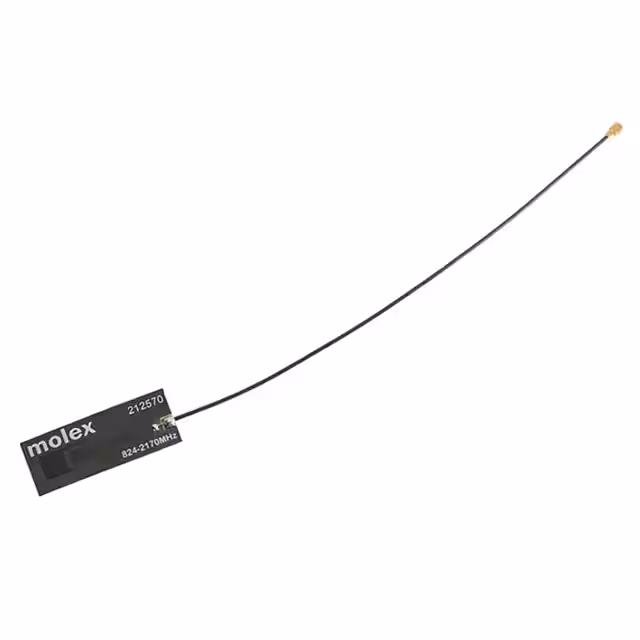

2125700150824~2170MHZ FLEXIBLE ANT SIDE-FE Molex |
2,460 |
|
规格书 |
212570 | Tray | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | PCB Trace | 2 | - | -5dB | -0.45dBi, 1.76dBi | - | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | LTE |
|

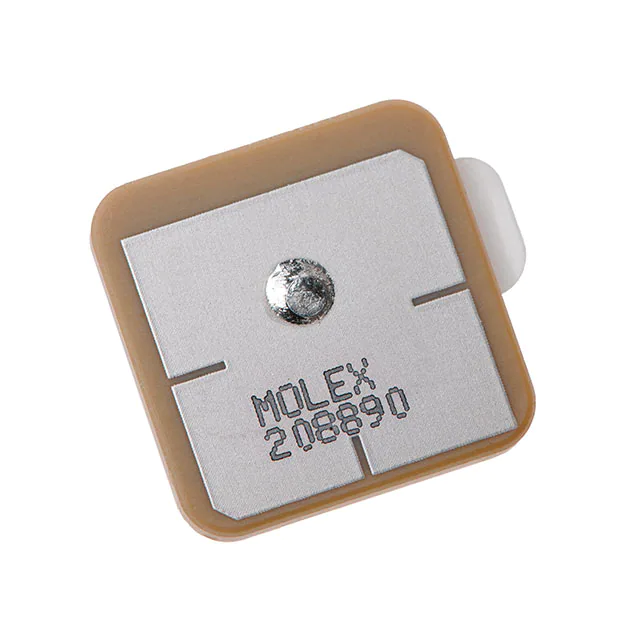

2088900001CERAMIC GPS PATCH ANTENNA Molex |
1,610 |
|
规格书 |
208890 | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.575GHz ~ 1.576GHz | Ceramic Patch | 1 | - | -15dB | 2.6dBi | - | - | Pin | - | - | - | Surface Mount | 0.079" (2.00mm) | GNSS, GPS |
|
2065600100RF ANT 1.561/1.575GHZ FLAT PATCH Molex |
9,344 |
|
规格书 |
206560 | Bag | Active | Navigation | Wide Band | 1.561GHz, 1.575GHz, 1.602GHz | 1.558GHz ~ 1.61GHz | Flat Patch | 3 | - | -8dB | 0.9dBi, 1dBi, 1.37dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | Beidou, GLONASS, GNSS, GPS |
|
1461870150RF ANT 2.4/5.5GHZ PCB TRACE U.FL Molex |
766 |
|
规格书 |
146187 | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz | PCB Trace | 2 | - | -10dB | - | - | Cable - 150mm | U.FL | - | - | - | Surface Mount | 0.004" (0.10mm) | WLAN |
|

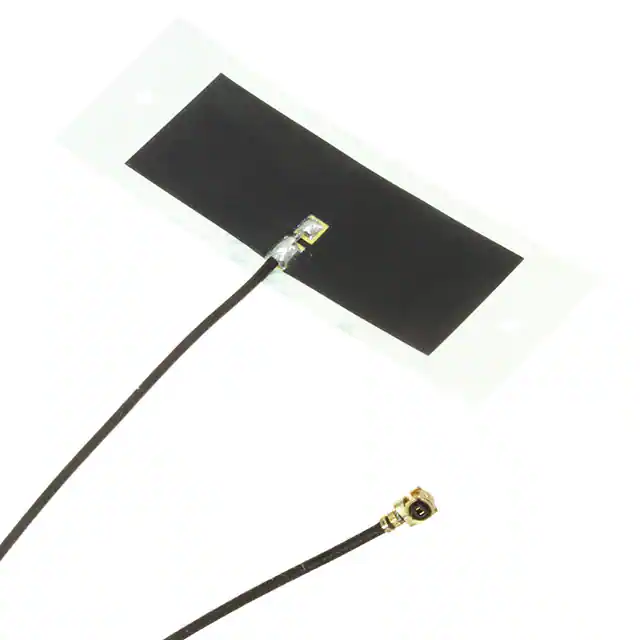

2065600050RF ANT 1.561/1.575GHZ FLAT 50MM Molex |
1,913 |
|
规格书 |
206560 | Bulk | Active | Navigation | Wide Band | 1.561GHz, 1.575GHz, 1.602GHz | 1.558GHz ~ 1.61GHz | Flat Patch | 3 | - | -8dB | 1.1dBi, 1.2dBi, 1.5dBi | - | Cable - 50mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | Beidou, GLONASS, GNSS, GPS |
|
2065600150RF ANT 1.561/1.575GHZ FLAT 150MM Molex |
932 |
|
规格书 |
206560 | Bulk | Active | Navigation | Wide Band | 1.561GHz, 1.575GHz, 1.602GHz | 1.558GHz ~ 1.61GHz | Flat Patch | 3 | - | -8dB | 0.8dBi, 0.9dBi, 1.3dBi | - | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | Beidou, GLONASS, GNSS, GPS |
|

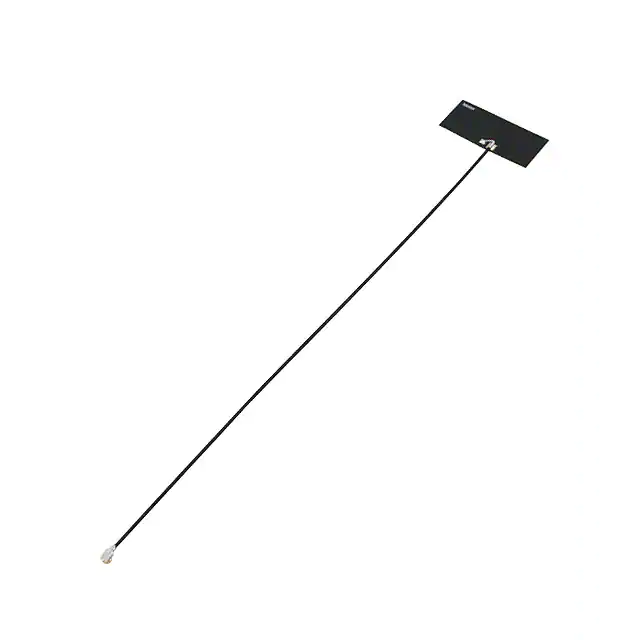

0479502011RF ANT 2.4/5GHZ PCB TRC CAB .61" Molex |
3,167 |
|
规格书 |
47950 | Tray | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.483.5GHz, 4.8GHz ~ 5.9GHz | PCB Trace | 2 | - | -10dB, -9dB | 2.6dBi, 4.4dBi | 2 W | Cable - 200mm | SMT Male | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, WLAN, Zigbee™ |
|

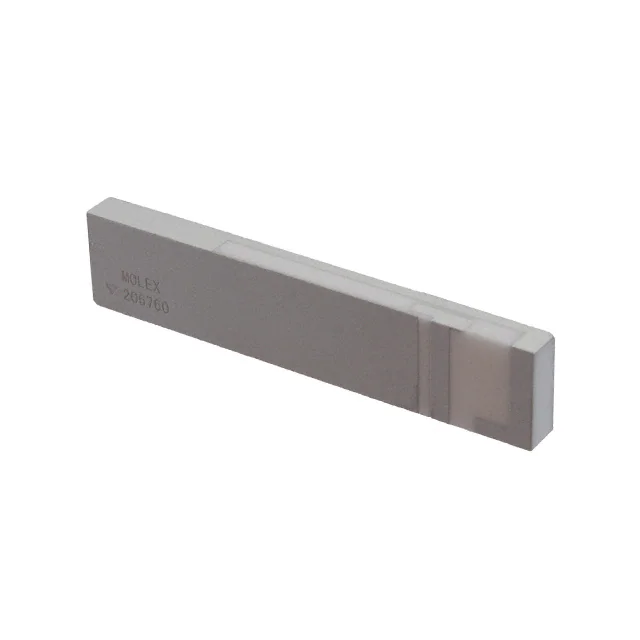

2067600001RF ANT 829MHZ/2.205GHZ CER PATCH Molex |
8,315 |
|
规格书 |
206760 | Tape & Reel (TR) | Active | - | Wide Band | 829MHz, 2.205GHz | 698MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.7GHz | Ceramic Patch | 2 | - | -5dB | 1.3dBi, 4.4dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | General Purpose |
|
1461860100RF ANT 1.561/1.575GHZ FLAT 100MM Molex |
7,254 |
|
规格书 |
146186 | Bulk | Active | Navigation, WiFi | Wide Band | 1.561GHz, 1.575GHz, 1.602GHz, 2.4GHz, 5GHz | 1.575GHz ~ 1.602GHz, 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz, 3GHz ~ 6GHz | Flat Patch | 5 | - | -10dB | 3dBi, 4dBi, 4.7dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | BeiDou, GLONASS, WiMax, WLAN, Wi-Fi |
