购物车射频天线
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
21442900015G EXTERNAL ANTENNA_HINGED_B_M Molex |
1,951 |
|
规格书 |
214429 | Bag | Obsolete | Cellular | Wide Band | 829MHz, 2.2GHz, 3.75GHz, 4.7GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz | Blade, Tilt | 4 | - | -10dB, -5dB | 1.6dBi, 5.5dBi, 3.6dBi, 3.5dBi | - | - | SMA Male | - | - | - | Connector Mount | 6.752" (171.50mm) | LTE |
|
2178531000MULTI-HUB 7 IN 1 ANTENNA Molex |
117 |
|
规格书 |
- | Bulk | Active | Cellular, Navigation, WiFi | - | - | - | Module | - | - | - | - | - | - | SMA Male | - | - | - | Connector Mount | 0.886" (22.50mm) | 5G, GNSS, LTE, Wi-Fi |
|
|
2067640150RF ANT 868MHZ/915MHZ FLAT PATCH Molex |
975 |
|
- |
206764 | Tape & Reel (TR) | Active | General ISM, Lora | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | 863MHz ~ 870MHz, 902MHz ~ 928MHz | Flat Patch | 2 | - | -9dB | 1.1dBi | - | Cable - 150mm | I-PEX MHF1 (U.FL) | - | - | - | Adhesive | 0.004" (0.10mm) | General Purpose |
|
|
2144291001MOLEX 5G EXTERNAL ANTENNA_HINGED Molex |
1,998 |
|
规格书 |
214429 | Bulk | Active | Cellular | Wide Band | 829MHz, 2.2GHz, 3.75GHz, 4.7GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz | Whip, Straight | 4 | - | -5dB, -10dB | 1.6dBi, 5.5dBi, 3.6dBi, 3.5dBi | - | - | SMA Male | - | - | - | Connector Mount | 6.752" (171.50mm) | 5G, LTE |
|
|
2144291011MOLEX 5G EXTERNAL ANTENNA_HINGED Molex |
400 |
|
规格书 |
214429 | Bulk | Active | Cellular | Wide Band | 829MHz, 2.2GHz, 3.75GHz, 4.7GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz | Whip, Straight | 4 | - | -5dB, -10dB | 1.6dBi, 5.5dBi, 3.6dBi, 3.5dBi | - | - | SMA Male | - | - | - | Connector Mount | 6.752" (171.50mm) | 5G, LTE |
|
1461860300RF ANT 1.561/1.575GHZ FLAT 300MM Molex |
1,059 |
|
规格书 |
146186 | Bulk | Active | Navigation, WiFi | Wide Band | 1.561GHz, 1.575GHz, 1.602GHz, 2.4GHz, 5GHz | 1.575GHz ~ 1.602GHz, 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz, 3GHz ~ 6GHz | Flat Patch | 5 | - | -10dB | 2.4dBi, 3dBi, 3.7dBi | 2 W | Cable - 300mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | BeiDou, GLONASS, WiMax, WLAN, Wi-Fi |
|
1461850300RF ANT 892MHZ/1.9GHZ FLAT 300MM Molex |
3,676 |
|
规格书 |
146185 | Bulk | Active | Cellular, WiFi | Wide Band | 892MHz, 1.9GHz, 4.5GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 3GHZ ~ 6GHz | Flat Patch | 3 | - | -6dB | 4dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | - | WLAN |
|

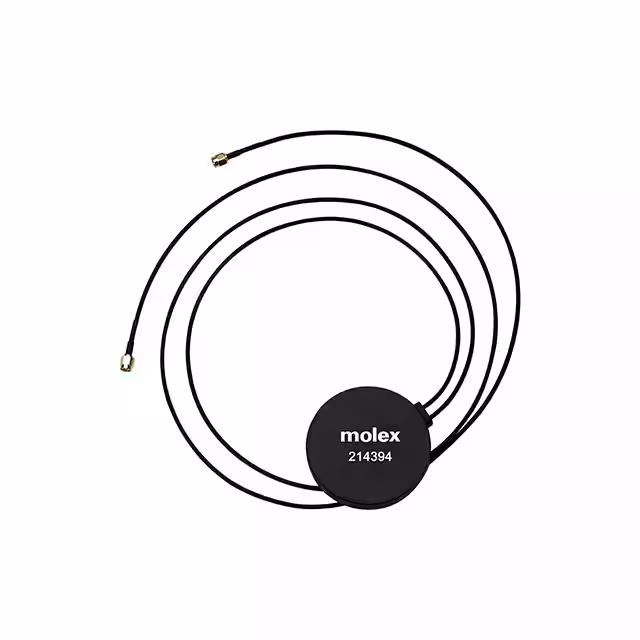

2143941000DUAL BAND WI-FI MIMO EXT ANTENNA Molex |
3,477 |
|
规格书 |
214394 | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5GHz ~ 6GHz | Module | 2 | - | -10dB | 2.5dBi, 3.1dBi, 2.6dBi, 3.4dBi | - | Cable - 1m | SMA Male | - | - | - | Adhesive | 0.591" (15.00mm) | Bluetooth, Wi-Fi, Zigbee™ |
|

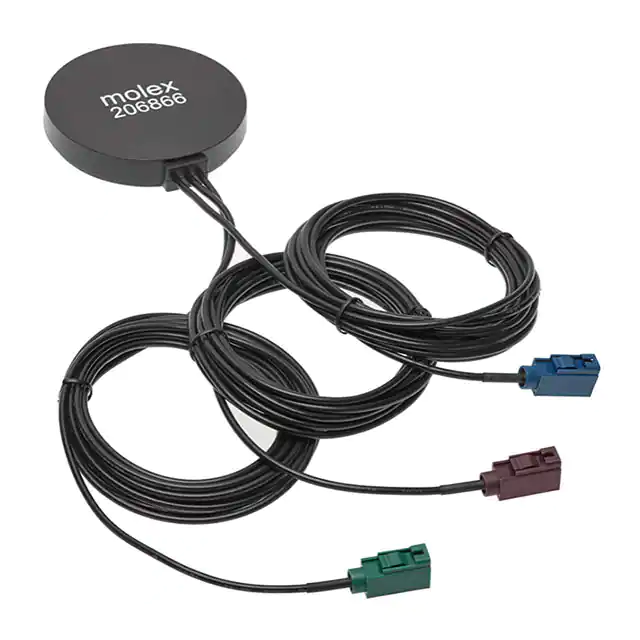

2068663000RF ANT 892MHZ/1.58GHZ SMB ADH Molex |
4,333 |
|
规格书 |
206866 | Box | Active | Bluetooth, Cellular, Navigation, WiFi | Wide Band | 892MHz, 1.58GHz, 2.2GHz, 2.44GHz | 824MHz ~ 960MHz, 1.575GHz ~ 1.602GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.48GHz | - | 4 | 3, 2 | -10dB, -6dB | -0.5dBi, 3dBi, 0dBi, -2.7dBi | - | Cable - 3m | SMB, Fakra | IP66 | - | - | Adhesive | 0.591" (15.00mm) | Bluetooth, Cellular, GPS, Wi-Fi |
|
|
2192640001BOTTOM FEED 5 IN 1 ANTENNA SIMPL Molex |
3,116 |
|
规格书 |
- | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.581GHz, 2.2GHz, 2.45GHz, 3.75GHz, 4.7GHz, 5.5GHz, 6.525GHz | 698MHz ~ 960MHz, 1.561GHz ~ 1.602GHz, 1.71GHz ~ 2.5GHz, 2.4GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Module | 8 | - | -10dB, -8dB, -5dB, -4dB | - | - | Cable - 1m | SMA Male | - | - | - | Adhesive | 1.496" (38.00mm) | 5G, GPS, Wi-Fi |
