| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
W3P35X8W04-U100D3B0AANT ASSY, WLAN 04 100 D0230 KYOCERA AVX |
1,459 |
|
规格书 |
- | Box | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.44GHz, 5.5GHz, 6.475GHz | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz, 5.825GHz ~ 7.125GHz | PCB Trace | 3 | - | -15dB, -10dB, -6dB | 2.3dBi, 5dBi, 2.5dBi | - | Cable - 100mm | U.FL | - | - | - | Adhesive | 0.016" (0.40mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|

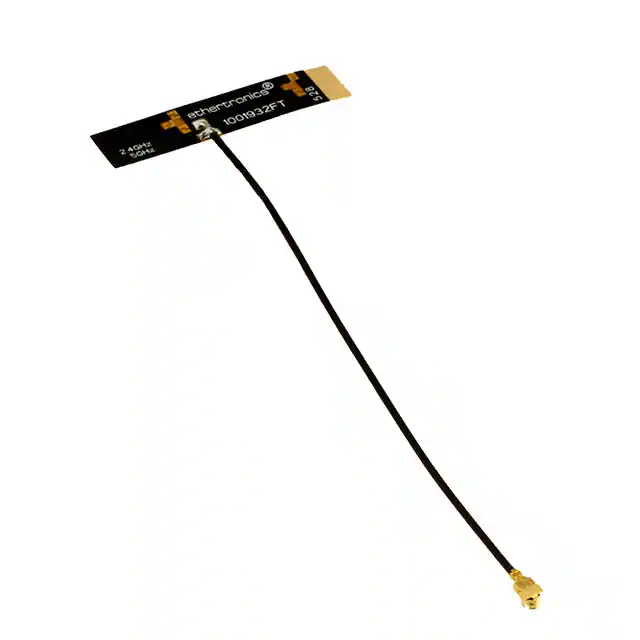

1001932FT-AA10L0100RF ANT 2.4GHZ/5GHZ PCB TRACE ADH KYOCERA AVX |
1,012 |
|
规格书 |
Prestta™ | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz | PCB Trace | 2 | 2 | - | 2.5dBi, 3.7dBi, 3.4dBi, 4.4dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
1005460F0-AA10L02005G/4G WIDE BAND FPC EMBEDDED ANT KYOCERA AVX |
544 |
|
规格书 |
- | Box | Active | Cellular | Wide Band | 789MHz, 1.8GHz, 2.5GHz, 3.55GHz, 5.5GHz | 617MHz ~ 960MHz, 1.4GHz ~ 2.2GHz, 2.3GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz, 5GHz ~ 6GHz | Flat Patch | 5 | 2, 2.1, 2.4 | - | 3.4dBi, 4dBi, 3dBi, 2.5dBi, 4.2dBi | 2 W | Cable - 200mm | MHF4L, U.FL | - | - | - | Adhesive | 0.008" (0.20mm) | LoRa, LTE, Sigfox |
|

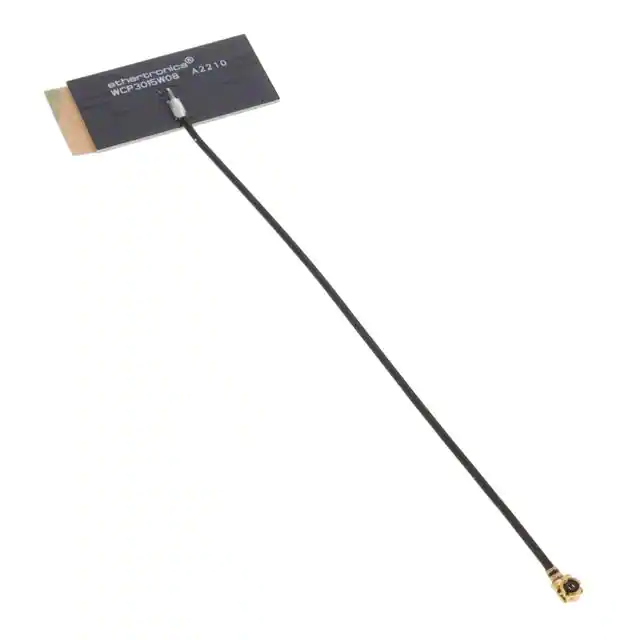

WCP3015W08-U100D3B0AANTENNA ASSY, WIFI STRAIGHT, 100 KYOCERA AVX |
281 |
|
规格书 |
W | Box | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.44GHz, 5.5GHz | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz | PCB Trace | 2 | - | -8.4dB, 8.7dB | 3dBi, 6.7dBi | - | Cable - 100mm | U.FL | - | - | - | Adhesive | 0.031" (0.80mm) | Wi-Fi |
|

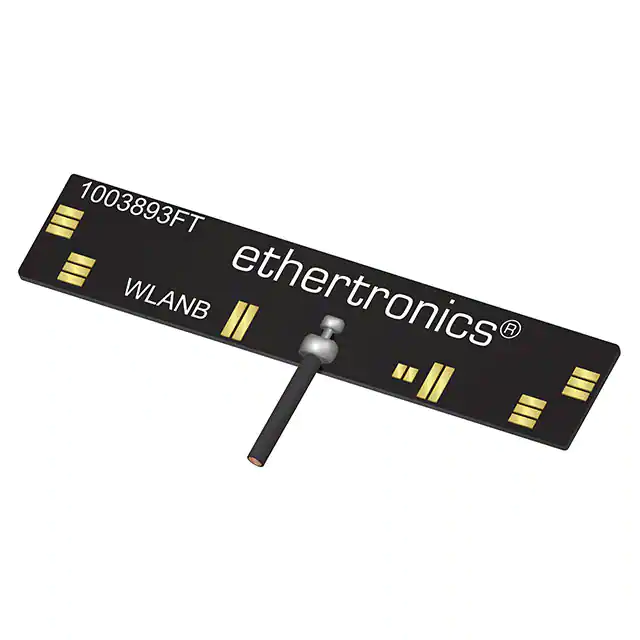

1003893FT-AA10L0050ANTENNA ASSY, WLANB FT AA10 0050 KYOCERA AVX |
6,307 |
|
规格书 |
- | Box | Active | - | UHF (2GHz ~ 3GHz) | 2.4425GHz | 2.4GHz ~ 2.485GHz | PCB Trace | 1 | 1.5 | - | 3.3dBi | 500 mW | Cable - 50mm | U.FL | - | - | - | Adhesive | 0.005" (0.12mm) | WLAN |
|

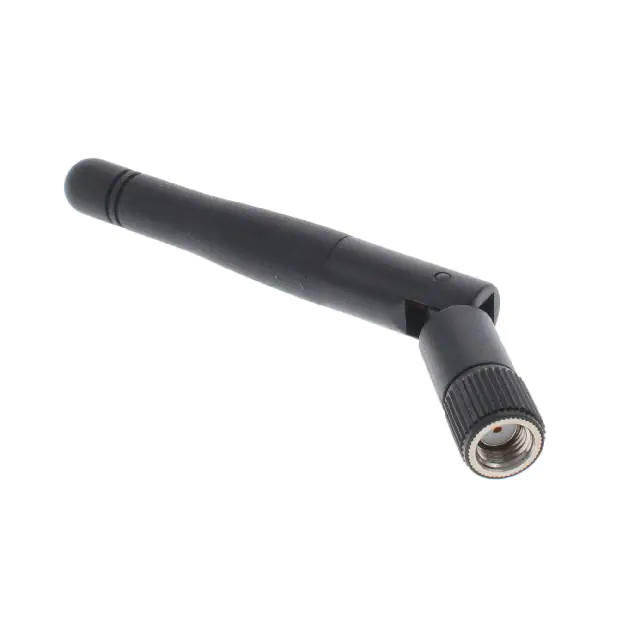

X9001091-W3DSMBANTENNA, WLAN BLACK SMA MALE KYOCERA AVX |
4,761 |
|
规格书 |
- | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4425GHz, 5.5GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz | Whip, Tilt | 2 | - | -14dB, -11dB | 1.8dBi, 4dBi | - | - | SMA Male | - | - | - | Connector Mount | 3.307" (84.00mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
1001932PT-AA10L0100RF ANT 2.4GHZ/5GHZ PCB TRACE ADH KYOCERA AVX |
1,913 |
|
规格书 |
Prestta™ | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz | PCB Trace | 2 | 2 | - | 2.5dBi, 3.7dBi, 3.4dBi, 4.4dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.016" (0.40mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
X9003019-W3DSMBWI-FI 6E & 7 EXTERNAL WHIP HINGE KYOCERA AVX |
197 |
|
规格书 |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.442GHz, 5.375GHz, 6.562GHz | 2.4GHz ~ 2.485GHz, 4.9GHz ~ 5.85GHz, 6GHz ~ 7.125GHz | Whip, Right Angle | 3 | 2 | - | 2.8dBi, 4.9dBi, 5.5dBi | - | - | SMA Male | - | - | - | Connector Mount | 2.283" (58.00mm) | WLAN, Zigbee™ |
|
|
9003034F0-AC10L0100LTE 5G FPC ANTENNA W/MHF4 CONNEC KYOCERA AVX |
701 |
|
规格书 |
- | Bag | Active | Cellular | Wide Band | 2.395GHz, 4.15GHz | 2.1GHz ~ 2.69GHz, 3.3GHz ~ 5GHz | Flat Bar | 2 | - | -7.3dB, -7.7dB | 4.2dBi, 4.3dBi | - | Cable - 100mm | MHF4 | - | - | - | Adhesive | 0.008" (0.20mm) | 5G |
|
|
9001815F0-AC10L01005G & NB-IOT FPC EMBEDDED ANTENNA KYOCERA AVX |
923 |
|
规格书 |
- | Box | Active | Cellular | Wide Band | 789MHz, 2.052GHz, 3.6GHz, 5.5GHz | 617MHz ~ 960MHz, 1.415GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz, 5.15GHz ~ 5.85GHz | Flat Patch | 4 | 2.2, 2.6, 3.8, 7.2 | - | 1.5dBi, 4.65dBi, 3.84dBi, 4.84dBi | 2 W | Cable - 100mm | U.FL | - | - | - | Adhesive | - | LoRa, LTE, Sigfox |
