干簧继电器

图片	型号	库存	价格	数量	规格书	系列	包装	产品状态	安装类型	线圈电压	触点形式	触点额定值（电流）	切换电压	线圈电流	线圈类型	特性	端接样式	密封等级	必须动作电压	必须释放电压	动作时间	释放时间	工作温度	触点材料
	7202-12-1100 RELAY REED DPST 1A 12V Coto Technology	4,637	-	立即询价	规格书	7000	Tube	Obsolete	Through Hole	12VDC	DPST-NO (2 Form A)	1 A	500VAC, 500VDC - Max	35.2 mA	Non Latching	-	PC Pin	-	9 VDC	1 VDC	2 ms	1 ms	-20°C ~ 85°C	-
	9401-05-20 RELAY REED SPST 500MA 5V Coto Technology	2,652	-	立即询价	规格书	9400	Tube	Active	Surface Mount	5VDC	SPST-NO (1 Form A)	500 mA	200VAC, 200VDC - Max	25 mA	Non Latching	-	J Lead	-	3.75 VDC	0.4 VDC	0.4 ms	0.2 ms	-20°C ~ 85°C	-

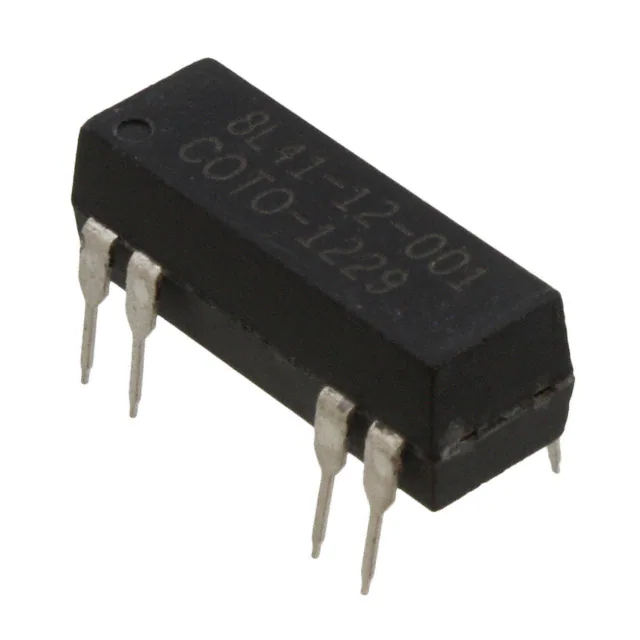

	8L41-12-001 RELAY REED SPDT 250MA 12V Coto Technology	4,805	-	立即询价	规格书	8L	Tube	Active	Through Hole	12VDC	SPDT (1 Form C)	250 mA	100VAC, 100VDC - Max	24 mA	Non Latching	-	PC Pin	-	9.6 VDC	1 VDC	1 ms	1 ms	-20°C ~ 85°C	-
	7302-24-1010 RELAY REED DPST 500MA 24V Coto Technology	3,973	-	立即询价	规格书	7000	Tube	Not For New Designs	Through Hole	24VDC	DPST-NO (2 Form A)	500 mA	500VAC, 500VDC - Max	9.8 mA	Non Latching	Electrostatic Shield	PC Pin	-	18 VDC	2 VDC	1 ms	0.1 ms	-20°C ~ 85°C	-
	7143-05-1100 RELAY REED 3PDT 250MA 5V Coto Technology	4,472	-	立即询价	规格书	7000	Bulk	Active	Through Hole	5VDC	3PDT (3 Form C)	250 mA	150VAC, 150VDC - Max	90.9 mA	Non Latching	-	PC Pin	-	3.75 VDC	0.4 VDC	2 ms	2.5 ms	-20°C ~ 85°C	-
	9007-05-10 RELAY REED SPST 500MA 5V Coto Technology	1,403	-	立即询价	规格书	9007, Spartan	Tube	Active	Through Hole	5VDC	SPST-NO (1 Form A)	500 mA	200VAC, 200VDC - Max	10 mA	Non Latching	EMI Shielded	PC Pin	-	3.75 VDC	0.4 VDC	0.5 ms	0.2 ms	-20°C ~ 85°C	-
	9007-12-10 RELAY REED SPST 500MA 12V Coto Technology	2,676	-	立即询价	规格书	9007, Spartan	Tube	Active	Through Hole	12VDC	SPST-NO (1 Form A)	500 mA	200VAC, 200VDC - Max	12 mA	Non Latching	EMI Shielded	PC Pin	-	9 VDC	1 VDC	0.5 ms	0.2 ms	-20°C ~ 85°C	-
	9007-05-11 RELAY REED SPST 500MA 5V Coto Technology	3,175	-	立即询价	规格书	9007, Spartan	Tube	Active	Through Hole	5VDC	SPST-NO (1 Form A)	500 mA	200VAC, 200VDC - Max	10 mA	Non Latching	Diode, EMI Shielded	PC Pin	-	3.75 VDC	0.4 VDC	0.5 ms	0.2 ms	-20°C ~ 85°C	-

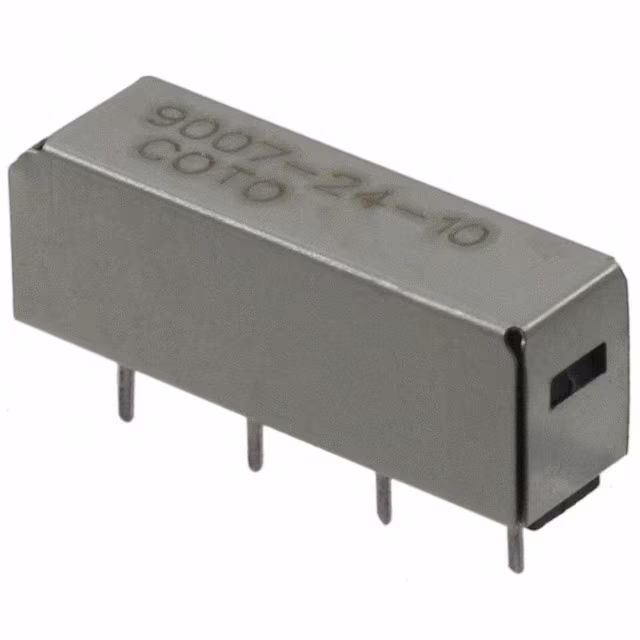

	9007-24-10 RELAY REED SPST 500MA 24V Coto Technology	1,955	-	立即询价	规格书	9007, Spartan	Tube	Not For New Designs	Through Hole	24VDC	SPST-NO (1 Form A)	500 mA	200VAC, 200VDC - Max	12 mA	Non Latching	EMI Shielded	PC Pin	-	18 VDC	2 VDC	0.5 ms	0.2 ms	-20°C ~ 85°C	-
	9091-12-00 RELAY REED SPST 500MA 12V Coto Technology	2,408	-	立即询价	规格书	9091	Tube	Active	Through Hole	12VDC	SPST-NO (1 Form A)	500 mA	200VAC, 200VDC - Max	12 mA	Non Latching	-	PC Pin	-	9 VDC	1 VDC	0.5 ms	0.3 ms	-20°C ~ 85°C	-

共 550 记录«上一页 1... 15 16 17 181920 21 22...55 下一页»
