购物车干簧继电器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JWD-107-1RELAY REED SPST 500MA 5V |
3,044 |
|
规格书 |
JWD | Tray | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 100VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.5 VDC | 1.5 ms | 0.5 ms | -35°C ~ 85°C | Ruthenium (Ru) |
|
LI12-1A85RELAY REED SPST 1A 12V |
2,063 |
|
规格书 |
LI | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 17.5 mA | Non Latching | - | PC Pin | Sealed - Fully | 8.4 VDC | 1.8 VDC | 1 ms | 0.1 ms | -20°C ~ 70°C | - |
|
9092-05-11RELAY REED DPST 500MA 5V |
20,990 |
|
规格书 |
9092 | Tube | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 13.3 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.75 ms | 0.5 ms | -20°C ~ 85°C | - |
|
SHV12-1A85-78L4KRELAY REED SPST 1A 12V |
738 |
|
规格书 |
SHV | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 8.4 VDC | 1.8 VDC | 1.1 ms | 0.1 ms | -40°C ~ 100°C | - |
|
|
LI24-1A85RELAY REED SPST 1A 24V |
2,226 |
|
规格书 |
LI | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 12 mA | Non Latching | - | PC Pin | Sealed - Fully | 16.8 VDC | 3.6 VDC | 1 ms | 0.1 ms | -20°C ~ 70°C | - |
|
2204-05-401RELAY REED SPST 500MA 5V |
2,075 |
|
规格书 |
2200 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 13.5 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 3.8 VDC | 0.4 VDC | 0.5 ms | 0.1 ms | -20°C ~ 85°C | - |
|
2332-12-000RELAY REED DPST 500MA 12V |
1,215 |
|
规格书 |
2300 | Tray | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 9 VDC | 1 VDC | 0.5 ms | 0.15 ms | -20°C ~ 85°C | - |
|
2341-12-000RELAY REED SPDT 500MA 12V |
2,986 |
|
规格书 |
2300 | Tray | Active | Through Hole | 12VDC | SPDT (1 Form C) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 9 VDC | 1 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | - |
|
9117-05-10RELAY REED SPST 250MA 5V |
8,949 |
|
规格书 |
9117 | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 12.5 mA | Non Latching | EMI Shielded | PC Pin | - | 3.75 VDC | 0.5 VDC | 0.2 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
9117-05-11RELAY REED SPST 250MA 5V |
11,200 |
|
规格书 |
9117 | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 12.5 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 3.75 VDC | 0.5 VDC | 0.2 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
2341-05-000RELAY REED SPDT 500MA 5V |
3,409 |
|
规格书 |
2300 | Tray | Active | Through Hole | 5VDC | SPDT (1 Form C) | 500 mA | 200VAC, 200VDC - Max | 21.7 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 3.8 VDC | 0.4 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | - |
|
2333-05-000RELAY REED 3PST 500MA 5V |
1,014 |
|
规格书 |
2300 | Tray | Active | Through Hole | 5VDC | 3PST-NO (3 Form A) | 500 mA | 200VAC, 200VDC - Max | 28.6 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 3.8 VDC | 0.4 VDC | 0.5 ms | 0.15 ms | -20°C ~ 85°C | - |
|
|
2211-05-301RELAY REED SPDT 250MA 5V |
1,807 |
|
规格书 |
2200 | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 21.7 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 3.8 VDC | 0.4 VDC | 1 ms | 2 ms | -20°C ~ 85°C | - |
|
BE05-2A85-PRELAY REED DPST 1A 5V |
1,709 |
|
规格书 |
BE | Bulk | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 1 A | 1000VAC, 1000VDC - Max | 71.4 mA | Non Latching | - | PC Pin | Sealed - Fully | 3.5 VDC | 0.75 VDC | 1 ms | 0.1 ms | -20°C ~ 70°C | - |
|
|
2341-05-010RELAY REED SPDT 500MA 5V |
8,375 |
|
规格书 |
2300 | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 500 mA | 200VAC, 200VDC - Max | 21.7 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 3.8 VDC | 0.4 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | - |
|
2911-12-301RELAY REED SPDT 250MA 12V |
552 |
|
规格书 |
2900 | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 150VAC, 150VDC - Max | 8 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 2 ms | -20°C ~ 85°C | - |
|
|
JWD-171-27RELAY REED DPST 500MA 12V |
298 |
|
规格书 |
JWD | Tube | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 100VDC - Max | 24 mA | Non Latching | Diode | PC Pin | - | 9.6 VDC | 1 VDC | 1.5 ms | 0.5 ms | -35°C ~ 85°C | Ruthenium (Ru) |
|

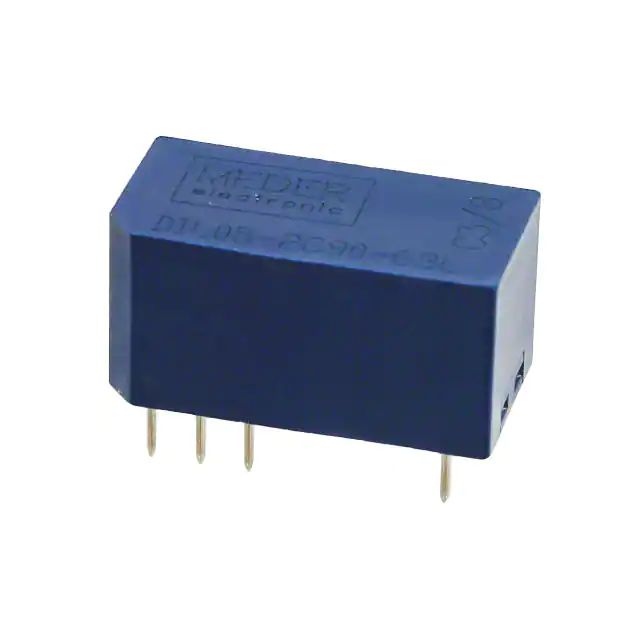

DIL05-2C90-63LRELAY REED DPDT 250MA 5V |
218 |
|
规格书 |
DIL | Tube | Active | Through Hole | 5VDC | DPDT (2 Form C) | 250 mA | 175VAC, 175VDC - Max | 33.4 mA | Non Latching | - | PC Pin | Sealed - Fully | 3.5 VDC | 0.75 VDC | 0.7 ms | 1.5 ms | -20°C ~ 70°C | - |
|
|
2211-12-301RELAY REED SPDT 250MA 12V |
6,904 |
|
规格书 |
2200 | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 8 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 9 VDC | 1 VDC | 1 ms | 2 ms | -20°C ~ 85°C | - |
|
|
2342-05-000RELAY REED DPDT 250MA 5V |
6,876 |
|
规格书 |
2300 | Tray | Active | Through Hole | 5VDC | DPDT (2 Form C) | 250 mA | 100VAC, 100VDC - Max | 28.6 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 3.8 VDC | 0.4 VDC | 1.5 ms | 2 ms | -20°C ~ 85°C | - |
