购物车干簧继电器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HE721A1210RELAY REED SPST 500MA 12V |
1,575 |
|
规格书 |
HE700 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 8 VDC | 1 VDC | 1 ms | 1 ms | -40°C ~ 85°C | - |
|
3570-1419-123RELAY REED SIP SPST 1A 12V W/DI |
4,387 |
|
规格书 |
3570 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 200VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 9 VDC | 1 VDC | 0.35 ms | 0.1 ms | -40°C ~ 85°C | - |
|
SIL24-1A72-71DRELAY REED SPST 0.5A 24V |
3,477 |
|
规格书 |
SIL | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 16.8 VDC | 3.6 VDC | 0.7 ms | 0.1 ms | -20°C ~ 70°C | - |
|
MS05-1A87-75DHRRELAY REED SPST 500MA 5V |
3,225 |
|
规格书 |
MS | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.75 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C | - |
|
UMS05-1A80-75LRELAY REED SPST 500MA 5V |
4,696 |
|
规格书 |
UMS | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 170VAC, 170VDC - Max | 12.5 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.5 VDC | 0.2 ms | 0.1 ms | -20°C ~ 85°C | - |
|
8L41-12-001RELAY REED SPDT 250MA 12V |
4,805 |
|
规格书 |
8L | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 9.6 VDC | 1 VDC | 1 ms | 1 ms | -20°C ~ 85°C | - |
|
SHV24-1A85-78L4KHIGH VOLTAGE REED RELAY, FORM 1A |
4,938 |
|
规格书 |
SHV | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 16.4 VDC | 3.6 VDC | 1.1 ms | 100 µs | -40°C ~ 105°C | - |
|
BFH-2C-05RELAY REED DPDT .25A 5V |
1,275 |
|
规格书 |
BFH | Tube | Active | Through Hole | 5VDC | DPDT (2 Form C) | 250 mA | 100VDC - Max | 28.6 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.4 VDC | 1.5 ms | 2 ms | -20°C ~ 85°C | Ruthenium (Ru) |
|
S1-24-BMRELAY REED 1 N/C 1.5KV 24V |
2,559 |
|
规格书 |
S1 | Bulk | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 500 mA | 1000VDC - Max | 12 mA | Non Latching | EMI Shielded | PC Pin | - | 18 VDC | 2.4 VDC | - | - | -40°C ~ 85°C | Rhodium (Rh) |
|
7302-24-1010RELAY REED DPST 500MA 24V |
3,973 |
|
规格书 |
7000 | Tube | Not For New Designs | Through Hole | 24VDC | DPST-NO (2 Form A) | 500 mA | 500VAC, 500VDC - Max | 9.8 mA | Non Latching | Electrostatic Shield | PC Pin | - | 18 VDC | 2 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|

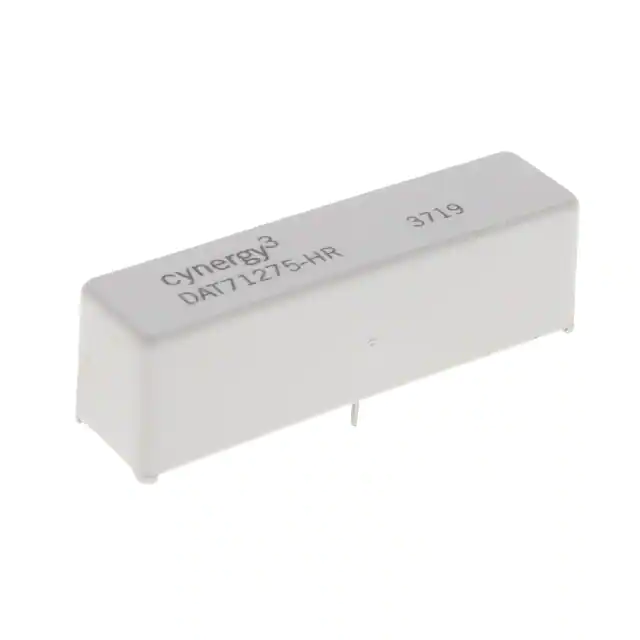

DAT71275-HRRELAY REED 7.5KV 12V SPST-NO |
4,581 |
|
规格书 |
D-HR | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 2 A | 5000VAC, 5000VDC - Max | 80 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
DAT72410-HRRELAY REED SPST-NO 2A 24V |
3,189 |
|
规格书 |
D-HR | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 2 A | 7000VAC, 7000VDC - Max | 30.8 mA | Non Latching | - | PC Pin | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
DAT70510FRELAY REED SPST-NO 2A 5V |
3,027 |
|
规格书 |
DA | Tray | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 2 A | 7000VAC, 7000VDC - Max | 179 mA | Non Latching | - | PC Pin, Wire Leads | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
3572-1220-122RELAY REED DIP DPST .5A 12V W/ES |
4,568 |
|
规格书 |
3572 | Tube | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 150VDC - Max | 24 mA | Non Latching | Electrostatic Shield | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | - |
|
3563-1231-123RELAY REED DIP SPDT .4A 12V W/DI |
1,134 |
|
规格书 |
3563 | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 400 mA | 100VDC - Max | 24 mA | Non Latching | Diode | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 1.5 ms | -20°C ~ 85°C | - |
|
DIP05-1A72-11LRELAY REED SPST 1A 5V |
4,760 |
|
规格书 |
DIP | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 200VAC, 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C | - |
|
DIP24-2A72-21DRELAY REED DPST 1A 24V |
1,095 |
|
规格书 |
DIP | Tube | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 1 A | 200VAC, 200VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 16.8 VDC | 3.6 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C | - |
|
|
V23100V4024A011RELAY REED SPST 500MA 24V |
2,197 |
|
规格书 |
V23100-V4, AXICOM | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 16.8 VDC | 3.6 VDC | 0.75 ms | 0.15 ms | -40°C ~ 85°C | Ruthenium (Ru) |
|
S2-12PRELAY REED SPST 700MA 12V |
4,614 |
|
规格书 |
S2 | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 700 mA | 300VAC, 350VDC - Max | 12 mA | Non Latching | - | Axial | - | 9 VDC | 2 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
S8-1204URELAY REED SPST 1A 12V UL |
2,699 |
|
规格书 |
S8 | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 16 mA | Non Latching | - | PC Pin | - | 9.6 VDC | 2 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
