购物车干簧继电器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
V23100V6002A201RELAY REED DPST 750MA 12V TE Connectivity Potter & Brumfield Relays |
3,731 |
|
规格书 |
V23100-V6, AXICOM | Bulk | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 750 mA | 24VDC - Nom | 10.9 mA | Non Latching | - | PC Pin | - | - | - | - | - | - | Rhodium (Rh), Ruthenium (Ru) |
|
1393803-6V23100V6002A201 TE Connectivity Potter & Brumfield Relays |
4,583 |
|
规格书 |
V23100-V6, AXICOM | Box | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 750 mA | 24VDC - Nom | 10.9 mA | Non Latching | - | PC Pin | - | - | - | - | - | - | Rhodium (Rh), Ruthenium (Ru) |
|
|
V23100V4505A000RELAY REED SPST 500MA 5V TE Connectivity Potter & Brumfield Relays |
4,687 |
|
规格书 |
V23100-V4, AXICOM | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.75 ms | 0.15 ms | -40°C ~ 85°C | Ruthenium (Ru) |
|
|
V23100V4024A011RELAY REED SPST 500MA 24V TE Connectivity Potter & Brumfield Relays |
2,197 |
|
规格书 |
V23100-V4, AXICOM | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 16.8 VDC | 3.6 VDC | 0.75 ms | 0.15 ms | -40°C ~ 85°C | Ruthenium (Ru) |
|
JWD-171-24RELAY REED DPST 500MA 24V TE Connectivity Potter & Brumfield Relays |
3,011 |
|
规格书 |
JWD | Tube | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 500 mA | 100VDC - Max | 10.9 mA | Non Latching | - | PC Pin | - | 19.2 VDC | 2 VDC | 1.5 ms | 0.5 ms | -35°C ~ 85°C | Ruthenium (Ru) |
|

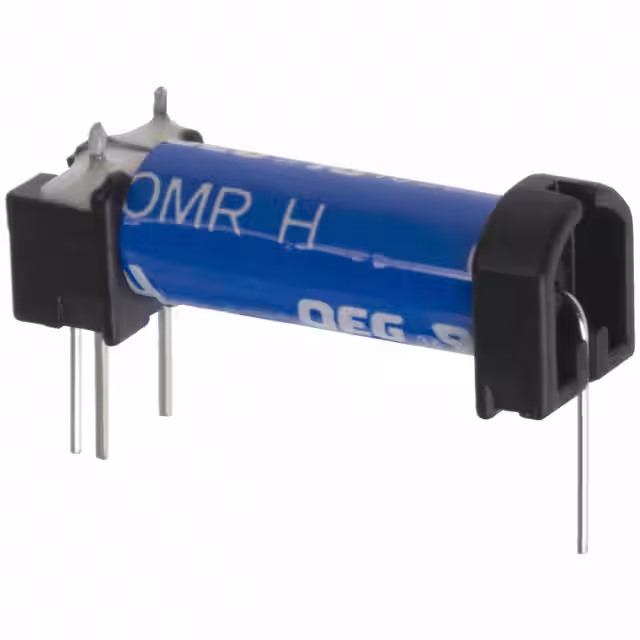

OMR-106H,V000RELAY REED SPST 500MA 6V TE Connectivity Potter & Brumfield Relays |
4,944 |
|
规格书 |
OMR, OEG | Bulk | Obsolete | Through Hole | 6VDC | SPST-NO (1 Form A) | 500 mA | 120VAC, 60VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 3.5 VDC | 0.5 VDC | 1 ms | 0.5 ms | -30°C ~ 70°C | Rhodium (Rh), Ruthenium (Ru) |
|

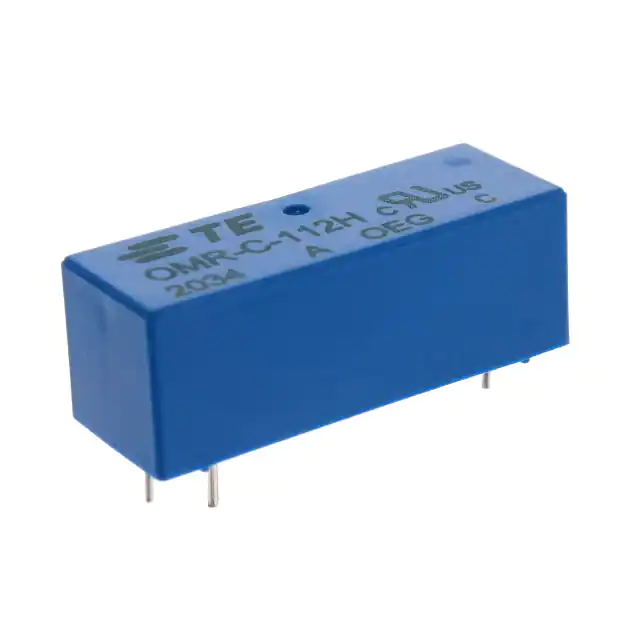

OMR-C-112H,V000RELAY REED SPST 500MA 12V TE Connectivity Potter & Brumfield Relays |
1,404 |
|
规格书 |
OMR, OEG | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 120VAC, 60VDC - Max | 11.4 mA | Non Latching | - | PC Pin | - | 8.4 VDC | 1.2 VDC | 1 ms | 0.5 ms | -30°C ~ 70°C | Rhodium (Rh), Ruthenium (Ru) |
|
|
OMR-112H,V000RELAY REED SPST 500MA 12V TE Connectivity Potter & Brumfield Relays |
2,040 |
|
规格书 |
OMR, OEG | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 120VAC, 60VDC - Max | 11.4 mA | Non Latching | - | PC Pin | - | 8.4 VDC | 1.2 VDC | 1 ms | 0.5 ms | -30°C ~ 70°C | Rhodium (Rh), Ruthenium (Ru) |
|
|
OMR-C-124F,000RELAY REED SPST 1A 24V TE Connectivity Potter & Brumfield Relays |
4,972 |
|
规格书 |
OMR, OEG | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 120VAC, 60VDC - Max | 11.5 mA | Non Latching | - | PC Pin | - | 16.8 VDC | 2.4 VDC | 1 ms | 0.5 ms | -30°C ~ 70°C | Rhodium (Rh), Ruthenium (Ru) |
|
|
V23100V4024A000RELAY REED SPST 500MA 24V TE Connectivity Potter & Brumfield Relays |
4,515 |
|
规格书 |
V23100-V4, AXICOM | Tube | Discontinued at Digi-Key | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 16.8 VDC | 3.6 VDC | 0.75 ms | 0.15 ms | -40°C ~ 85°C | Ruthenium (Ru) |
