购物车直流直流转换器（DC DC Converters）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

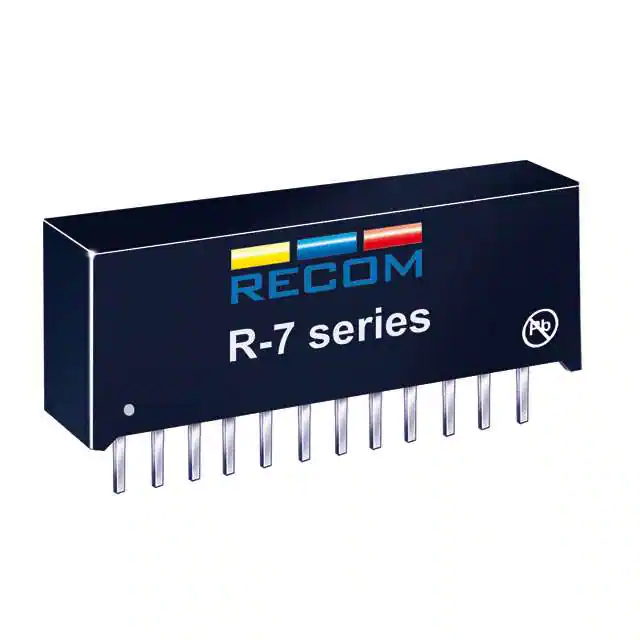

R-7312PDC DC CONVERTER 12V 36W |
1,435 |
|
规格书 |
INNOLINE R-7xxx | 12-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 15V | 28V | 12V | - | - | - | 3A | 36 W | - | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 97% | - | - | Through Hole | - | Enable, Active High | - | - |
|
|
R-7315PDC DC CONVERTER 15V 45W |
712 |
|
规格书 |
INNOLINE R-7xxx | 12-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 19V | 28V | 15V | - | - | - | 3A | 45 W | - | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 97% | - | - | Through Hole | - | Enable, Active High | - | - |
|
|
R-736.5PDC DC CONVERTER 6.5V 19.5W |
144 |
|
规格书 |
INNOLINE R-7xxx | 12-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 8.5V | 28V | 6.5V | - | - | - | 3A | 19.5 W | - | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 97% | - | - | Through Hole | - | Enable, Active High | - | - |
|
|
R-735.0PDC DC CONVERTER 5V 15W |
110 |
|
规格书 |
INNOLINE R-7xxx | 12-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 6.5V | 28V | 5V | - | - | - | 3.75A | 15 W | - | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 95% | - | - | Through Hole | - | Enable, Active High | - | - |
|
LTM8032IV#PBFDC DC CONVERTER 0.8-10V |
219 |
|
规格书 |
µModule® | 71-BLGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 3.6V | 36V | 0.8 ~ 10V | - | - | - | 2A | - | - | ITE (Commercial) | - | -40°C ~ 125°C | - | - | - | Surface Mount | 71-LGA (15x9) | - | - | - |
|
TIM 2-2412DC DC CONVERTER 12V 2W |
177 |
|
规格书 |
TIM 2 (2W) | 16-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 167mA | 2 W | 5 kV | Medical | Remote On/Off, OVP, SCP | -40°C ~ 95°C (With Derating) | 80% | - | - | Through Hole | - | - | - | - |
|
JCJ1024S05DC DC CONVERTER 5V 10W |
1,311 |
|
规格书 |
JCJ (10W) | 11-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 2A | 10 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP | -40°C ~ 100°C | 89% | - | - | Through Hole | - | - | - | 62368-1 |
|
TDN 5-2411WISMDC DC CONVERTER 5V 5W |
297 |
|
规格书 |
TDN 5WISM (5W) | 7-SMD Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 1A | 5 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 75°C (With Derating) | 80% | - | - | Surface Mount | - | - | UL | 60950-1; 62368-1 |
|
TEL 10-2423DC DC CONVERTER +/-15V 10W |
274 |
|
规格书 |
TEL 10 (10W) | 16-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 333mA, 333mA | 10 W | 1.8 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 85°C | 87% | - | - | Through Hole | - | - | cURus | - |
|
LTM8003HY#PBFDC DC CONVERTER 0.97-18V |
650 |
|
规格书 |
µModule® | 48-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 3.4V | 40V | 0.97 ~ 18V | - | - | - | 3.5A | - | - | ITE (Commercial) | - | -40°C ~ 125°C | - | - | - | Surface Mount | 48-BGA (9x6.25) | - | - | - |
|
TMR 3-7211WIRDC DC CONVERTER 5V 3W |
195 |
|
规格书 |
TMR 3WIR (3W) | 8-SIP Module | Tube | Active | Isolated Module | 1 | 43V | 160V | 5V | - | - | - | 600mA | 3 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, SCP | -40°C ~ 90°C (With Derating) | 80% | - | - | Through Hole | - | - | - | - |
|
PTH08T240WADDC DC CONVERTER 0.69-5.5V |
827 |
|
规格书 |
PTH08T240W | 11-DIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 14V | 0.69 ~ 5.5V | - | - | - | 10A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 95% | - | - | Through Hole | - | - | - | - |
|
PTH08T240WAZDC DC CONVERTER 0.69-5.5V |
547 |
|
规格书 |
PTH08T240W | 11-SMD Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 14V | 0.69 ~ 5.5V | - | - | - | 10A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | - | - | - | - |
|
LMZ23610TZ/NOPBDC DC CONVERTER 0.8-6V |
117 |
|
规格书 |
SIMPLE SWITCHER® | TO-PMOD-11, Power Module | Tube | Active | Non-Isolated PoL Module | 1 | 6V | 36V | 0.8 ~ 6V | - | - | - | 10A | - | - | ITE (Commercial) | - | -40°C ~ 125°C | 93% | - | - | Surface Mount | - | - | - | - |
|

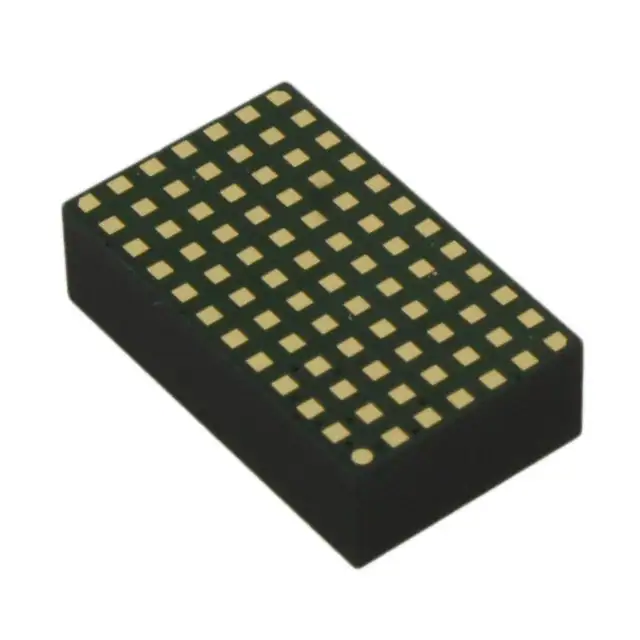

LTM4618IV#PBFDC DC CONVERTER 0.8-5V |
1,400 |
|
规格书 |
µModule® | 84-BLGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 26.5V | 0.8 ~ 5V | - | - | - | 6A | - | - | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 84-LGA (15x9) | - | - | - |
|

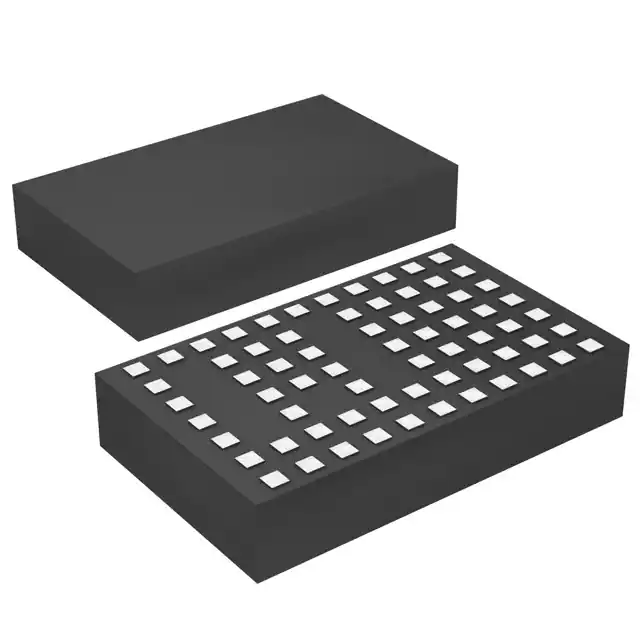

LTM4608AIV#PBFDC DC CONVERTER 0.6-5V |
1,118 |
|
规格书 |
µModule® | 68-BLGA, Module | Tray | Active | Non-Isolated PoL Module | 1 | 2.7V | 5.5V | 0.6 ~ 5V | - | - | - | 8A | - | - | ITE (Commercial) | - | -40°C ~ 125°C | 98% | - | - | Surface Mount | 68-LGA (15x9) | - | - | - |
|
VAWQ3-Q24-S5HDC DC CONVERTER 5V 3W |
2,434 |
|
规格书 |
VAWQ3 (3W) | 24-DIP Module, 15 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 600mA | 3 W | 3 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 72% | - | - | Through Hole | - | - | - | - |
|
UJT035A0X3-SRZDC DC CONVERTER 0.51-3.63V |
1,833 |
|
规格书 |
MicroDLynx™ II | 17-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module, Digital | 1 | 4.5V | 14.4V | 0.51 ~ 3.63V | - | - | - | 35A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 94.3% | - | - | Surface Mount | Module | Enable, Active Low | - | - |
.jpg)
|

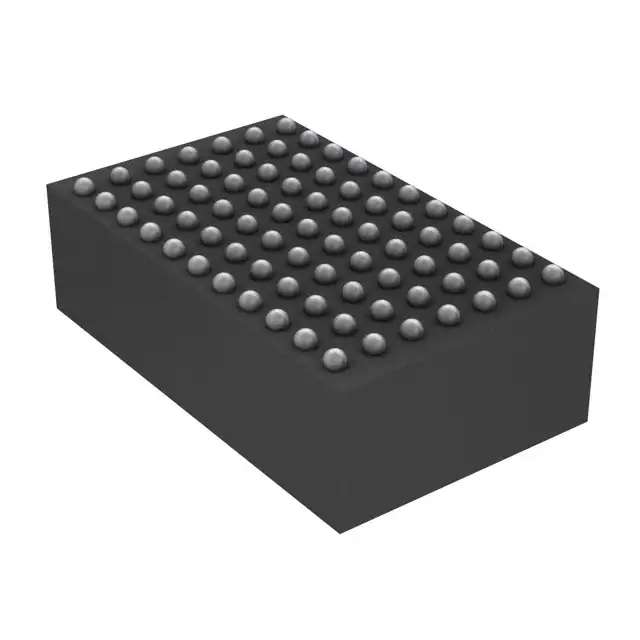

LTM4653EY#PBFDC DC CONVERTER 0.5-54.5V |
623 |
|
规格书 |
LTM®, uModule® | 77-BBGA | Tray | Active | Non-Isolated PoL Module | 1 | 3.1V | 58V | 0.5 ~ 54.5V | - | - | - | 4A | - | - | - | OCP, OTP, OVP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 77-BGA (15x9) | - | - | - |
|
THL 15-2412WIDC DC CONVERTER 12V 15W |
301 |
|
规格书 |
THL 15WI (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 1.25A | 15 W | 1.8 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 70°C | 88% | - | - | Through Hole | - | - | CB | - |
