购物车直流直流转换器（DC DC Converters）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

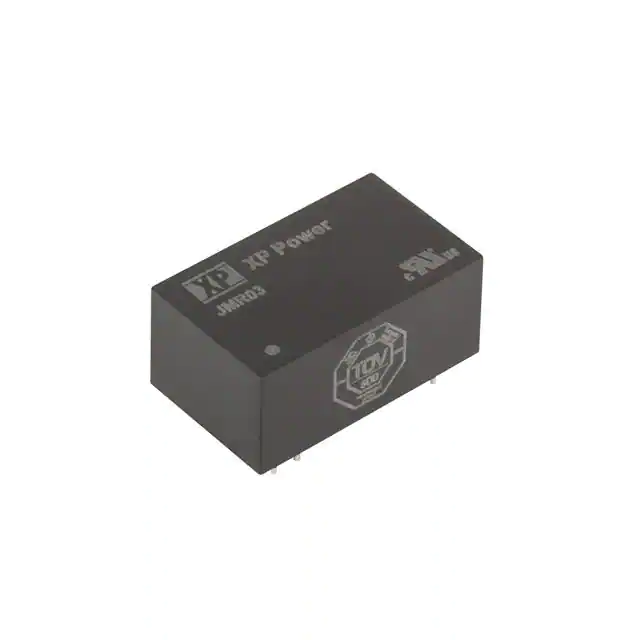

JMR0348S05DC/DC CONVERTER 5V 3.5W XP Power |
2,606 |
|
规格书 |
JMR03 (3.5W) | 16-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 700mA | 3.5 W | 5 kV | ITE (Commercial), Medical | Remote On/Off | -40°C ~ 90°C (With Derating) | 78% | - | - | Through Hole | - | Enable, Active High | CB, CE, CSA, TUV, UKCA, UL | 60601-1; 62368-1 |
|
|
JMR0348S12DC/DC CONVERTER 12V 3.5W XP Power |
2,397 |
|
规格书 |
JMR03 (3.5W) | 16-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 292mA | 3.5 W | 5 kV | ITE (Commercial), Medical | Remote On/Off | -40°C ~ 90°C (With Derating) | 82% | - | - | Through Hole | - | Enable, Active High | CB, CE, CSA, TUV, UKCA, UL | 60601-1; 62368-1 |
|
|
JMR0324S05DC/DC CONVERTER 5V 3.5W XP Power |
3,166 |
|
规格书 |
JMR03 (3.5W) | 16-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 700mA | 3.5 W | 5 kV | ITE (Commercial), Medical | Remote On/Off | -40°C ~ 90°C (With Derating) | 79% | - | - | Through Hole | - | Enable, Active High | CB, CE, CSA, TUV, UKCA, UL | 60601-1; 62368-1 |
|
|
JMR0348S15DC/DC CONVERTER 15V 3.5W XP Power |
3,641 |
|
规格书 |
JMR03 (3.5W) | 16-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 15V | - | - | - | 234mA | 3.5 W | 5 kV | ITE (Commercial), Medical | Remote On/Off | -40°C ~ 90°C (With Derating) | 82% | - | - | Through Hole | - | Enable, Active High | CB, CE, CSA, TUV, UKCA, UL | 60601-1; 62368-1 |
|
ISU0224D15-TRDC DC CONVERTER +/-15V 2W XP Power |
1,903 |
|
规格书 |
ISU02 (2W) | 14-SMD Module, 7 Leads | Tape & Reel (TR) | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 67mA, 67mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 95°C (With Derating) | 81% | - | - | Surface Mount | - | - | CE, UKCA, UL | 62368-1 |
|

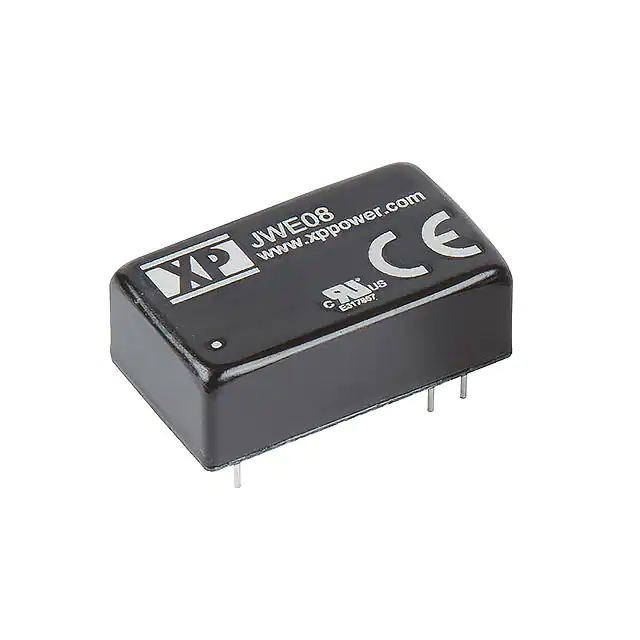

JWE0824S12DC DC CONVERTER 12V 8W XP Power |
4,510 |
|
规格书 |
JWE08 (8W) | 16-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 665mA | 8 W | 1.5 kV | ITE (Commercial) | OCP, SCP | - | 85% | - | - | Through Hole | 16-DIP | - | - | 62368-1 |
|
|
JWE0824S15DC DC CONVERTER 15V 8W XP Power |
4,356 |
|
规格书 |
JWE08 (8W) | 16-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 535mA | 8 W | 1.5 kV | ITE (Commercial) | OCP, SCP | - | 85% | - | - | Through Hole | 16-DIP | - | - | 62368-1 |
|
|
JWE0848S3V3DC DC CONVERTER 3.3V 5W XP Power |
3,248 |
|
规格书 |
JWE08 (8W) | 16-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 3.3V | - | - | - | 1.6A | 5 W | 1.5 kV | ITE (Commercial) | OCP, SCP | - | 78% | - | - | Through Hole | 16-DIP | - | - | 62368-1 |
|
|
JWE0848S05DC DC CONVERTER 5V 8W XP Power |
2,173 |
|
规格书 |
JWE08 (8W) | 16-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 1.6A | 8 W | 1.5 kV | ITE (Commercial) | OCP, SCP | - | 81% | - | - | Through Hole | 16-DIP | - | - | 62368-1 |
|
|
JWE0848S12DC DC CONVERTER 12V 8W XP Power |
4,120 |
|
规格书 |
JWE08 (8W) | 16-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 665mA | 8 W | 1.5 kV | ITE (Commercial) | OCP, SCP | - | 85% | - | - | Through Hole | 16-DIP | - | - | 62368-1 |
